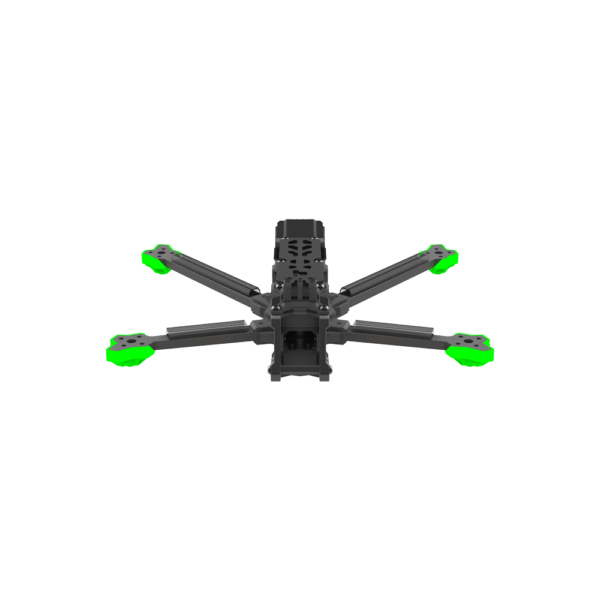

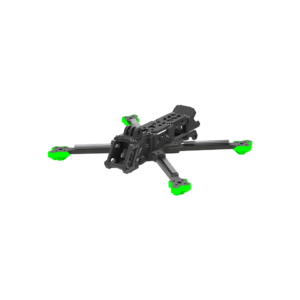

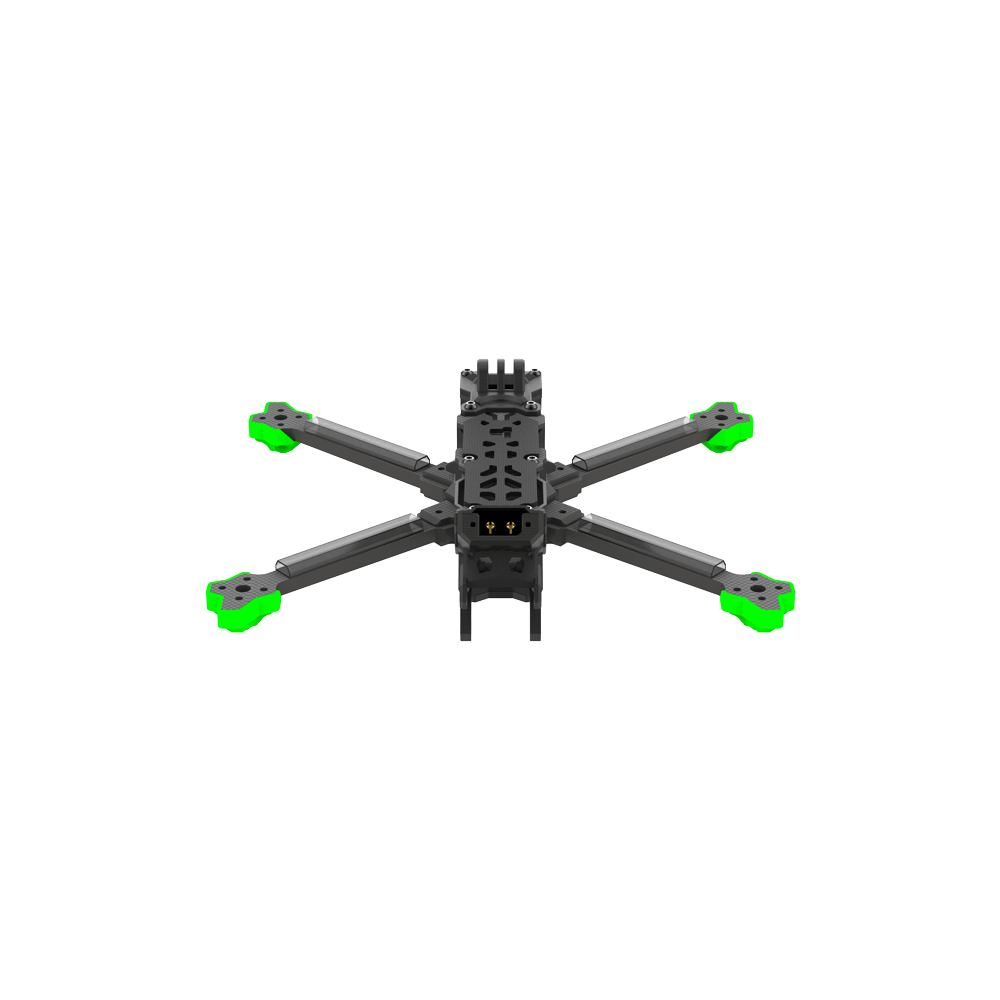

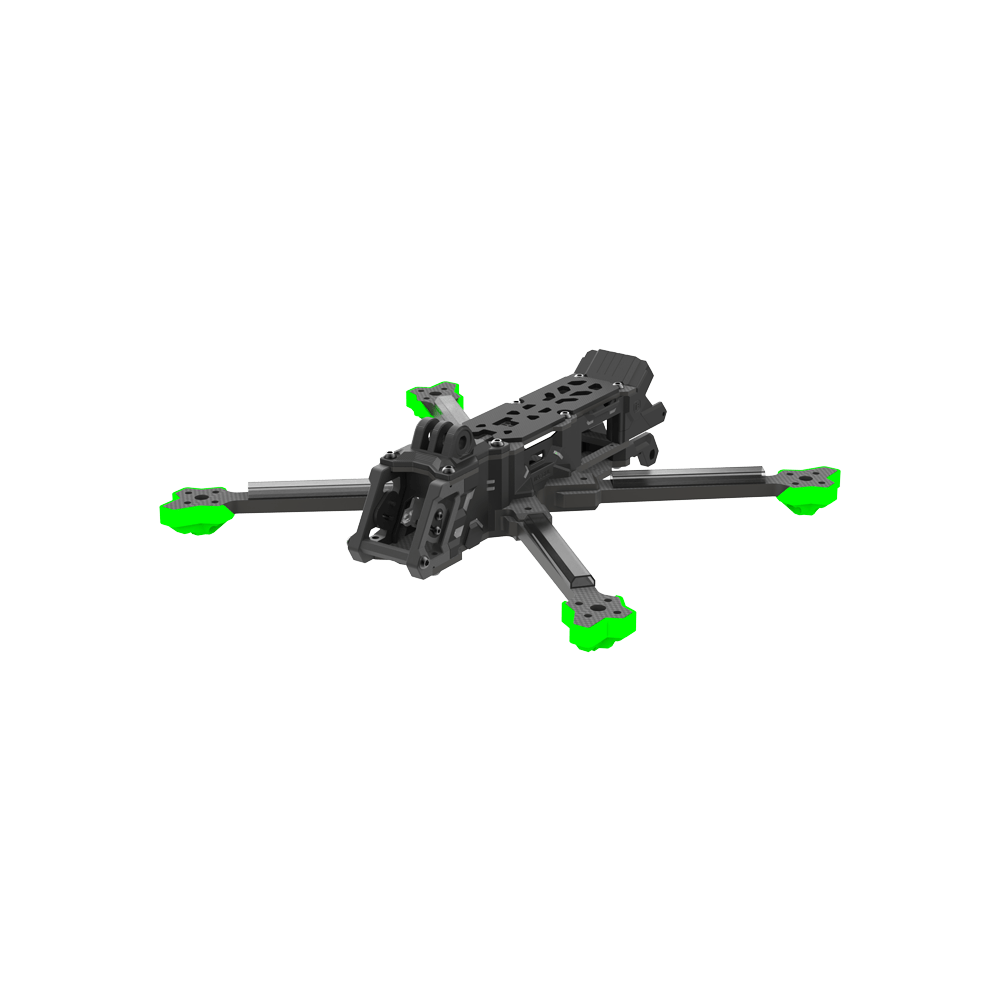

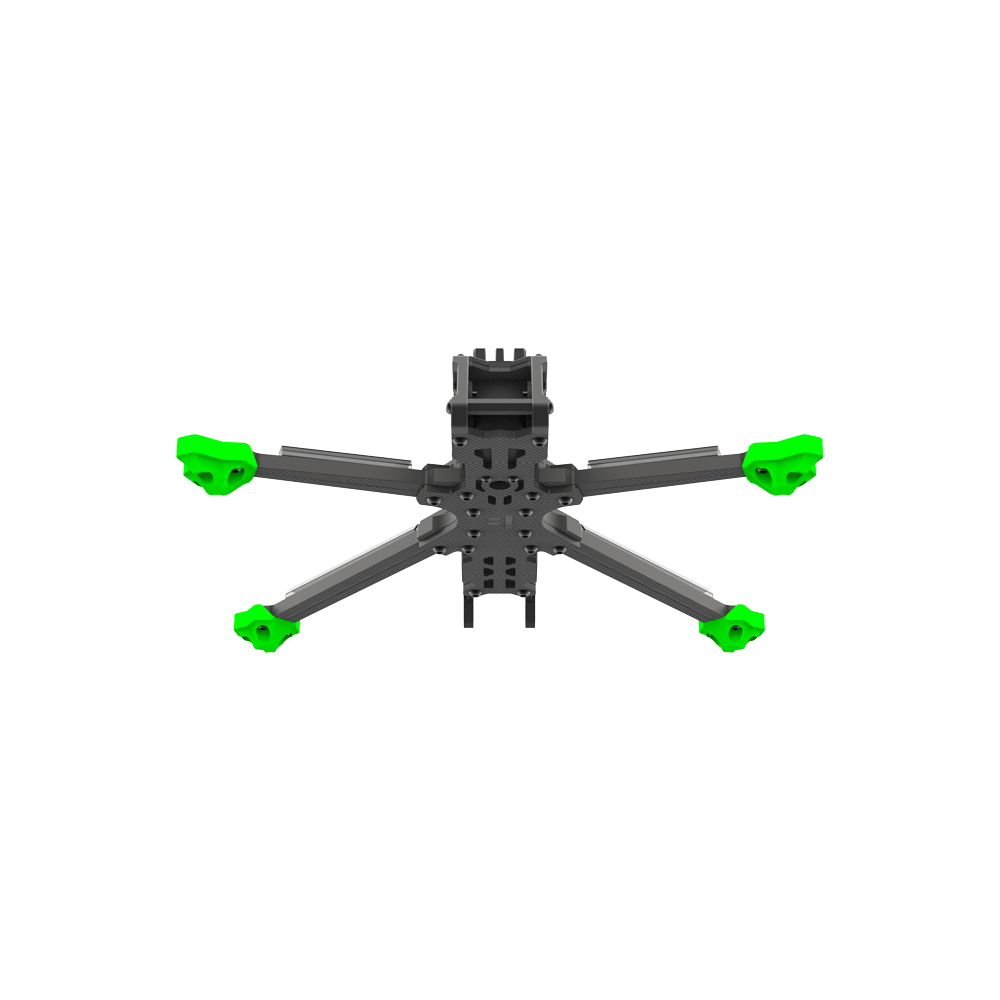

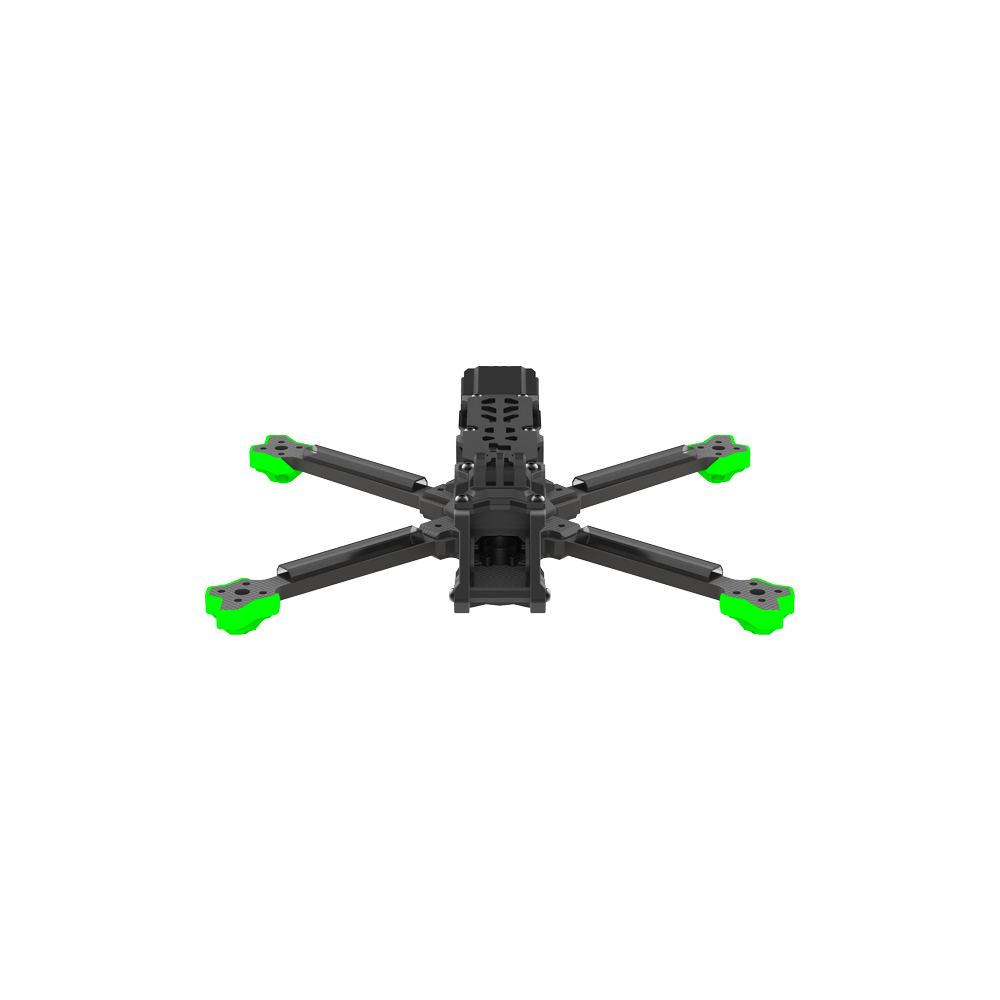

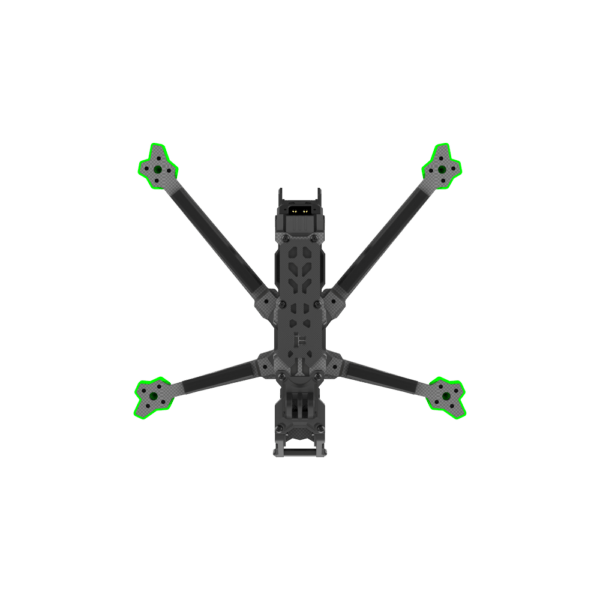

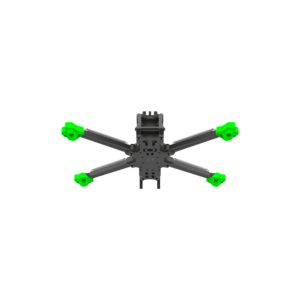

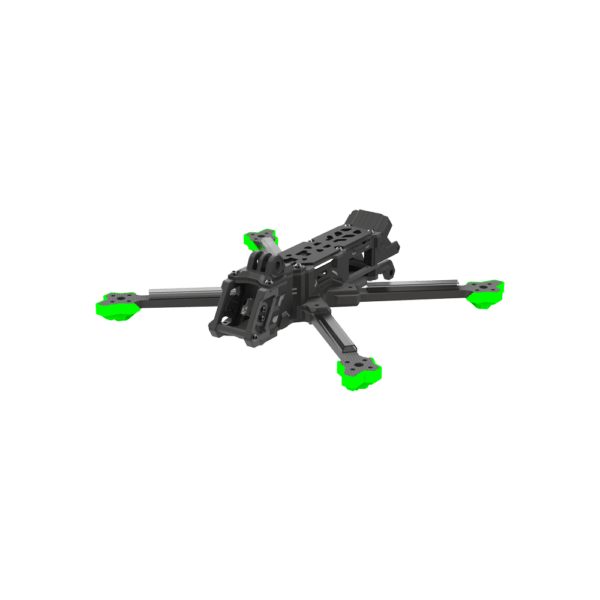

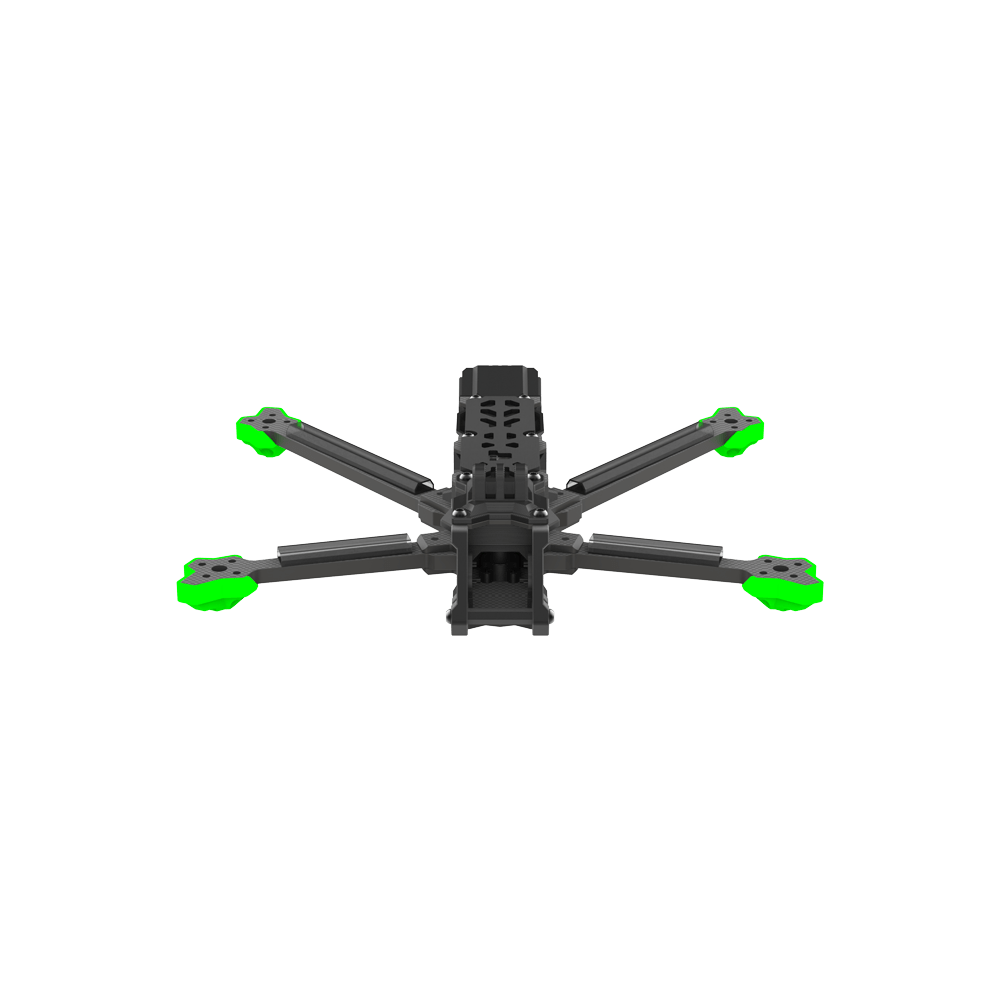

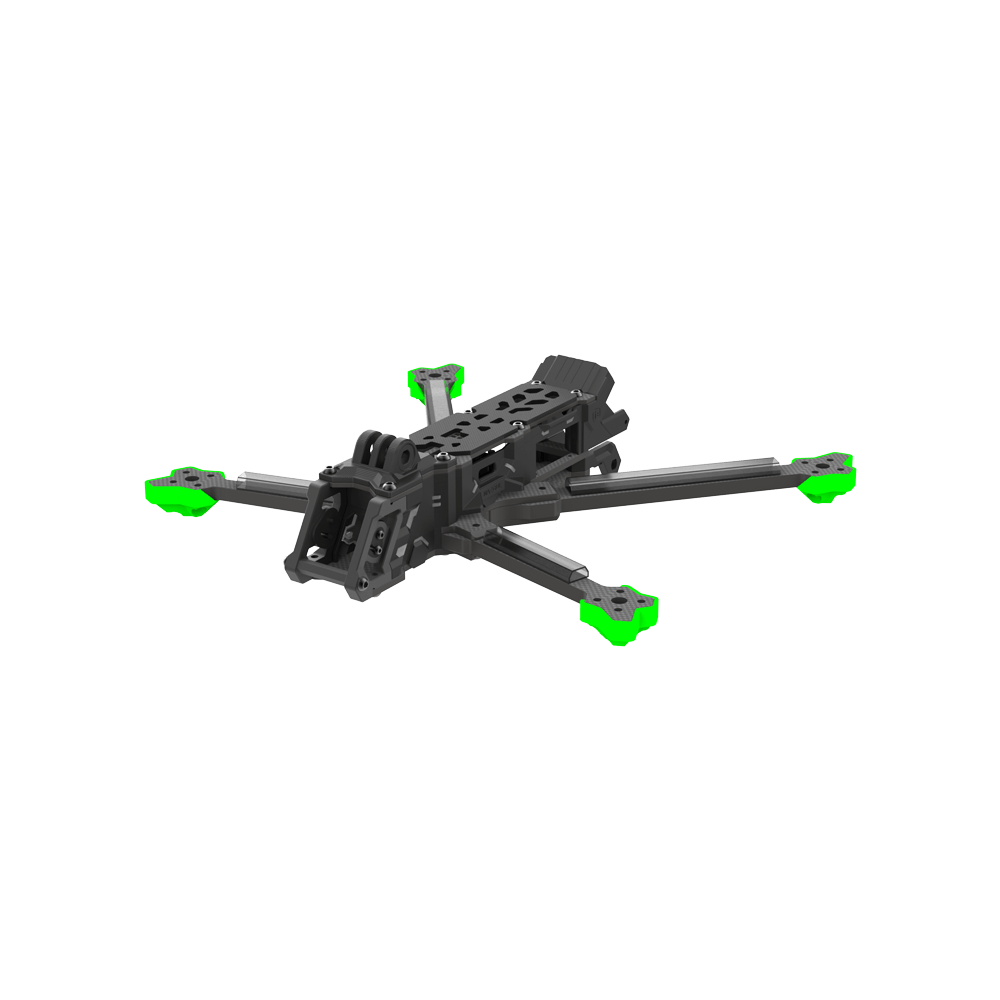

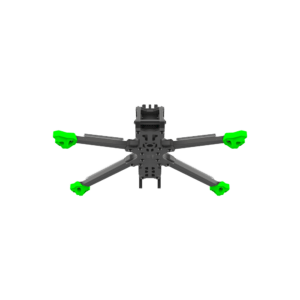

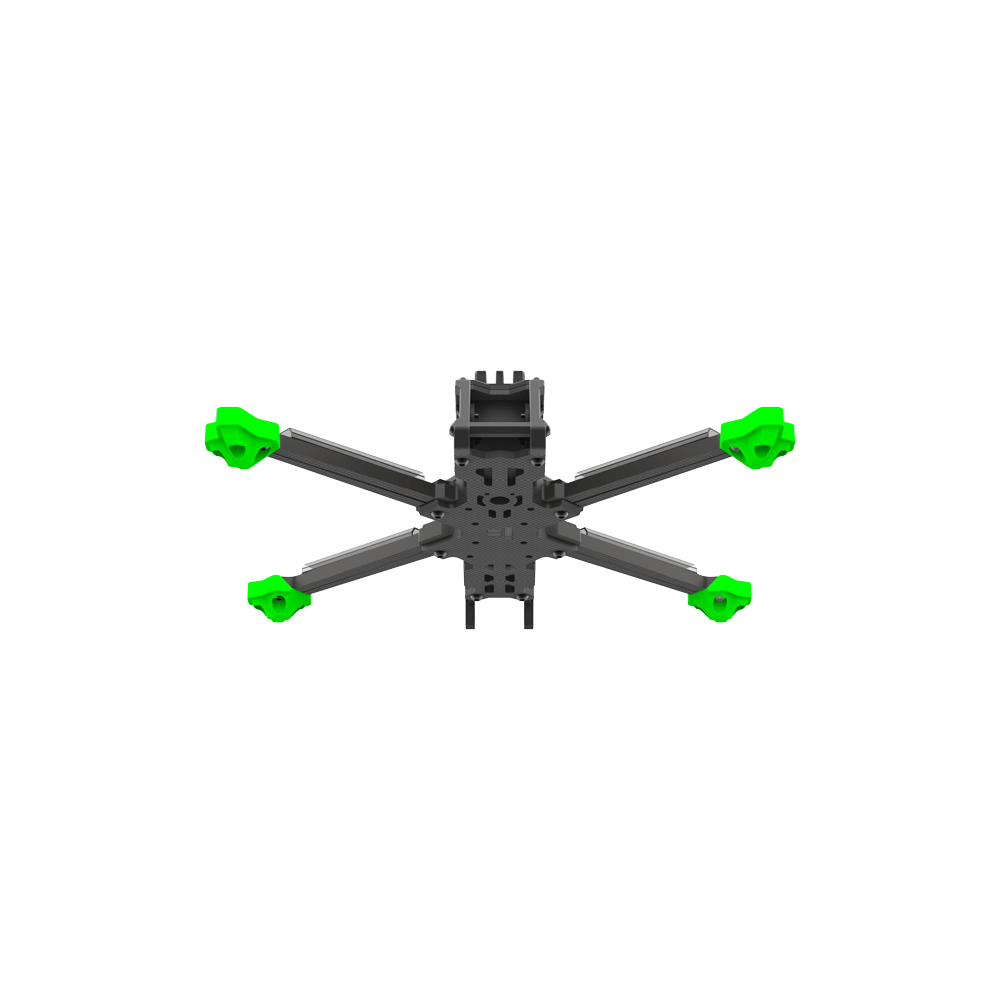

iFlight Nazgul Evoque F6X V2 Frame Kit

Nazgul Evoque F6X V2 Frame Kit

Check Out Our Other iFlight Products!

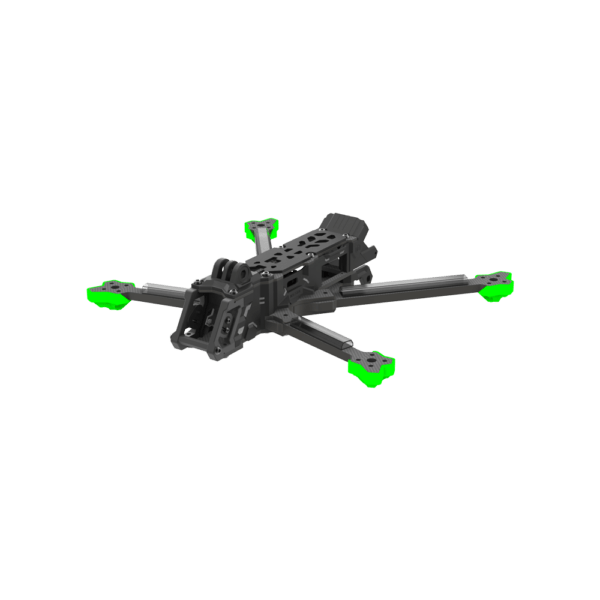

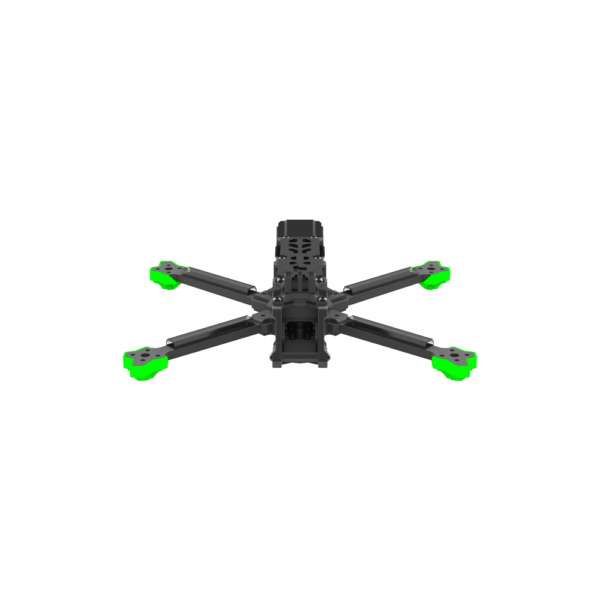

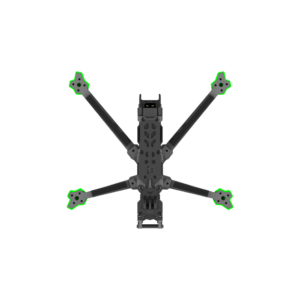

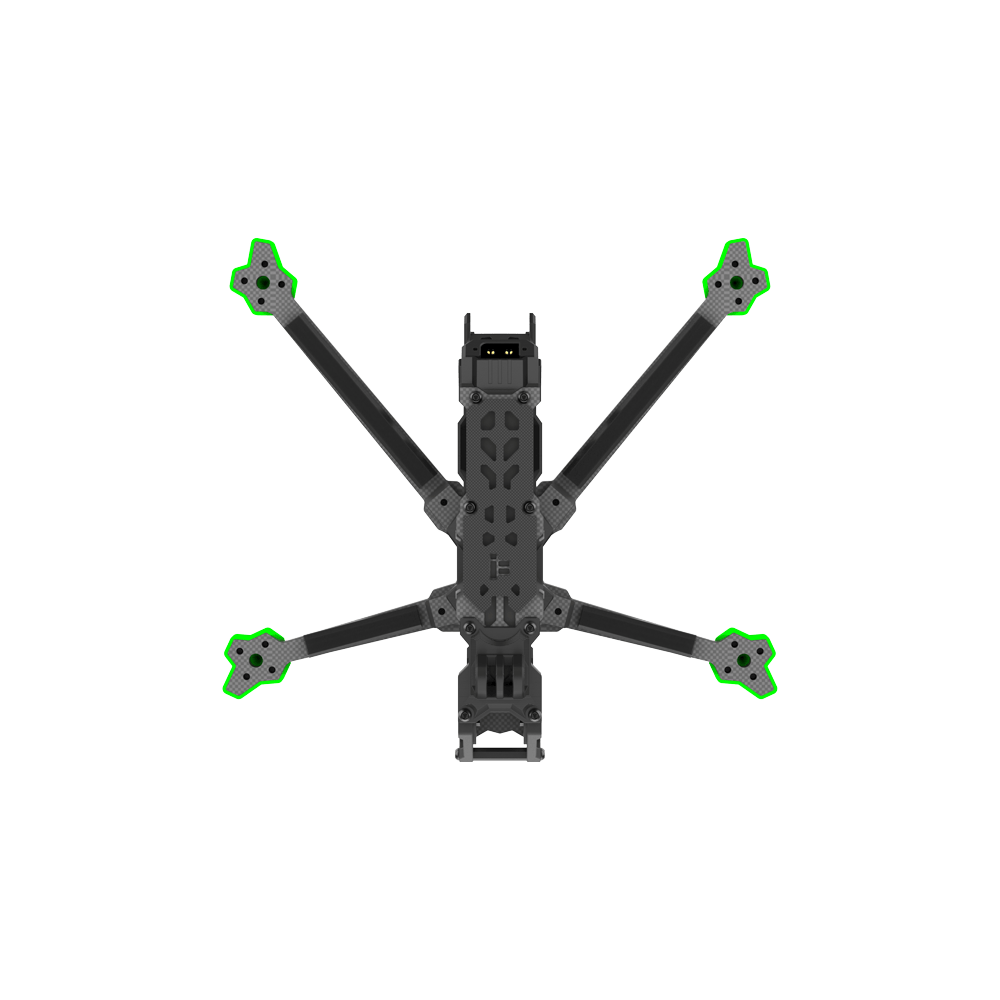

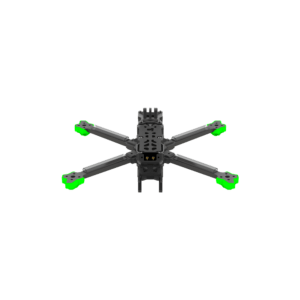

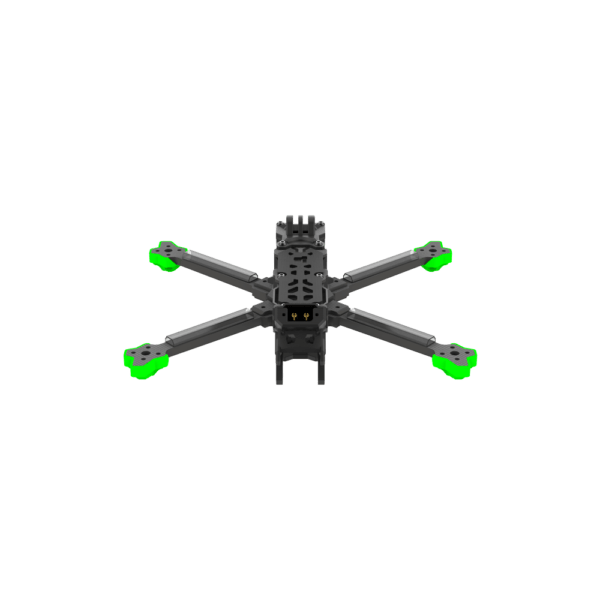

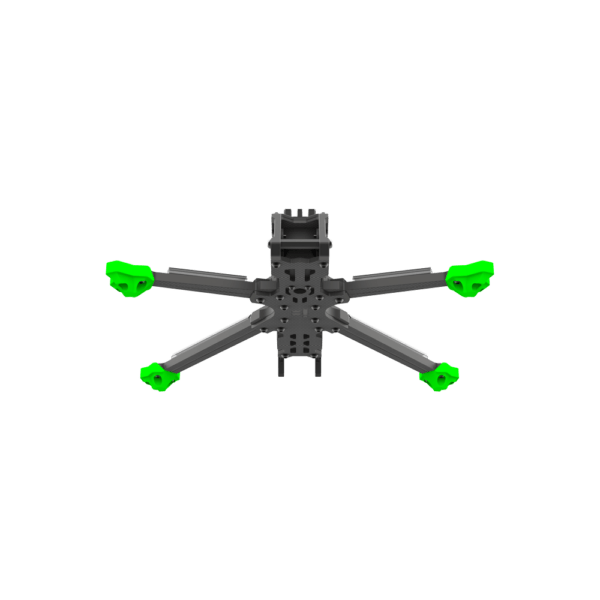

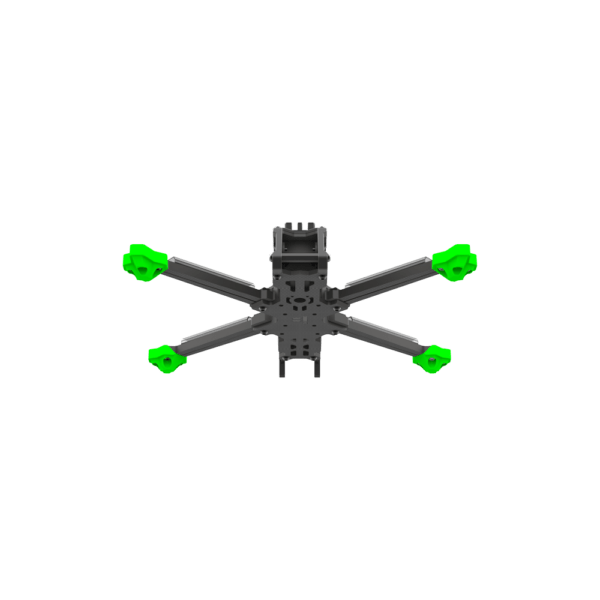

Build a cutting-edge 6-inch freestyle or long-range FPV drone with the iFlight Nazgul Evoque F6X V2 Frame Kit. The V2 is a significant evolution of the acclaimed Nazgul frame, re-engineered from the ground up for a perfect, seamless integration with the DJI O3 HD Air Unit. Featuring a robust Squashed-X geometry, maximum protection, and a host of thoughtful upgrades, this is the ultimate platform for your next-generation digital FPV build.

Optimized for the DJI O3 Air Unit, the Evoque F6 V2 is purpose-built to be the perfect home for the DJI O3 system. The upgrade includes a specially designed aluminum heatsink that makes direct contact with the O3 Air Unit for optimal heat dissipation. A new camera mount provides a wider field of view and includes TPU damping inserts for jello-free footage, while redesigned side panels and a dual antenna mount ensure a clean, secure, and professional-looking installation.

Maximum Protection & Durability This frame is designed to be incredibly tough. It features robust 6 mm-thick carbon fiber arms and thick 3mm top and bottom plates to withstand hard crashes. The kit also includes a full set of TPU parts, including front and rear bumpers and arm guards, providing 360-degree protection for the carbon and your electronic components.

Key Features:

• Optimized for DJI O3: Features a custom heatsink, camera mount, side panels, and dual antenna mount for a perfect fit with the DJI O3 Air Unit.
• Squashed-X Geometry: A popular freestyle layout that provides a balanced and responsive flight feel.
• Maximum Protection: Robust 6mm arms, 3mm plates, and a full set of included TPU guards and bumpers make this frame incredibly durable.
• Versatile Component Mounting: Accommodates 30.5×30.5mm and 20x20mm flight stacks for wide compatibility.
• Comprehensive Kit: Includes all necessary carbon, hardware, TPU parts, and O3-specific antenna pigtails to complete your build.

Upgrading Your Nazgul F6 V1? If you want to upgrade your F6 V1 frame to use the DJI O3 Air Unit with this V2 kit, please be aware of the following changes:

• The FC to VTX connector is different; you may need to create a custom cable.
• The receiver position has changed, and the V2 requires longer 220mm antennas (not included) compared to the V1’s 75mm.
• The XT60 plug has been changed; you will need to desolder the V1 plug and install the V2 version (included in the frame kit).

Specifications (Squashed X Version)

• Product Name: Evoque F6X V2 Frame Kit
• Frame Wheelbase: $255\text{mm}$
• Frame Dimension (L×W×H): $196\times 164\times 36\text{mm}$
• Arm Thickness: $6\text{mm}$
• Bottom Plate Thickness: $3\text{mm}$
• Top Plate Thickness: $2\text{mm}$
• Upper Plate Thickness: $3\text{mm}$
• Max Flight Stack Height: $22\text{mm}$
• FC Mounting: $20\text{x}20\text{mm}$ / $30.5\text{x}30.5\text{mm}$
• Motor Mounting: $16\text{x}16\text{mm}$
• VTX Mounting: $25.5\text{x}25.5\text{mm}$
• Weight: $252\text{g}$

Package included

• 1 x Evoque F6 V2 Frame Kit (Squashed X)
• 1 x O3 Air Unit Heatsink
• 2 x O3 IPEX to RP-SMA Antenna Pigtails
• 1 x O3 Dual Antenna TPU Mount
• 1 x GoPro TPU Base Mount
• 1 x Screw Bag
• 4 x TPU Arm Guards
• 1 x Front Bumper TPU
• 1 x Rear Bumper TPU
• 2 x Anti-slip Battery Pads
• 3 x Battery Straps ($20\text{x}250\text{mm}$)
