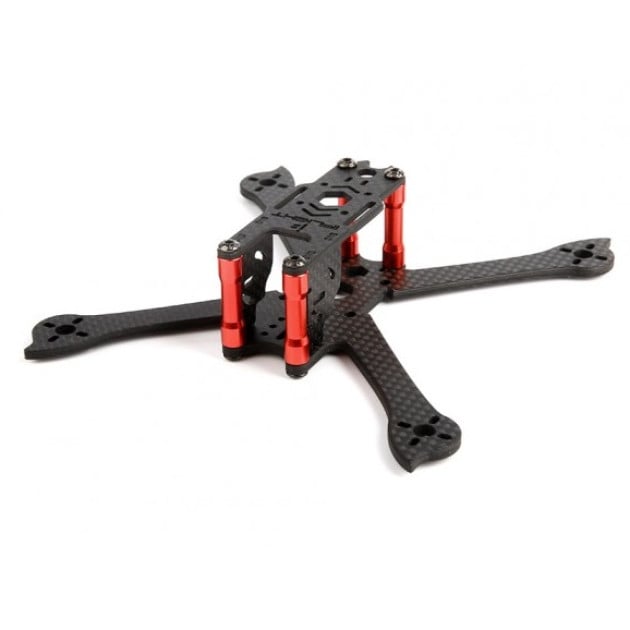

Build an incredibly agile and lightweight 3-inch FPV drone with the iFlight iX3 Lite V3 racing frame. Engineered for speed and precision, this frame is the perfect platform for navigating tight racetracks or for dynamic park flying. Its ultralight design and compact form factor allow for explosive acceleration and incredibly responsive handling.

Agile & Lightweight by Design

The iX3 Lite V3 features a compact 145mm wheelbase in a classic X-shape geometry, providing a balanced and direct flight feel that racers and freestyle pilots love. The unibody construction, where the arms and 3mm bottom plate are cut from a single piece of 3K carbon fiber, creates a stiff and rigid core. This rigidity translates to better flight performance, less vibration, and a more connected feeling on the sticks.

Weighing only approximately 38.5 grams, the iX3 Lite V3 is designed to be as light as possible, giving you a competitive edge. It’s built to accommodate modern, lightweight 20x20mm electronics stacks and is compatible with a wide range of 11XX, 13XX, and 14XX motors, making it a versatile choice for your next high-performance 3-inch build.

Key Features:

• Ultralight Construction: Weighing only ~38.5g, this frame is built for maximum agility and speed.
• Compact 145mm X-Frame: Provides a responsive, balanced, and nimble flight feel perfect for racing.
• 3mm Unibody Main Plate: Ensures a stiff and rigid core, which improves handling and flight performance.
• 20x20mm Stack Mount: Designed for modern, compact, and lightweight flight controllers and ESCs.
• Versatile Motor Support: Accommodates a wide range of popular motors in the 11XX, 13XX, and 14XX series.
• Micro Camera Compatible: The side plates are designed to mount popular 19mm micro FPV cameras.

Specifications

• Brand: iFlight
• Model: iX3 Lite V3
• Wheelbase: 145mm
• Bottom Plate Thickness: 3mm (Unibody)
• Top Plate Thickness: 2mm
• Side Plate Thickness: 1.5mm
• FC/ESC Mounting: 20x20mm
• Motor Compatibility: 11XX, 13XX, 14XX series
• Camera Compatibility: 19mm Micro Cameras
• Weight: approx. 38.5g

Package Includes

• 1x iFlight iX3 Lite V3 Frame Kit
• 1x Hardware and Standoff Set
• 1x Battery Strap
