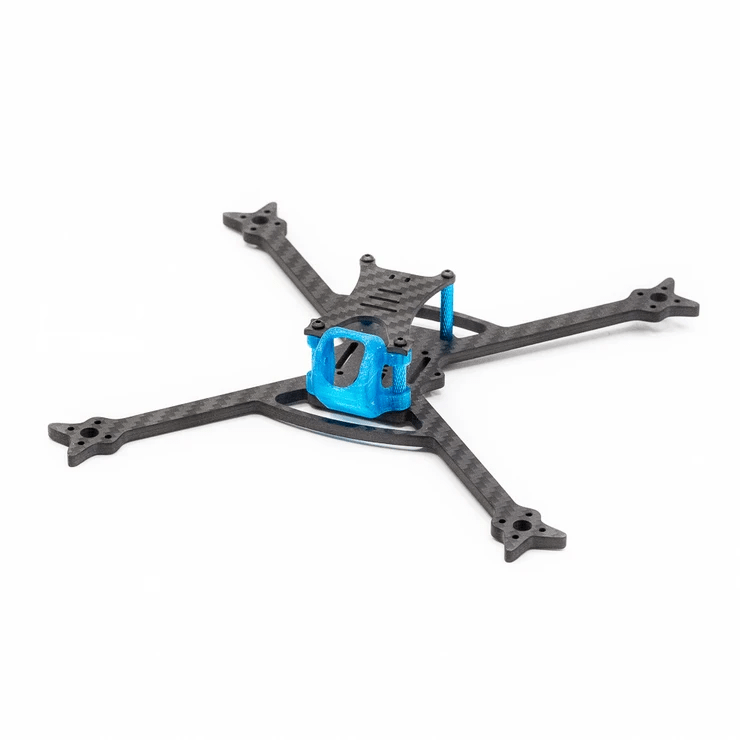

Hyperlite UL5 V1.1 Frame – 5″ Lightweight FPV Racing Frame
Make sure to check out all of our Pyrodrone Products!
The brace design and 4mm carbon fiber construction of the UL5 result in a super rigid unibody plate that can withstand rigorous use. It is compatible with both Whoop-style boards and 20*20 stacks and has an extended body design to accommodate a top plate or racing-style canopies with standoffs and turtle fin. Additionally, it is compatible with all current Whoop/Toothpick-style pods.
In the updated version, the V1.1, the motor mounting pattern has been changed to 12×12, which is more durable than the 9mm-12mm used in the V1. The UL5 can accept up to 5.1″ props and comes with a TPU FPV camera mount that is designed to hold Nano 14mm Cameras. The V1.1 also now comes with a turtle-mode TPU flipstick.
Specifications:
- Thickness: 4mm Carbon fiber unibody
- Weight With Top Plate and Hardware: 30.5 Grams
- Unibody Plate Weight: 25 Grams
- Dimensions: 190x190mm Diagonally True-X geometry
Included in the package:
- 1 x Hyperlite UL5 4mm Carbon Fiber Unibody Plate
- 1 x Hyperlite UL5 2mm Carbon Fiber Top Plate
- 4 x M2*20mm Light Blue Anodized Stand Offs
- 4 x M2*25mm Orange Anodized Stand Offs
- 1 x TPU Nano FPV Camera Mount
- 1 x Turtle mode TPU Flipstick
- 8 x M2*8mm Screws
- 5 x M2*20mm Screws
- 5 x M2*25mm Screws
- 5 x M2 Anodized Locknuts
- 1 x XT30 Pigtail
- 1 x 16V 100uF Capacitor
