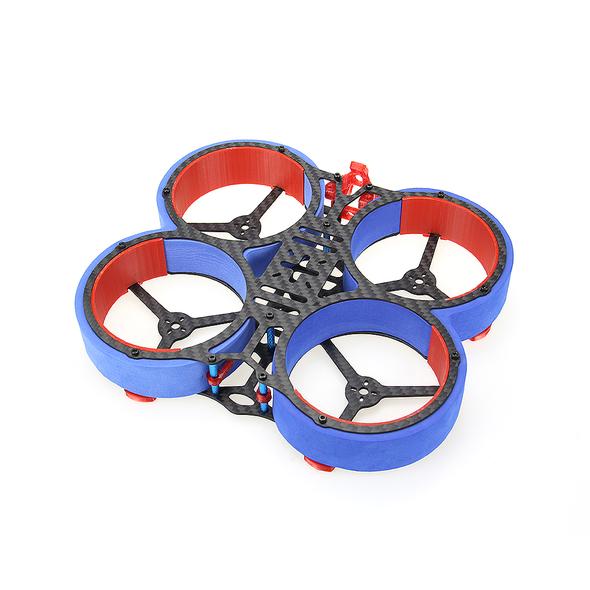

HGLRC Veyron 3 Cinewhoop Frame Kit
Check out all of our HGLRC Products!
If you would like to buy this already built
Description:
Safety always comes first.
Are you still worried that there is no way to fly around the crowd?
Are you still worried that the flight time is not long enough?
If you want a 4K image with a GoPro camera and an HD digital video transmitter, Veyron will be your best choice.
With the new bumper method, EVA pipe, and 136mm wheelbase, Veyron will become the safest and lightest flying helper.
Note:
The new Veyron will come with a lower-angle (10-degree) GoPro Mount.
Features:
1. The battery can be placed vertically and horizontally to adjust the center of gravity better.
2. Strong protection with EVA protective cover.

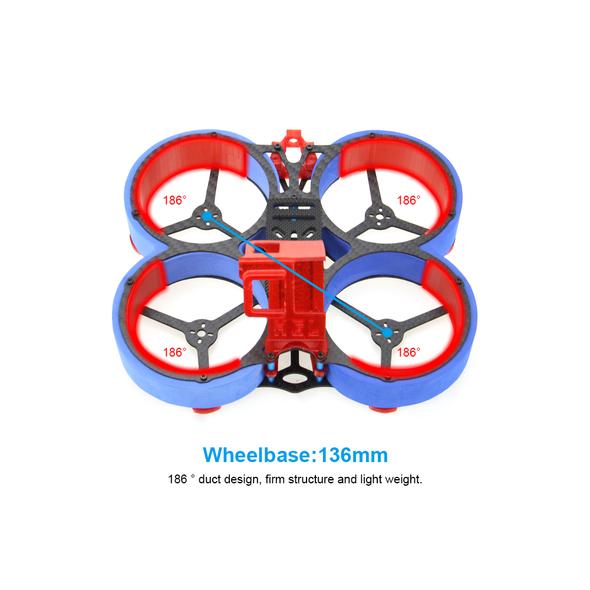

3.186 ° duct design, firm structure, and light weight.
4. One-piece top plate and bottom plate.
5. Work well with HD digital video transmitters and GoPro cameras.

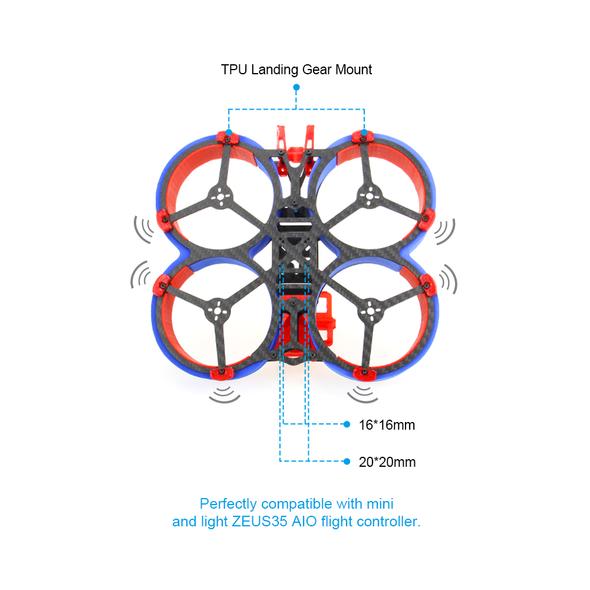

6. Perfectly compatible with mini and light ZEUS35 AIO flight controller.

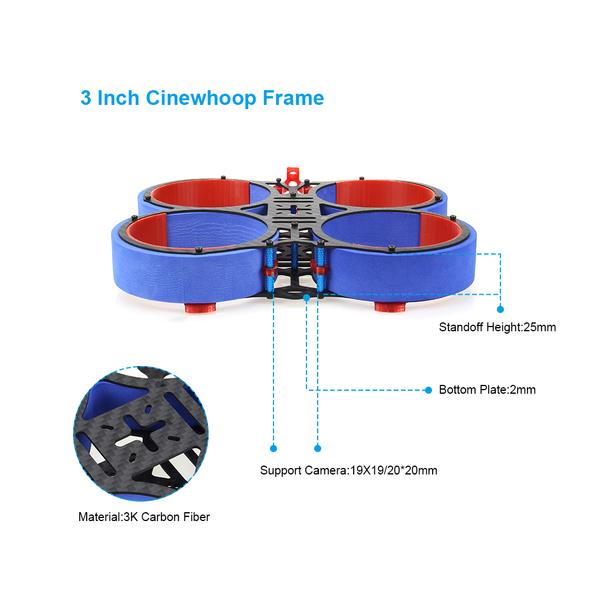

Product Specifications：
Model: Veyron
Type:3 Inch Cinewhoop Frame
Material:3K Carbon Fiber
Wheelbase:136mm
Bottom Plate:2mm
Standoff Height:25mm
Flight Control Installation Holes:16X16/20X20mm
Support Camera:19X19/20*20 mm

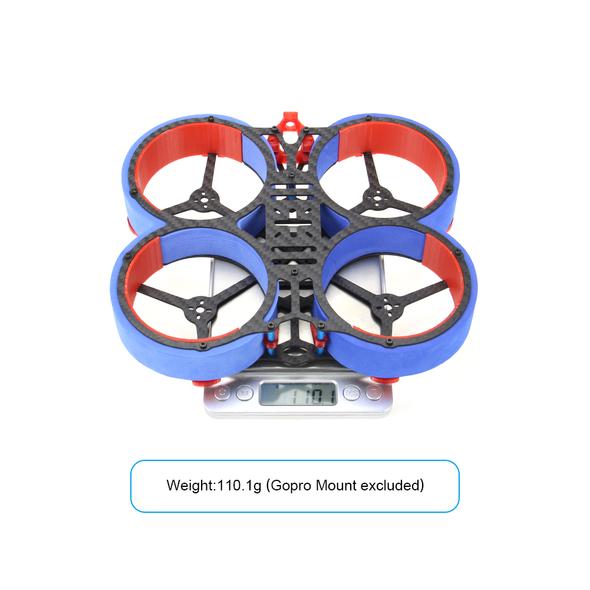

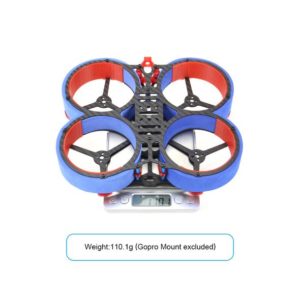

Weight:110.1g（Gopro Mount excluded）
Package included:
1 x 1.5mm Top Plate
1 x 2.0mm Bottom Plate
6 x M2*25mm Blue Aluminum Column
8 x M2*20mm Blue Aluminum Column
4 x Round head screw M2*4
14 x Round head screw M2*7
18 x Round head screw M2*9
5 x Round head screw M2*25
5 x Damping rubber column M2X6
5 x M2 black nut
2 x EVA Pipeline
2 x Battery cable tie
1 x Battery Anti-slip tape
2 x TPU Camera Side Plate Soft Mount
1 x TPU Antenna Holder for DJI Antenna
1 x TPU GoPro Camera Mount
1 x TPU TBS RX Antenna Mount
8 x TPU Landing Gear Mount
3 x Antenna Protection Tube
Recommended Parts: ( Not Included )
Flight Controller:ZEUS35/F4/F7 FC
Motor:15xx/14xx/13xx/
ESC:28A-35A
Camera:19×19/20x20mm size
Propeller:3 Inch
Battery: 4S(800mAh ~ 1500mAh)
6S(600mAh ~ 1300mAh)
