HGLRC Sector30CR 3 inches FPV Ultralight Cinewhoop / Freestyle Frame

Check out all of our HGLRC Products!

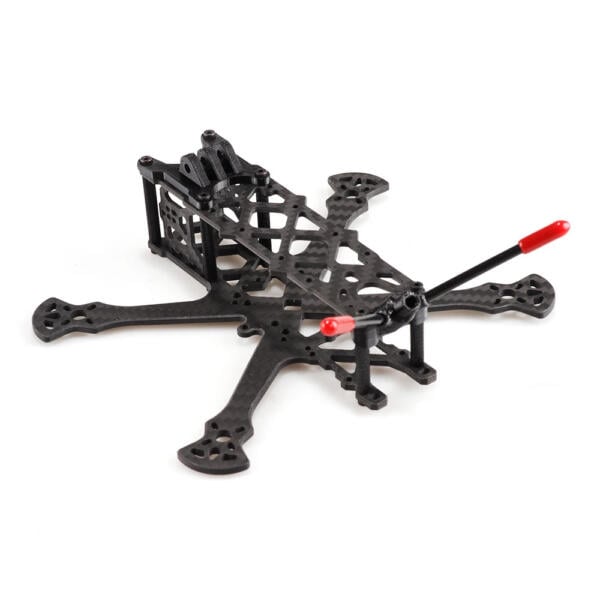

HGLRC Sector30CR 3 inches Freestyle FPV Frame Ultralight Racing Drone

Features:
*Supports (20×20-25.5×25.5) mounting holes
*Supports both AIO/stack installing at the same time, is ultra-lightweight, and has a super long flight time.

Brand name: HGLRC
Model:Sector30CR Freestyle Frame
Material:3K carbon fiber
Type:3-inch Frame
Wheelbase:150mm
Size:147 * 130mm
Top plate:2mm
bottom plate:3mm
Space:25mm
FC mounting hole:20x20mm/25.5×25.5mm
Support camera:19*19mm

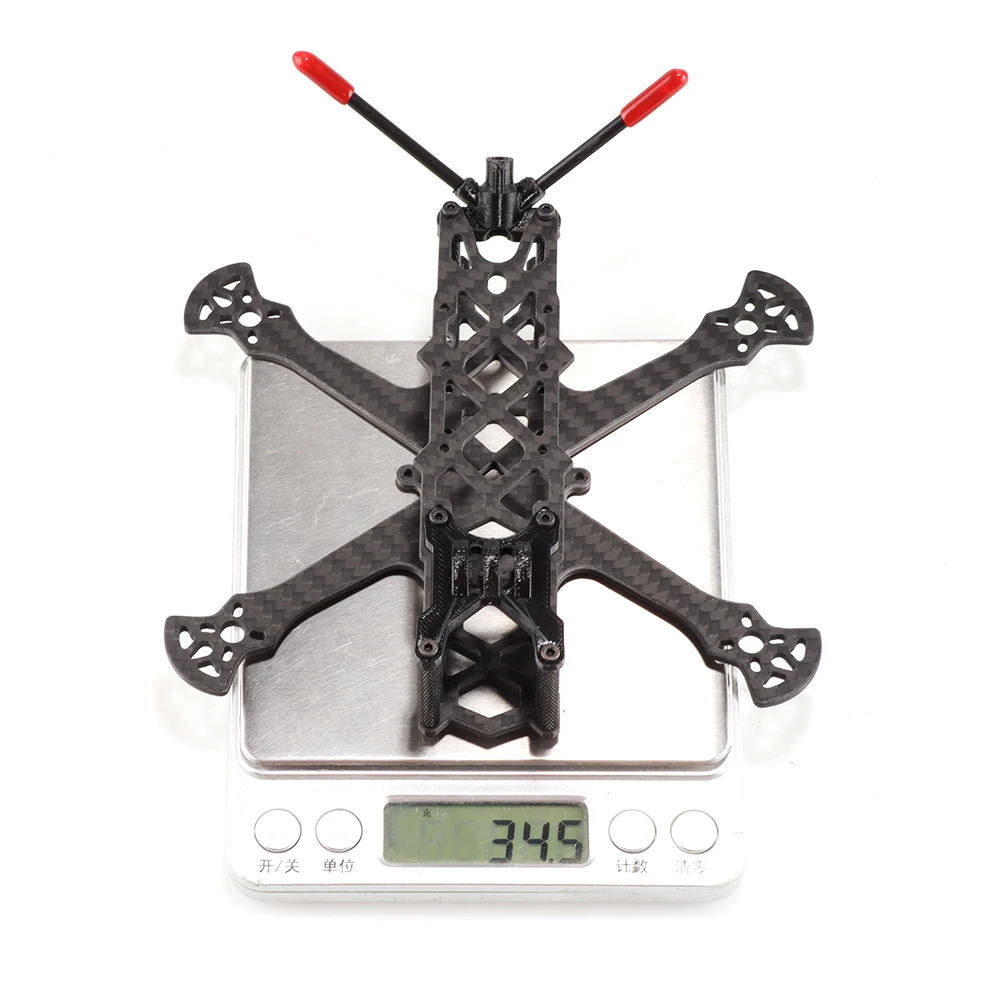

Weight:42.2g(Without propeller guards)

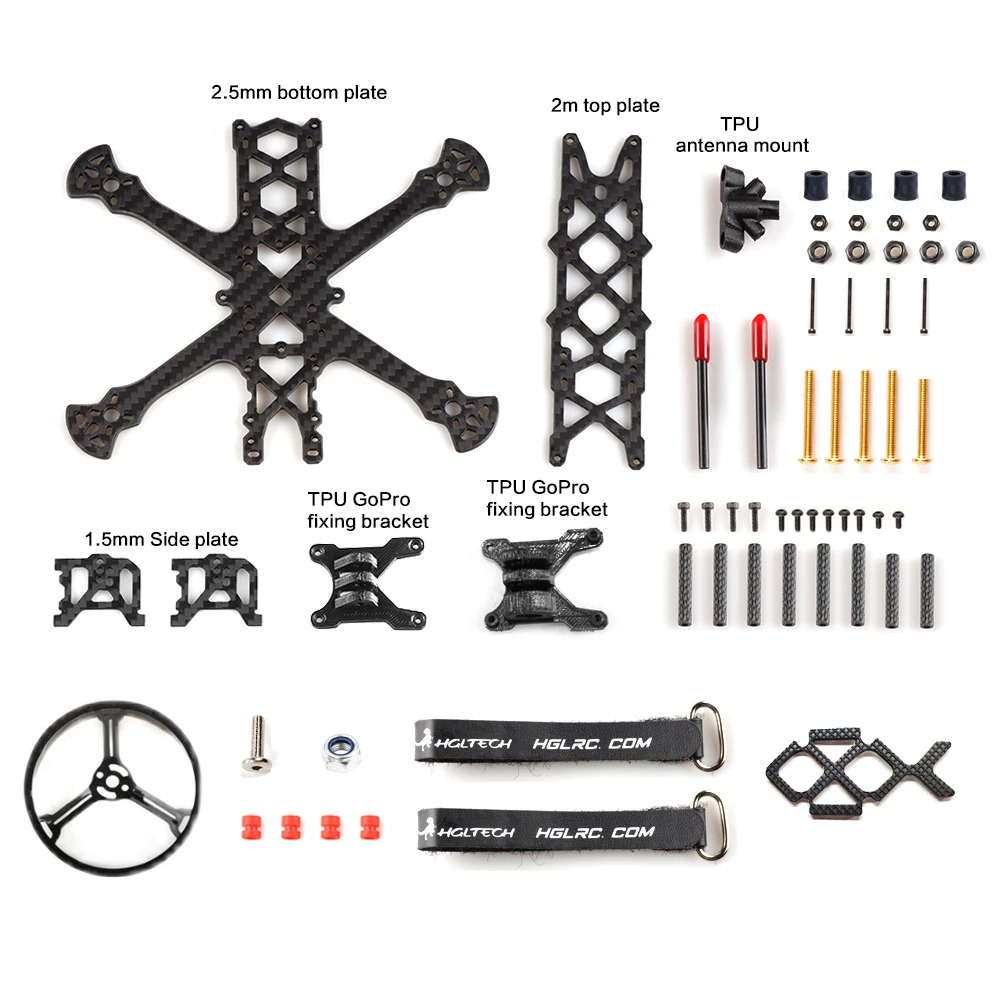

Shipping list:

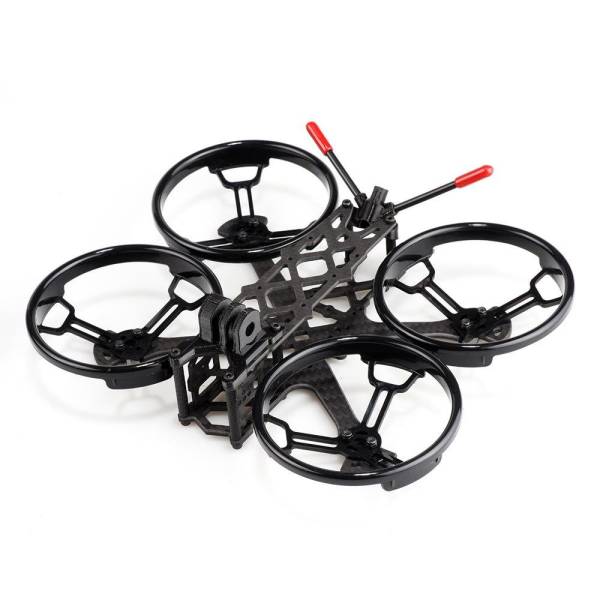

4 x 3 Inch Propeller Protective Guard
1x 2mm top plate
1x 3mm bottom plate
2x 1.5mm camera side plate
6x M2*25mm black mesh aluminum columns
2x M2*23mm black mesh aluminum columns
1x round head screw M5*20
4x round head screws M3*25
1x round head screw M3*20
4x round head screws M2*20
8x cup head screws M2*7
6x round head screws M2*6
2x round head screws M2*4
1x M5 self-locking nut
5x M3 self-locking nuts
4x M2 self-locking nuts
4x M3*8 shock-absorbing balls
4x M2*4 shock absorption columns
2x battery straps 15x200mm
1x battery anti-slip pad
1x Black TPU GoPro fixing mount
1x Black TPU Naked GoPro fixing mount
1x TPU antenna base

Recommended parts:(not included)
Flight control:Zeus25/F722 MINI
Motor:14XX/16XX/18XX
ESC: Zeus25A-40A
Camera:19X19mm
Propeller:3inches
Battery:4S 450mAh 650mAh
