HGLRC Sector V2 HD 5in Freestyle Frame Kit
The newest version of the amazing Sector frame. Brand new from HGLRC!
Specifications
Brand Name:HGLRC
Model:Sector V2 HD Frame Kit
Material: 3K Carbon Fiber
Top plate thickness: 2mm
Bottom plocte thickness: 2mm
Middle plate thickness：2mm
Camera side panel thickness: 1.5mm
Arm Thickness: 5mm
Arm width : 10mm
Top and middle plate spacing: 25mm
Installation holes: 20×20/30.5×30.5mm

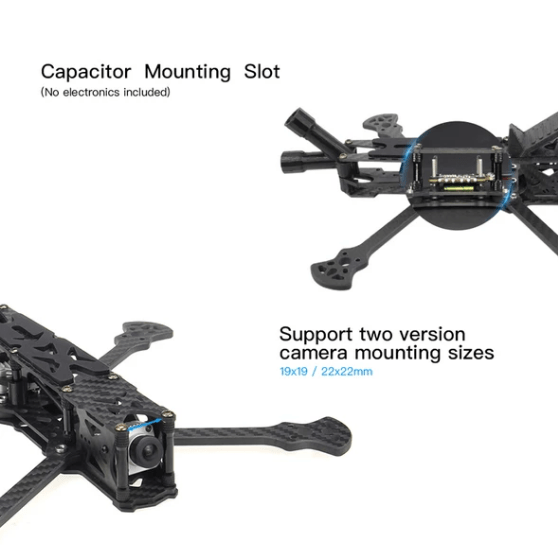

Support camera: 19×19/22x22mm
FRAME-Sector 5″ V2 HD
Type: 5″ frame

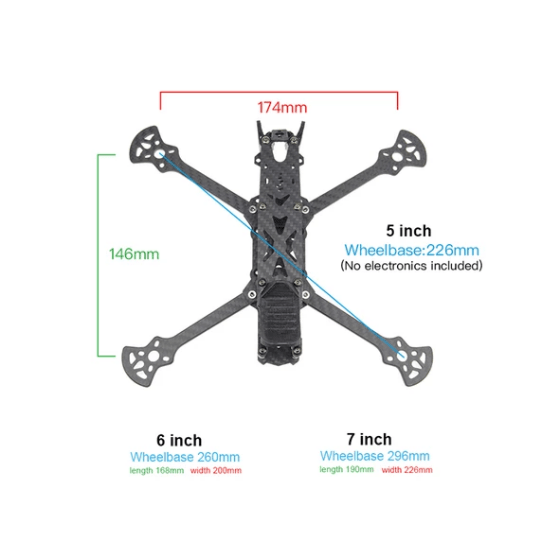

Wheelbase: 226mm
Support for propellers: up to 5.5 inches
Overall size: 174 * 146mm
Weight: 137.1g（contain TPU）

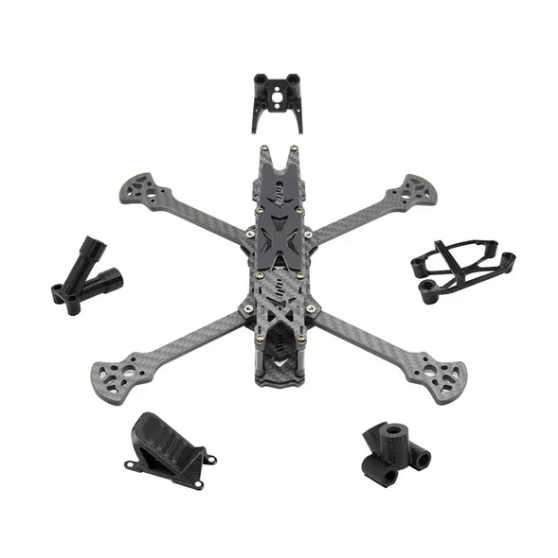

Hardware:
1 x 2mm top plate
1 x 2mm bottom plate
1 x 2mm middle plate
4 x 5mm arm
2 x 1.5mm side plate
1 x 1.5mm protection board
6 x M3*25mm black aluminum column
2 x M3*32mm black aluminum column
4 x M3*6+6 black nylon column
8 x M3*2 black nylon nut
2 x M2*1 black nylon nut
4 x M3 black Relax nut
2 x antenna protection tube
10 x round head screw M3*6
6 x round head screw M3*8
6 x round head screw M3*10
4 x round head screw M3*16
4 x round head screw M3*25
12 x M3 shock absorber ball
1 x Battery cable tie 20x250mm
1 x Battery Anti-slip tape

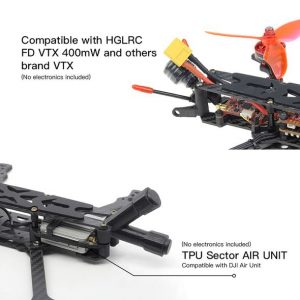

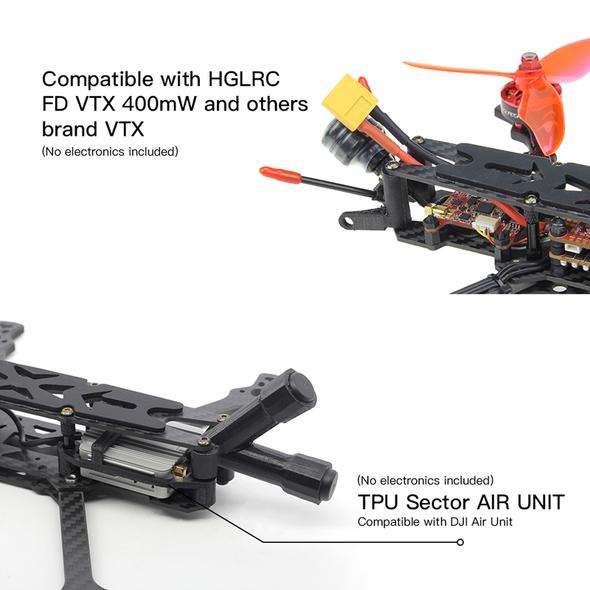

1 x TPU Sector AIR UNIT

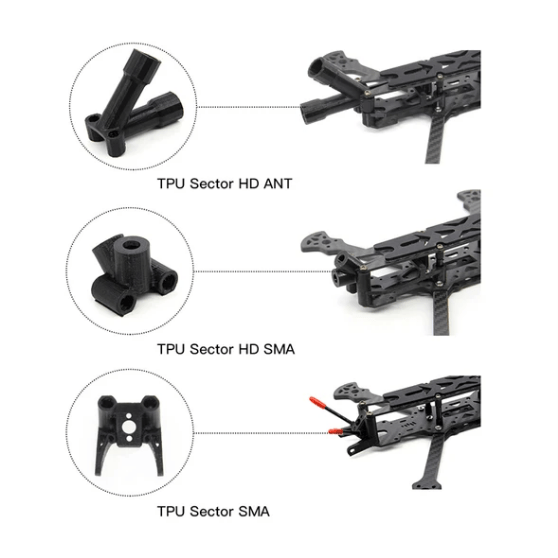

1 x TPU Sector HD ANT
1 x TPU Sector HD SMA
1 x TPU Sector SMA
1 x TPU Gopro Mount
