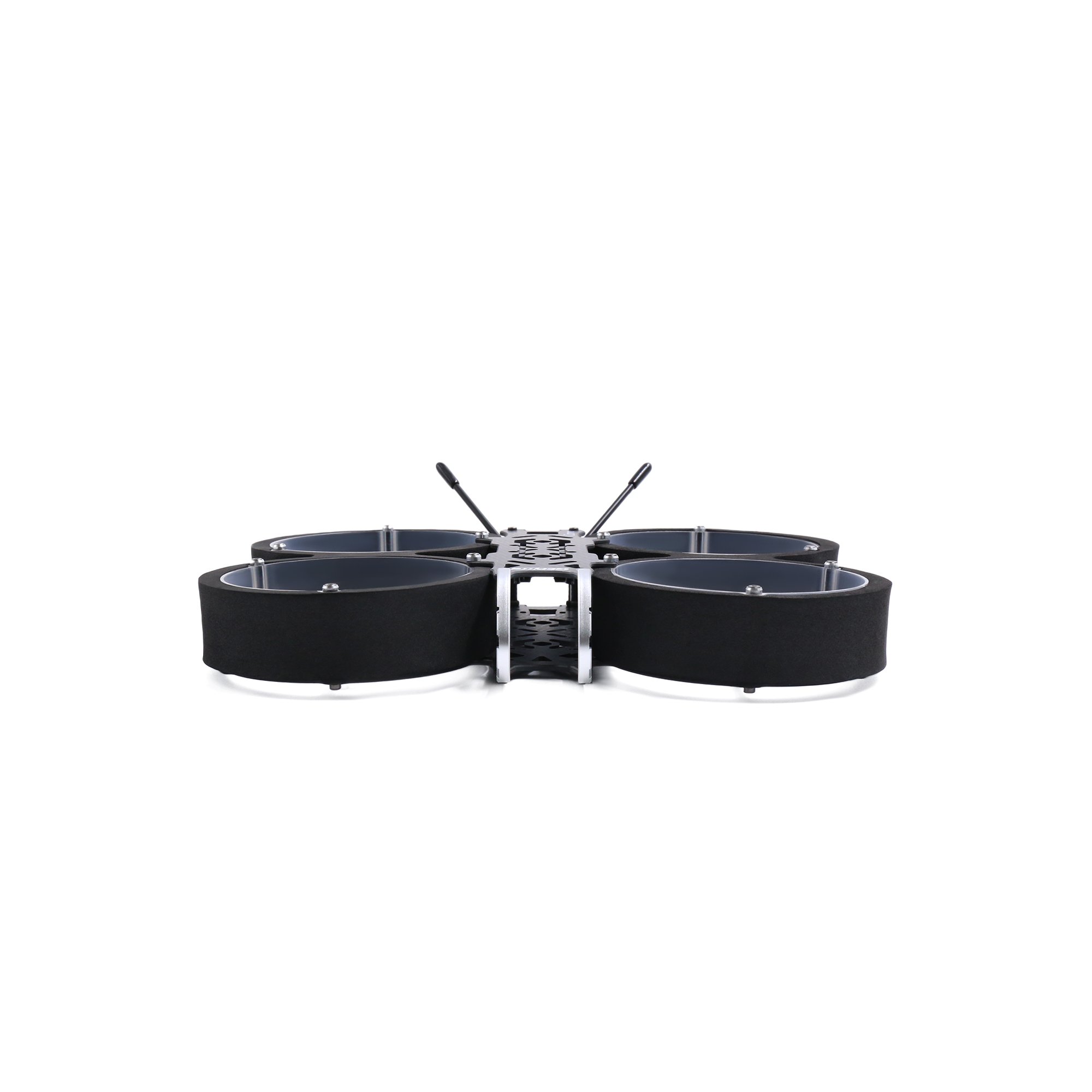

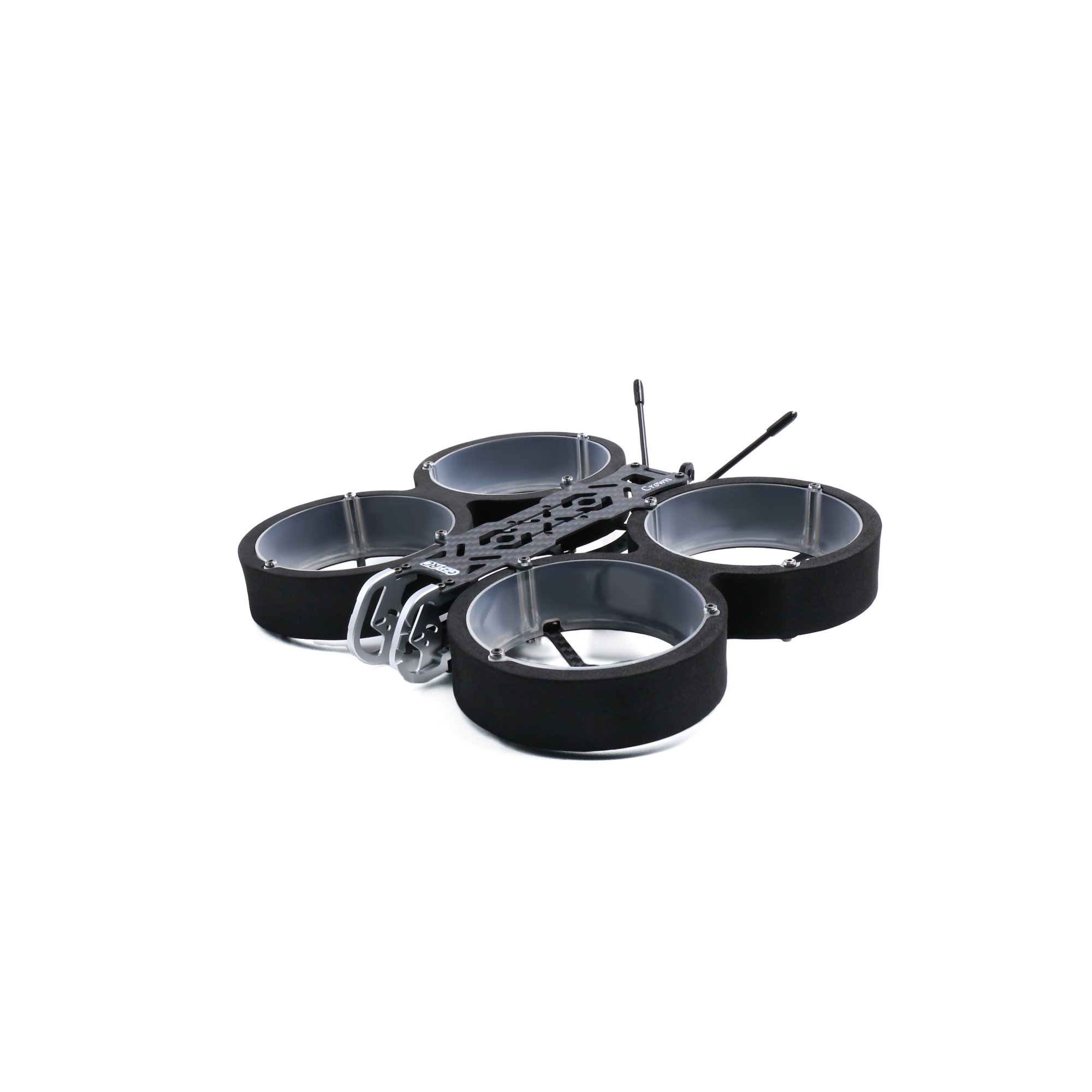

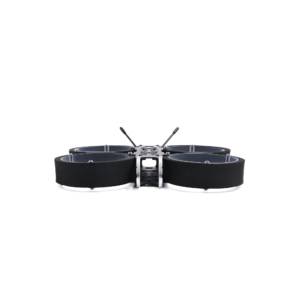

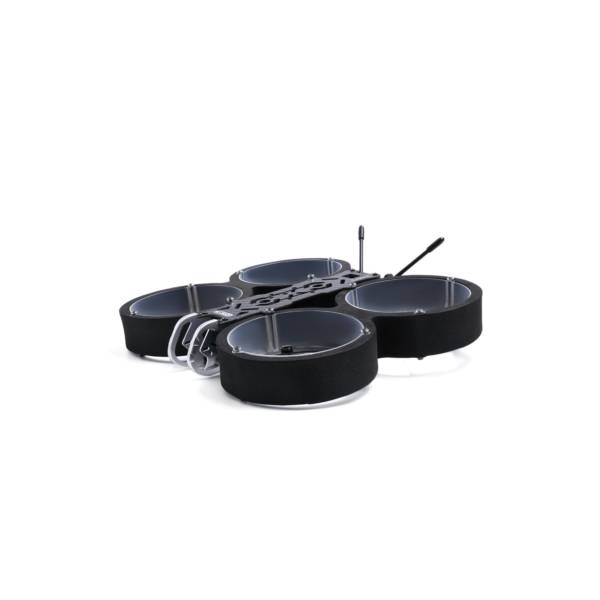

The GEP-CW3 Frame is designed by the GEPRC team with the greatest degree of noise reduction optimization. It is compatible with DJI Air Unit and Caddx Vista system, The GEP-CW3 Cinewhoop Frame can also be used with analog image transmission. The flight control mounting hole can be compatible with two sizes: 30.5 * 30.5mm & 20 * 20mm.

Configuration:

• Brand: GEPRC
• Item: GEP-CW3
• Motor to Motor: 156mm
• Internal diameter: 3inch
• Camera size: 19~20mm
• Propellers: 3inch
• The hole size of the Motor 9mm ( Compatible with 1408/1507/1805.5/2004Motor)
• The hole size of FC:30.5*30.5mm & 20*20mm
• thickness of Top Plate:2mm
• Thickness of Arms: 2mm
• Thickness of Bottom Plate: 2mm

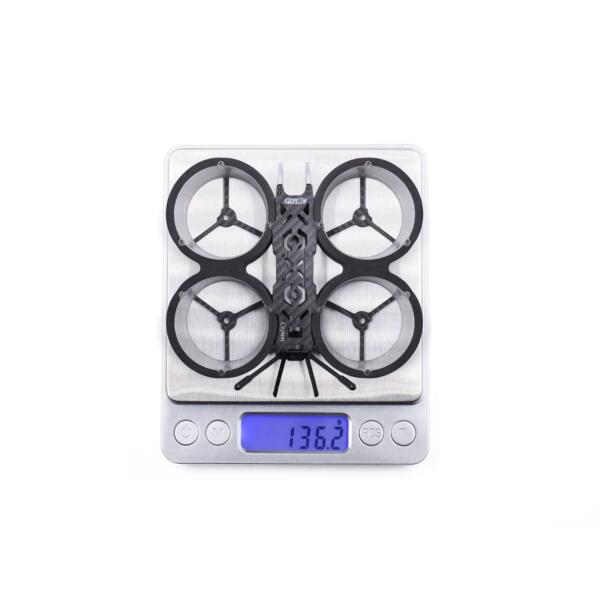

• Weight: 136.2 Grams

Include:

• 1 x Top plate 2mm
• 1 x Bottom plate 2mm
• 2 x Cinewhoop Arms 2mm
• 2 x Aluminum splints of camera(Left&Right)
• 12 x Aluminum column (M2*3.5*26mm)
• 2 x Aluminum column(M2*4*26mm）
• 4 x Cinewhoop Guards (Left&Right)
• 2 x Damping EVA Ring
• 4 x（M2）Nuts
• 12 x（M2孔）Washers
• 14 x（M2*5mm）Screws
• 4 x（M2*6mm）Screws
• 22 x（M2*8mm）Screws
• 16 x（M2*6mm）Screws
• 4 x（M2*4mm）Screws
• 4 x（M3*20mm）Screws
• 4 x（ M2*25mm）Screws
• 4 x（M3mm）Nylon Nuts
• 2 x（M2mm）Nylon Washers
• 4 x（M2*5mm）Nylon Column
• 8 x（M2）Nylon Nuts
• 4 x 3D print Landing cushion
• 1 x 3D print mount of Antenna
• 2 x（M25*250mm）Battery Straps
• 2 x Antenna Tubes
• 1 x Battery pad
