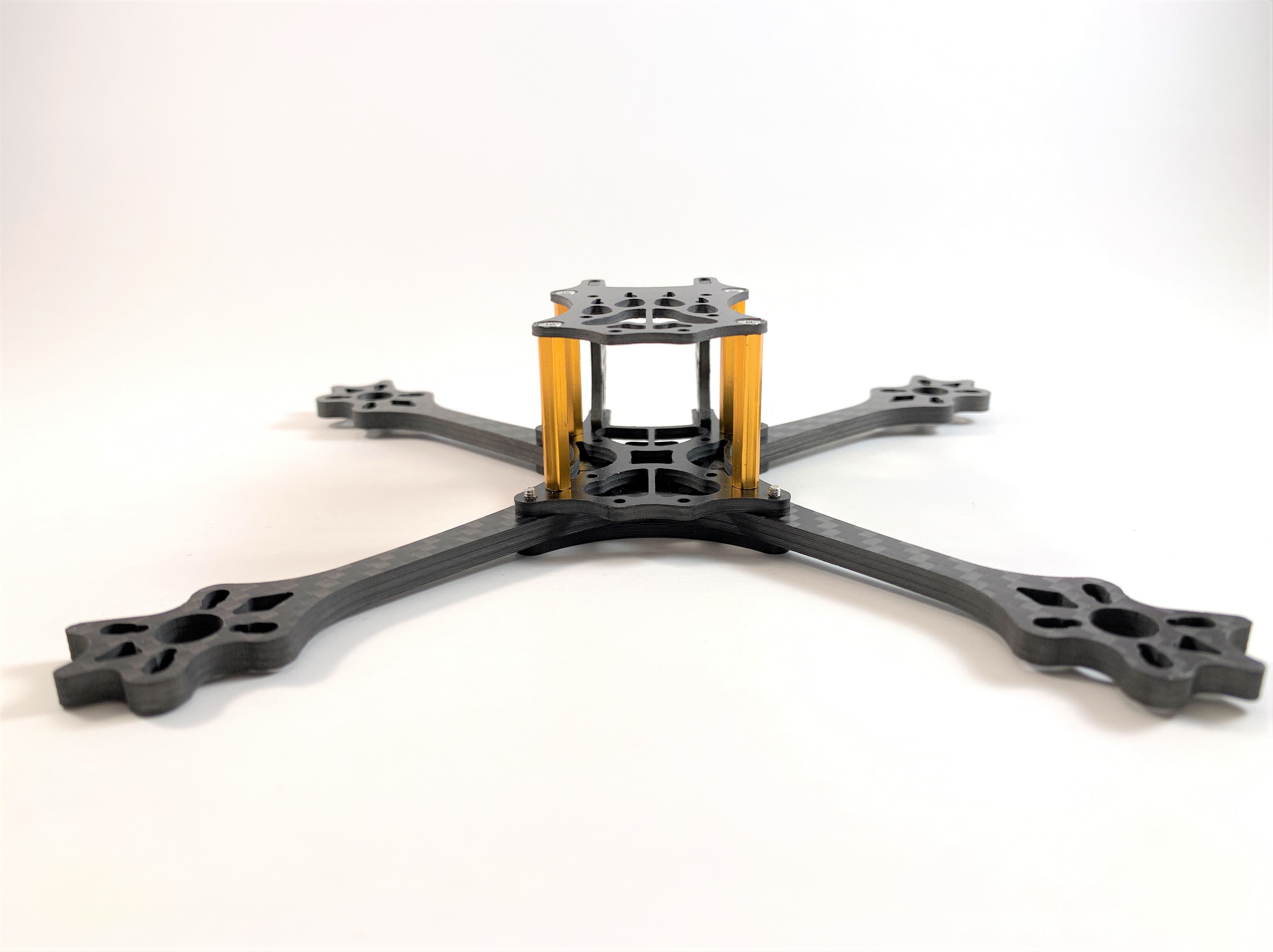

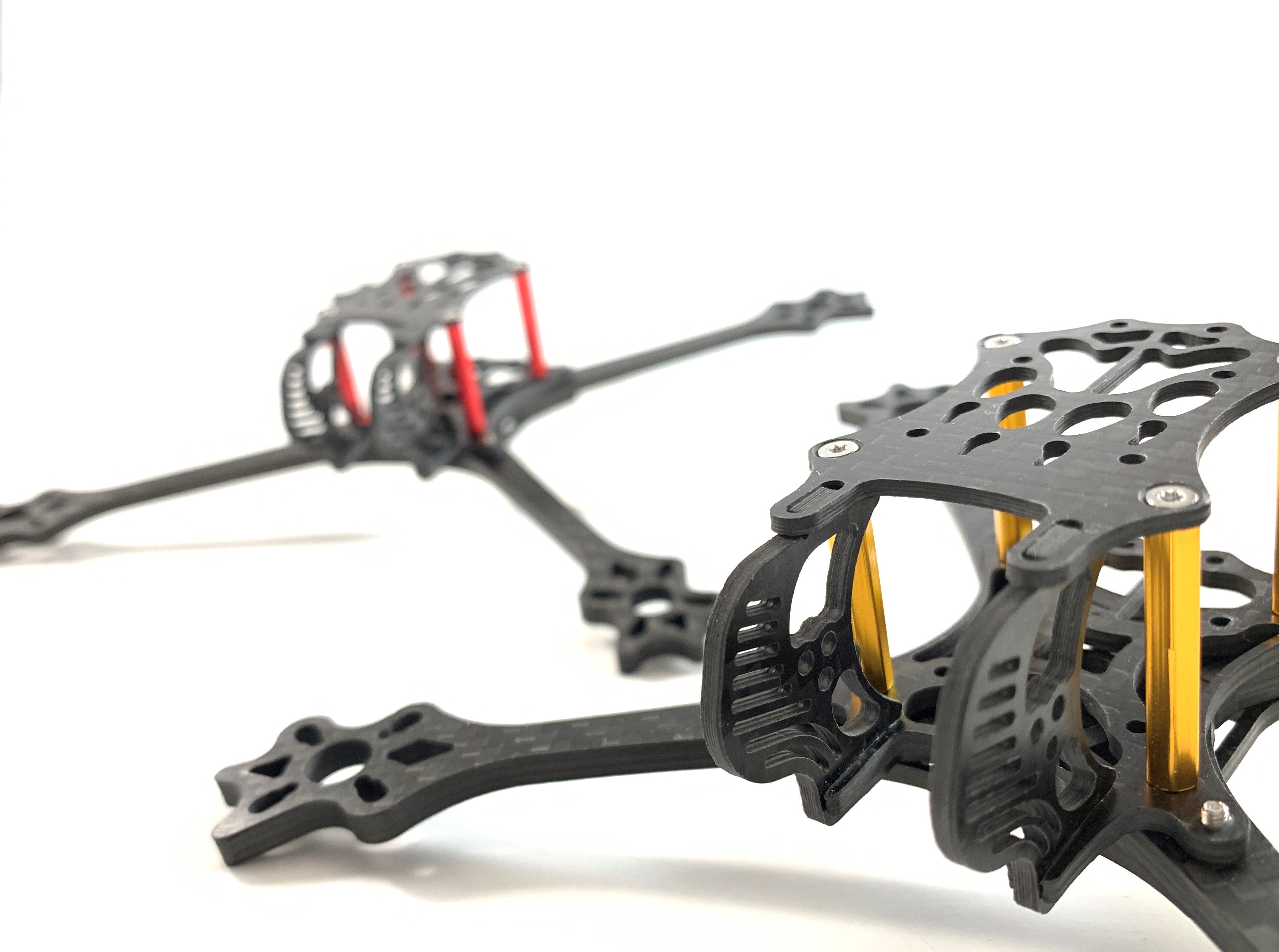

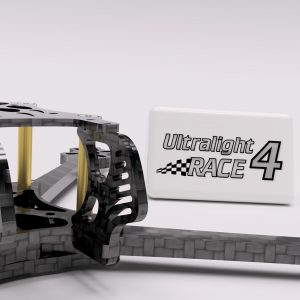

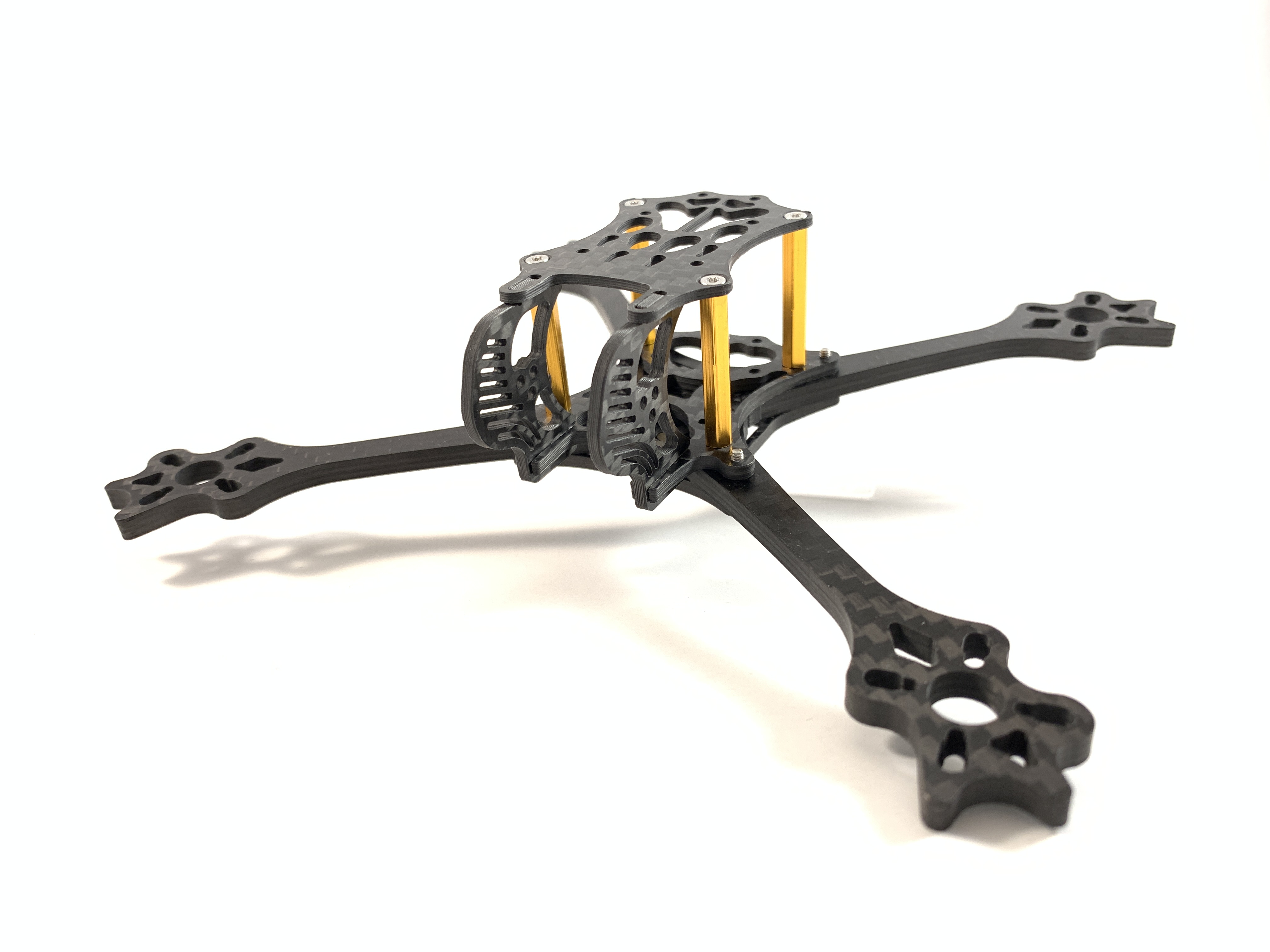

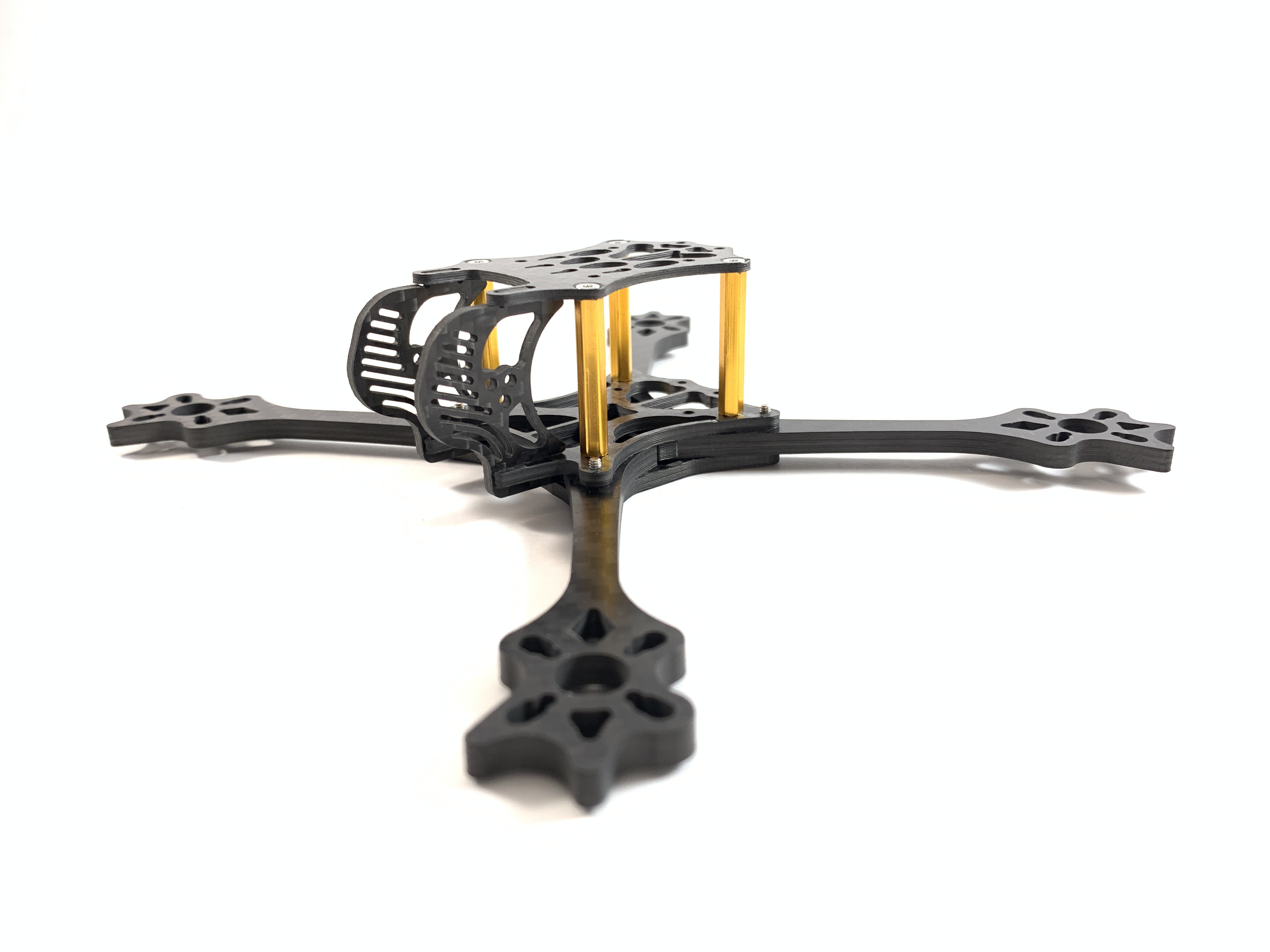

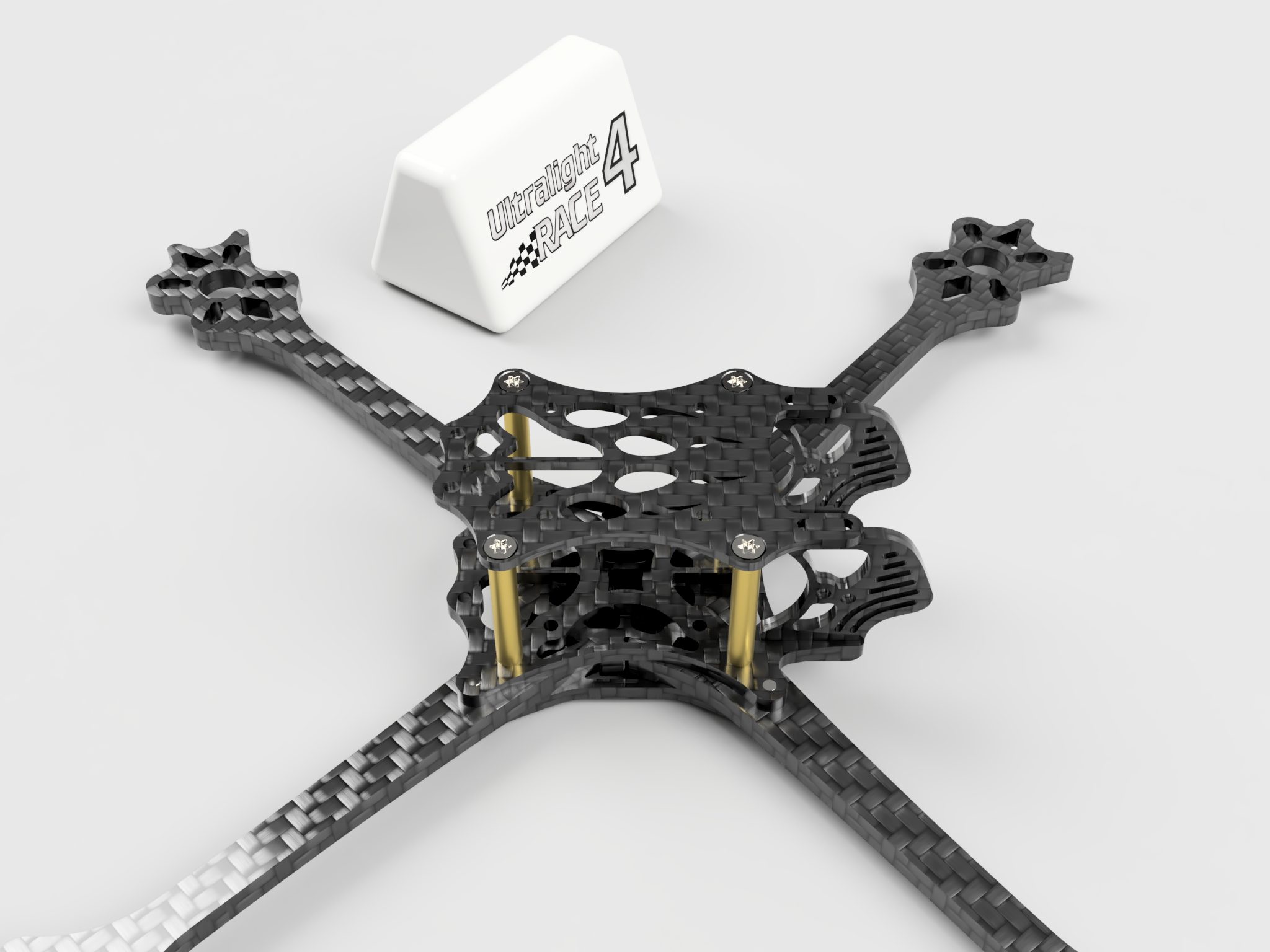

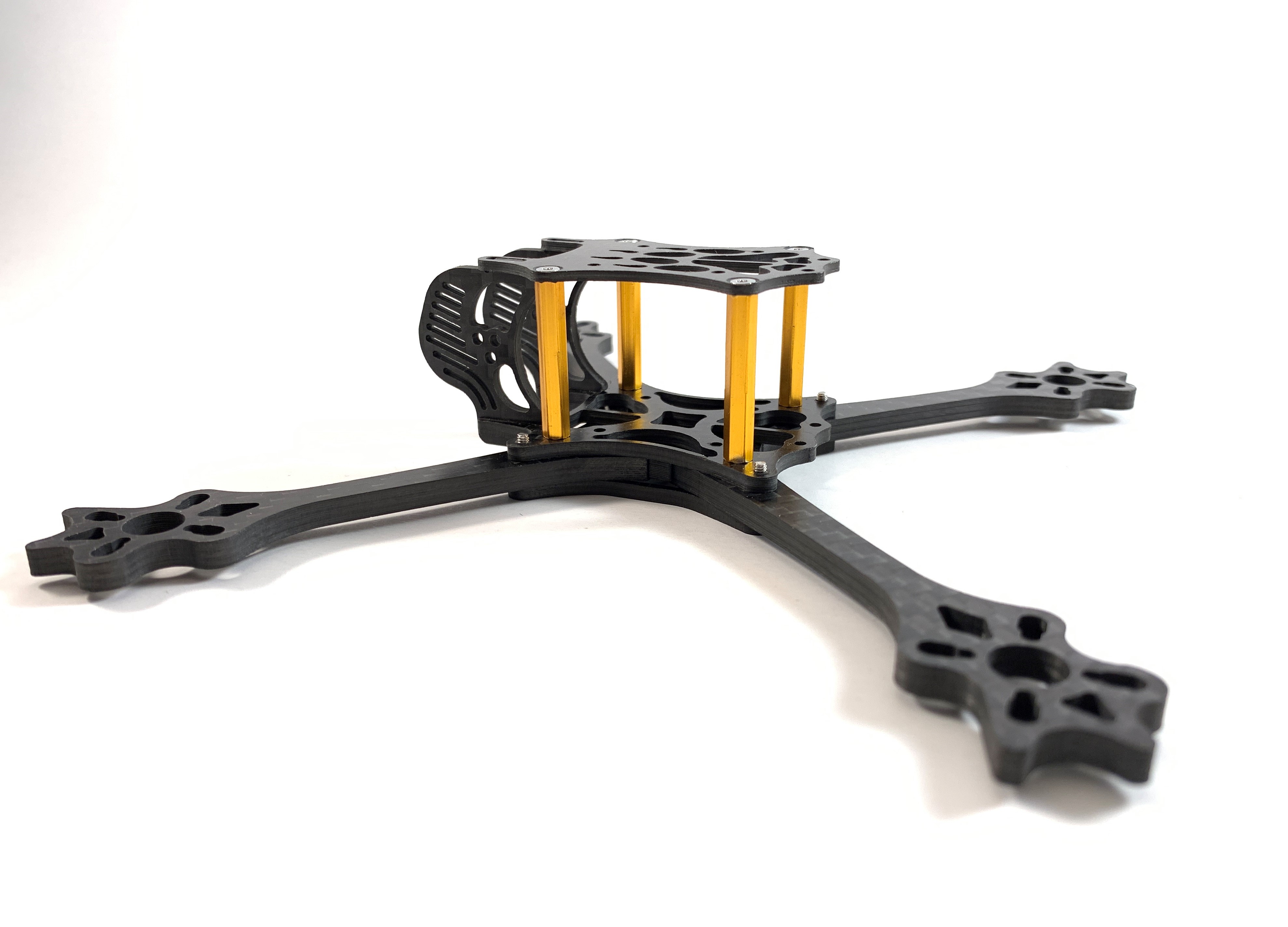

Druckbär Ultralight 4 Race FPV Racing Frame
LIGHT is the new FAST!
Your new racer should be a lot lighter, but you do not want to compromise on stability? Then you are exactly right here!
The Ultralight 4 Race is the ultimate sports equipment for the ambitious amateur pilot. AGILE, FAST and REPAIR FRIENDLY. That’s what the new Racer frame from Druckbär stands for.
And the best part is: If you want to be even lighter, just order Ultralight 4 replacement arms and you can take full advantage of the weight potential. Due to the modular structure, the model change has never been so easy!
The Ultralight 4 uses Micro-size motors, but full size props. The lightness of the frame makes up for the lack of power!

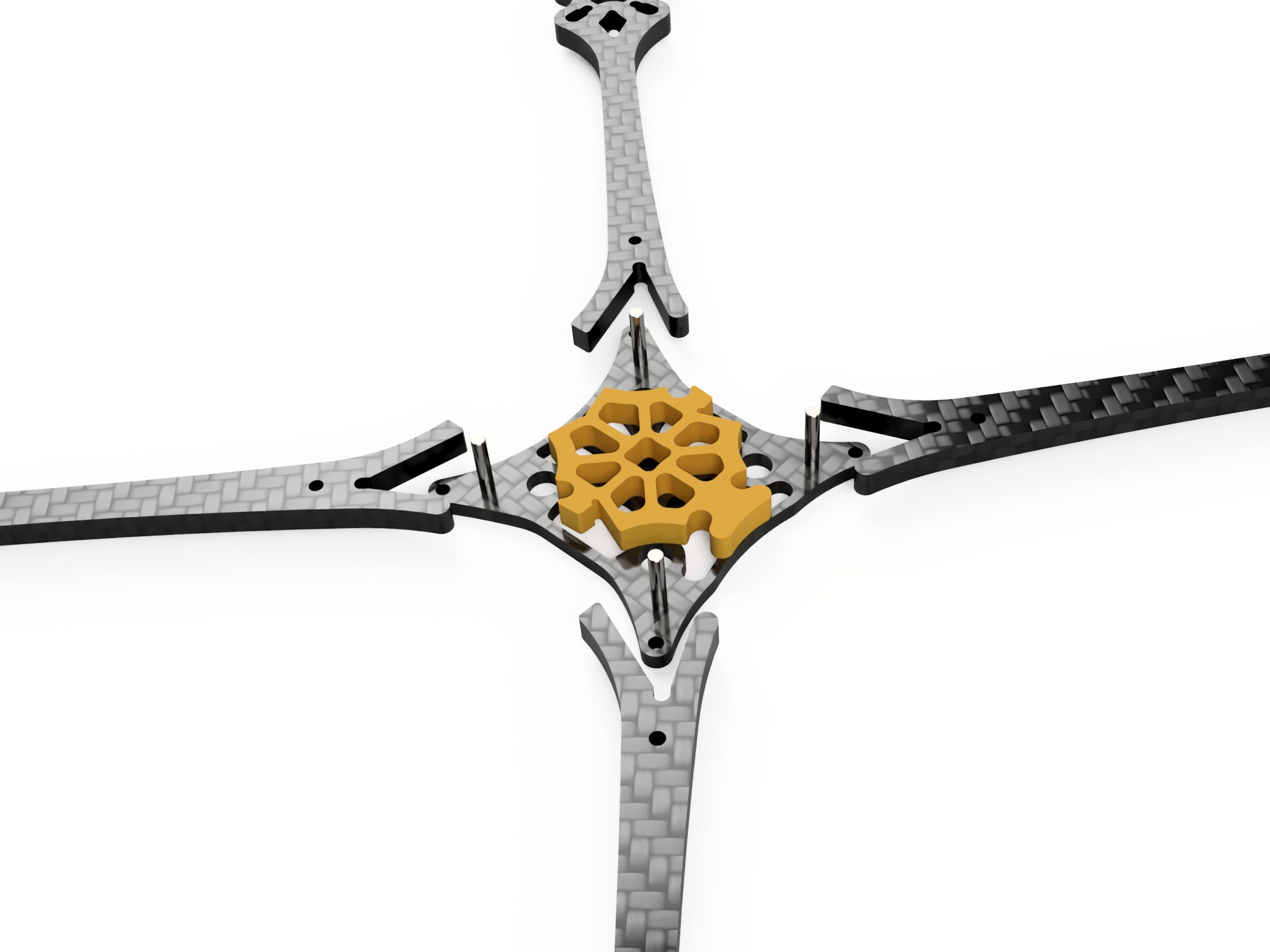

A particular highlight of the new modular frame are the M2 carbon threads. Carbon thread? You heard right! In the upper sandwich panel of your Ultralight 4 and Ultralight 4 Race threads were cut, with which you can easily screw the arms of your racer.
Replacement arm for free:
Since even the best pilots are not saved from crashing, your Ultralight 4 will come to your home with 5 arms as standard. Thus, the first broken arm goes on the house and thanks to the simple change mechanism, you are ready to use again quickly and your Ultralight where it belongs: in the air!
Get more replacement arms for your Ultralight 4 here.
Complete hardware compatibility:
You do not want to use 20x20mm hardware? No problem! Just choose the “Conversion Kit” when ordering and you can run your Ultralight with 30.5 x 30.5mm hardware. This is even easier than with its predecessor. Of course you can continue to use 20x20mm hardware.

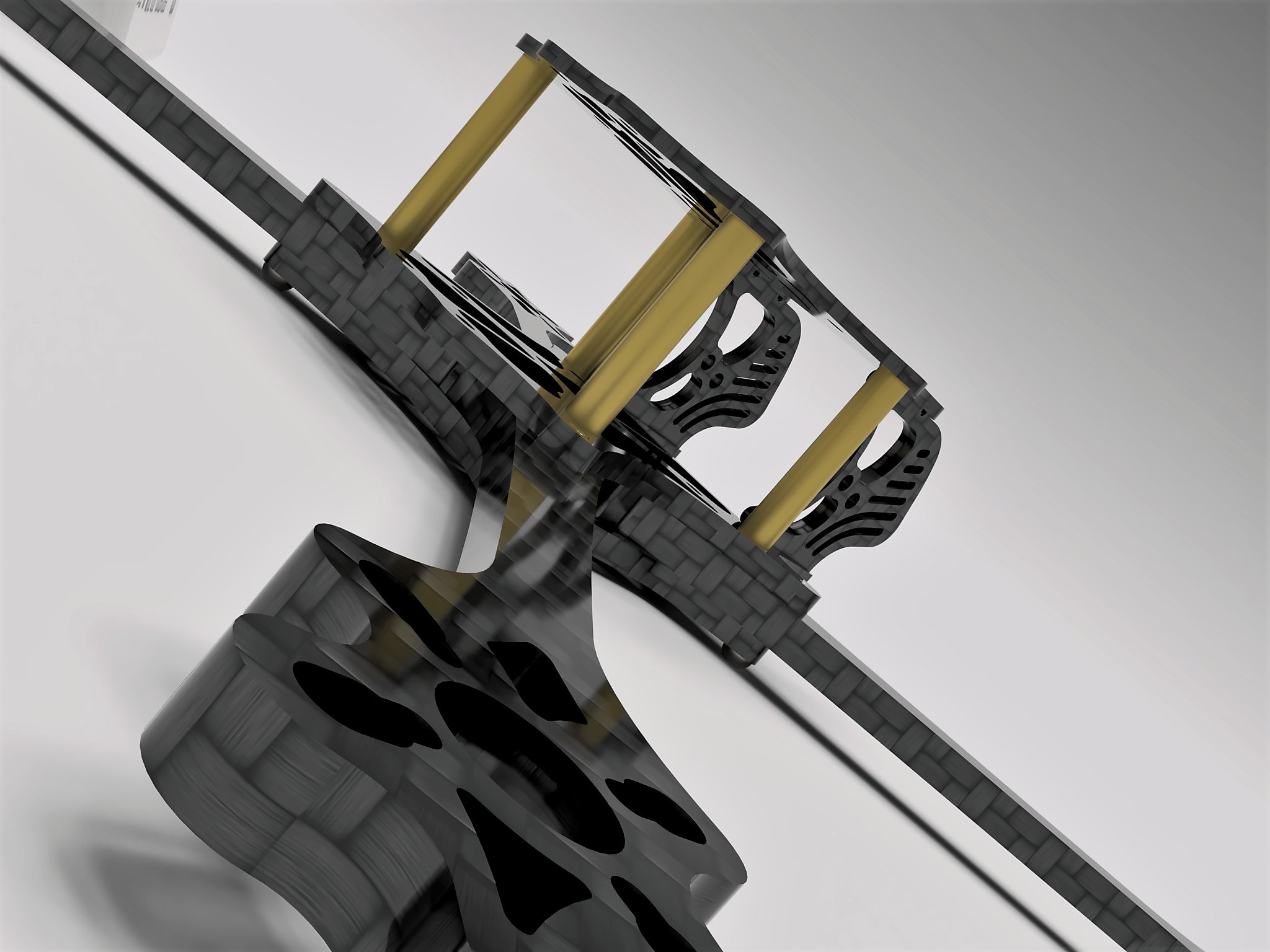

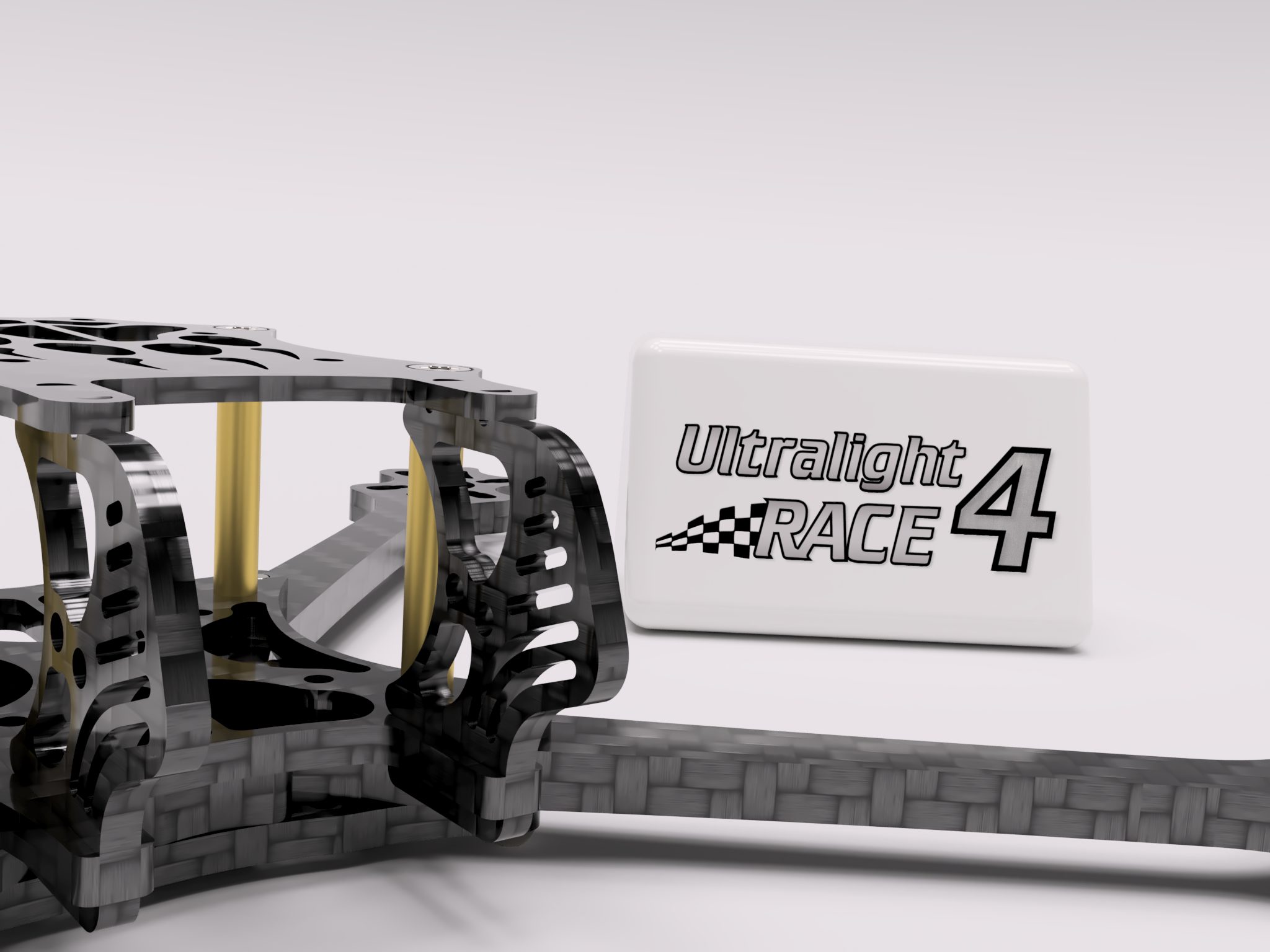

The Ultralight 4 has become more spacious. We chose the new modular center-piece for a height of 25mm. So you have enough space for your components and annoying Gefriemel belongs to the past.
You want to install a Runcam Split Mini V2? No problem, the height is enough!

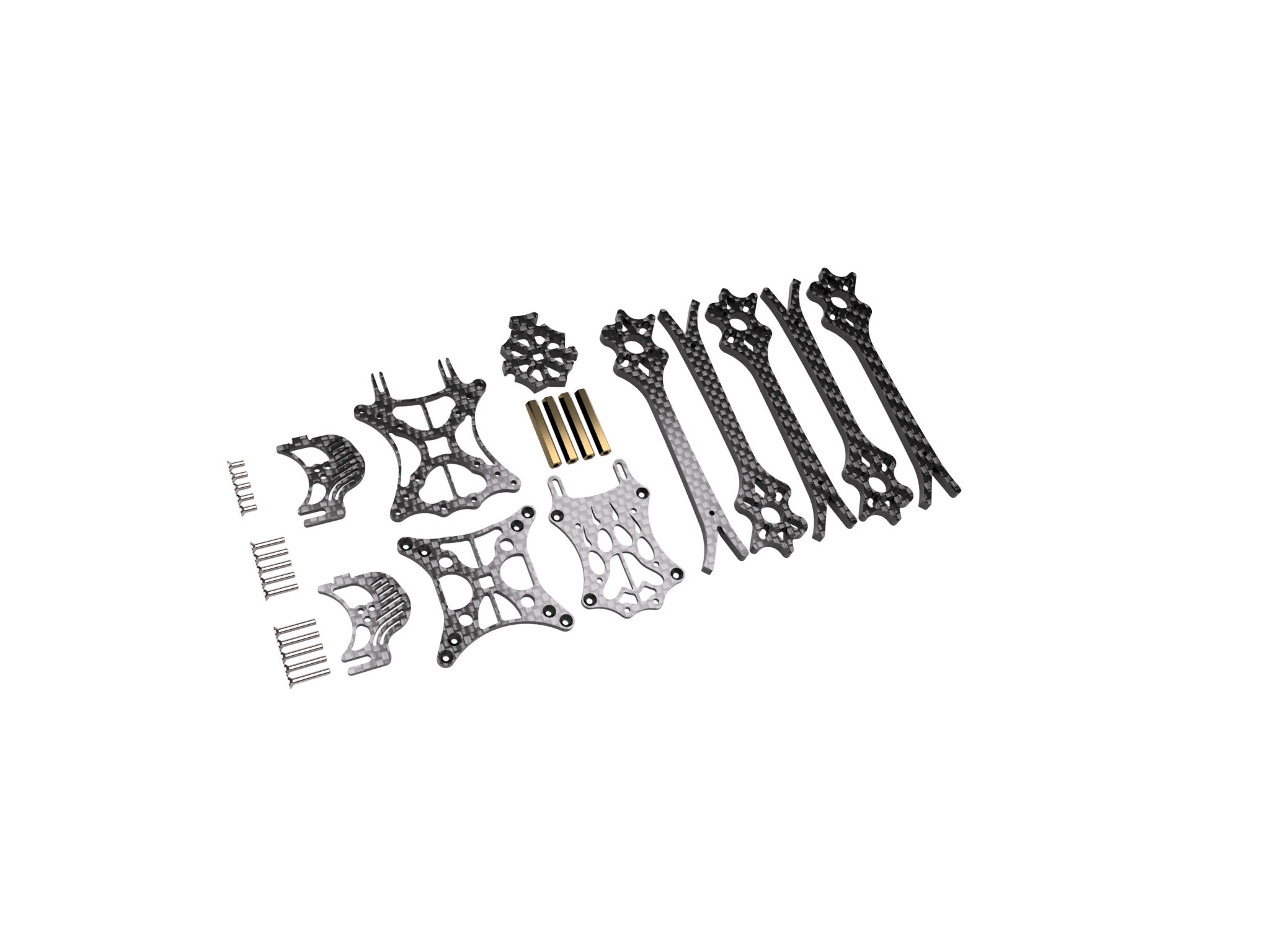

1x A-plate with carbon threads (2,5mm)
1x B-plate (2,5mm)
1x top plate (1,5mm) 1x race insert (3mm)
5x race arm (4mm)
4x aluminum spacers M2x25
5x stainless steel countersunk screw M2x5mm
5x stainless steel countersunk screw M2x10mm
5x stainless steel countersunk screw M2x12mm
2x cable ties 1.6 x 71mm
5x TPU M5 propeller nut
incl. option Lipo Strap:
1x Druckbär Lipo Strap 14,5 x 190mm
incl. hardware option 30.5 x 30.5mm:
4x pressure bear M2-M3 adapter
1x enlarged top plate (1.5mm) instead of normal top plate
4 inches: 33.4g
5 inches: 36.0g
