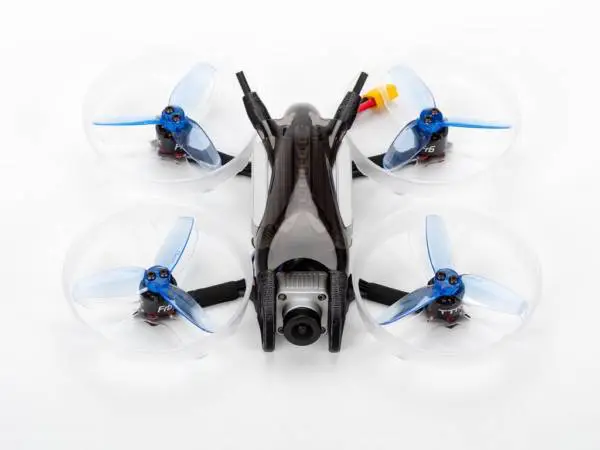

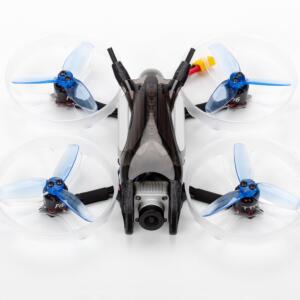

 Beetle HOM 2.5″ DJI HD CineWhoop – PNP
Spec –
Frame Size : 130mm
Weight : 131g (Without prop guard)

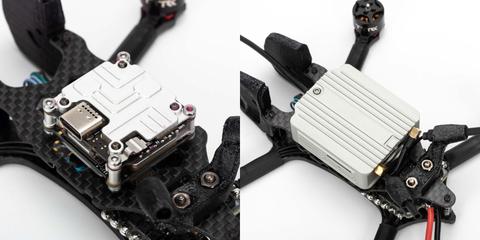

FC : TransTEC F411 HD
ESC : TransTEC 25A Blheli_S 4in1 3-5S (Support RPM filter)
Motor : TransTEC 1106 4500KV Freestyle
Bottom plate : Updated to 3mm high quality carbon fiber

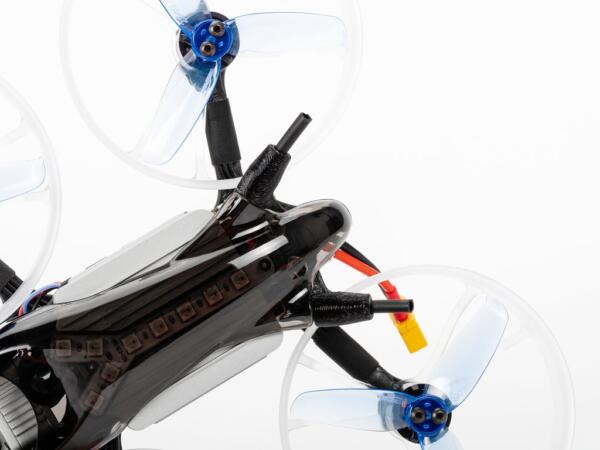

LED : 9 programmable Betaflight RGB LED
Prop : Gemfan 2540-3 / HQ 2525-3
Double Antenna : Custom liner antenna(almost same performance with DJI antenna)
Suggested battery :
TATTU R-line 3S 750mah (7:00 flying time without prop guard)
TATTU R-line 4S 650-850mah (powerful fly)
Beetle is able to easily install third party receiver (Crossfire/Futaba/Spektrum/Frsky…).
Connected on UART1 (TX /RX /5V(3.3V) /Gnd).
Recommend using Dji remote controller to get better experience
The prop may vary depending on the actual shipping color and model
Column arrangement electronic parts to lower center of gravity, let Beetle has better flying experience.

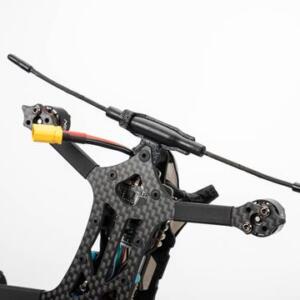

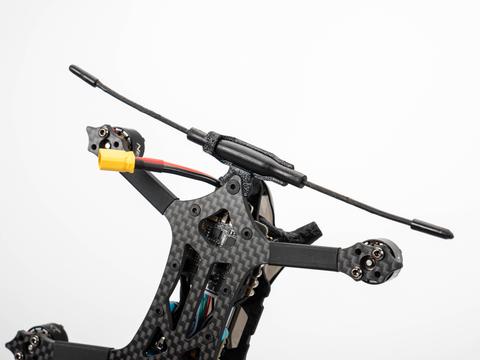

Come with Crossfire/R9 antenna mount, easily install the antenna to get the max range
Include :
- Beetle HD x1
- Custom linear antenna x2
- Replaced Canopy x2 (Random color)
- Propeller Guard x4 (Clear)
- Propeller x2 sets
- Battery strap x1
- Motor screws for guard x1 set

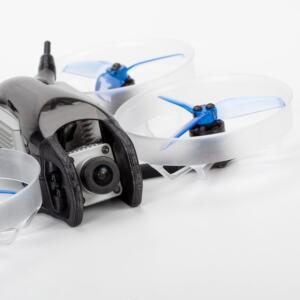

- DJI Camera protect TPU x1
- Crossfire T-antenna TPU holder x1
- DOES NOT INCLUDE AIR UNIT
FC Connection Diagram –
