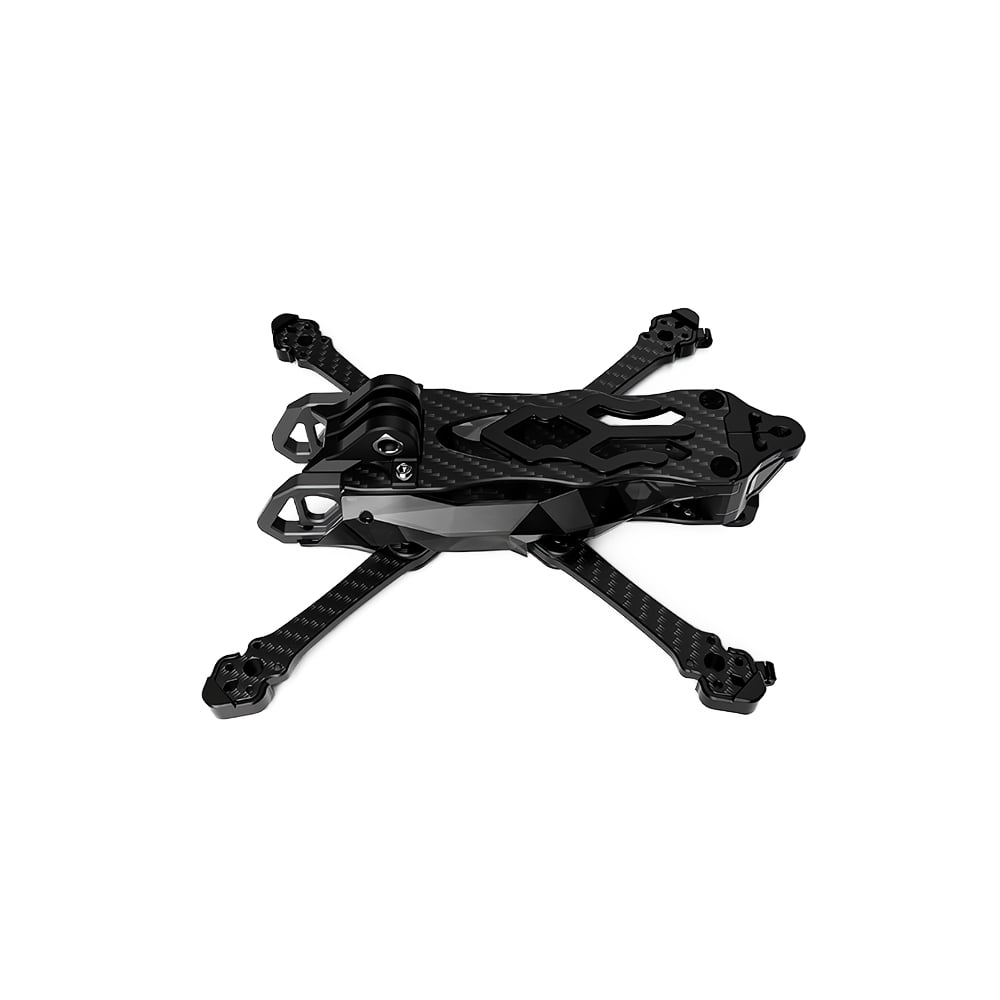

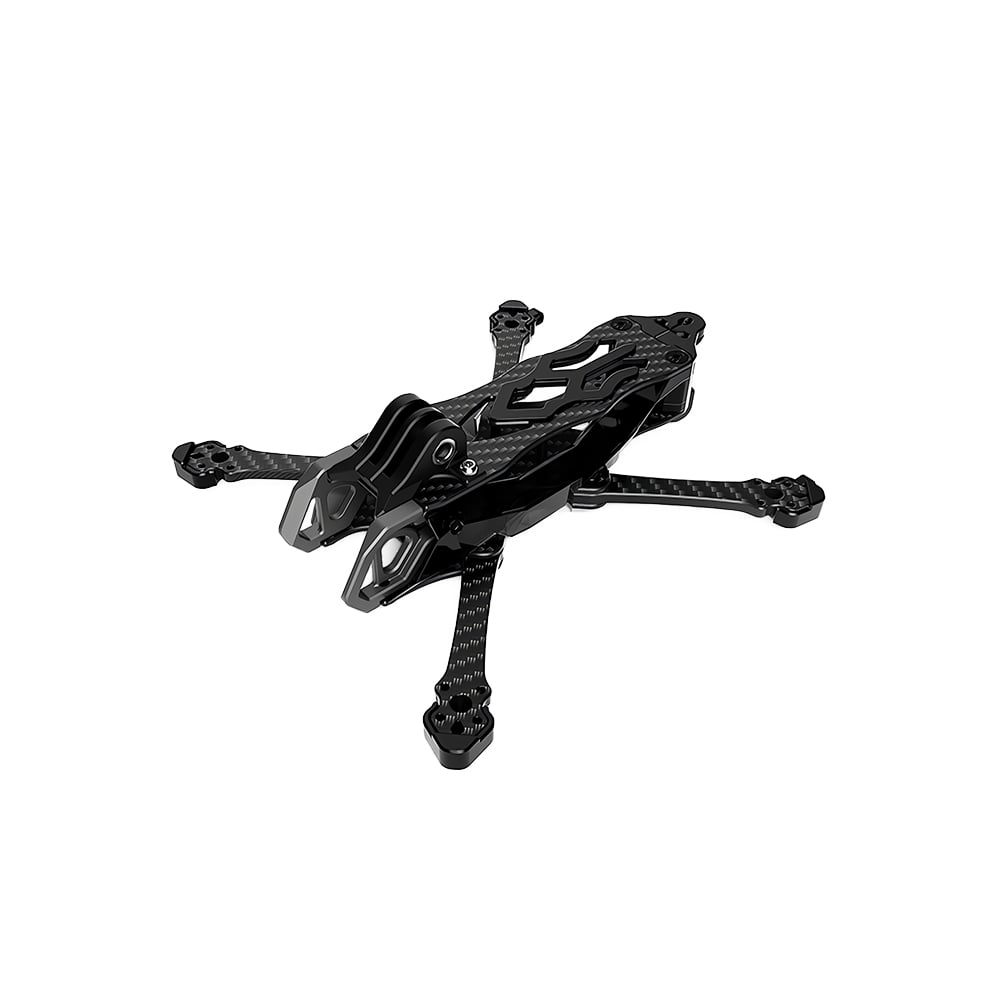

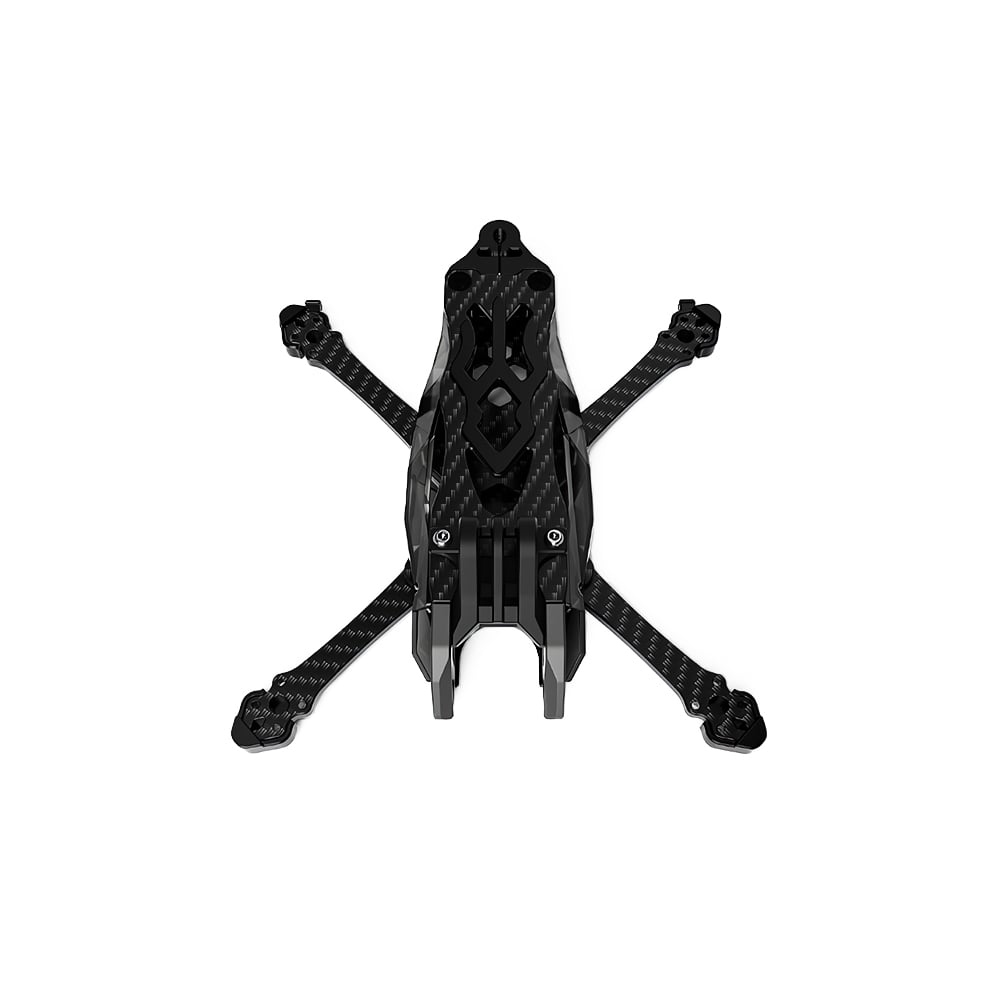

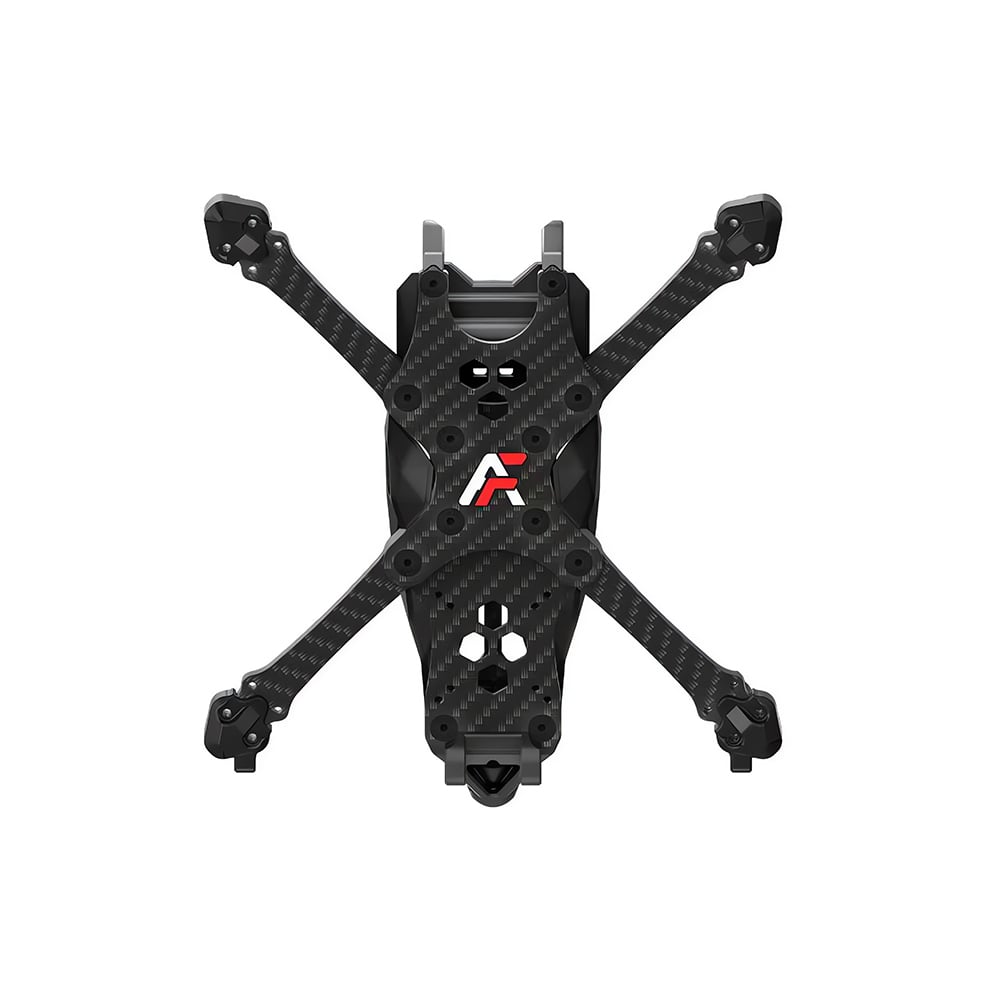

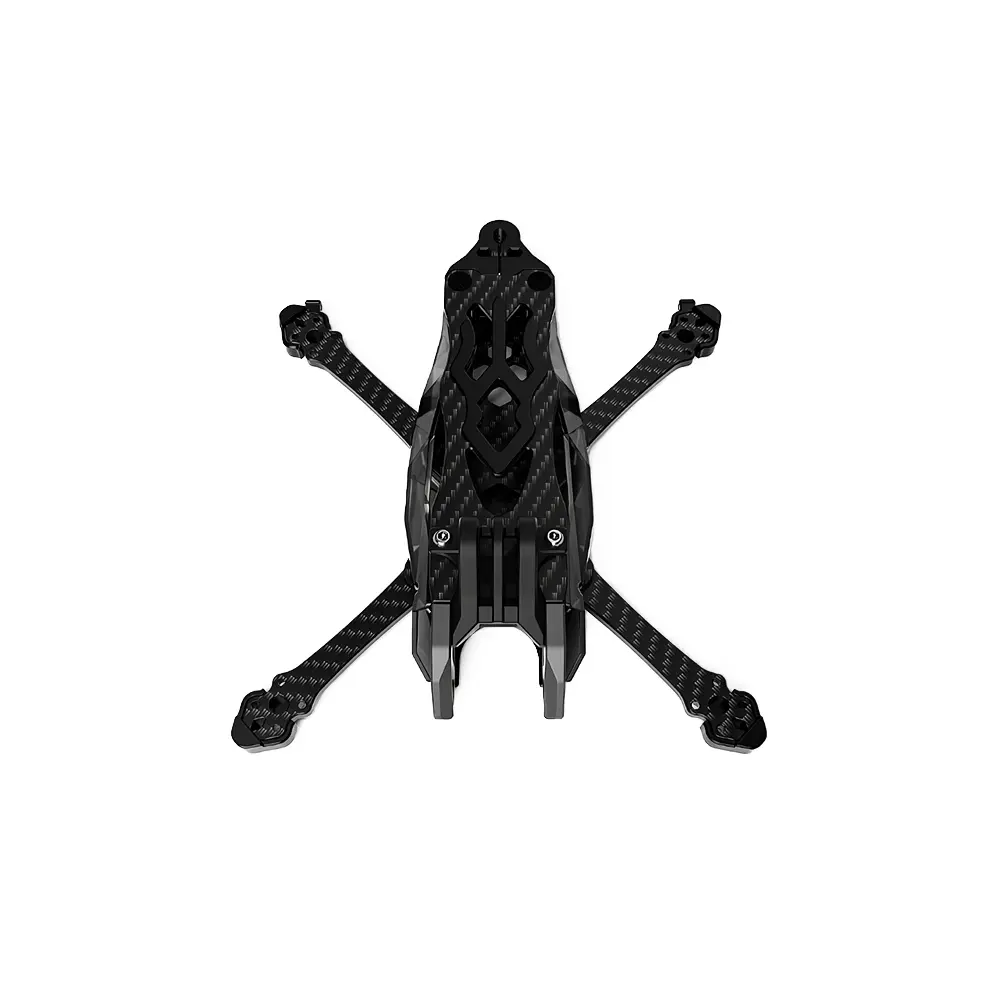

MANTA 30 FRAME

Please Check Out Our Other AxisFlying Products!

Build a compact powerhouse with the Axisflying MANTA 30, a high-strength 3-inch FPV frame designed for the most demanding freestyle pilots. This frame is engineered to be a true “bando basher,” featuring incredibly robust 4mm carbon fiber arms and a unique M3 motor mounting system for unparalleled durability. Optimized for modern, high-power 6S components and the latest DJI O4 digital FPV system, the MANTA 3″ is a compact beast.

Built for a Beating, The MANTA 3″ is built to be a tank. The main structure features thick, 4mm T700 carbon fiber arms designed to withstand serious abuse. A standout feature is the use of a 12x12mm M3 motor mounting pattern. By using larger M3 screws instead of the standard M2, the connection between the motor and the arm is significantly stronger and more rigid, preventing motor shifts and increasing overall crash resistance.

Optimized for 6S & DJI O4. This frame is the perfect platform for a top-tier micro build. It features versatile mounting options for your electronics, with a 20x20mm M3 pattern for your main stack and 25.5mm & 30.5mm spaced holes for your video transmitter. This provides ample space and flexibility to cleanly install a powerful 6S All-in-One flight controller and a DJI O4 Lite or other naked digital FPV system.

Key Features:

• High-Strength Design: Thick 4mm T700 carbon fiber arms make this one of the most durable 3-inch frames available.
• Robust M3 Motor Mounting: A 12x12mm M3 motor pattern provides a significantly stronger and more rigid connection than standard M2 screws.
• DJI O4 Ready: Designed to accommodate the latest DJI O4 Lite / naked O4 digital FPV systems.
• Versatile Component Mounting: Supports 20x20mm flight stacks and 25.5mm/30.5mm VTX mounting.
• Optimized for 6S Power: Perfectly paired with powerful C204 motors for an aggressive 6S 3-inch experience.

Recommended Build:

• Motor: Axisflying C204 2650KV
• Battery: 6S 650-850mAh
• Stack: Axisflying F745 AIO

Specifications

• Wheelbase: $160\text{mm}$
• Arm Thickness: $4\text{mm}$
• Top Plate Thickness: $2\text{mm}$
• Middle Plate Thickness: $2\text{mm}$
• Bottom Plate Thickness: $2\text{mm}$
• Max Prop Size: 3 inch
• FC Mounting: $20\text{mm}\times 20\text{mm}$ (M3)
• VTX Mounting: $25.5\text{mm}$ & $30.5\text{mm}$
• Motor Mounting: $12\text{mm}\times 12\text{mm}$ (M3)

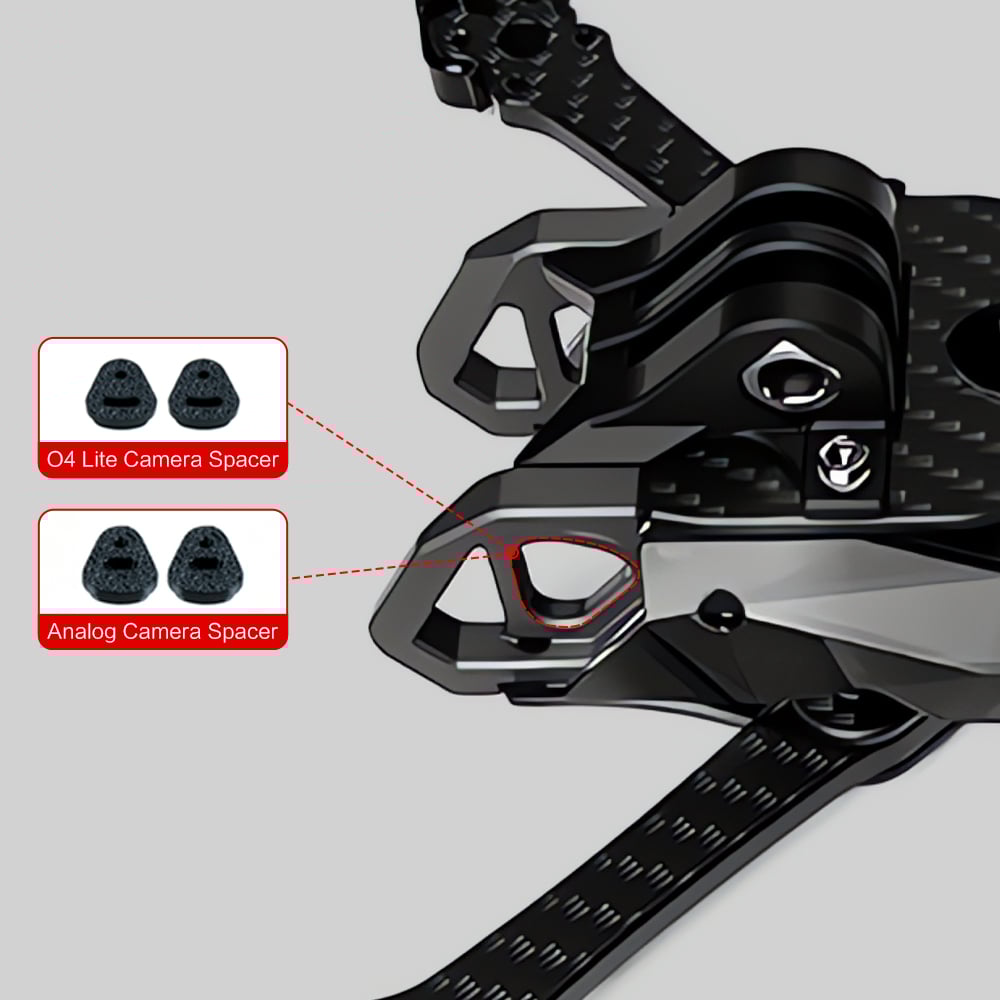

• Camera Installation: $19-20\text{mm}$
• Weight: $86.5\text{g}$

Includes

• 1x Axisflying MANTA 3″ Frame Kit
• 1x Hardware Set
• 1x TPU Parts Set
• 1x Battery Strap
