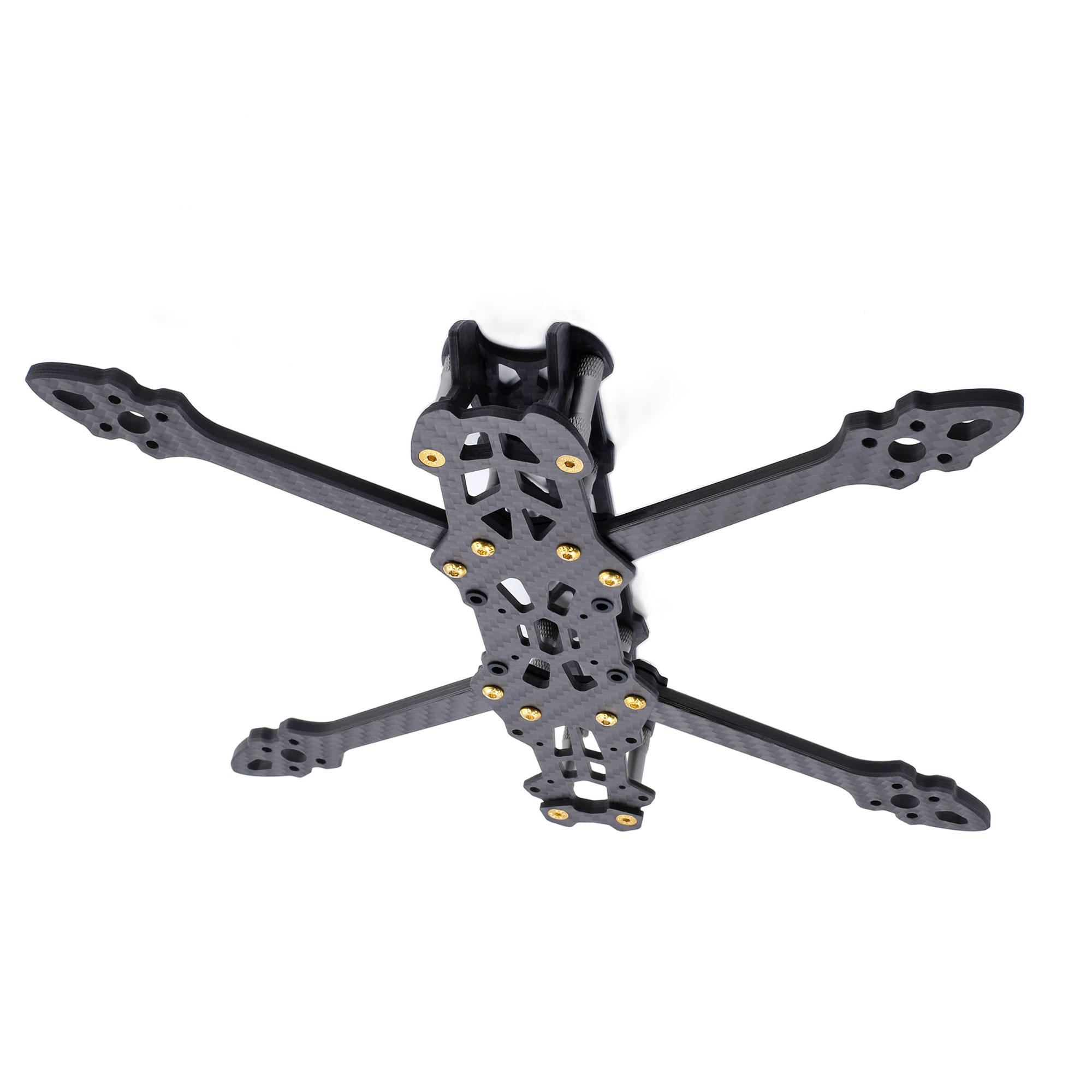

GEPRC Mark4 Frame – 5″ Frame
Make sure to check out all of our GEPRC Products!

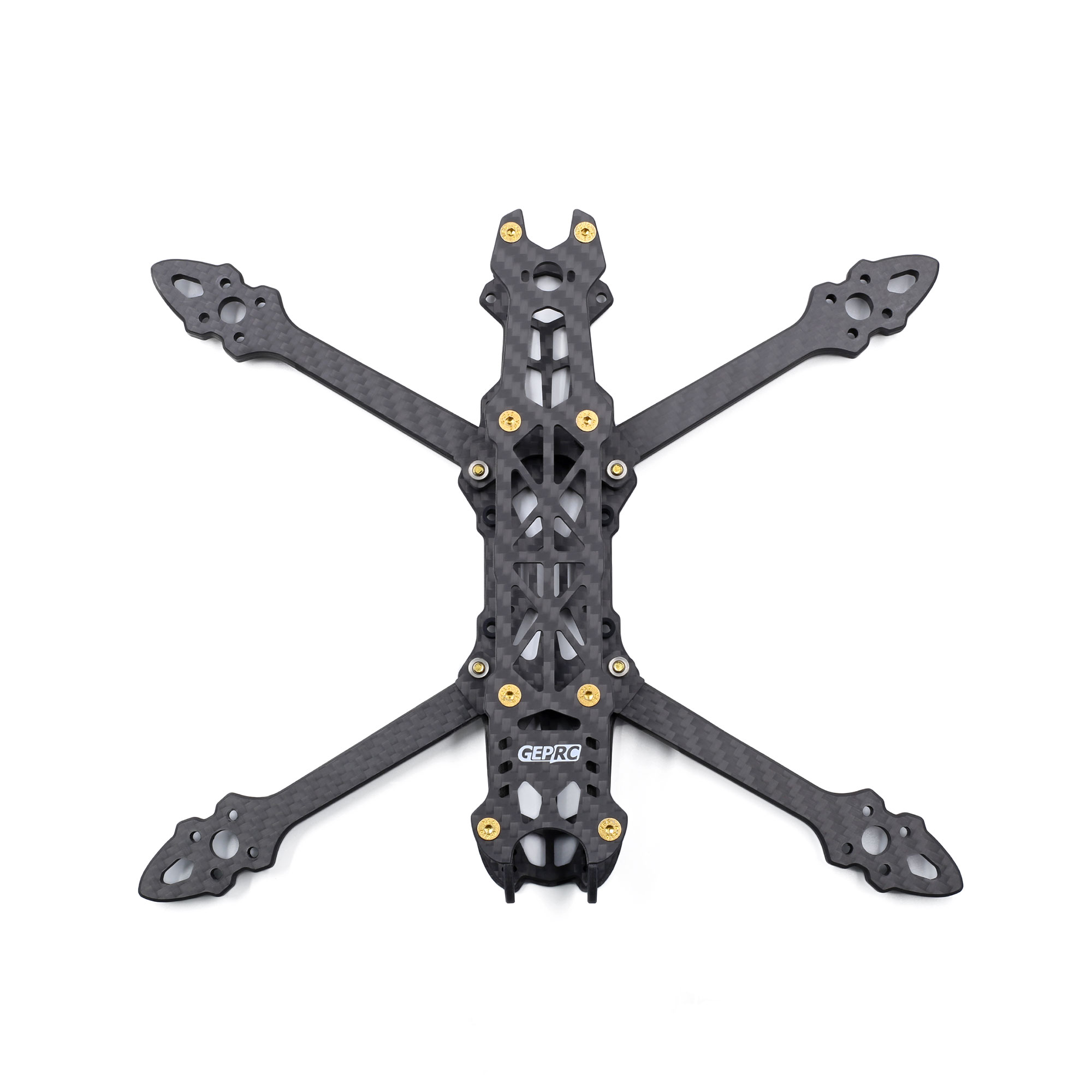

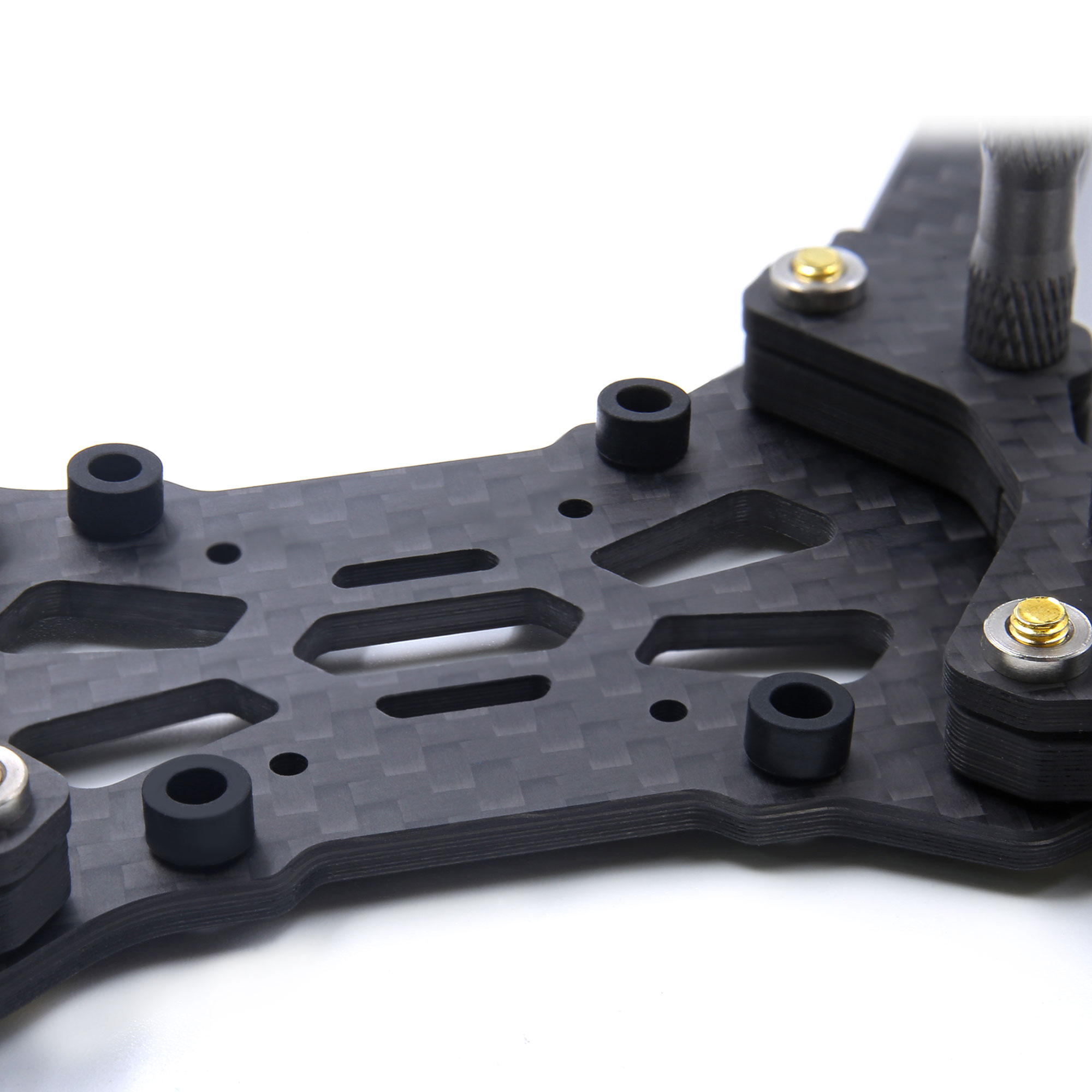

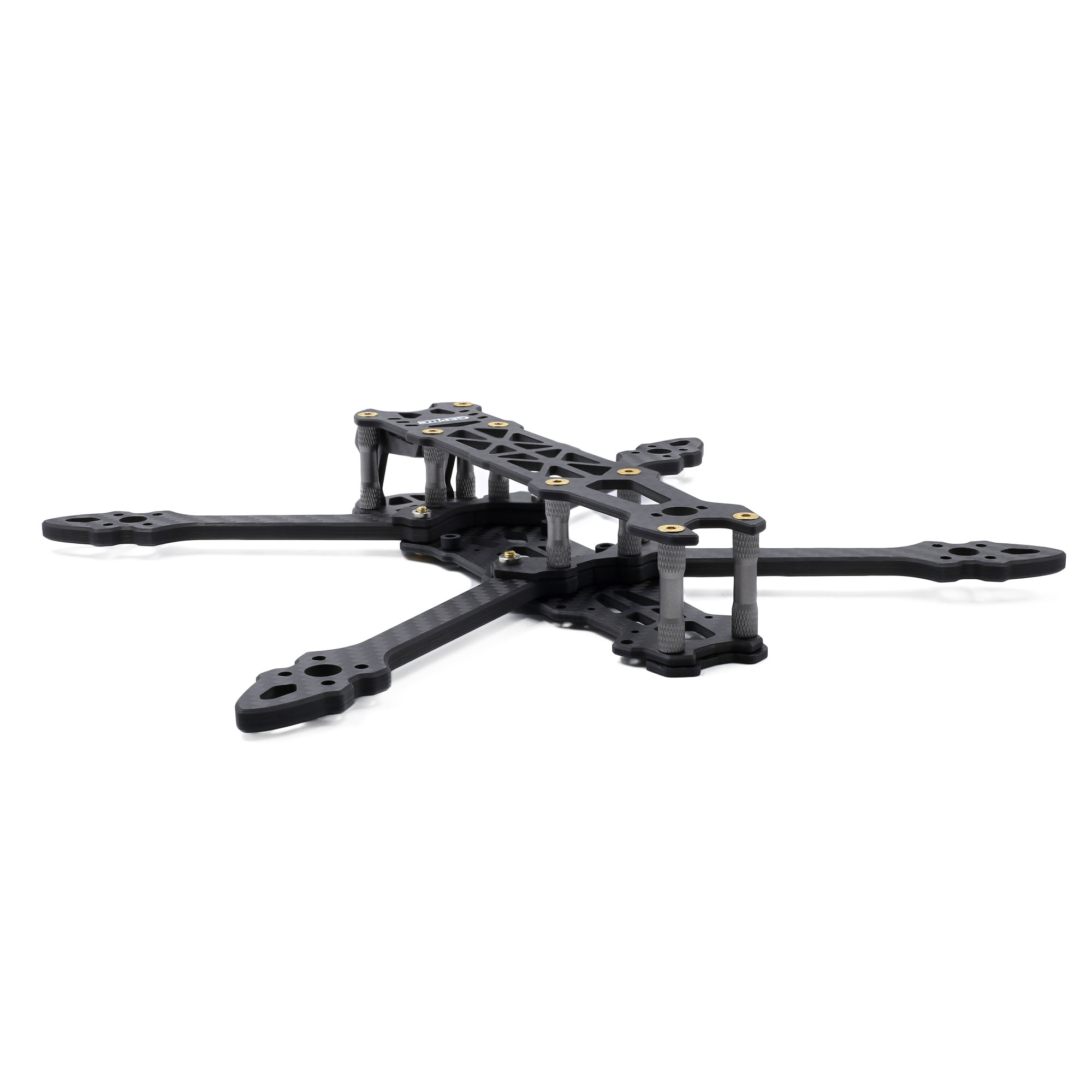

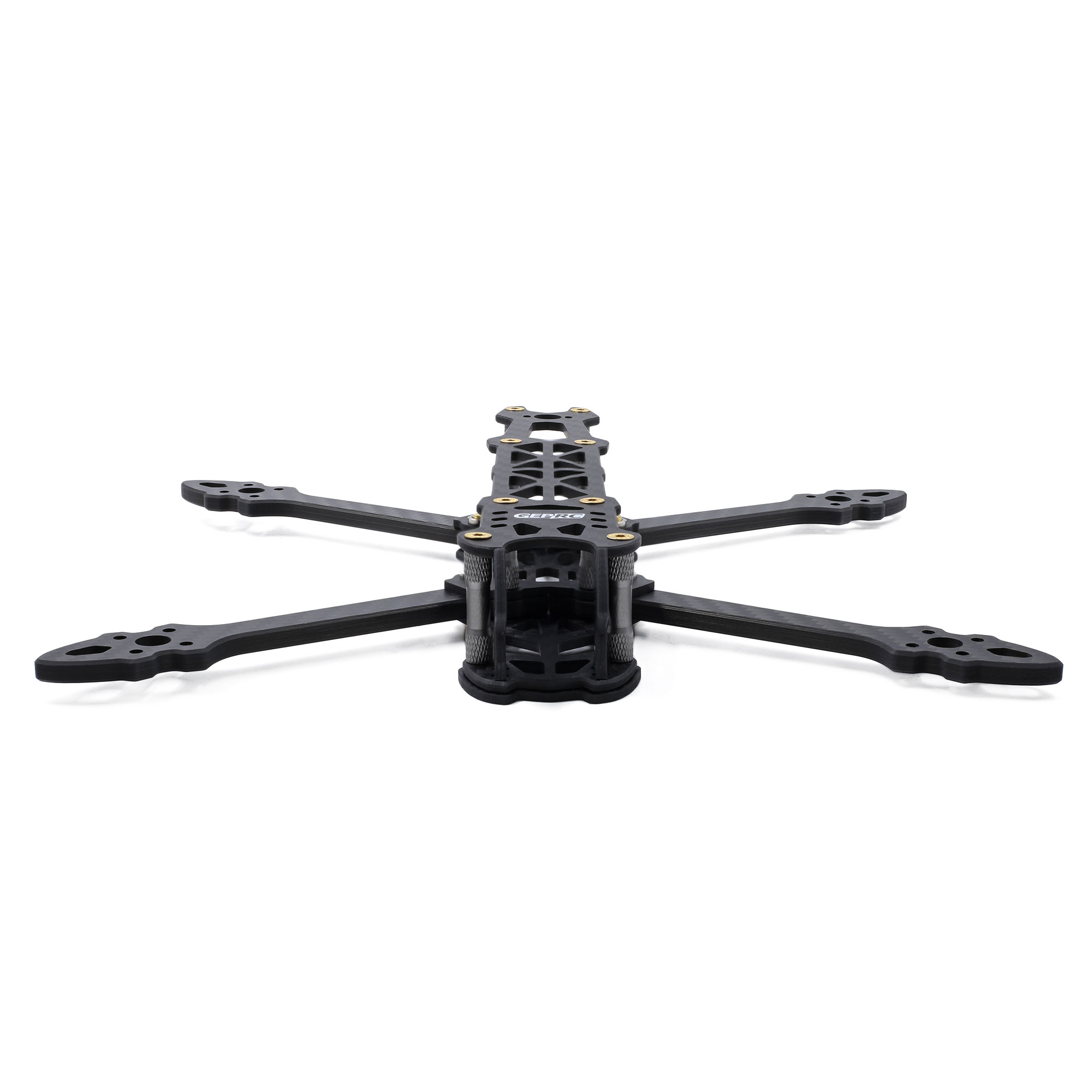

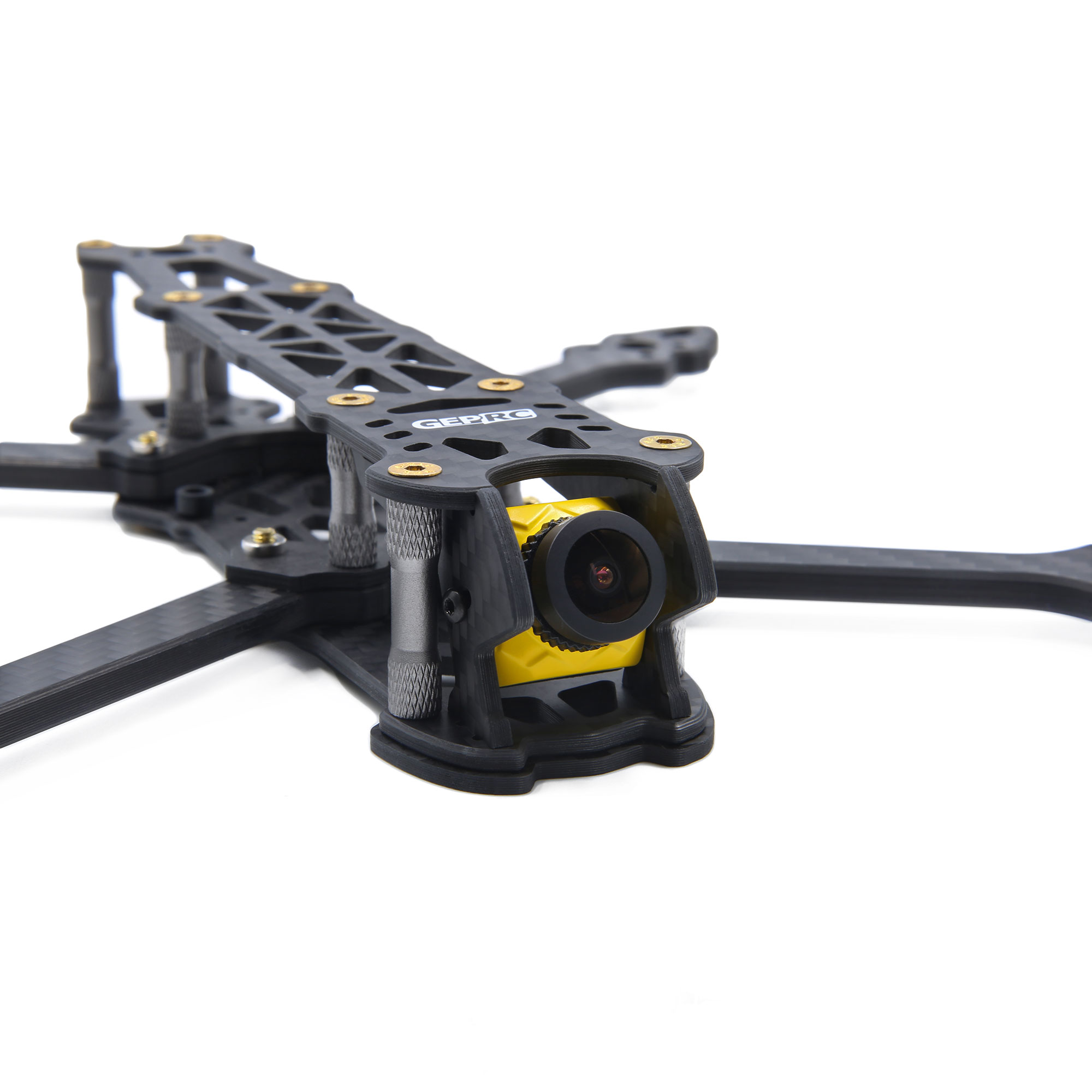

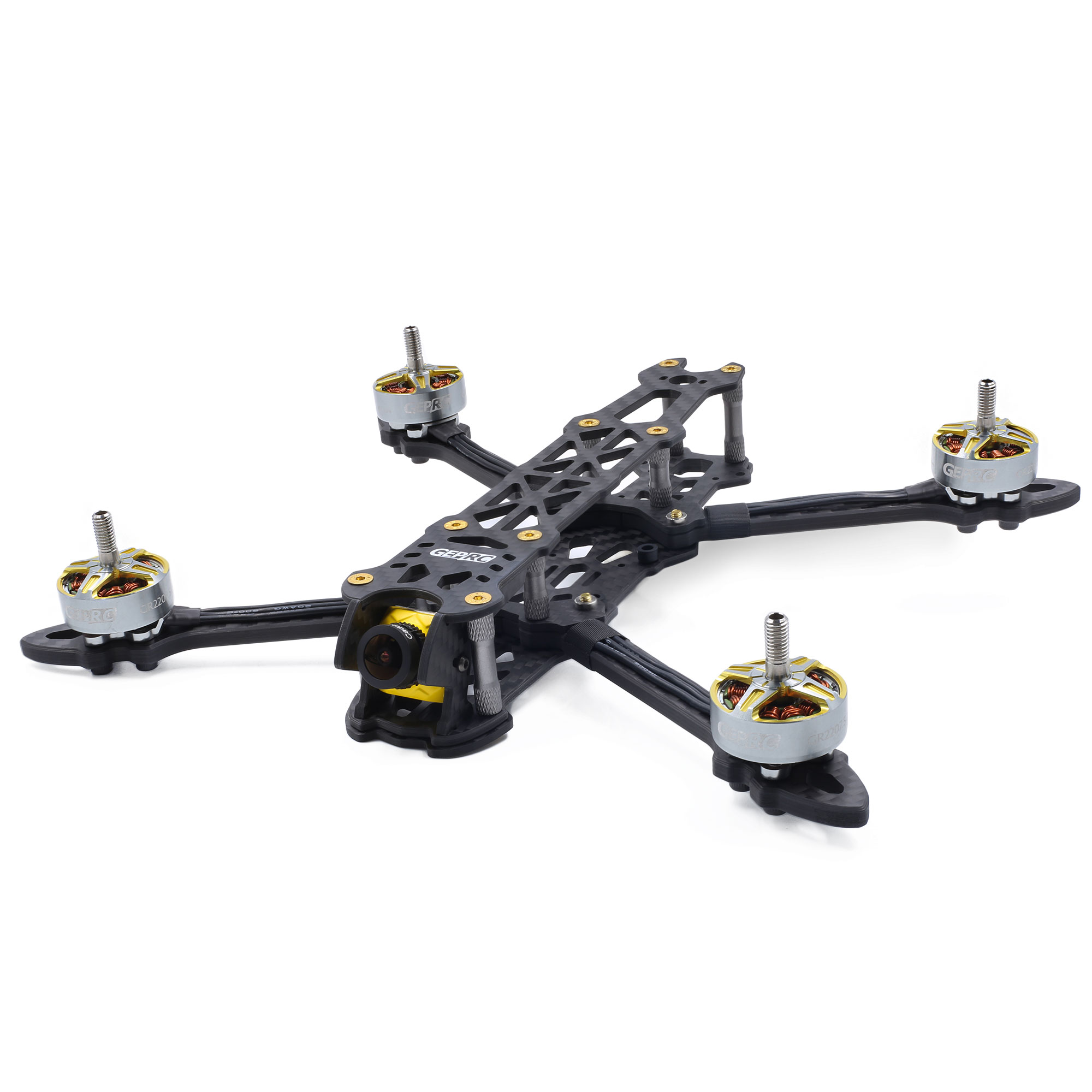

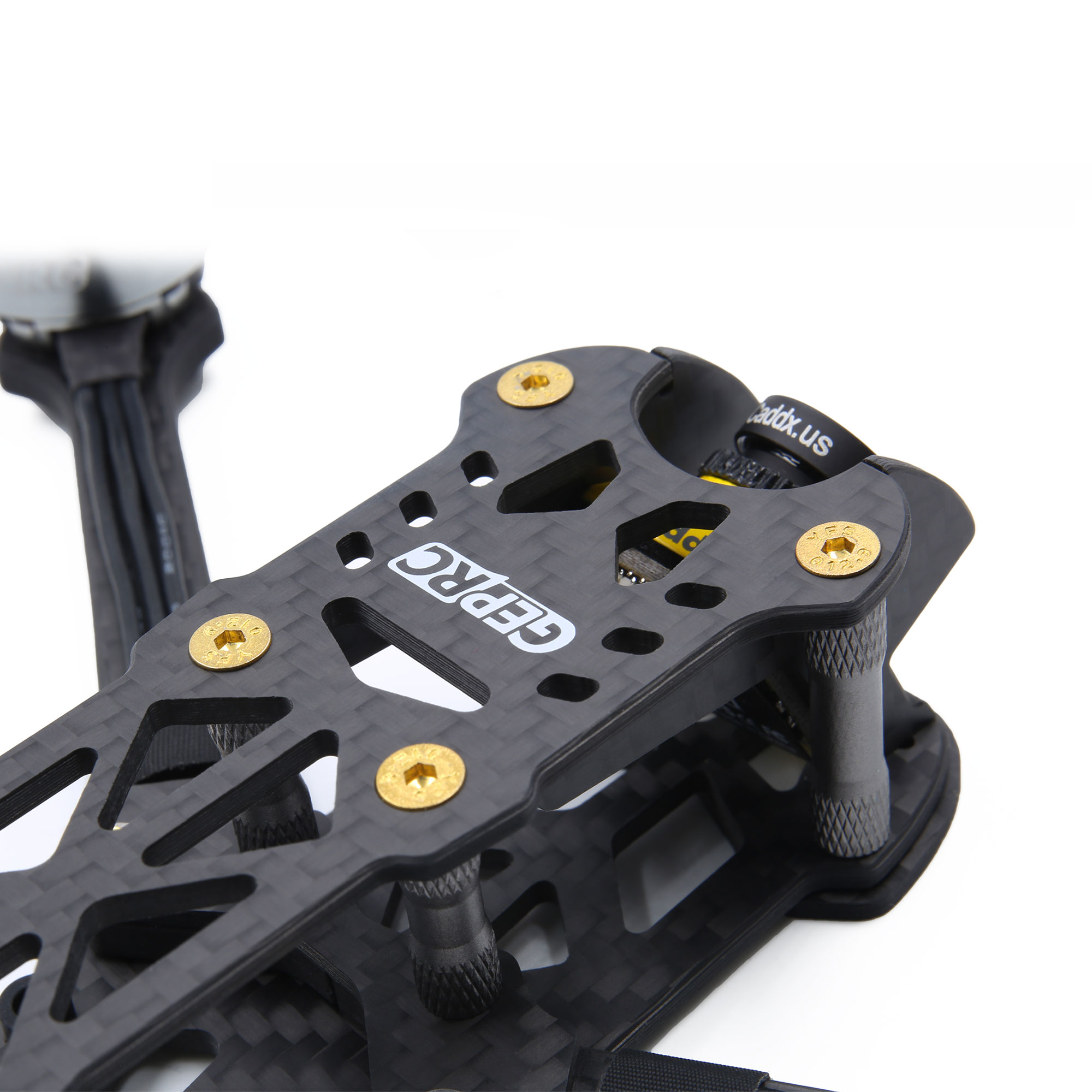

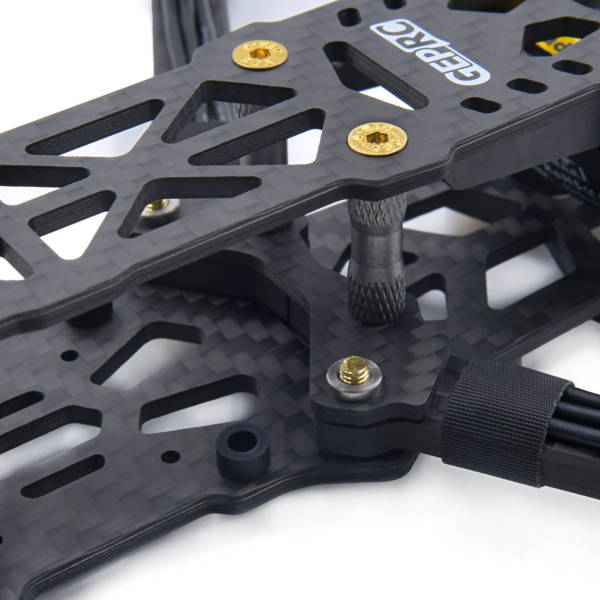

The GEPRC Mark 4-5 is a super lightweight freestyle frame with a beautiful design that is durable in crashes. It features quick maintenance for easy replacement of equipment, 25mm standoffs for better height and CG relation, and ample space for electronic installation. The frame is made of a high-quality 3K twill carbon fiber plate that undergoes high-precision CNC processing. It has both 30.5x30.5 and 20x20 mounting holes that allow for stack placement in the center or the rear. The frame is strengthened with Alu6061 Srandoff New and YFS screws with 12.9-grade strength, non-slip teeth, and anti-rust properties. It also has durable steel hardware.
Features:
- Super lightweight freestyle frame for high-speed maneuvers
- Beautifully designed and durable, able to withstand crashes
- Easy to maintain with quick arm and equipment replacement
- 25mm standoffs improve height and center of gravity for better stability in flight
- Ample space for electronic installation
- Alu6061 Srandoff New strengthens the hardness of the frame
- Two flight control hole sizes (30.530.5 and 2020) allow for flexible stack placement
- High-quality 3K twill carbon fiber plate with high-precision CNC processing ensures durability and reliability
- YFS screws with 12.9-grade strength, non-slip teeth, and anti-rust properties provide durable steel hardware for the frame.
Specifications:
- Brand name: GEPRC
- Item name: Mark 4-5
- Frame type: H type
- Propeller: 5 inch
- Motor to motor: 225mm
- Size: 145 x 172mm
- Weight: 102g
- Arms plate: 5mm
- Side plate: 2.5mm
- Top plate: 2.5mm
- Bottom plate: 2.5mm
- Protect plate: 2mm
Mark4 Includes:

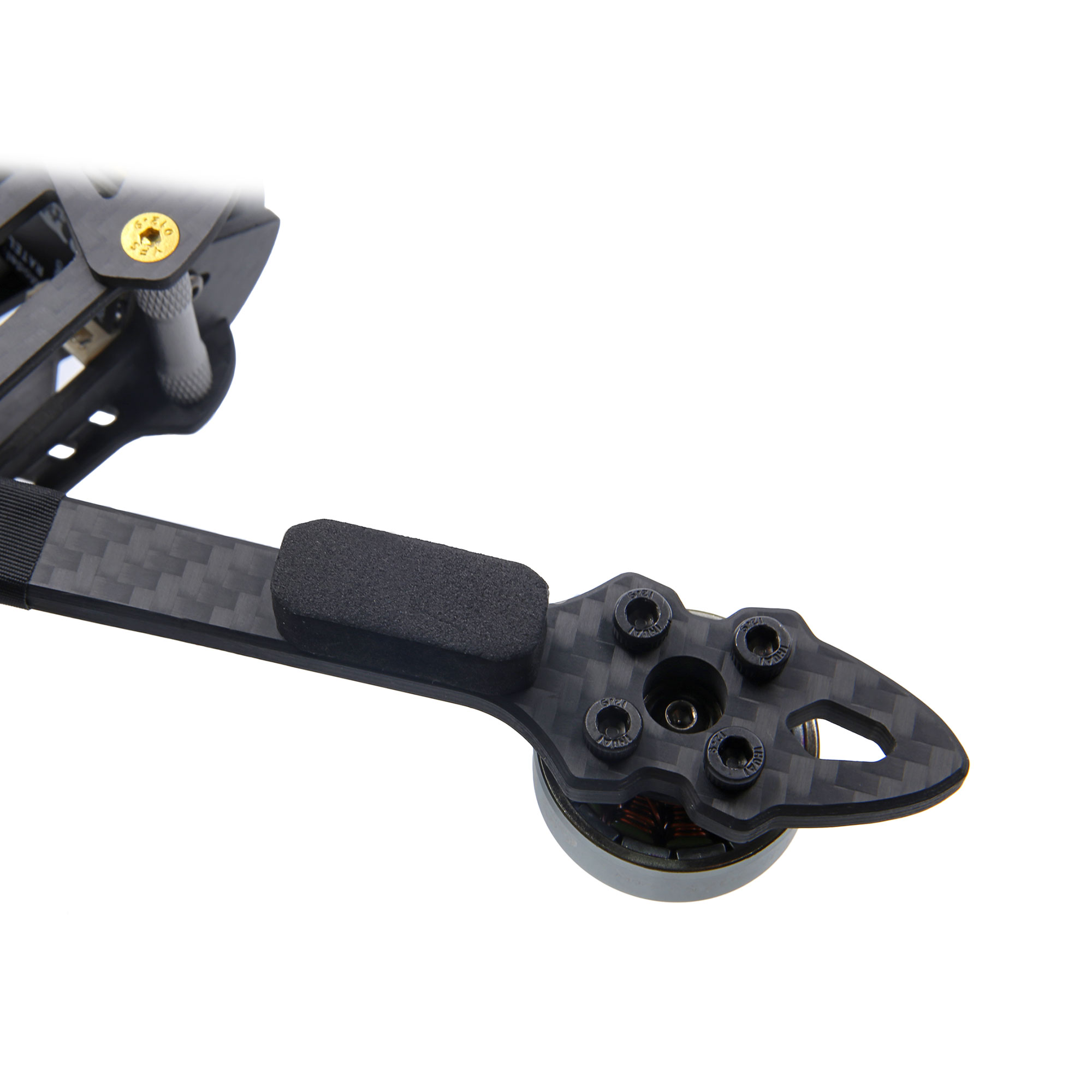

- 4 x 5mm 5 inch Arms plate
- 2 x 2.5mm side plate
- 1 x 2.5mm top plate
- 1 x 2.5mm Bottom plate
- 2 x 2mm Bumpers plate
- 2 x 2mm Reinforce plate
- 1 x Lipo silicone pad
Hardware:
- 8 x M3*25mm Alu6061 Srandoff New Titanium color
- 4 x M3*18mm Alu6061 Srandoff New Titanium color
- 8 x M3*8 YFS Flat Screw
- 4 x M3*10 YFS Flat Screw
- 4 x M3*12 YFS Button Screw
- 4 x M3*14 YFS Button Screw
- 4 x M3*20 YFS Button Screw
- 4 x M3 Flight control silicone
- 4 x M3 Nylon nut
- 4 x 5*150 Nylon tie
- 2 x 20*220 GEPRC Lipo strap
- 1 x 15*250 GEPRC Lipo strap
- 1 x 2.4g Antenna fixed tube
Recommended:
- Flight Controller: RF/Kiss/F3/F4/F7
- Motor: 2205/2206/2207/2207.5/2305/2306
- ESC: 30A-50A
- Propeller: 5 inch
- Lipo: 4S 1500mAh ~ 6S 1150mAh
