TBS Chupito EX 2207 2000KV

Chupito EX 2207 2000KV

This Motor is intended for TBS Chupito.

Please Check Out Our Other TBS Products!

This is the official and recommended motor for the TBS Chupito FPV flying wing. The TBS Chupito EX2207 is engineered to provide the perfect balance of power, speed, and efficiency for the Chupito airframe on a 6S LiPo battery. Featuring premium components and a convenient plug-and-play connector, this motor is the ideal choice for a simple, reliable, and high-performance build.

The Official Chupito Motor. This is the exact motor that TBS designed for their Chupito flying wing. The 2000KV rating is perfectly matched for 6S LiPo power, providing an excellent blend of high-speed performance for thrilling passes and efficient cruising for long-range flights. It’s the recommended power plant to get the best possible flight experience from your wing.

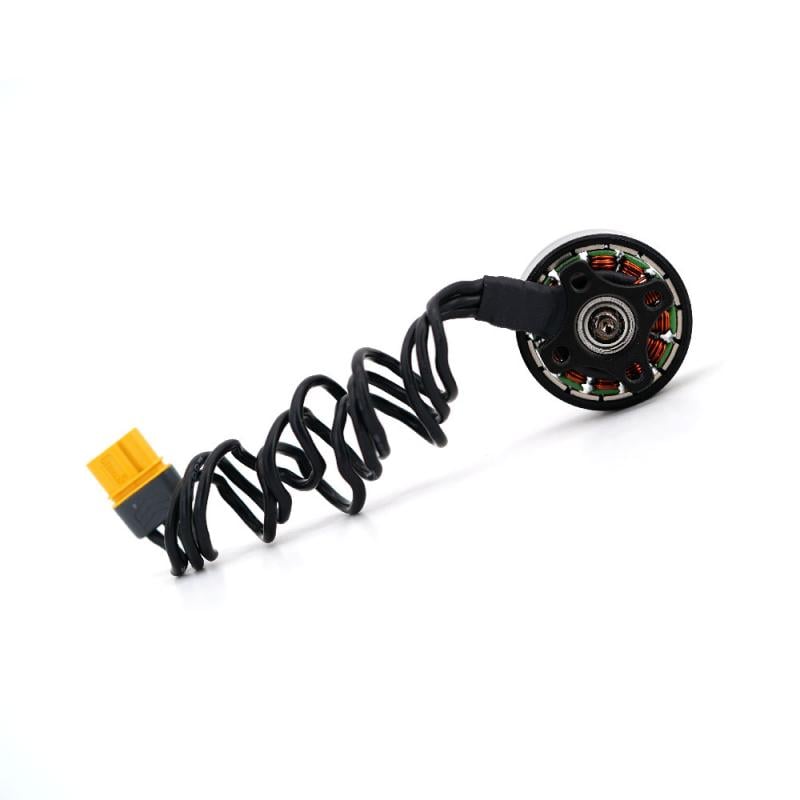

Plug-and-Play Convenience: Say goodbye to soldering motor wires. The Chupito motor comes with a 190mm long cable pre-terminated with an MT30 connector. This allows for a direct, plug-and-play connection to compatible flight controllers like the TBS Lucid Wing AIO, dramatically simplifying the build process and making maintenance a breeze.

Key Features:

• Official TBS Chupito Motor: Guarantees a perfect fit and the intended flight performance.
• Plug-and-Play MT30 Connector: Provides a simple, solder-free connection to compatible flight controllers like the TBS Lucid Wing AIO.
• Optimized for 6S Power: The 2000KV rating delivers an excellent balance of speed and efficiency for fixed-wing flight.
• Premium Components: Features a titanium alloy shaft, Japanese NMB bearings, and N52H magnets for a smooth, durable, and reliable motor.
• Lightweight Design: At only $29.9\text{g}$, it provides incredible power without a significant weight penalty.

Technical Data

• kV: $2000$
• Configuration: 12N14P

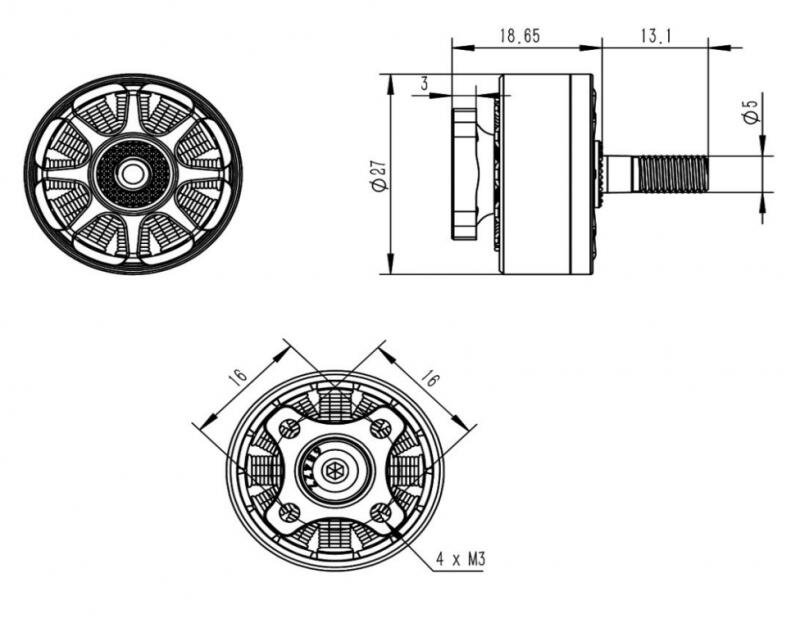

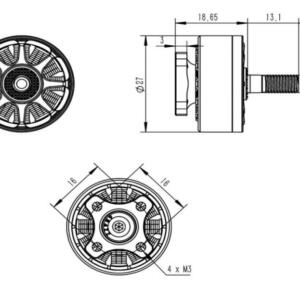

• Stator Size: $22\text{mm}\times 7\text{mm}$
• Shaft: 4mm Hollow Titanium Alloy
• Prop Shaft: M5
• Bearings: NMB
• Mounting Pattern: $16\text{x}16\text{mm}$ (M3)
• Max Cells (Lipo): 6S
• Weight: $29.9\text{g}$
• Connector: MT30 (on $190\text{mm}$ wire)

Includes

• 1x TBS Chupito EX2207 2000KV Motor
• 1x M5 Prop Nut
• 1x Set of Motor Screws
