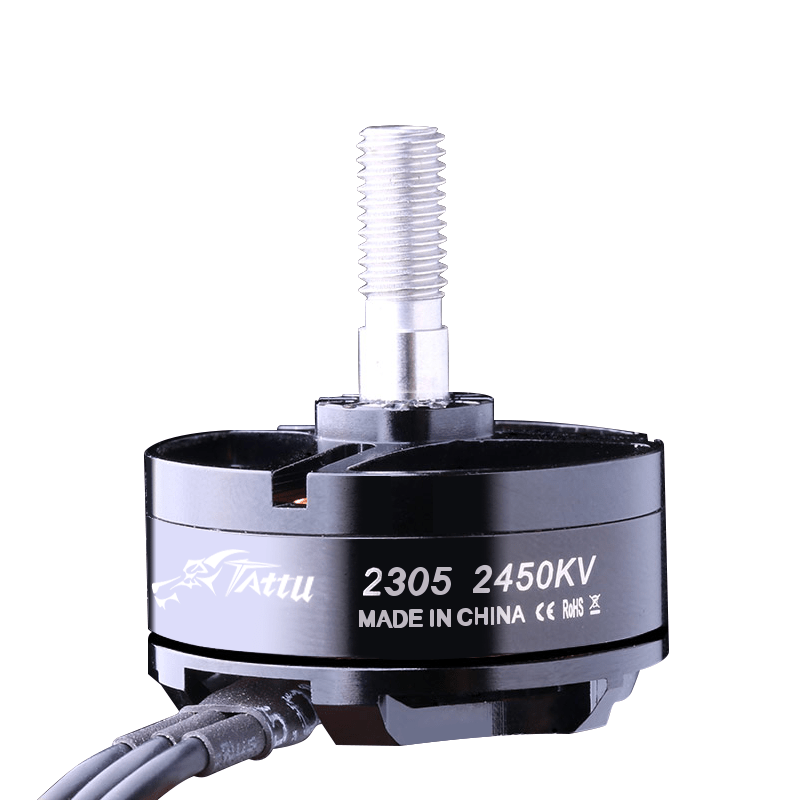

Tattu 2305 2450KV Brushless Quadcopter Motors
The Tattu 2305 2450KV quadcopter motor RPM is 2450KV, with 35A max burst current, 360W max continuous power, and 85% max efficiency. It is very quick, has a fast response, and is one of the best FPV racing motors around. Tattu is one of the best brands for FPV racing, and their motors reflect that fact. Now go Power Loop the World!
Click here to see other Tattu Products

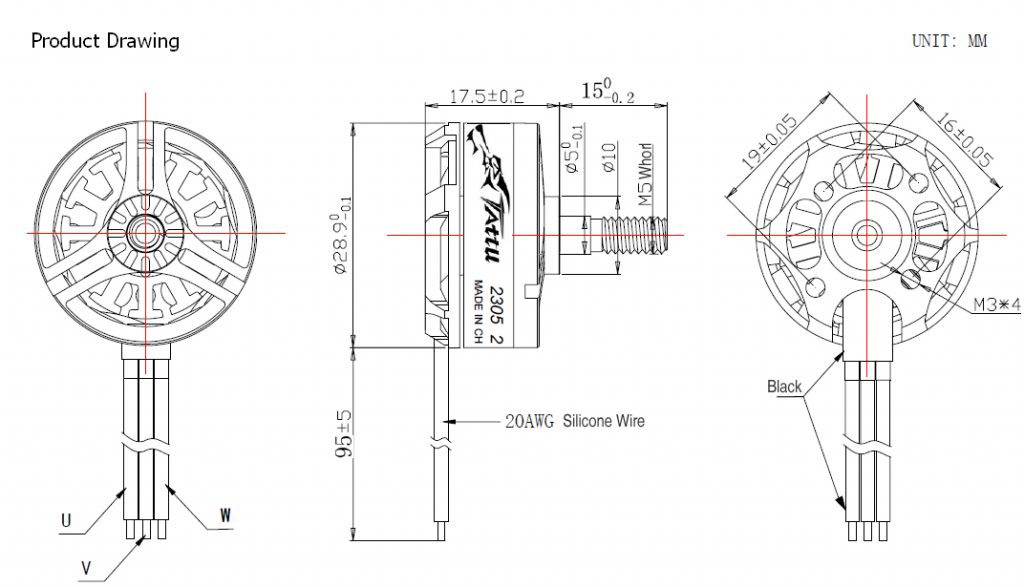

Motor Size:
- Stator Diameter: 23mm
- Stator Length: 5mm
- Motor Diameter: 28.9mm X 17.5
- Shaft Diameter: 4mm
- Motor Wire Length: 95mm
- Weight: 29.5g
Motor Parameters:
- RMP: 2450KV
- Configuration: 12N14P
- Max Efficiency: 85%
- Voltage : 2~4S
- Insulation Class: A
- Insulation resistance: 100V 10MΩ
- Internal Resistance: 51mΩ
- Continuous Current (A): 20A
- Max Continuous Current (A): 60S 28A
- Max Burst Current<10S 35A
- Continuous Power (W): 280W
- Max Continuous Power (W): 60S 360W
Compatible FPV Quadcopter sizes:Â 180mm-250mm
Compatible propeller sizes:Â 5040 / 5045 two-blade or three-blade propeller.
