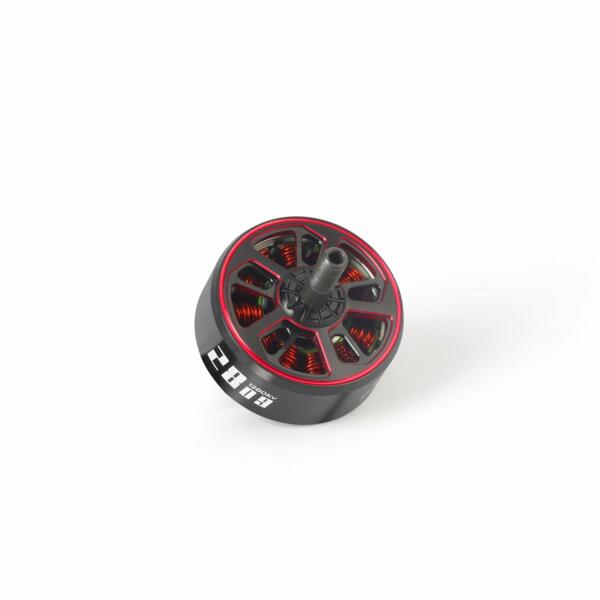

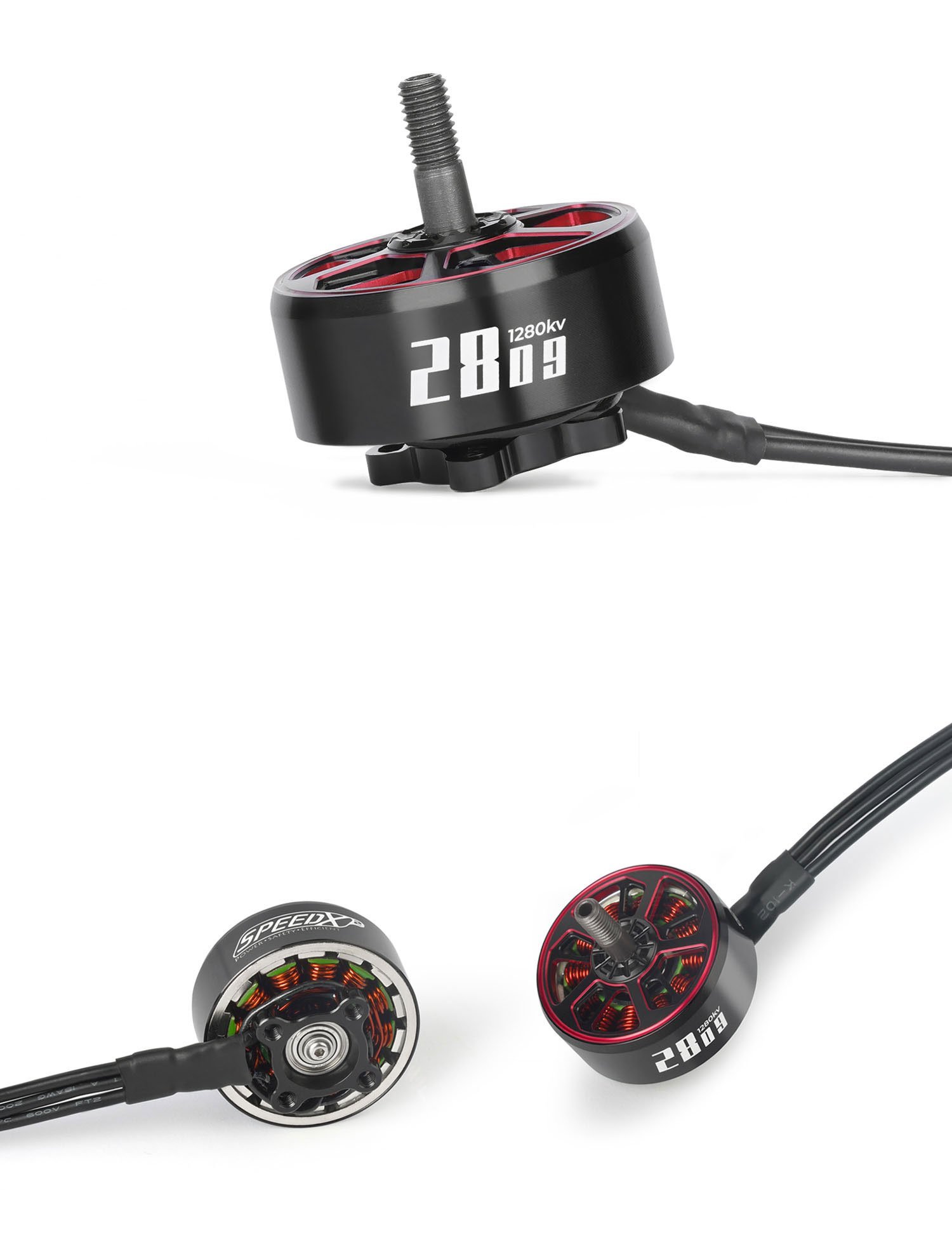

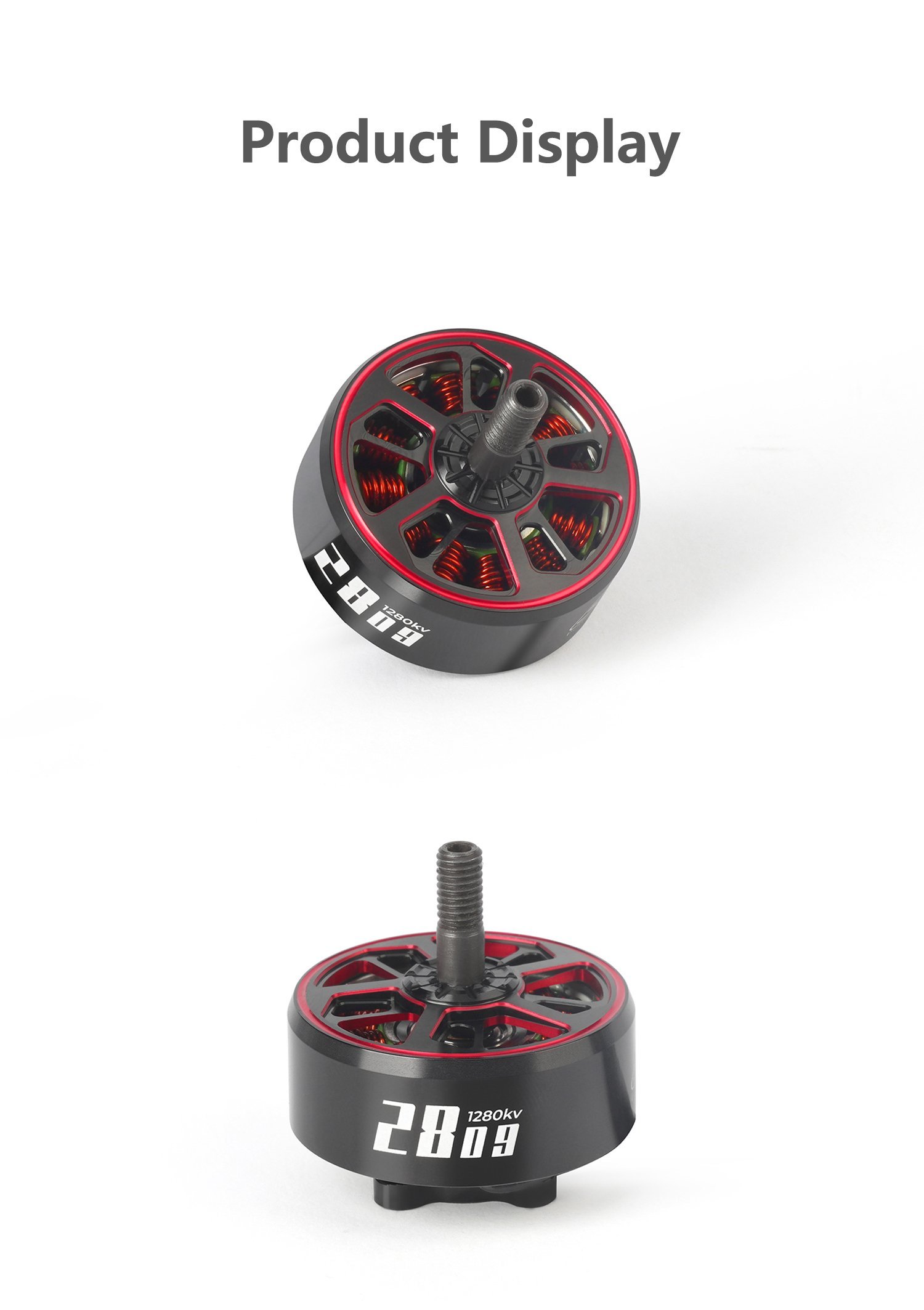

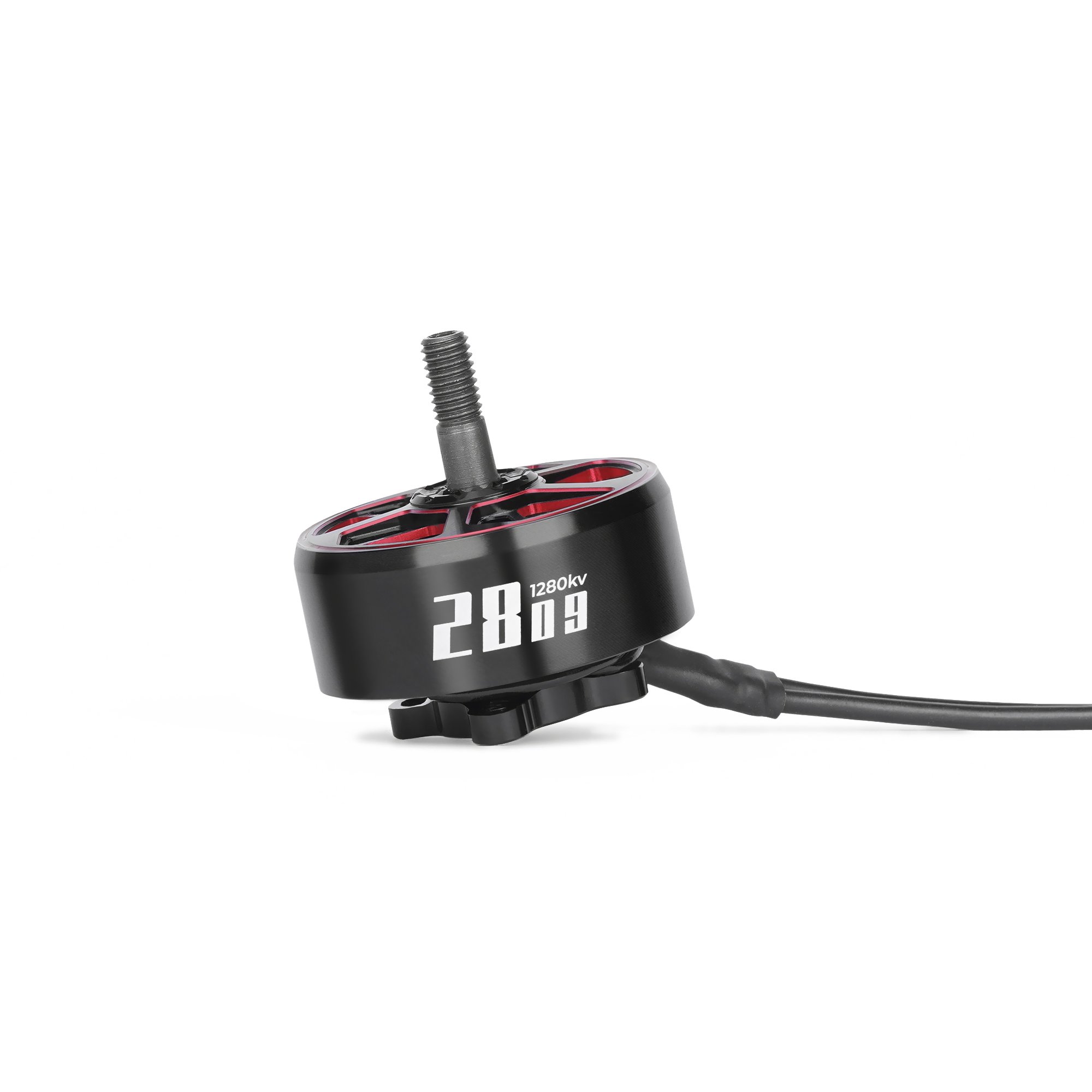

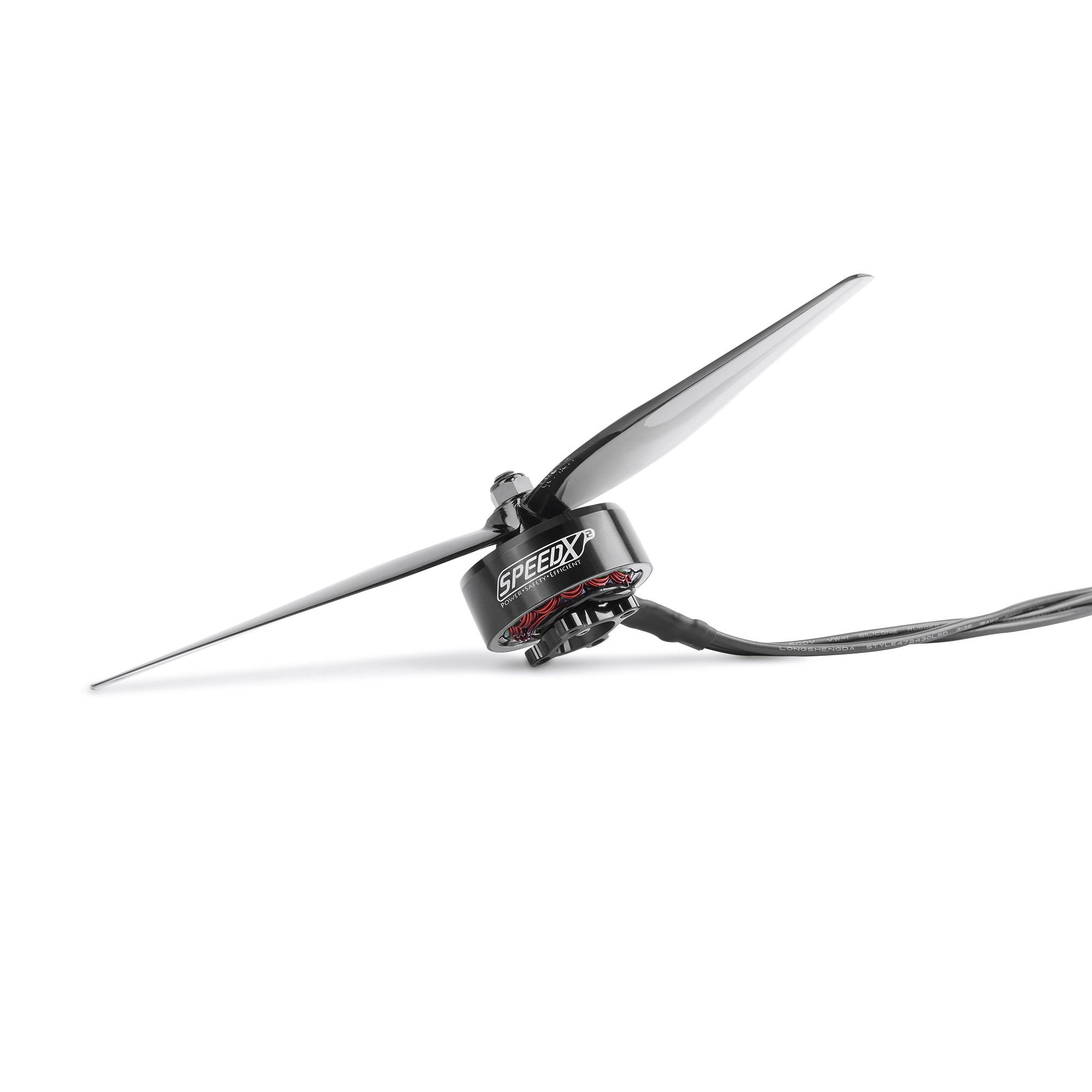

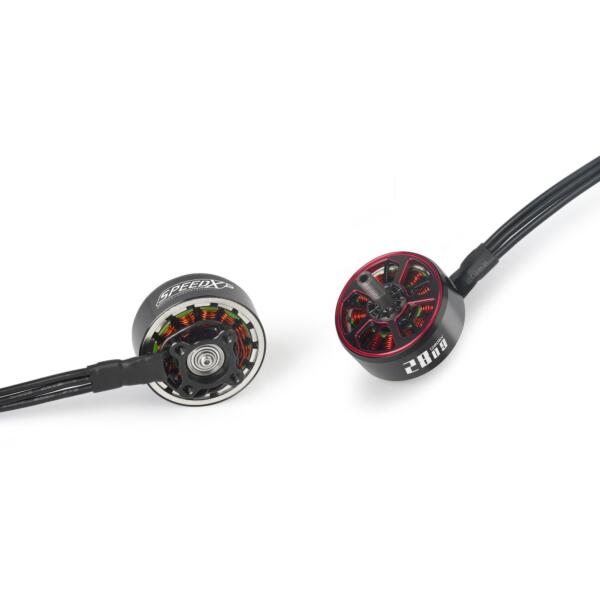

GEPRC SPEEDX2 2809 1280kv 7-8″ Motor
Check out all of our GEPRC Products!
Summary

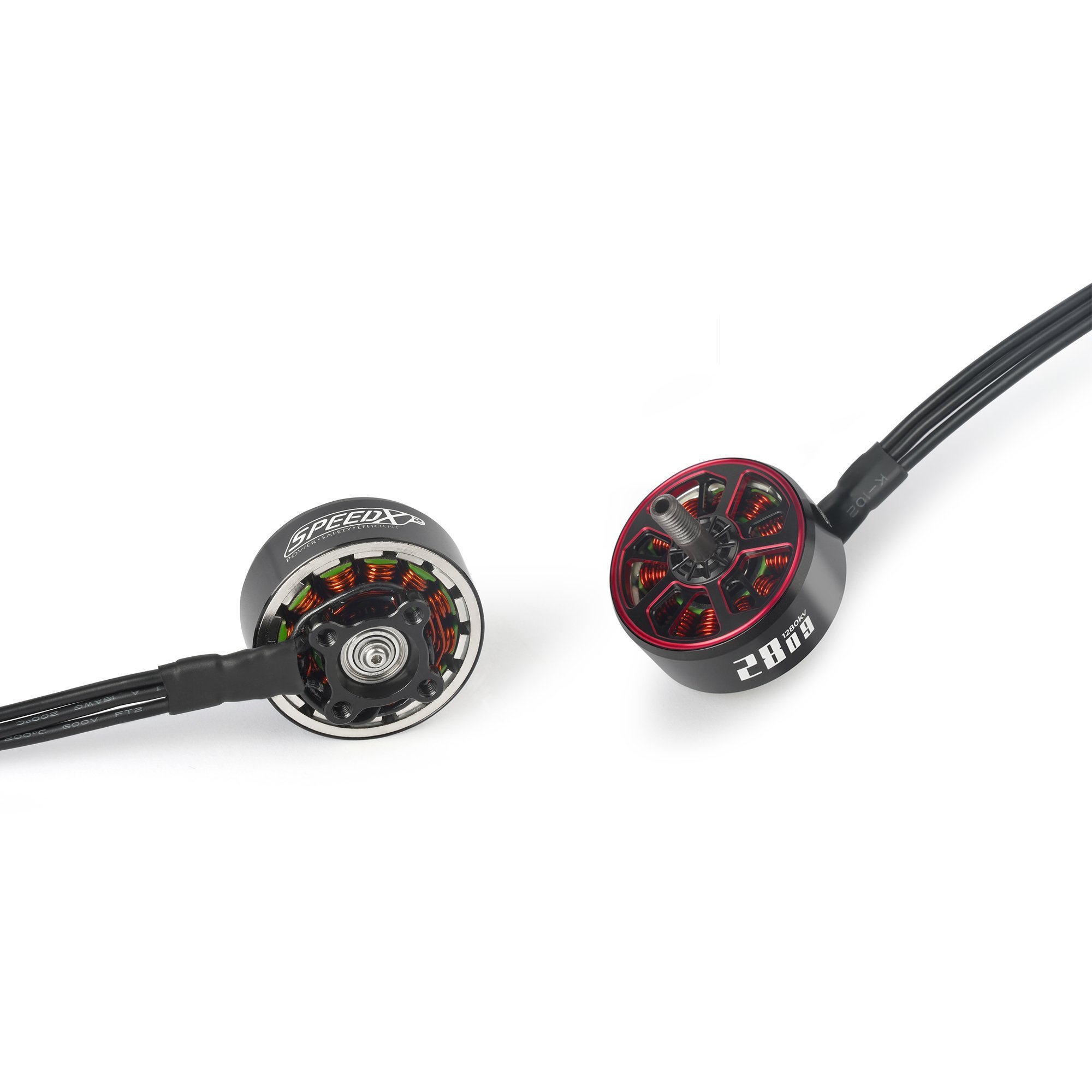

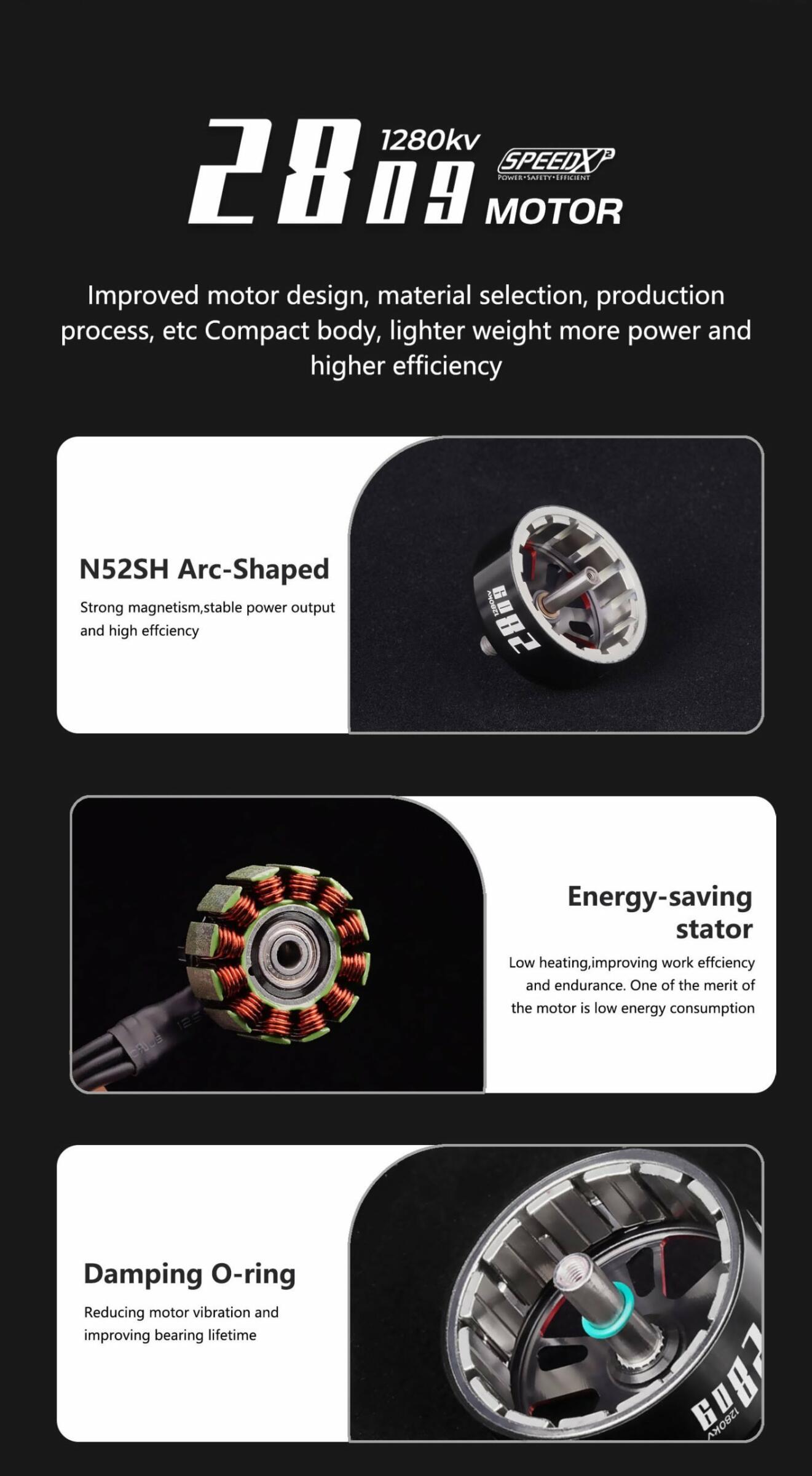

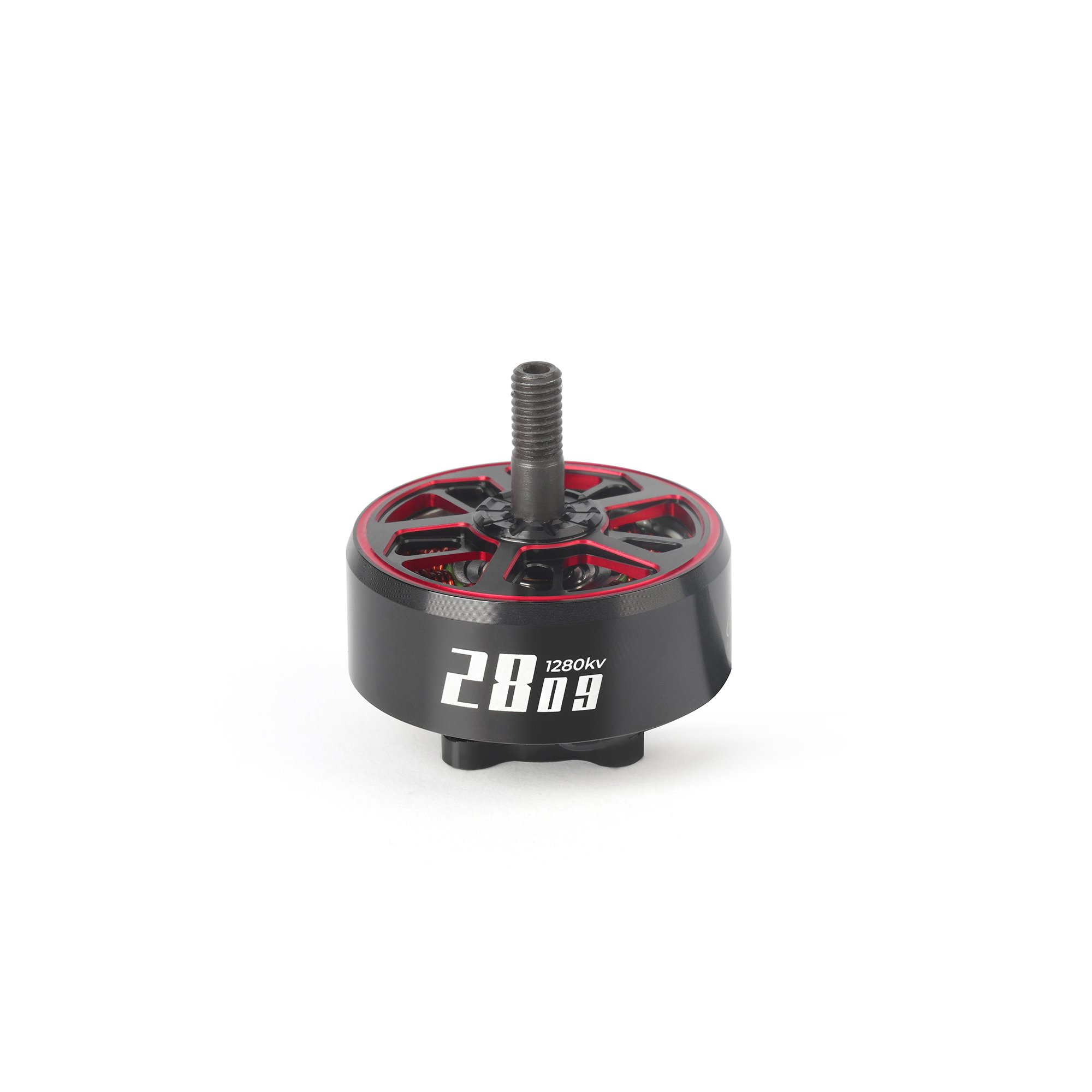

The SPEEDX2 2809 motor is developed for a 7-8 inch large FPV drone. The stator is made of 0.2MM silicon steel sheets from Kawasaki. The magnetic steel uses N52SH, which improves the high-temperature resistance by 30%. In terms of appearance, the overall design is dark and red, with a delicate texture.The motor mounting hole is 19mm*19mm.
Feature

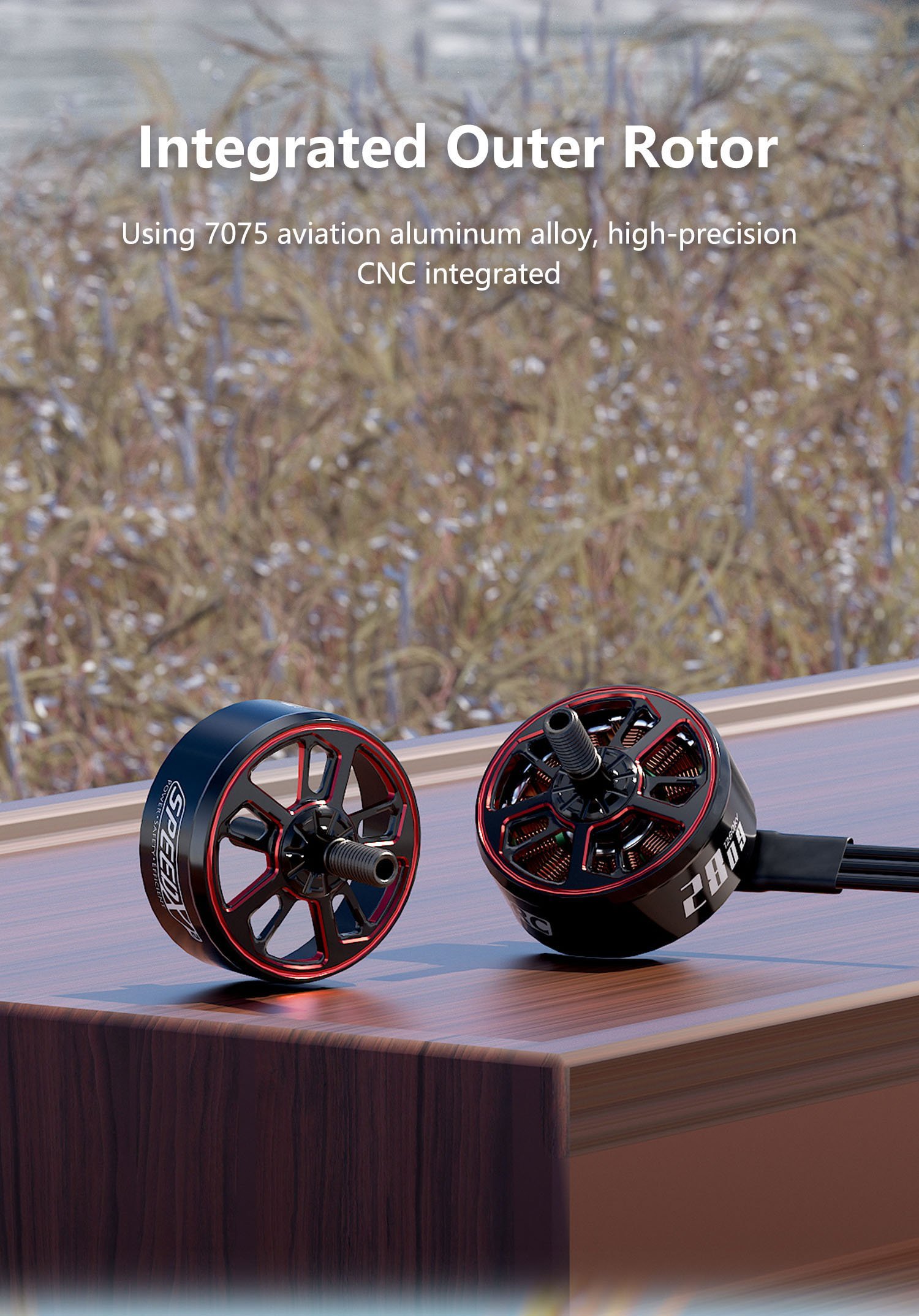

1. Using 7075 aviation aluminum alloy, high-precision CNC integrated

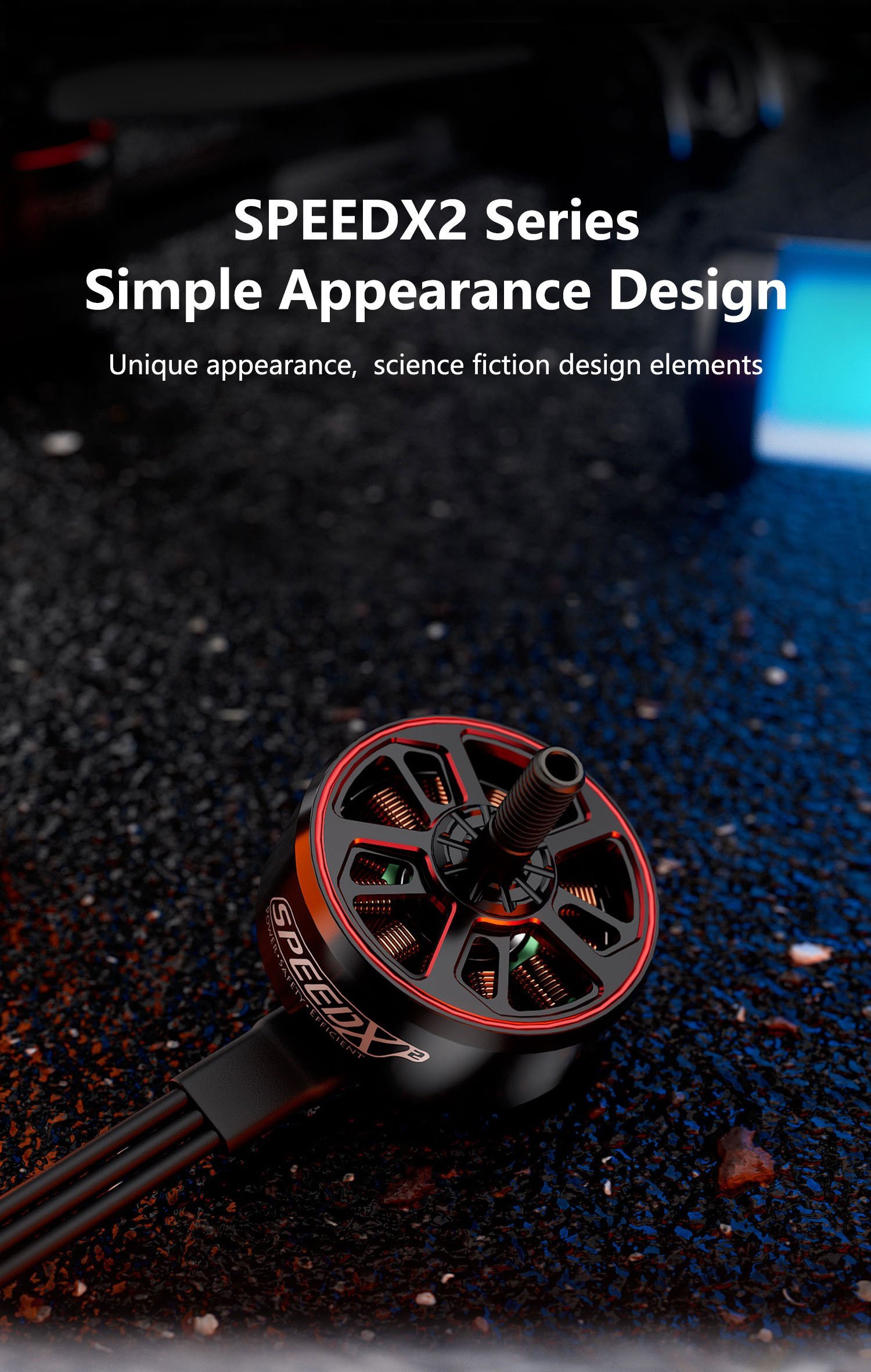

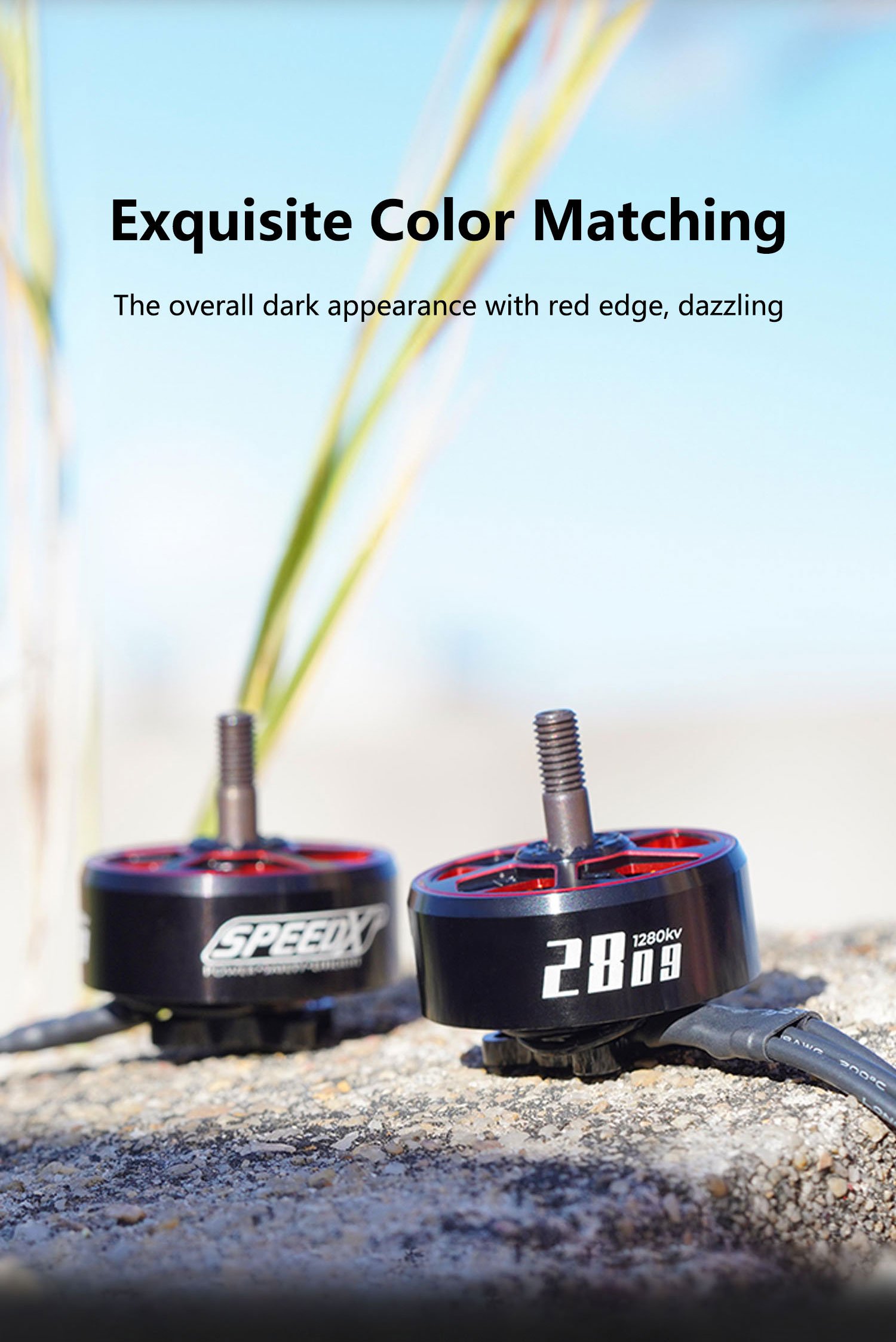

2. Dark appearance with red side stripes

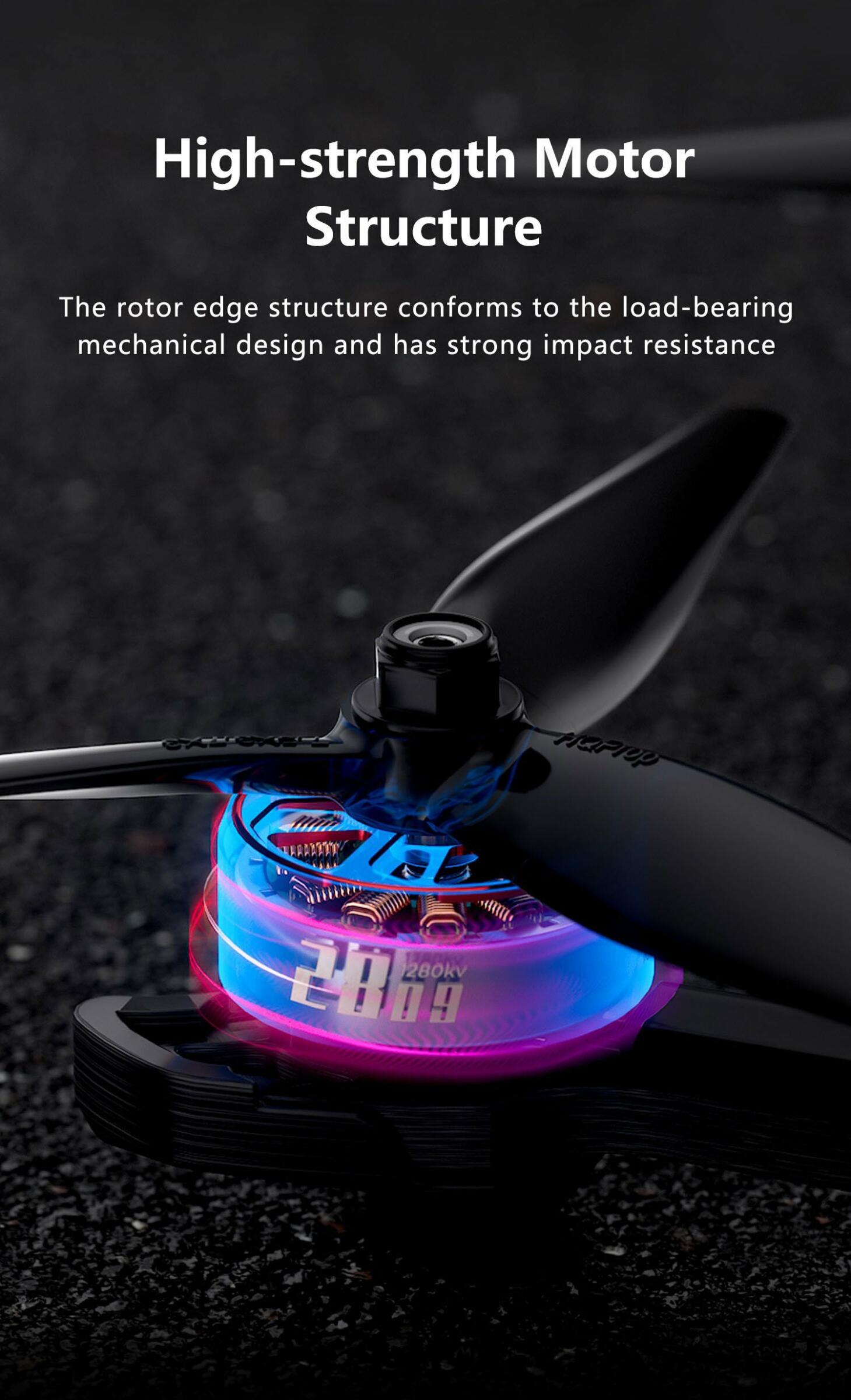

3. The rotor edge structure conforms to the load-bearing mechanical design and has strong impact resistance.

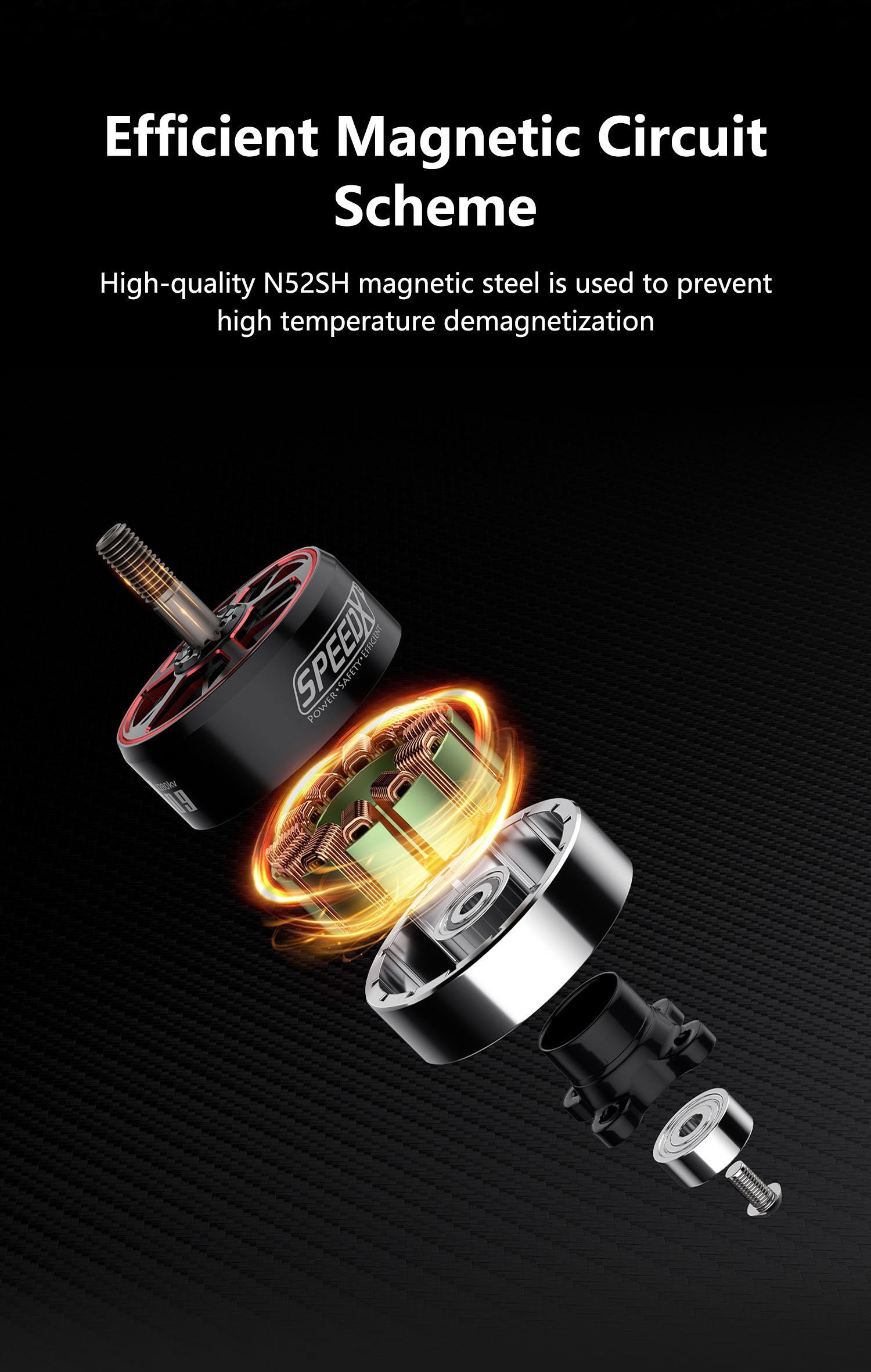

4. Adopt high-quality N52SH magnetic steel to prevent high-temperature demagnetization

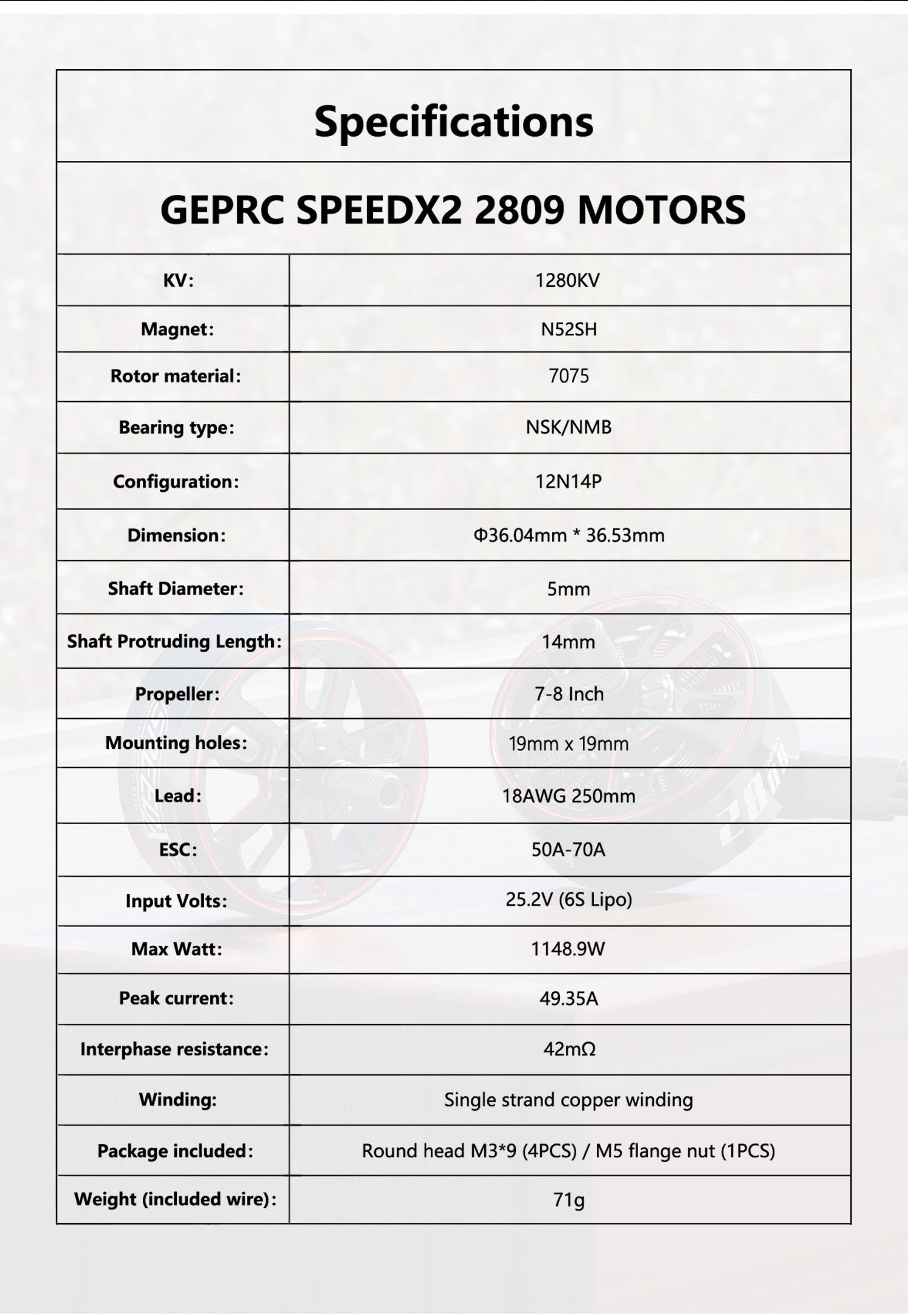

Specifications
- Model: SPEEDX2 2809 Motor
- KV:1280KV
- Configuration:12N14P
- Magnet: N52SH ARC
- Rotor material: 7075-T6 aviation aluminum alloy
- Stator diameter: 28mm
- Stator height: 9mm

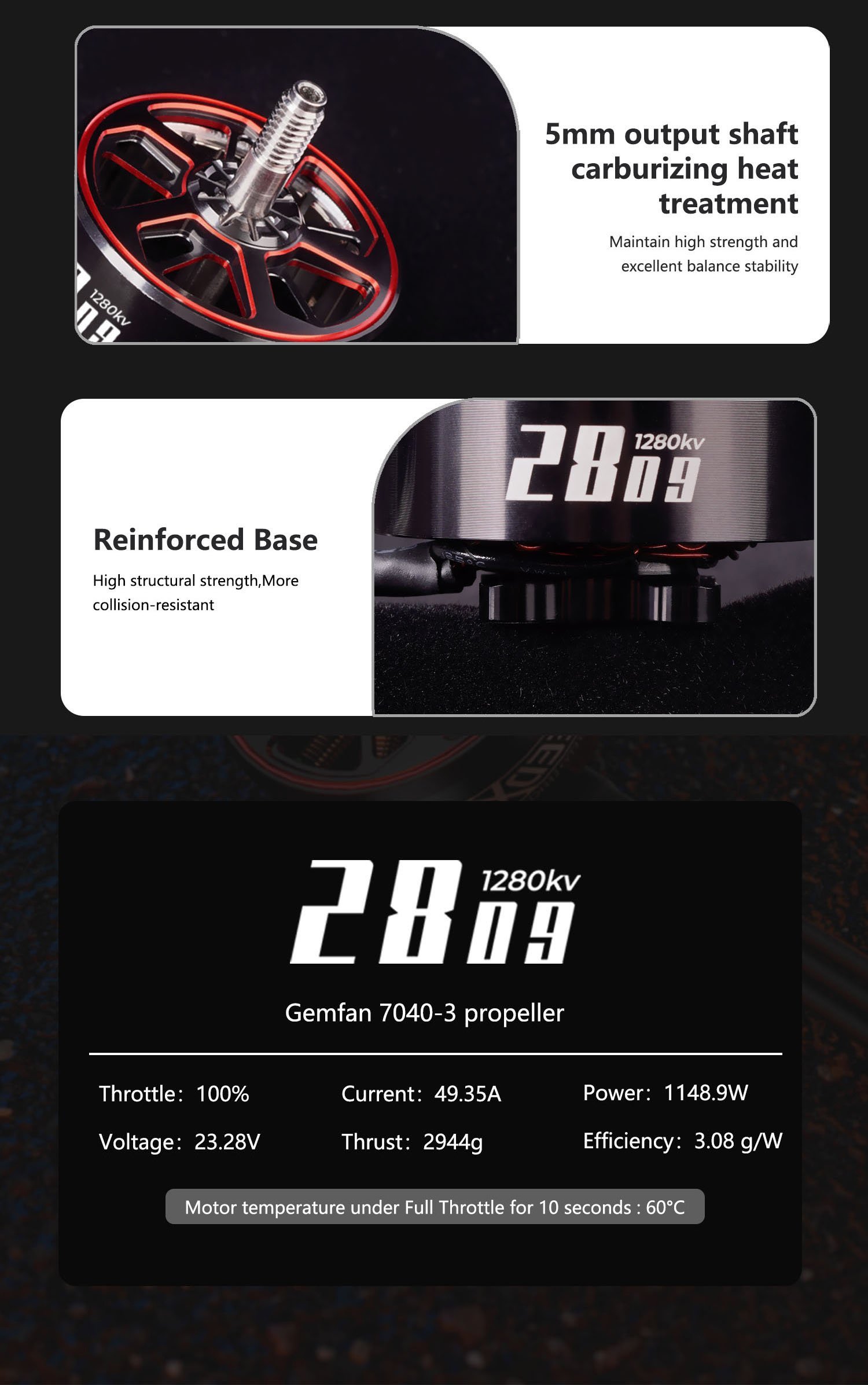

- Output shaft diameter: Φ5mm

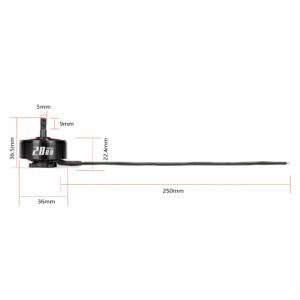

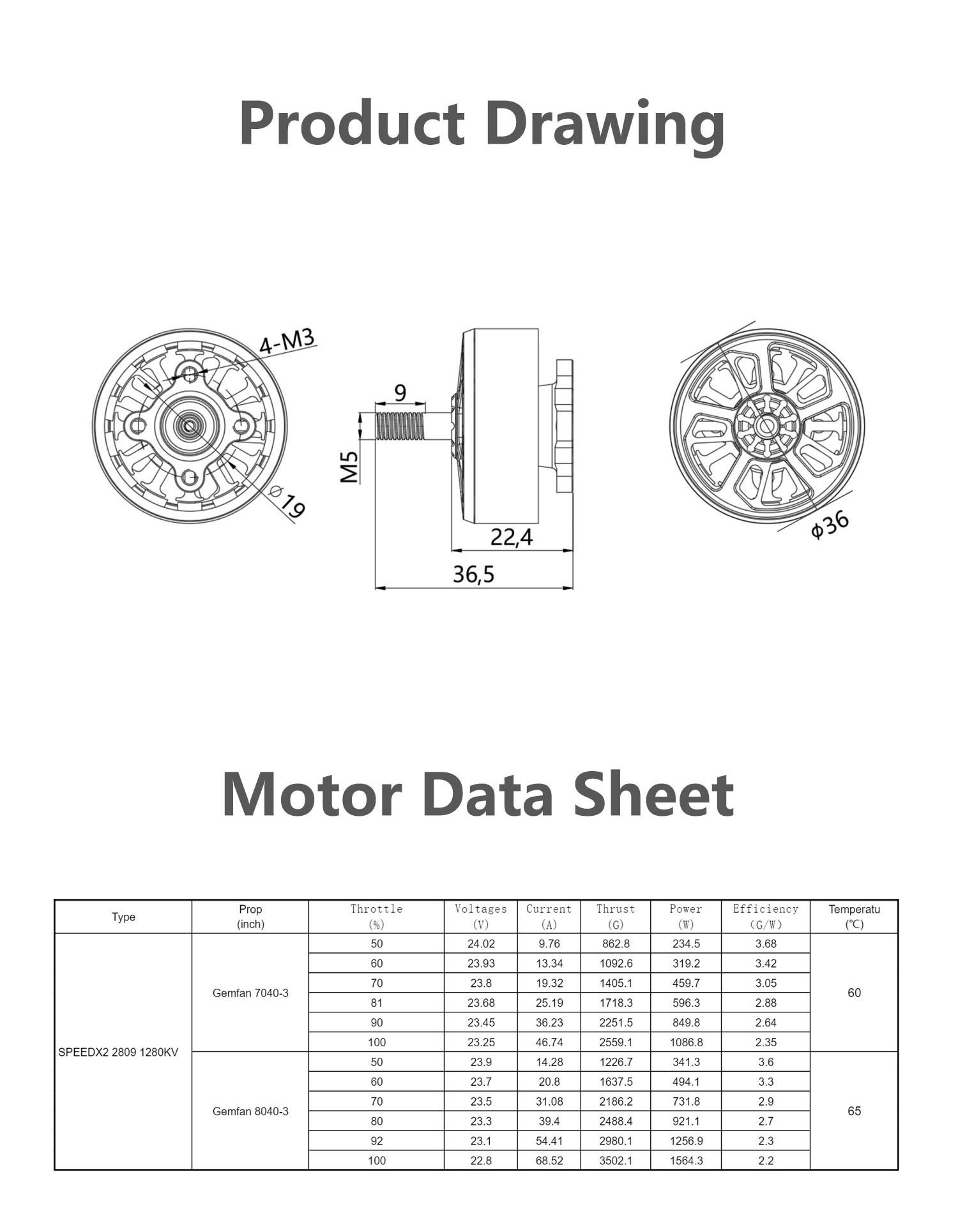

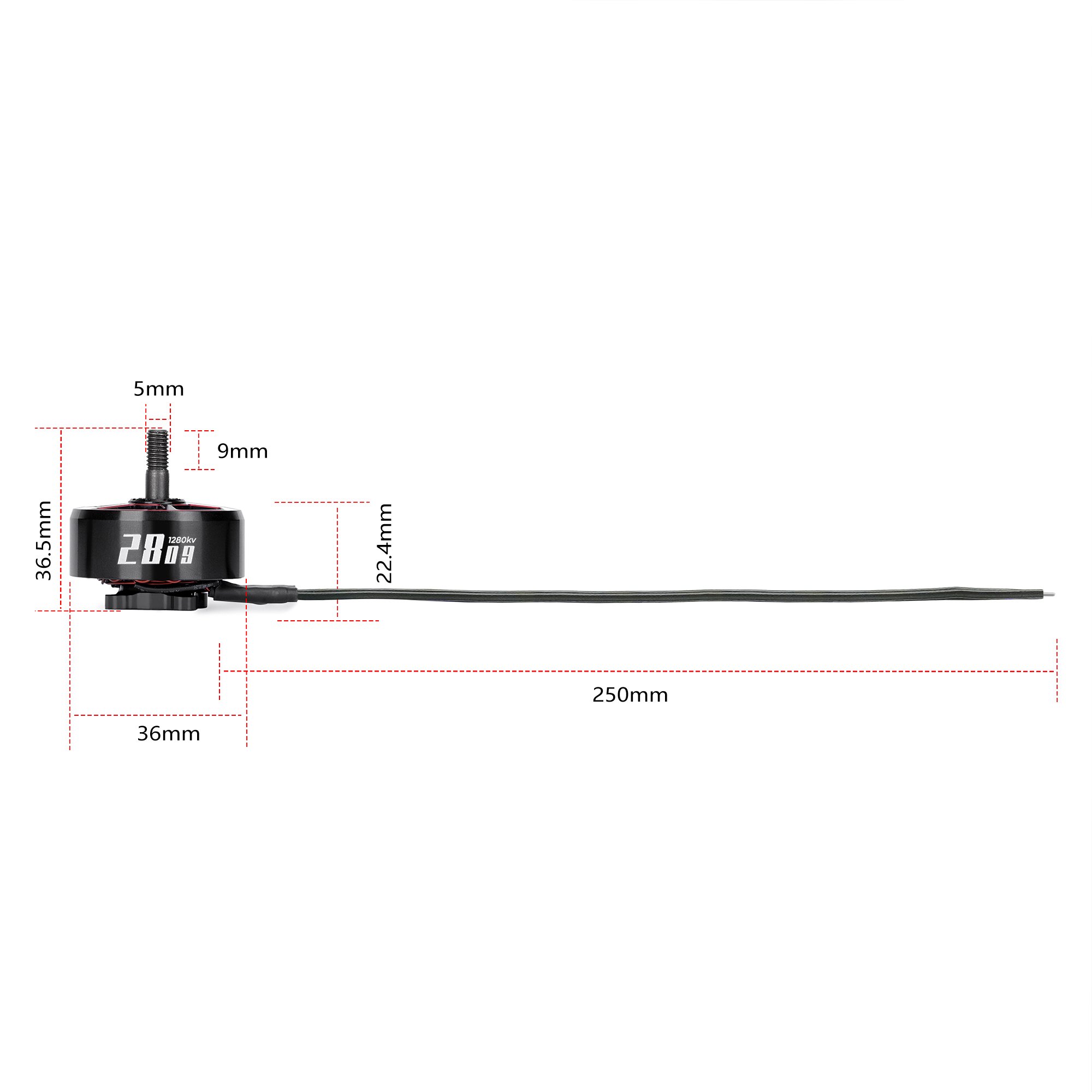

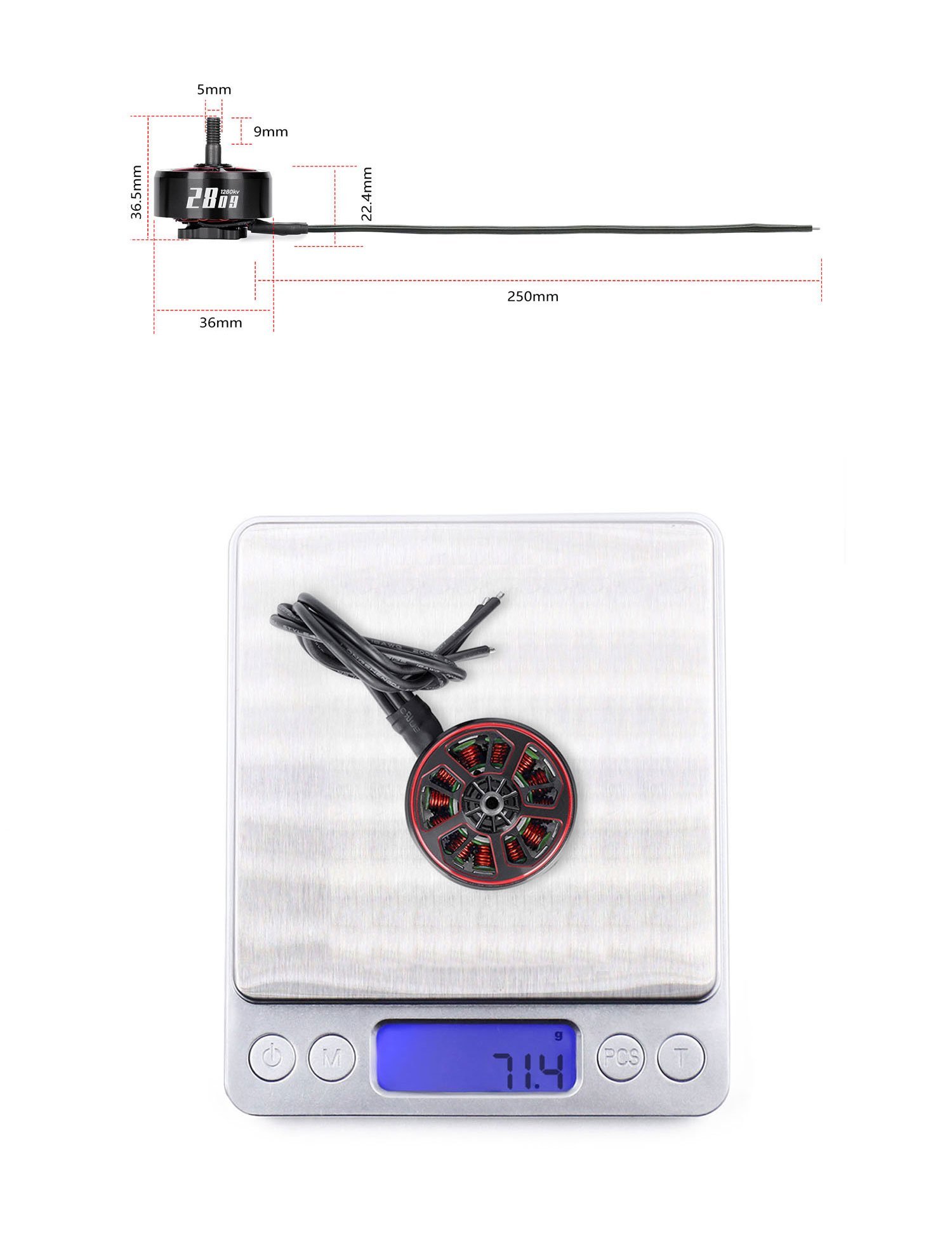

- Dimensions: Φ36.04mm * 36.53mm
- Outlet specification: 18AWG 250mm
- Rated voltage: 25.2V 6S（LiPo）
- Maximum power (W): 1148.9
- Maximum current (A): 49.35A
- Mounting hole: 19x19mm (M3)
- Color: red and black

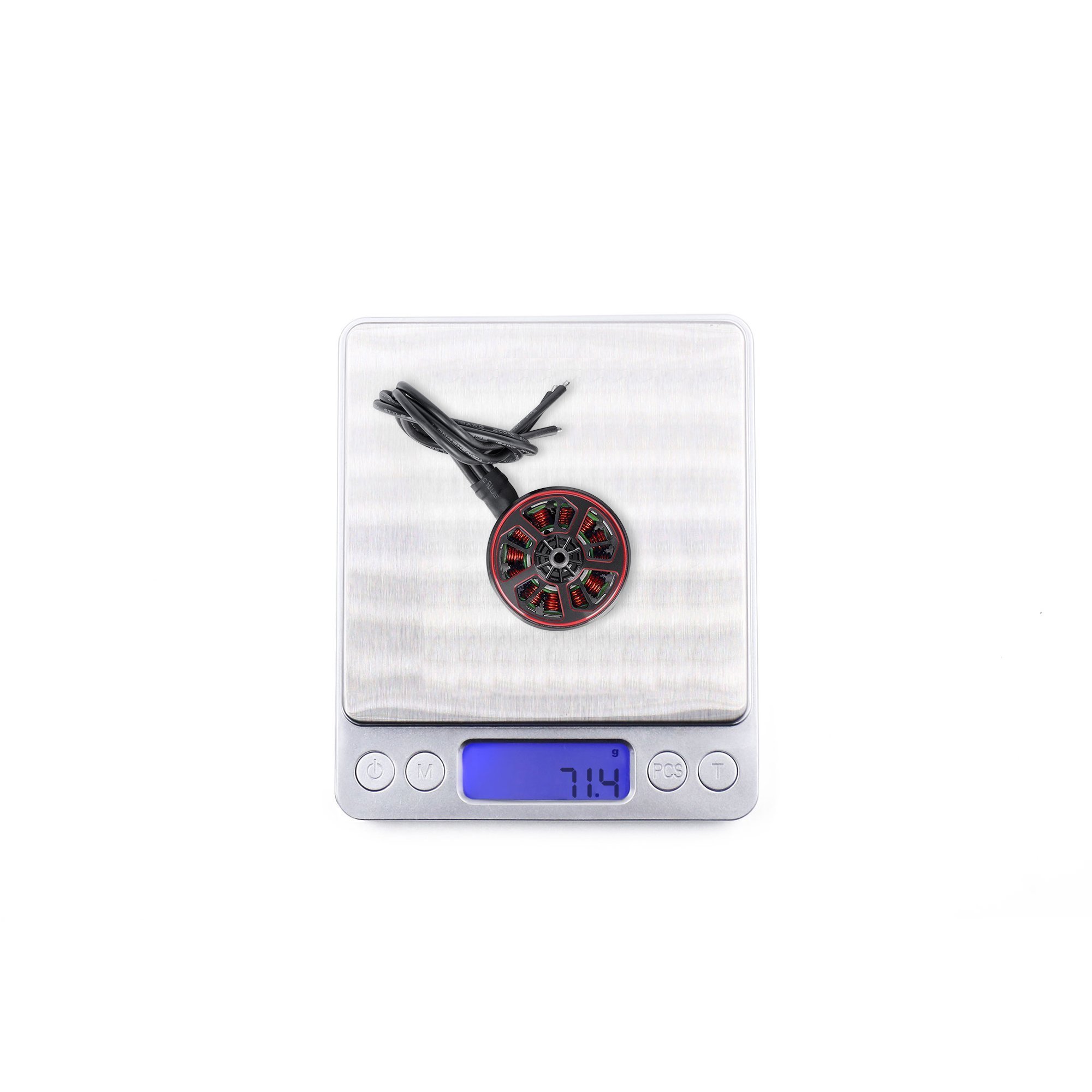

- Weight: 71.4g

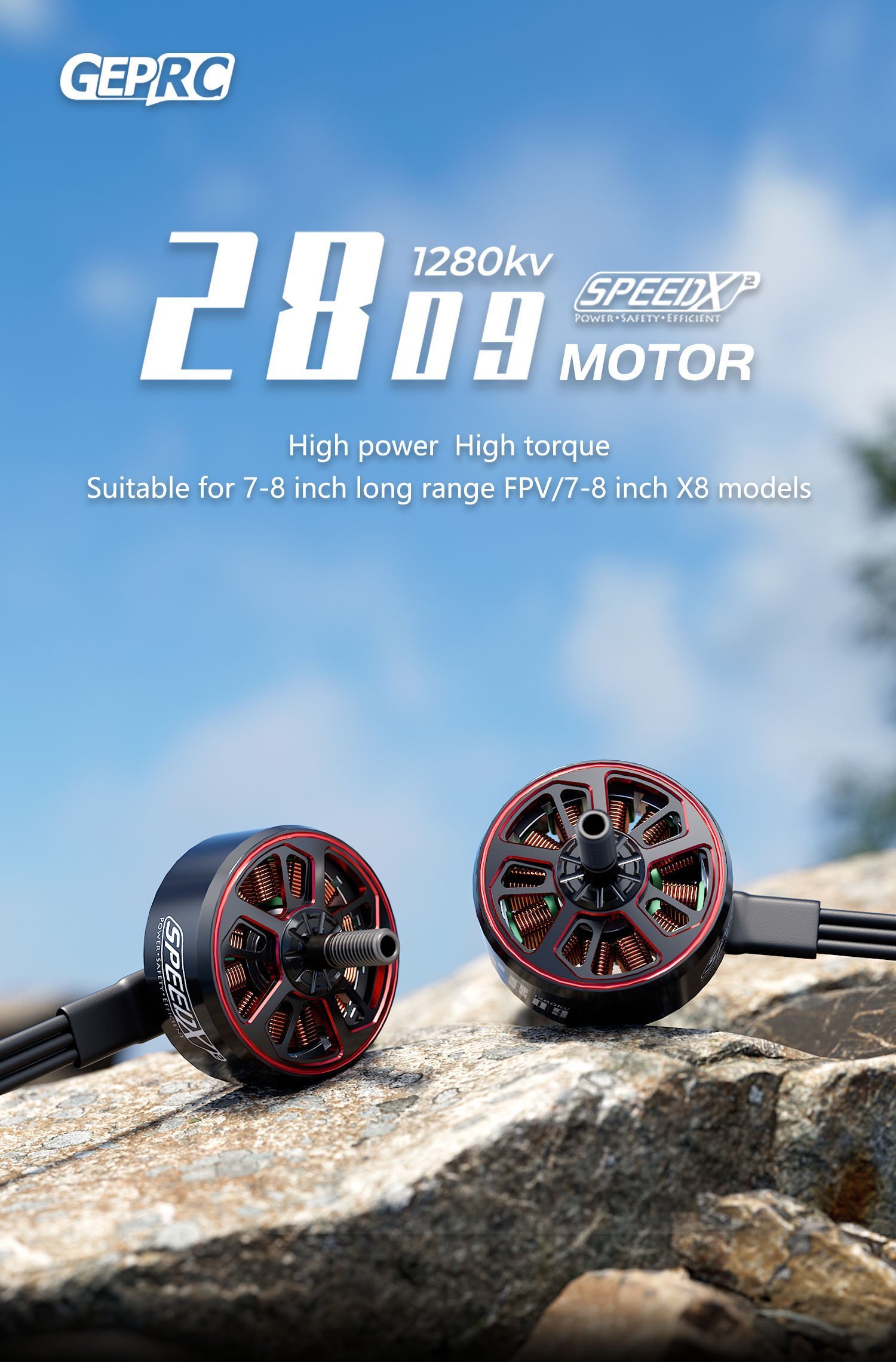

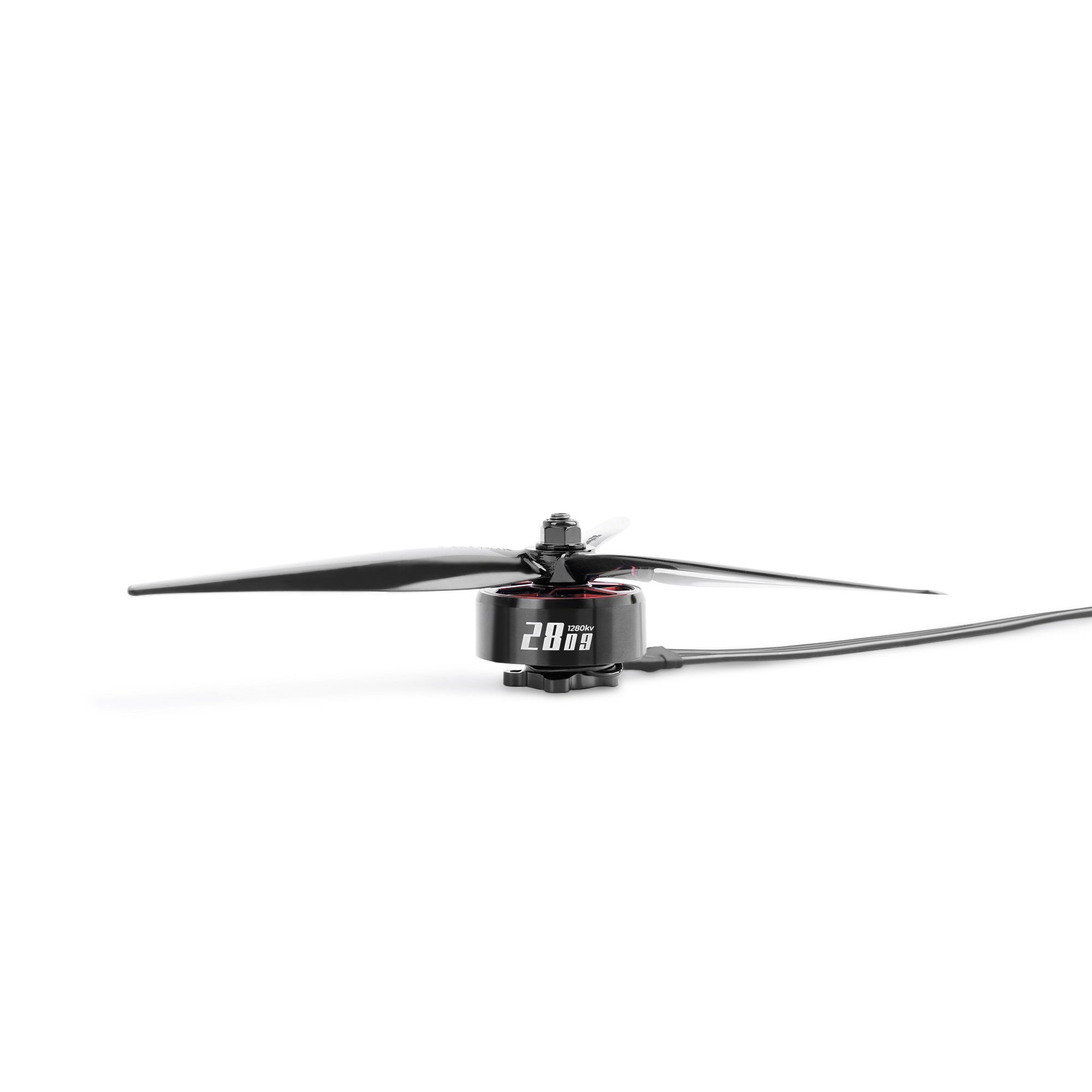

- Applicable models: 7-8 inch long range FPV/7-8 inch X8 models

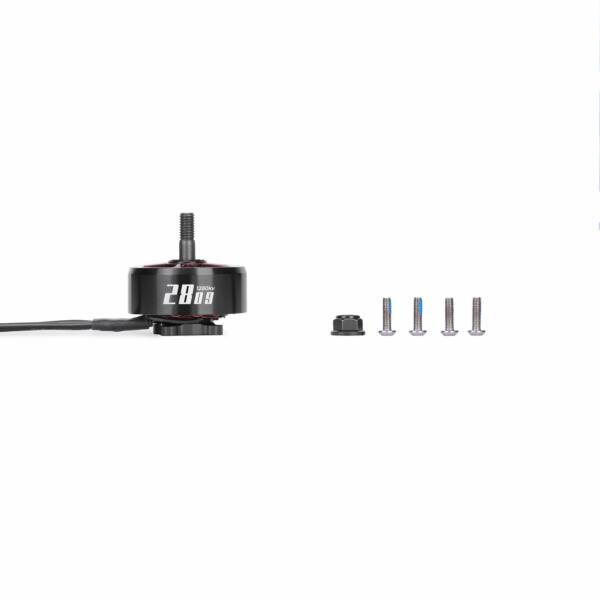

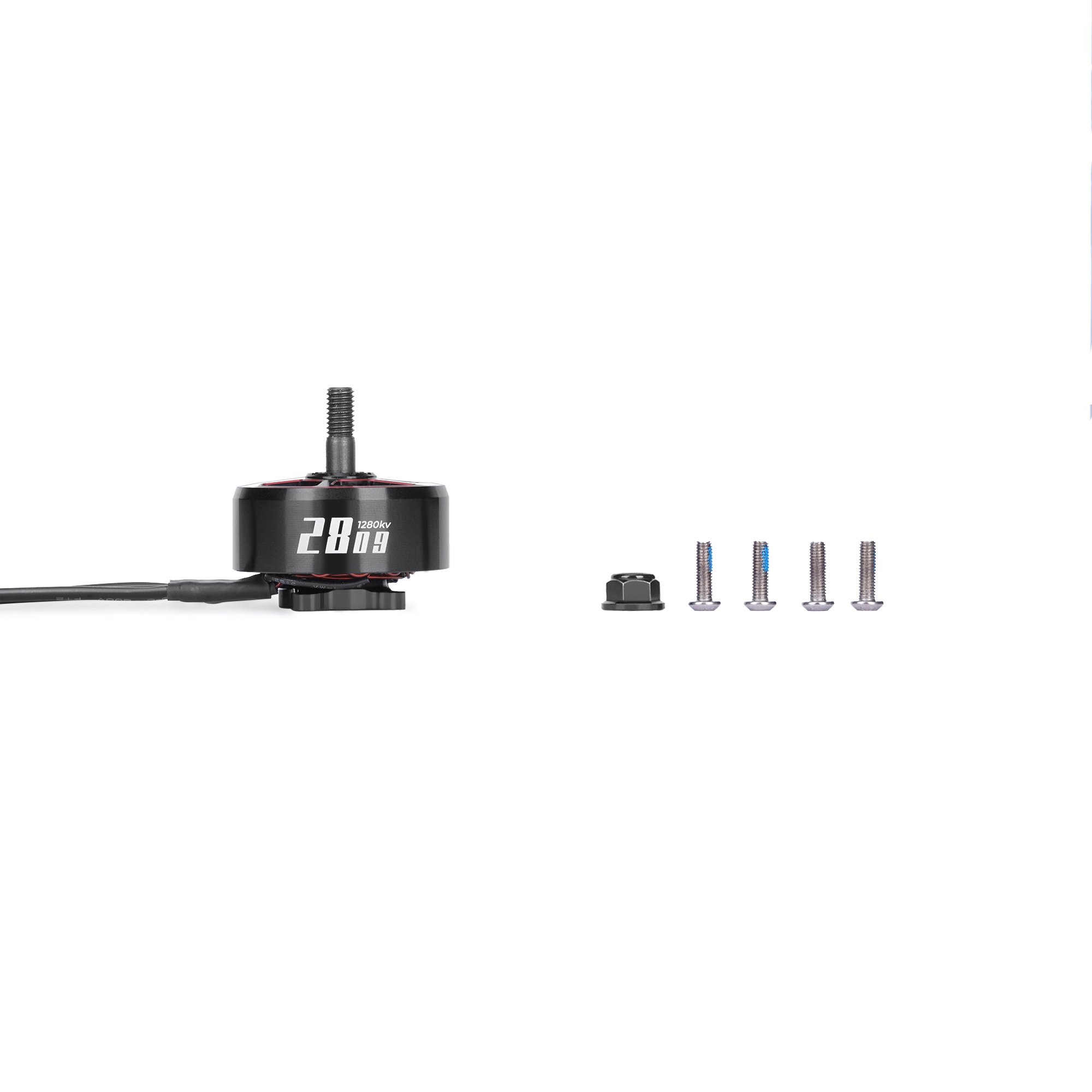

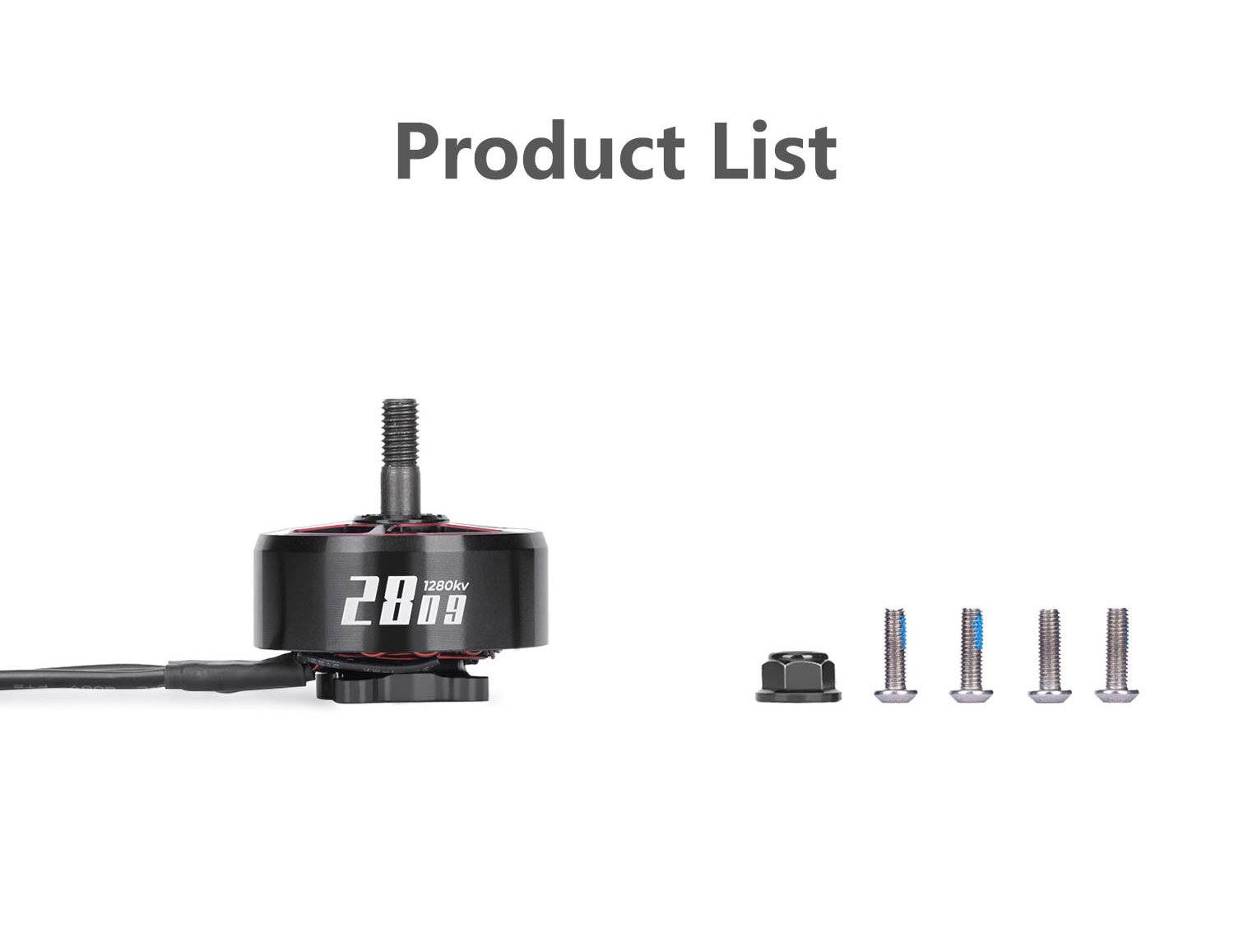

Includes
1 x SPEEDX2 2809 1280KV motor
4 x M3*9 round head screws
1 x M5 anti-slip nut
