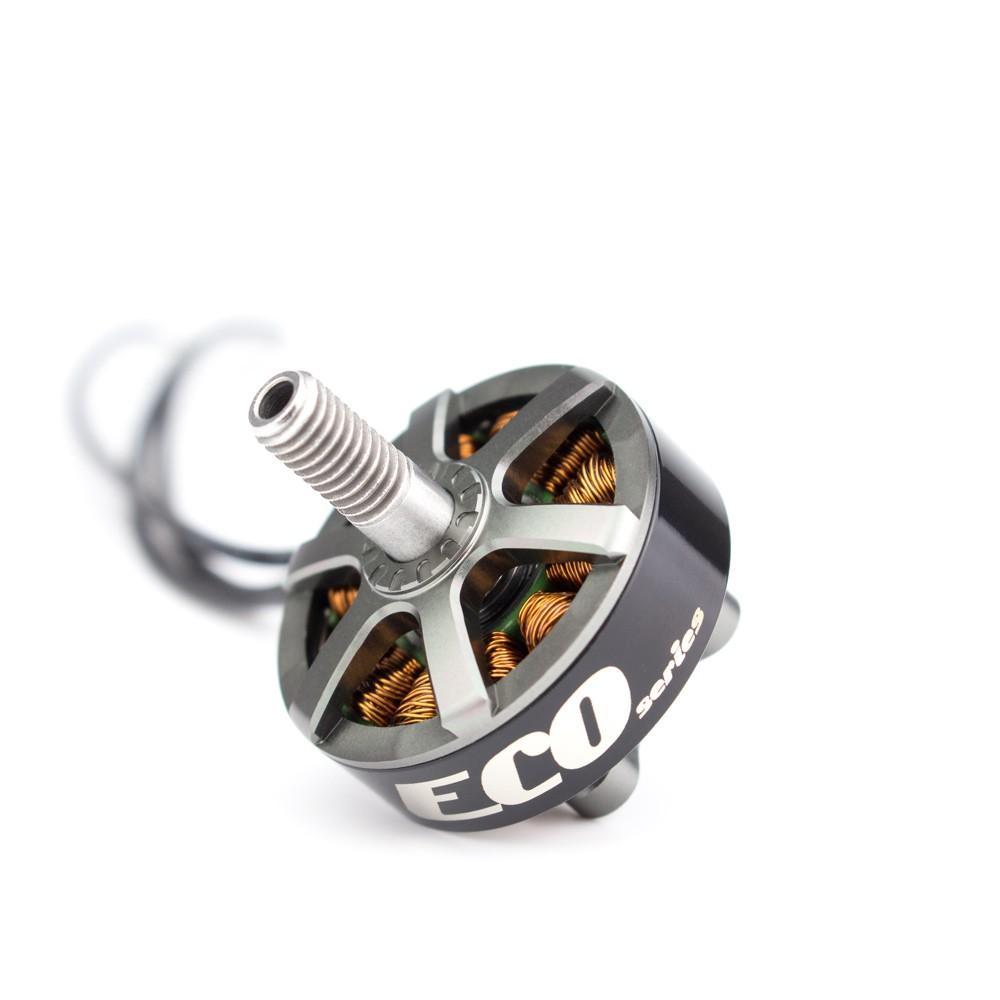

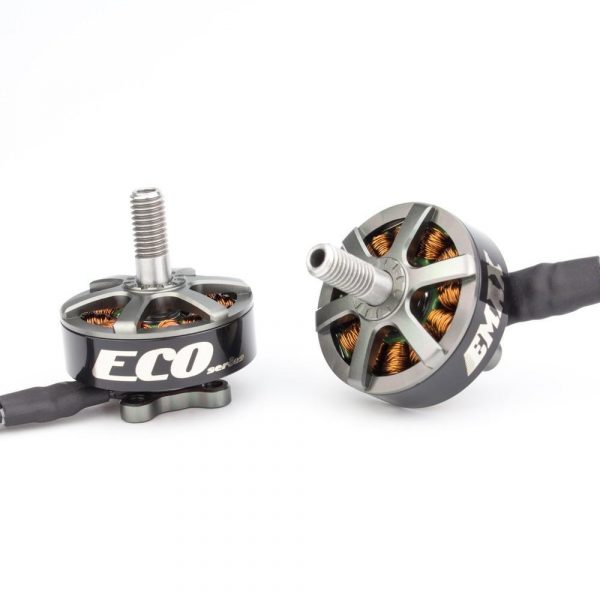

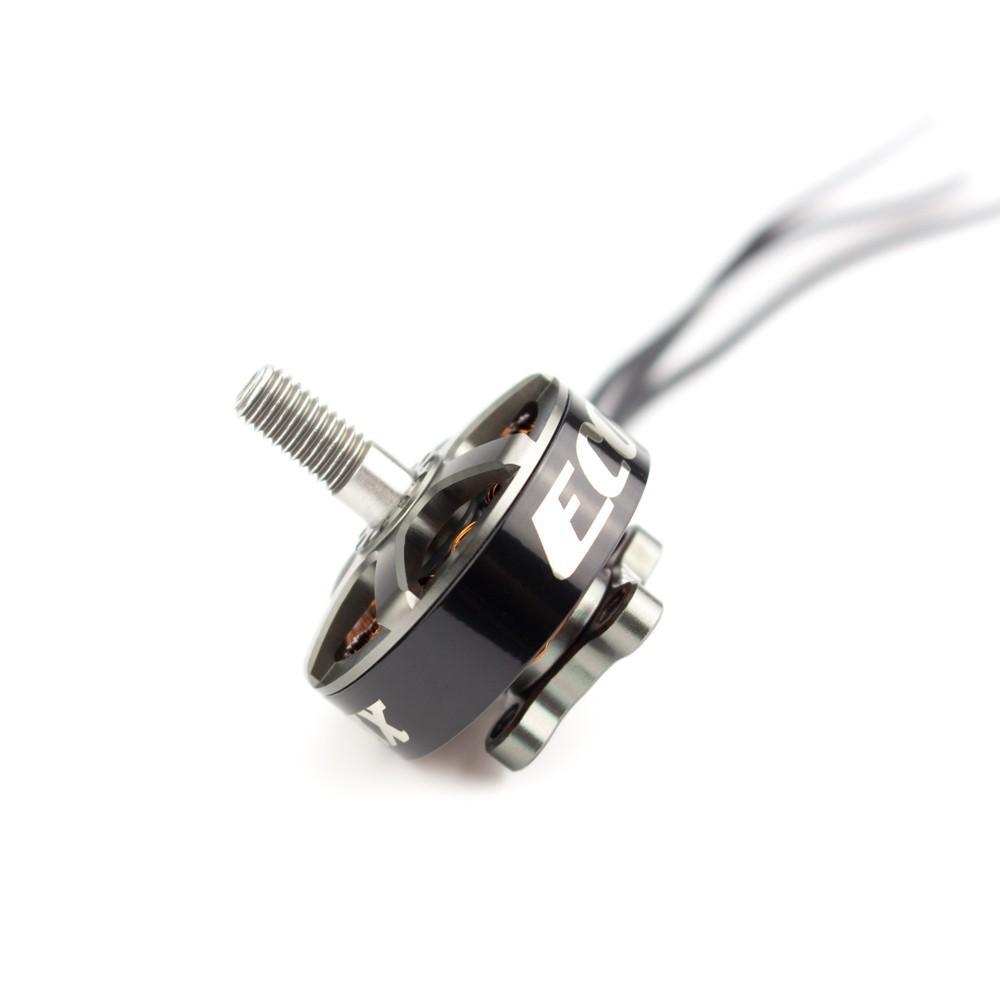

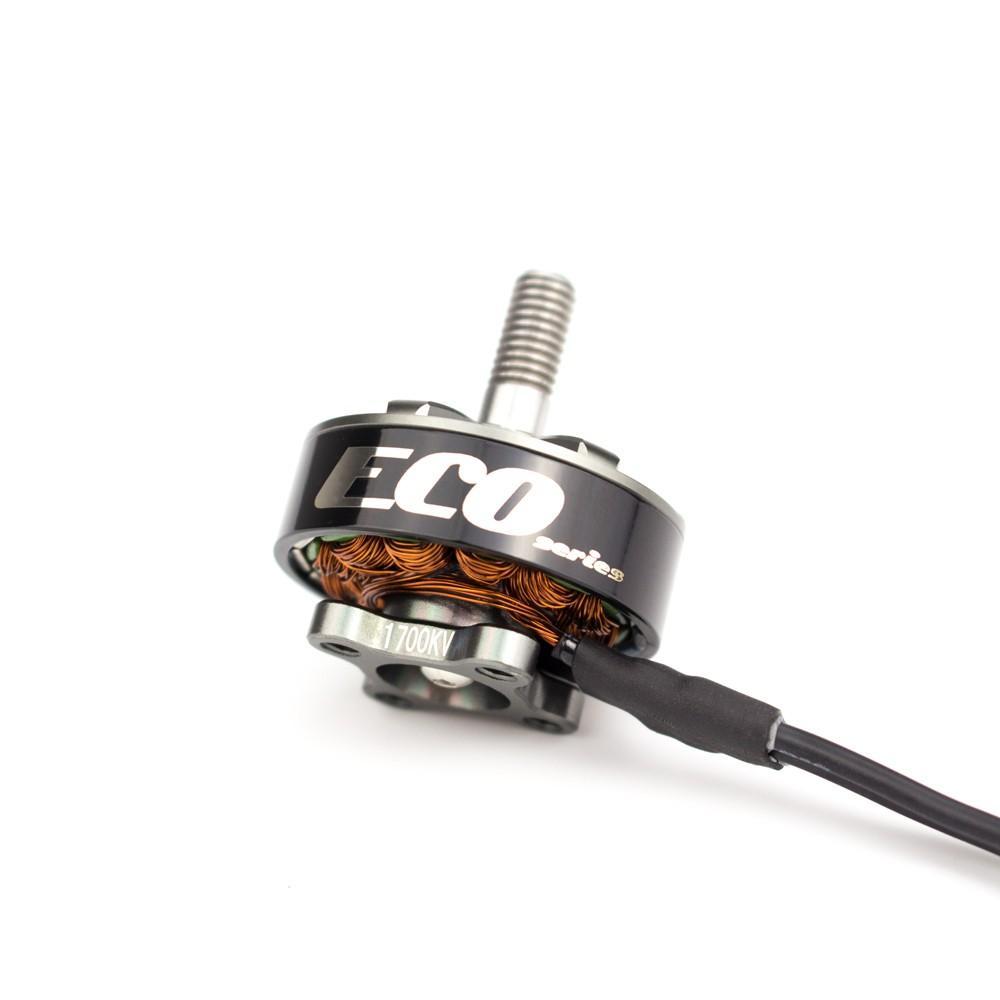

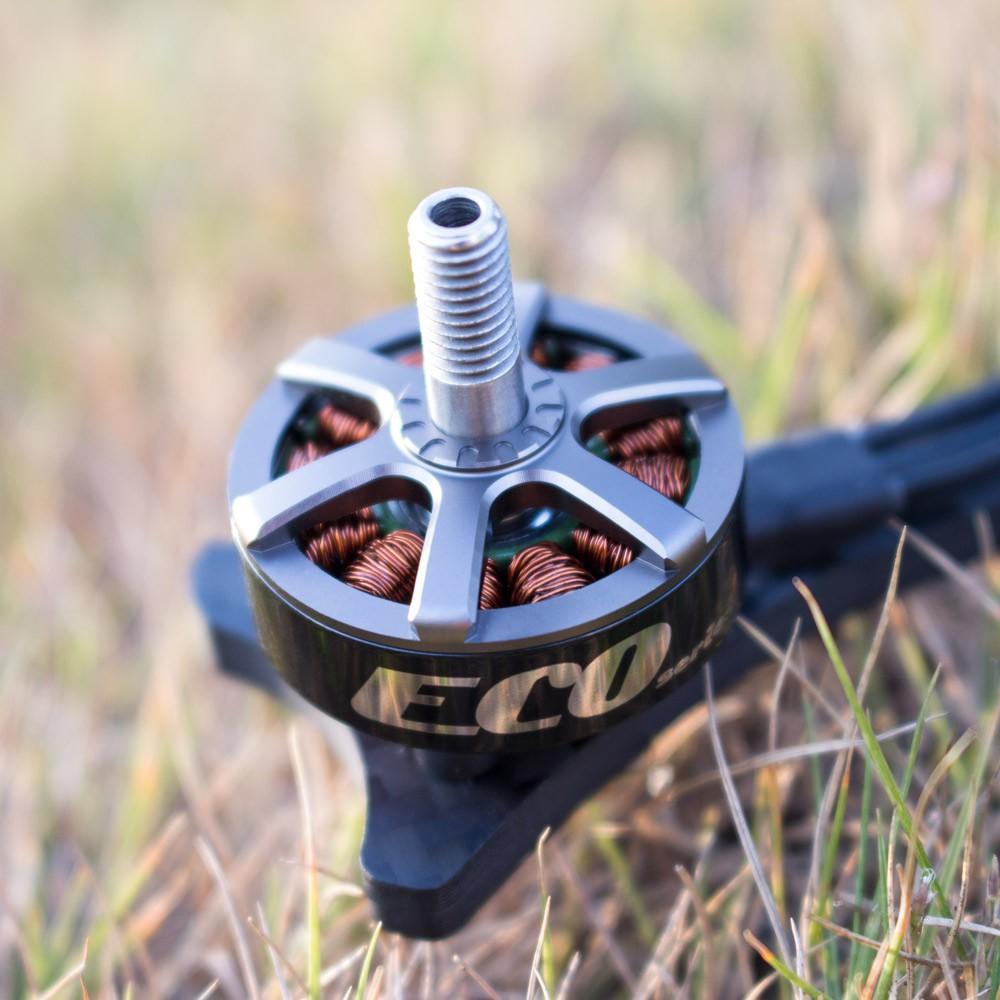

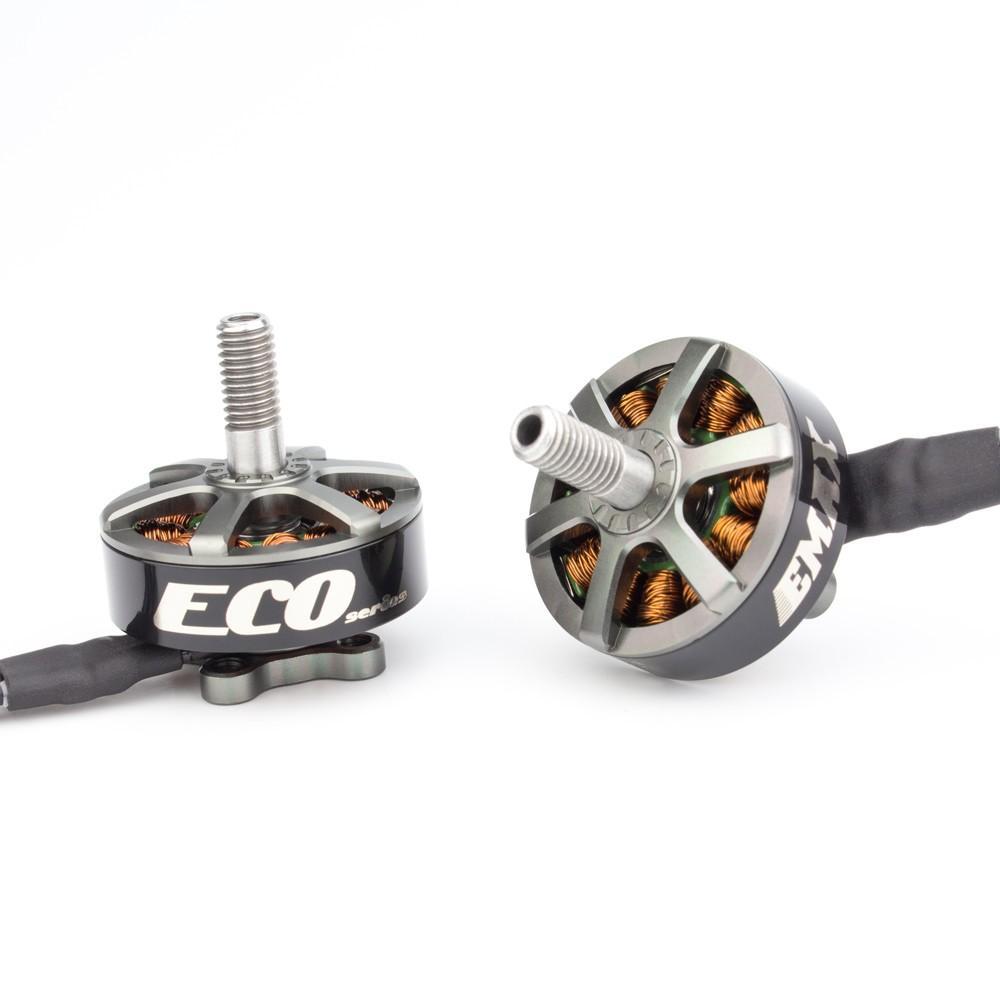

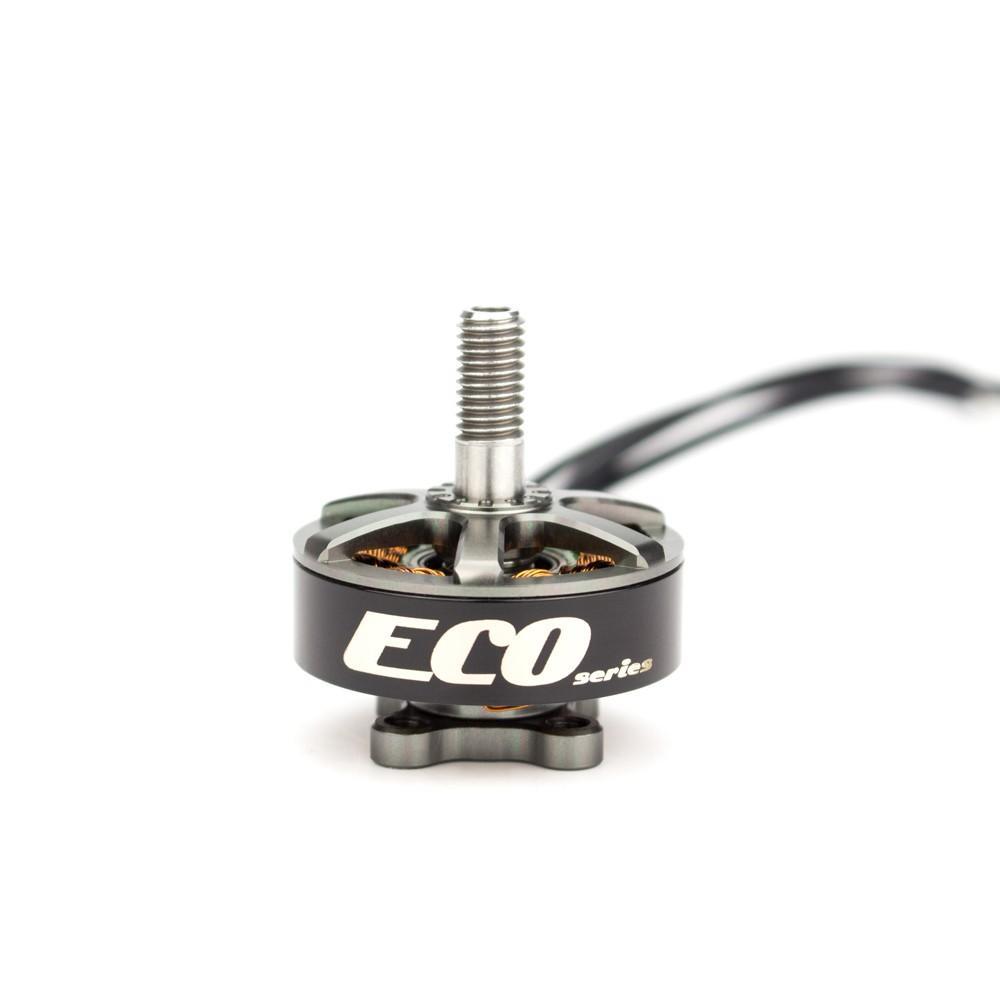

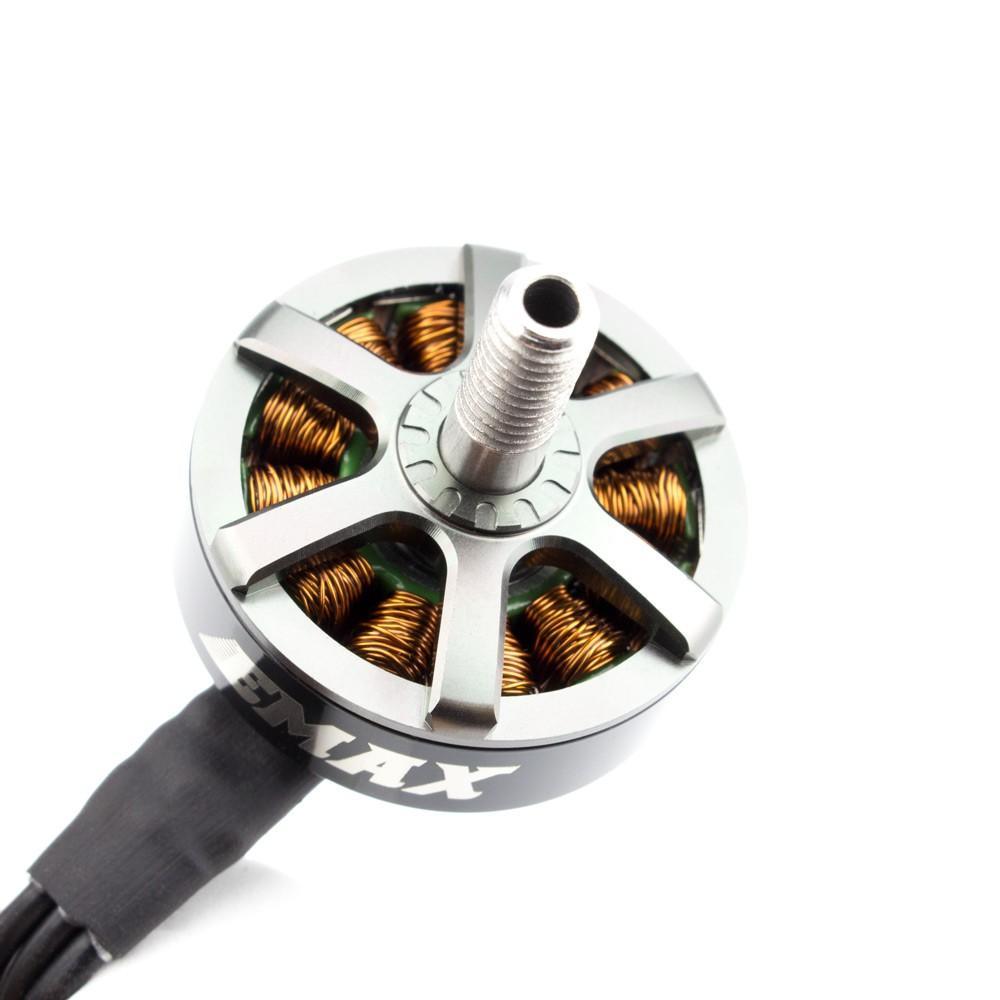

EMAX ECO Series 2207 1700Kv Motor
EMAX’s ECO series focuses on quality, affordable motors that are lightweight but still remain durable. They are lightweight due to their new bell design and still very durable due to the new larger 9mm bearing.
This 2207 sized motor features a strengthened steel hollow shaft, multistrand windings for performance, shaft screw, and larger 9x4mm bearings.
Features
- EZO bearing 9mm ODx4mm ID
- Steel shaft
- Dual anodizing
- 16x16mm hole pattern
- Multistrand copper winding
- 115mm 20 AWG silicone wire
Specifications
- Brand name:Â EMAX
- Item name:Â ECO series 2207 brushless motor
- KV:Â 1700KV, 1900KV, 2400KV (option)
- Framework:Â 12N14P
- Length:Â 32.6mm
- Diameter:Â 27.45mm
- No. of cells:Â 3-4s 2400KV
- No. of cells:Â 3-6s 1700KV 1900kv
- Propeller:Â 5″ – 5.5″
- Light Weight:Â 31.5g (W/O Silicone Wire)
- Prop adapter:Â M5
- Shaft Thread:Â CW
