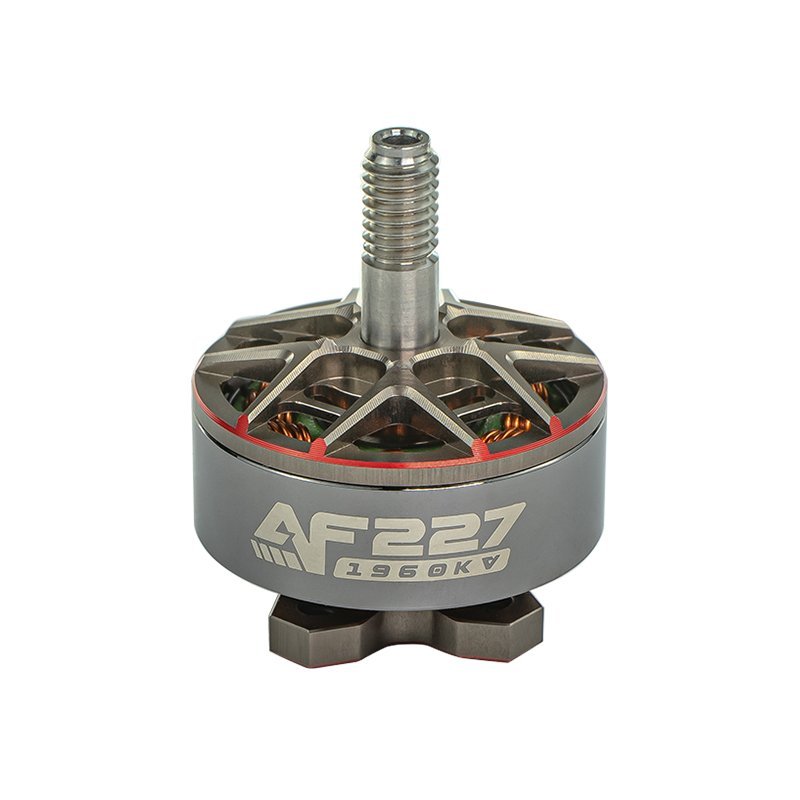

AxisFlying AF227 1960KV/2010KV/2710KV FPV Motor
See all of our AxisFlying Products!
Unleash incredible power and responsiveness on your 5-inch FPV drone with the AxisFlying AF227 motor. Engineered for competitive racing and aggressive freestyle, the AF227 combines high-quality materials, precision manufacturing, and a unique cooling design to deliver a durable and powerful flight experience. It’s the perfect choice for pilots building a no-compromise FPV machine.
Engineered for Performance & Cooling

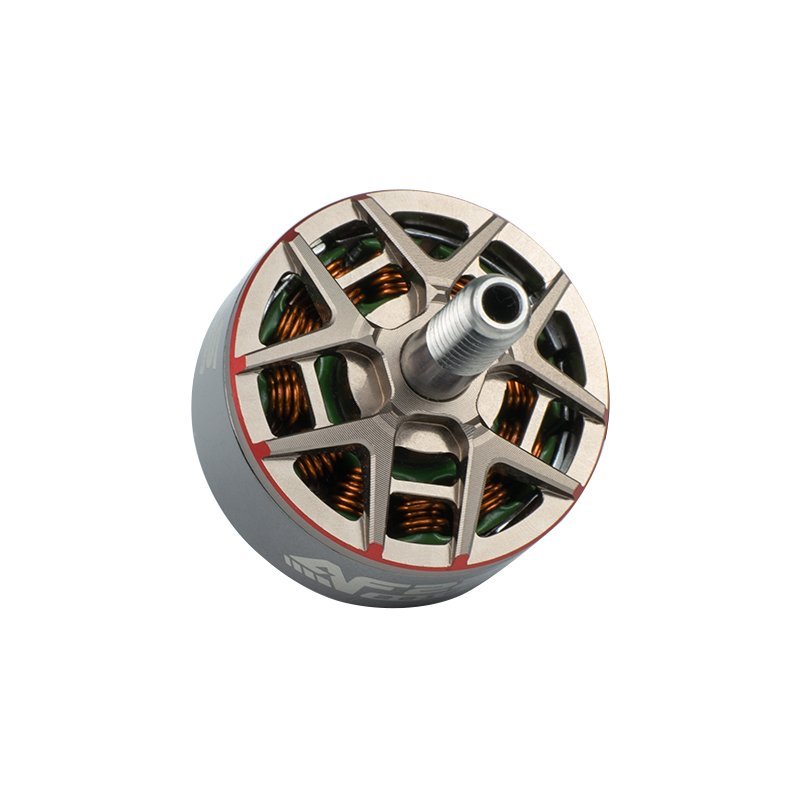

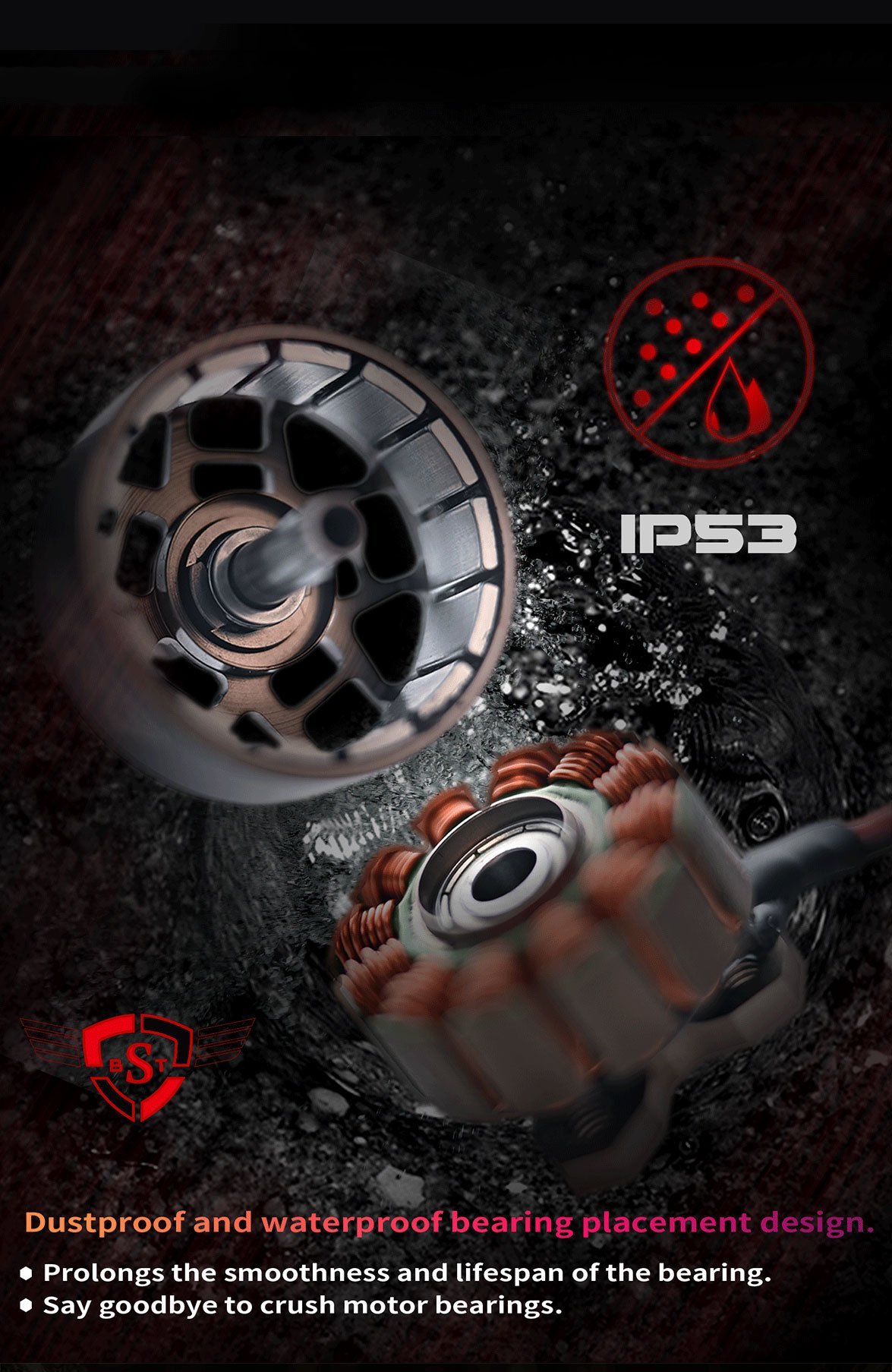

The AF227 features a unique bell and base design that acts as a heatsink, maximizing airflow to pull heat away from the motor’s core during demanding flights. This is paired with high-performance N52H arc magnets, a durable titanium alloy shaft, and smooth, high-quality bearings to ensure consistent power delivery from the first second of your flight to the last. This commitment to quality means you get a motor that runs efficiently and reliably, even under hard abuse.
Choose Your KV for 4S or 6S Power
The AF227 is available in multiple KV ratings to perfectly match your power system and flying style. Please select your desired KV from the dropdown menu:
- 2710KV: The high-speed option, designed for maximum power and RPM on 4S LiPo batteries. Perfect for racers and aggressive 4S freestylers.
- 2010KV: A powerful and responsive option for 6S LiPo batteries, offering a great balance for modern freestyle flying.
- 1960KV: The slightly lower KV option for 6S LiPo batteries, providing a super smooth throttle response and excellent efficiency, ideal for cinematic freestyle.
Key Features:
- High-Performance 2207 Stator: A powerful and torquey motor size perfect for swinging 5-inch props with authority.
- Optimized KV Options for 4S & 6S: Allows you to choose the perfect motor for your preferred battery voltage and flying style.
- Titanium Alloy Shaft: Provides exceptional strength and durability against crashes while being lighter than steel.
- Advanced Cooling Design: The unique bell and base design helps the motor run cooler, maintaining peak performance under load.
- Premium Components: N52H arc magnets and high-quality NSK bearings ensure a smooth, powerful, and reliable motor.

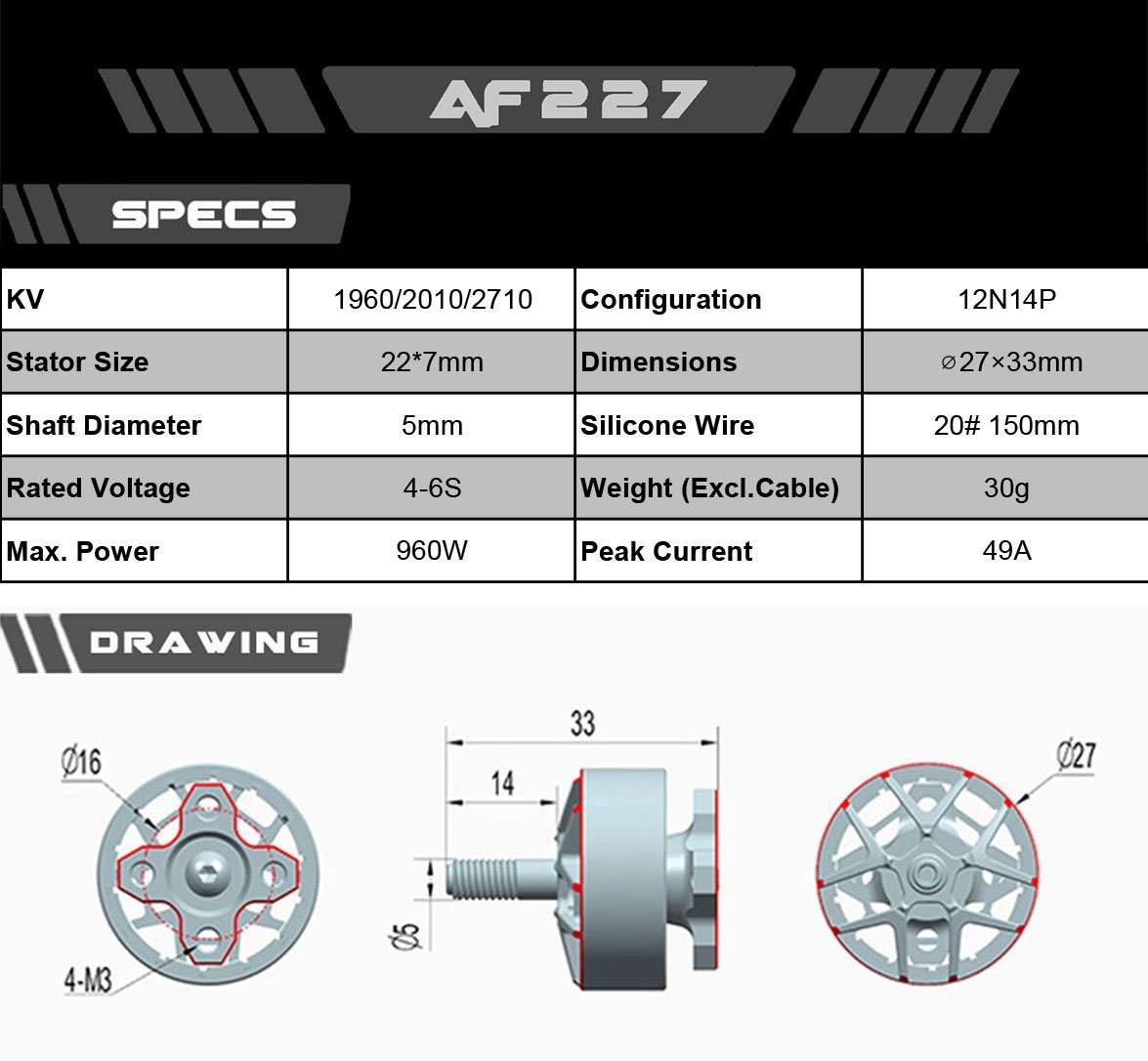

Specifications
- Brand: AxisFlying
- Model: AF227
- KV Options: 1960KV (6S), 2010KV (6S), 2710KV (4S)
- Stator Size: 2207
- Shaft: 4mm Titanium Alloy
- Bearings: NSK
- Magnets: N52H Arc Magnets

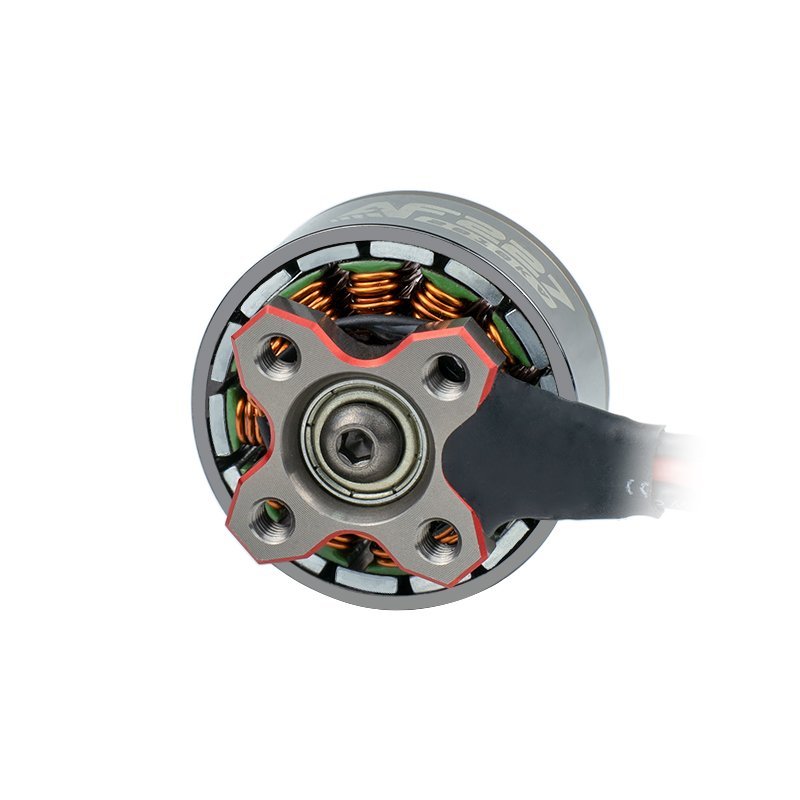

- Mounting Pattern: 16x16mm (M3)
- Weight: ~33.5g
What’s in the Box?
- 1x AxisFlying AF227 FPV Motor (in your selected KV)
- 1x M5 Flange Prop Nut
- 1x Set of Motor Screws
