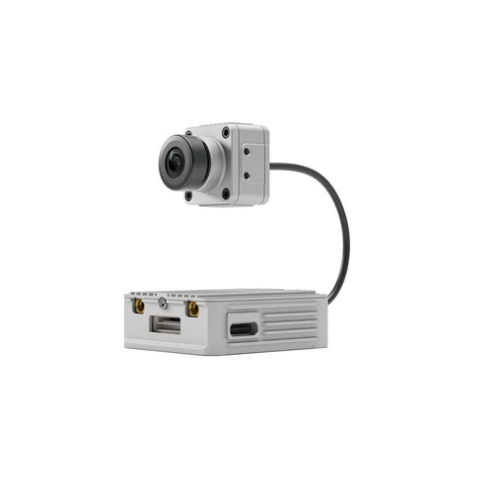

Experience FPV the way it was meant to be with the DJI Digital HD Air Unit. This 5.8GHz air unit (FPV camera + VTX) provides amazing visual clarity and a robust, low-latency signal that can be transmitted directly to your DJI FPV Goggles. The DJI FPV Air Unit delivers ultra-low latency HD digital image transmission, features built-in 1080p/60fps DVR recording, and has eight frequency channels to allow up to eight pilots to fly simultaneously.

A New Era of FPV Clarity The DJI FPV Air Unit provides a stunning 720p/120fps live view with a latency as low as $28\text{ms}$, creating a smooth and immersive FPV experience. Unlike analog systems, this digital link resists interference and provides a crisp image over long distances. In addition to the live feed, the Air Unit can record gorgeous 1080p/60fps footage directly to an onboard microSD card, capturing your flights in beautiful high definition.

Seamless DJI Ecosystem Integration. This Air Unit is designed to be a simple, all-in-one solution. It features an embedded remote controller receiver that connects wirelessly to the DJI FPV Remote Controller, eliminating the need to purchase and install a separate receiver. This significantly reduces flight preparation time and simplifies your build.

Key Features:

• Low-Latency Digital HD: Delivers a clear 720p/120fps live feed with a latency as low as $28\text{ms}$.
• Onboard 1080p DVR: Records high-quality 1080p/60fps footage directly to an onboard microSD card.
• Embedded DJI Receiver: Works seamlessly with the DJI FPV Remote Controller, no extra receiver required.
• 8 Channels, 8 Drones: Allows up to eight pilots to fly simultaneously without cross-interference.
• Multi-Antenna Technology: Two antennas act as both transmitters and receivers for broad signal coverage and a reliable link.

Important Usage & Installation Tips

• The Air Unit may become very hot during operation. Do not touch it before it cools down.
• Do not power on the Air Unit for an extended period on the bench without proper airflow, as it may overheat.
• Keep the two antennas at least 40 mm apart for optimal performance.
• Keep the Air Unit away from metal objects or carbon fiber frames to prevent signal blockage.

Specifications (Highlights)

• Operating Frequency: $5.725-5.850\text{ GHz}$
• Input Power: $7.4-17.6\text{V}$ (2S-4S LiPo)
• Low Latency Mode (720p/120fps): $<28\text{ ms}$
• High-Quality Mode (720p/60fps): $<40\text{ ms}$
• Max. Transmission Distance: FCC/SRRC: $4\text{km}$; CE: $0.7\text{km}$
• Onboard Recording: 1080p @ 60fps
• Camera Sensor: 1/3.2” CMOS; 4MP
• Camera FOV: 150∘
• Air Unit Dimensions: $44\times 37.8\times 14.4\text{ mm}$
• Camera Dimensions: $27.4\times 21.1\times 20.1\text{ mm}$
• Total Weight (inc. Camera): $45.8\text{g}$

Compatibility

• DJI FPV Goggles (V1 & V2)
• DJI FPV Remote Controller (V1 & V2)

Package Includes

• 1 x DJI FPV Air Unit (with camera and four M2 screws)
• 1 x Three-in-one cable
• 2 x Antennas with MMCX connectors
