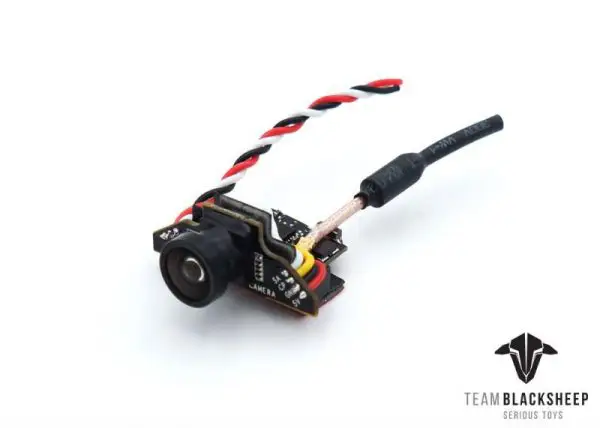

TBS UNIFY NANO + TINYCAM COMBO
Introducing the TBS Unify Nano + TinyCam Combo, the ultimate all-in-one analog FPV system for your tiny whoop or micro FPV drone. This package combines the legendary Unify Pro Nano video transmitter with a quality FPV camera, pre-wired and ready to go. It’s the simplest and most reliable way to get a high-performance video link in your ultralight build, requiring just three simple solder connections to get in the air.
The Ultimate “Ready to Whoop” FPV System
This combo is designed for an incredibly clean and easy installation. The camera and VTX are already connected, so you only need to solder power, ground, and a single SmartAudio wire to your flight controller. This saves you time and eliminates complex wiring, making it the perfect drone part for a fast and reliable FPV drone kit build.
Legendary TBS Performance
At the heart of this combo is the Unify Pro Nano 5.8GHz VTX, renowned for its clean signal and reliability. It features TBS’s signature technologies:
- SmartAudio: Allows you to change your channel and output power (25mW/50mW) directly from your flight controller’s OSD or your radio.
- CleanSwitch: Ensures you can power up your FPV drone without causing video interference for other pilots in the air.
The included TBS Tiny Camera provides a clear 700TVL image with a wide 120-degree field of view, perfect for navigating tight indoor courses.
Ultra-Lightweight & Compact
Weighing only 4 grams including the antenna, this is one of the lightest complete FPV systems available. Its tiny footprint makes it the ideal choice for performance-critical whoop and toothpick FPV drone builds where every gram matters.
Important Power Information
Please note that this FPV combo requires a clean, regulated 4.5V – 5V power source from your flight controller’s BEC. Do NOT connect it directly to your main LiPo battery voltage.
Specifications
- Brand: TBS (Team-BlackSheep)
- Total Weight: 4g (including antenna)
- Input Voltage: 4.5V – 5V
- VTX Power Levels: 25mW / 50mW
- Camera Resolution: 700TVL
- Camera FOV: 120 Degrees
- Antenna Connector: u.FL
What’s in the Box?
- 1x TBS Unify Nano + TinyCam Combo (Pre-assembled)
- 1x TBS Whip Antenna (u.FL)
- 1x Spare Shrink Tube
- 1x Pin Header
