Experience the absolute best in analog FPV with the Skyzone Cobra X V4. These are widely considered the top-tier box goggles for pilots who fly analog, combining an immersive high-resolution display with advanced signal fusion technology. Whether you are a racer, a long-range pilot, or someone who wears glasses, the Cobra X V4 delivers a premium analog experience that rivals much more expensive low-profile goggles.

Crystal Clear Analog Video

Don’t let the “analog” tag fool you—the image quality on these goggles is stunning. The Cobra X V4 features a high-luminance 4.1-inch LCD screen with a resolution of 1280×720. This high-res display upscales your standard definition analog feed, providing vivid colors and sharp details that help you spot ghost branches and race gates with ease. You can also switch the aspect ratio between 4:3 and 16:9 to match your specific FPV camera.

SteadyView: The End of Static

The secret weapon of the Cobra X V4 is the included SteadyView Receiver. Unlike standard diversity receivers that simply switch between two antennas, SteadyView actively merges the two incoming analog signals into one. This fusion technology eliminates image tearing and rolling, giving you the most stable and clear picture possible in challenging RF environments like bandos or parking garages.

Glasses-Friendly & Feature Packed

Designed for comfort, these box goggles fit comfortably over most prescription eyewear, saving you the cost of custom lens inserts. The new V4 Edition includes a smoother 60FPS DVR to record your flights without dropped frames and an upgraded power management board for longer runtimes.

Versatile Power Options

Power your goggles your way. The battery bay accepts a single 18650 Li-Ion cell (not included) for a cordless experience. For longer sessions, you can power it externally via USB-C or a 2S-6S LiPo battery using the DC input.

Key Features:

• Best-in-Class Analog: High-resolution 1280×720 LCD screen.

• SteadyView Receiver: Merges two analog signals for a glitch-free image.

• V4 Upgrades: New 60FPS DVR unit and improved power efficiency.

• Glasses Friendly: Designed to be worn over prescription eyewear.

• Flexible Power: Runs on 18650 cell, USB-C, or DC 2S-6S input.

• Head Tracker: Built-in 3-axis tracker for fixed-wing immersion.

• Easy Interface: Shuttle wheel control with a new UI and 10 languages.

Specifications:

• Model: Skyzone Cobra X V4 (Analog)

• Screen: LCD | 1280×720 Resolution

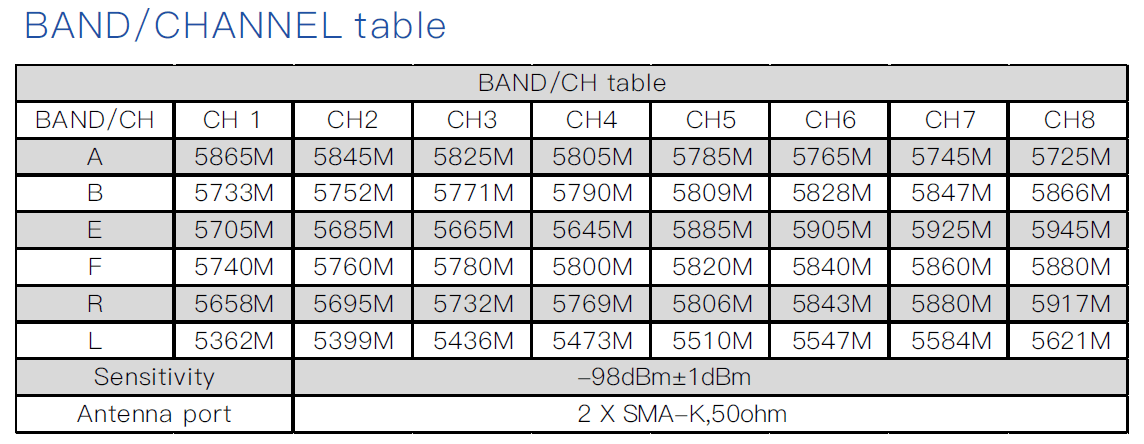

• Receiver: 5.8GHz 48CH SteadyView Analog Receiver

• FOV: 50° (Diagonal)

• DVR: H264, 60FPS, MOV 6Mbps, SD Support up to 128GB

• Power Supply: 1x 18650 / DC 6.5-25.2V / USB 5V

• Dimensions: 122mm x 165mm x 100mm

• Weight: 332g

What’s in the Box?

• 1x Skyzone Cobra X V4 Analog FPV Goggles

• 1x SteadyView Receiver Module

• 2x 5.8GHz 2dB Antennas

• 1x Head Strap

• 1x Power Cable

• 1x Headtracker Cable

• 1x Video/Audio Cable

• 1x USB-C Cable

• 1x User Manual
