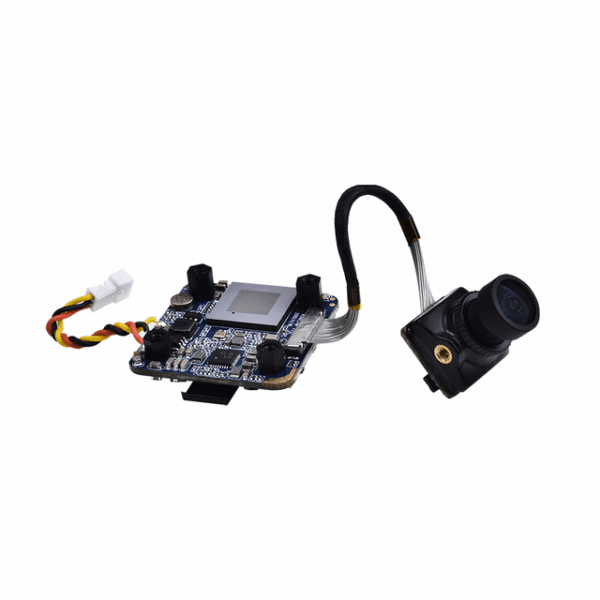

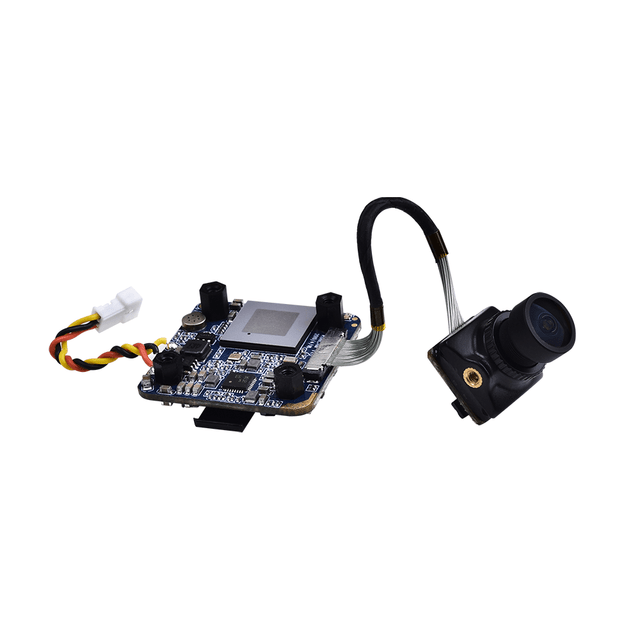

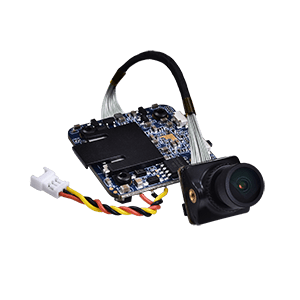

Split 3 Nano

Capture stunning 1080p/60fps HD footage from your smallest FPV drones with the RunCam Split 3 Nano. This is the lightest and smallest version of the innovative Split camera, combining a high-quality HD recorder and a low-latency FPV camera into a single unit. It’s the perfect choice for ultralight builds like tiny whoops and toothpicks, where every gram and millimeter counts.

All-in-One HD Recording & FPV

The Split 3 Nano allows you to record beautiful HD footage without the weight and bulk of a separate action camera. It acts as your primary FPV camera, sending a low-latency (40ms) analog video feed to your goggles for a responsive flight experience. At the same time, it records crisp 1080p/60fps video directly to an onboard Micro SD card, giving you incredible quality from a package that weighs just 10.5 grams.

Reliable & Resilient Design

RunCam has packed the Split 3 Nano with features to protect your footage. The included anti-drop SD card protector helps prevent your card from ejecting in a crash, while the power-off protection ensures your video file is saved correctly even if your battery gets disconnected unexpectedly. A strong ribbon cable connects the camera and board, increasing durability where it’s needed most.

Key Features:

• 2-in-1 FPV & HD Recording: Get a live FPV feed and record 1080p/60fps HD video from a single, ultralight unit.
• Ultralight at 10.5g: The lightest Split camera, perfect for whoops and toothpicks where weight is critical.
• Nano 14x14mm Camera: The tiny camera module fits into the smallest canopies and builds.
• Power-Off Protection: Automatically saves your video file in the event of a crash, preventing corrupted files.
• Anti-Drop SD Card Protector: A physical guard helps keep your Micro SD card securely in place during impacts.
• 20x20mm Mounting: The main board easily mounts on a standard 20x20mm FPV drone stack.

IMPORTANT: Power Requirements

The Split 3 Nano has an input voltage range of DC 5-20V; however, it MUST be powered by a regulated source (BEC) from your flight controller or PDB. Do NOT power it directly from a 4S or 5S LiPo battery, as voltage spikes on the plug-in can permanently damage the camera.

Specifications

• Model: RunCam Split 3 Nano
• Video Resolution: $1080@60\text{fps}/1080@50\text{fps}/1080@30\text{fps}/720@60\text{fps}$
• FPV FOV: 130∘ @4:3, 165∘ @16:9
• Recording FOV: 165∘
• FPV Latency: $40\text{ms}$
• Power Input: DC $5\text{V}-20\text{V}$ (Must be a regulated source)
• Mounting: Main Board – $20\text{x}20\text{mm}$ / Camera – $14\text{x}14\text{mm}$
• Weight: $10.5\text{g}$

What’s in the Box?

• 1x RunCam Split 3 Nano Camera & Board
• 1x 14mm to 19mm Mounting Bracket
• 1x SD Card Protector
• 1x FPV Silicone Cable
• 1x Set of Screws
• 1x User Manual

Split 3 Nano Package

•
  1x Camera
•

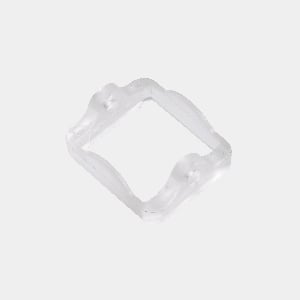

  1x 14 to 19 bracket
•

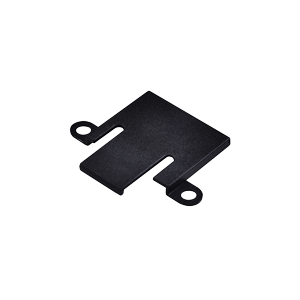

  1x Plastic cover
•

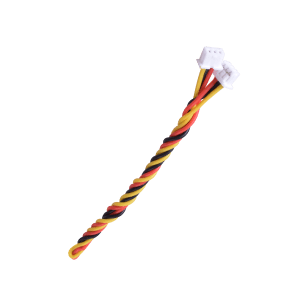

  1x 3PIN 1.25 JST Silicone Cable
•

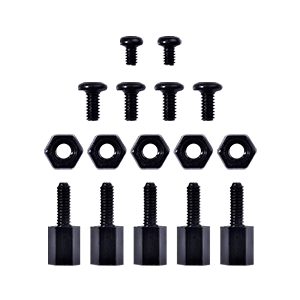

  1x Set of M2 screws
•
  1x Manual

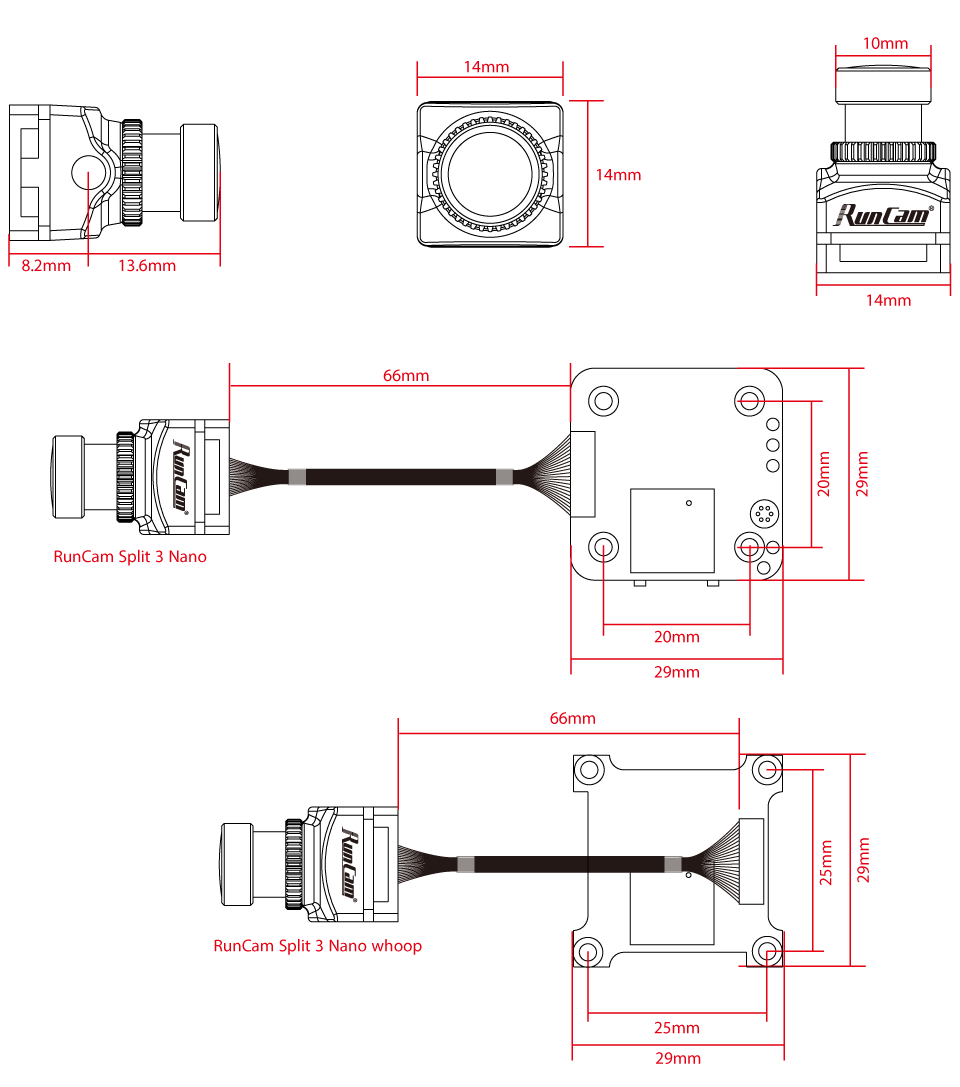

Split 3 Nano Dimensions

Split 3 Nano

RC_Split_3_series_Manual_EN
