RunCam Nano 2
Check out all of our Runcam products, and all of our Analog Cameras!
Achieve a clear, vibrant image in an incredibly small package with the RunCam Nano 2. As one of the most popular nano FPV cameras on the market, the Nano 2 is a proven workhorse, trusted by pilots for its reliability and excellent color reproduction. Weighing only 3.2 grams, it’s the perfect choice for micro FPV drone builds like tiny whoops and toothpicks, where every gram counts.
True-to-Life Color & Clarity
The RunCam Nano 2 is known for its “True Color” image processing, which delivers a vibrant and natural-looking FPV feed. The 700TVL 1/3″ CMOS sensor provides a crisp and detailed picture, making it easier to navigate your FPV drone through challenging environments. It’s a fantastic drone part for upgrading the stock camera on many micro FPV drones.
The Ultimate Choice for Micro Drones
With its 14x14mm nano form factor and feather-light 3.2g weight, this camera is designed specifically for ultralight builds. It minimizes the impact on your FPV drone’s flight performance and efficiency, making it an ideal component for any weight-sensitive FPV drone kit. This version comes with a mounting bracket to adapt it to standard 19mm mounts.
Important: Power & Video System
Please review the following critical specifications before purchasing to ensure compatibility with your FPV drone:
- Input Voltage: This camera has a narrow input voltage range of DC 3-5.5V. It must be powered by a regulated 5V or 3.3V source from your VTX or flight controller, not directly from a LiPo battery.
- Video System: The NTSC and PAL versions of this camera are not switchable. Please be sure to select the correct version that matches your FPV goggles or display.
Specifications
- Model: RunCam Nano 2
- Image Sensor: 1/3″ CMOS
- Horizontal Resolution: 700TVL

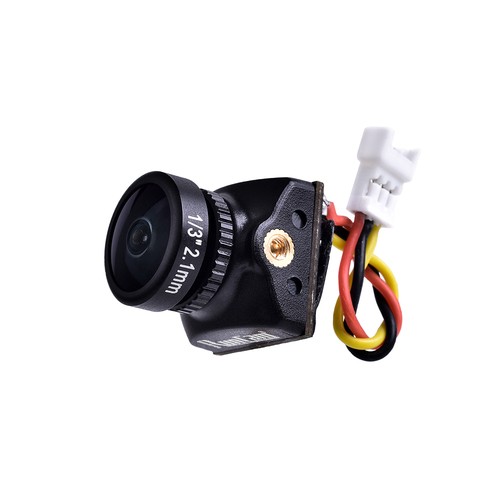

- Lens Options: 2.1mm (155° FOV) or 1.8mm (170° FOV)
- Signal System: NTSC or PAL (Non-Switchable)
- Power Input: DC 3-5.5V

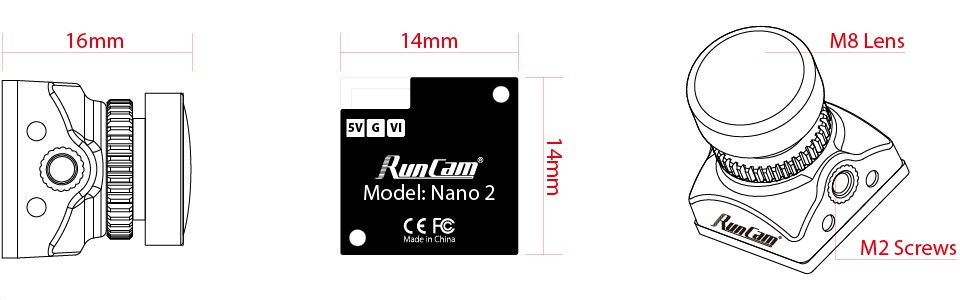

- Dimensions: 14mm x 14mm x 16mm
- Net Weight: 3.2g
What’s in the Box?
- 1x RunCam Nano 2 FPV Camera
- 1x 14mm to 19mm ABS Mounting Bracket
- 1x Set of Screws
