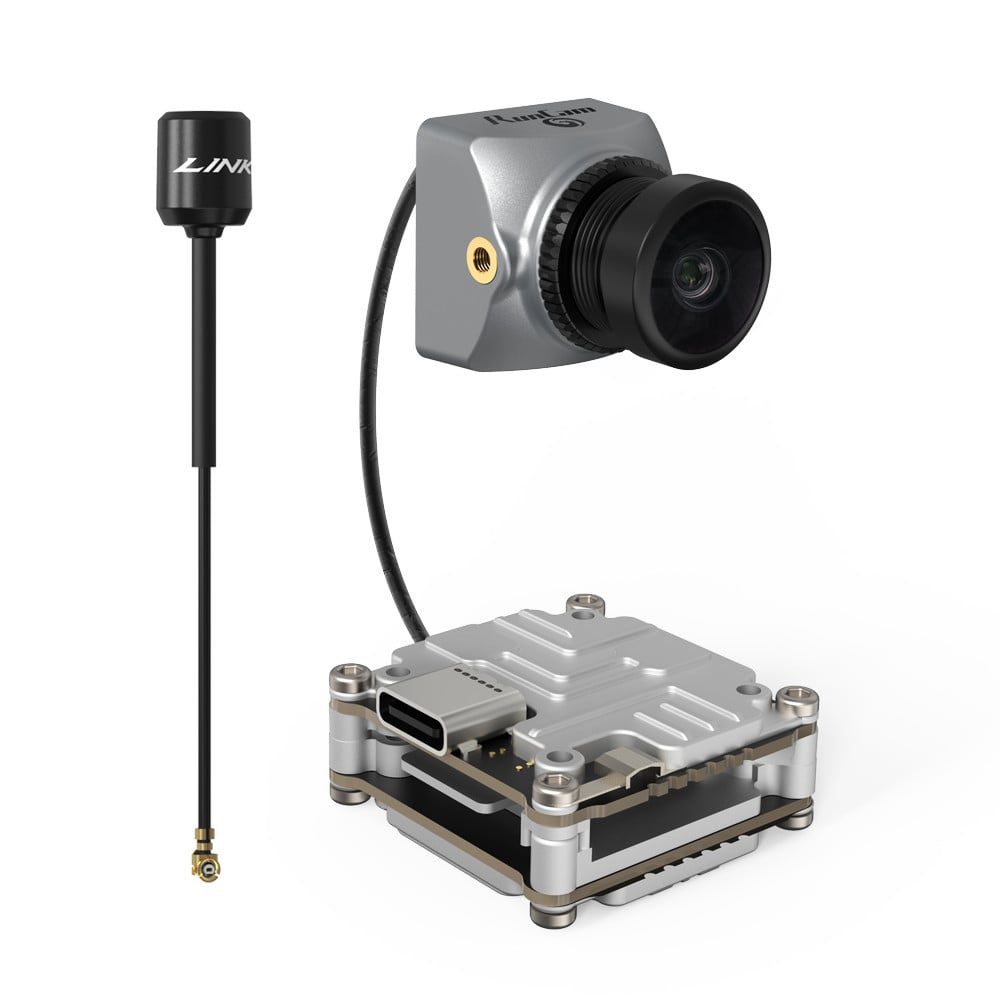

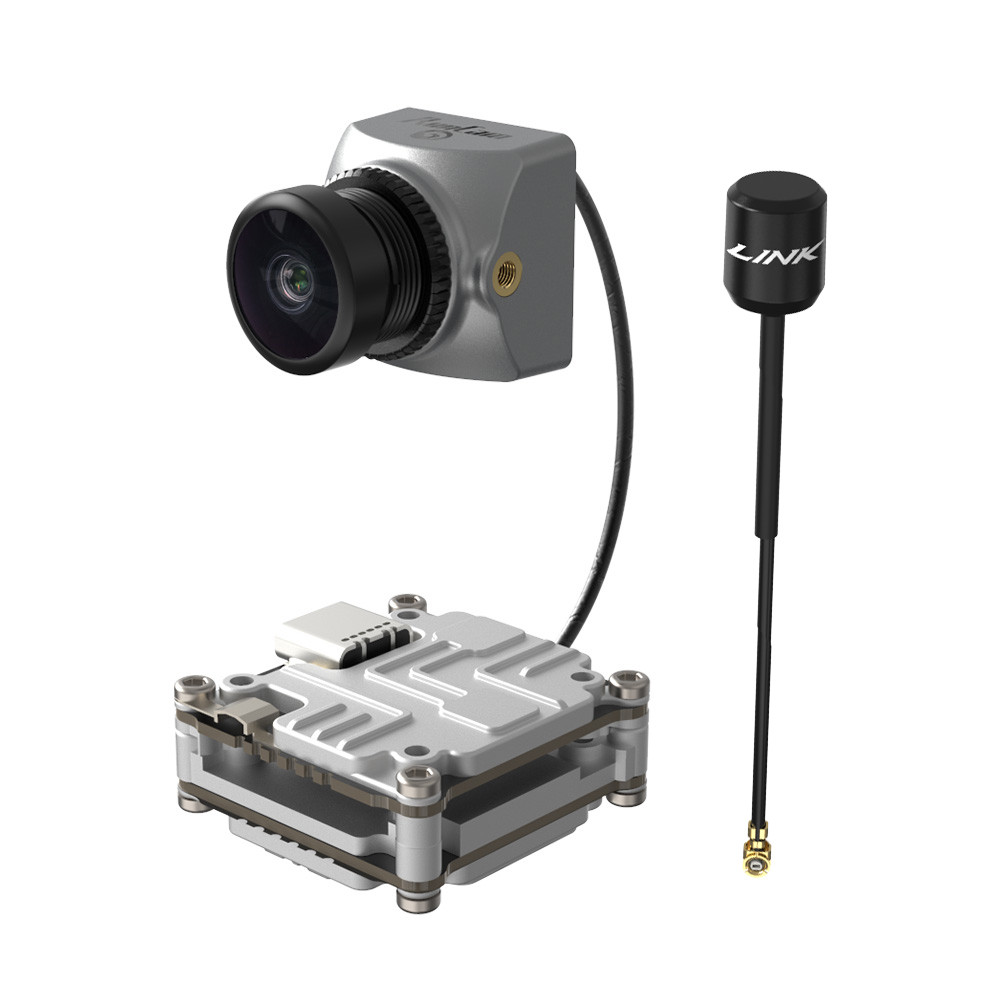

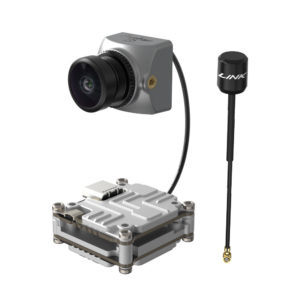

RunCam Link Phoenix HD Kit
The HDL FPV Transmission system and the FPV
Air units are equipped with eight frequency
channels, which allow up to eight drones to
fly simultaneously. Each operator has an
exclusive channel. This helps to reduce
cross-interference and provide an
optimal racing experience.
Air units are equipped with eight frequency
channels, which allow up to eight drones to
fly simultaneously. Each operator has an
exclusive channel. This helps to reduce
cross-interference and provide an
optimal racing experience.
Embedded Remote
Controller Receiver
Users can wirelessly connect their DJI FPV Air Unit
to the DJI FPV Remote Controller without having
to purchase additional receivers. This reduces
flight preparation time significantly.
to the DJI FPV Remote Controller without having
to purchase additional receivers. This reduces
flight preparation time significantly.

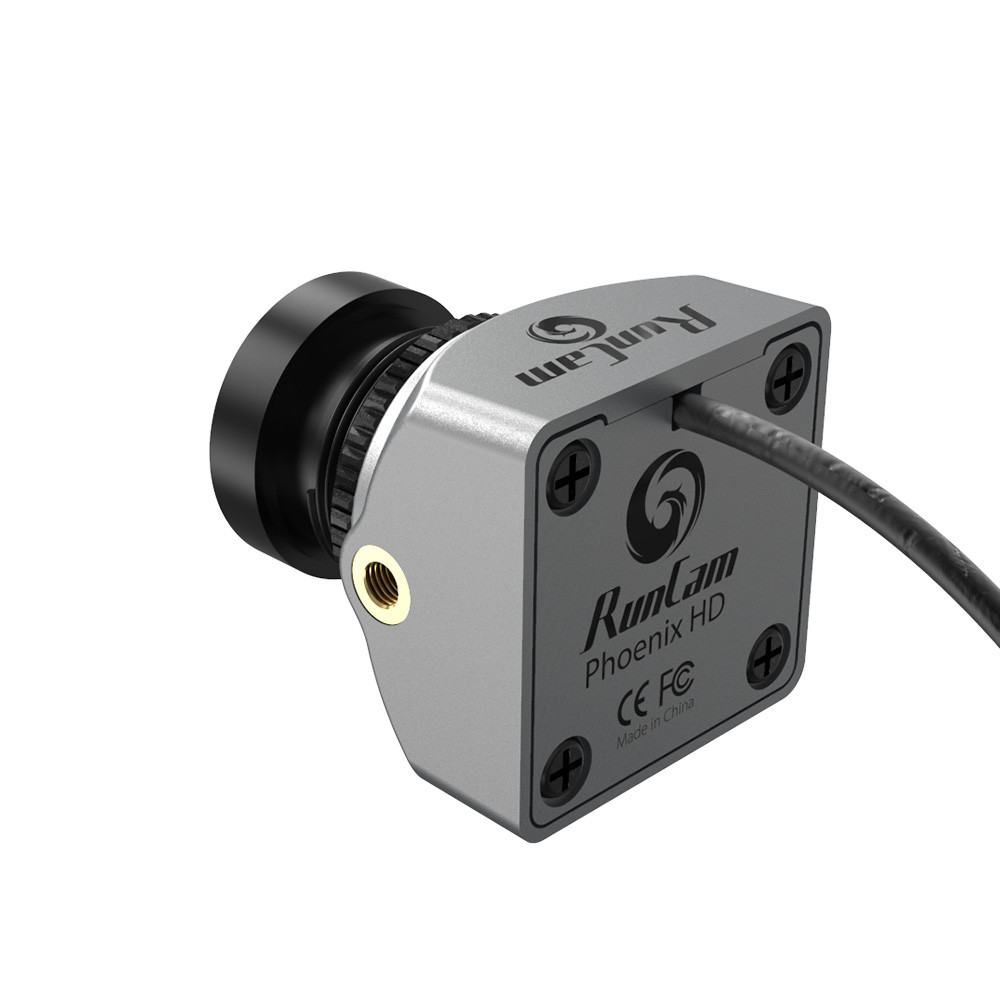

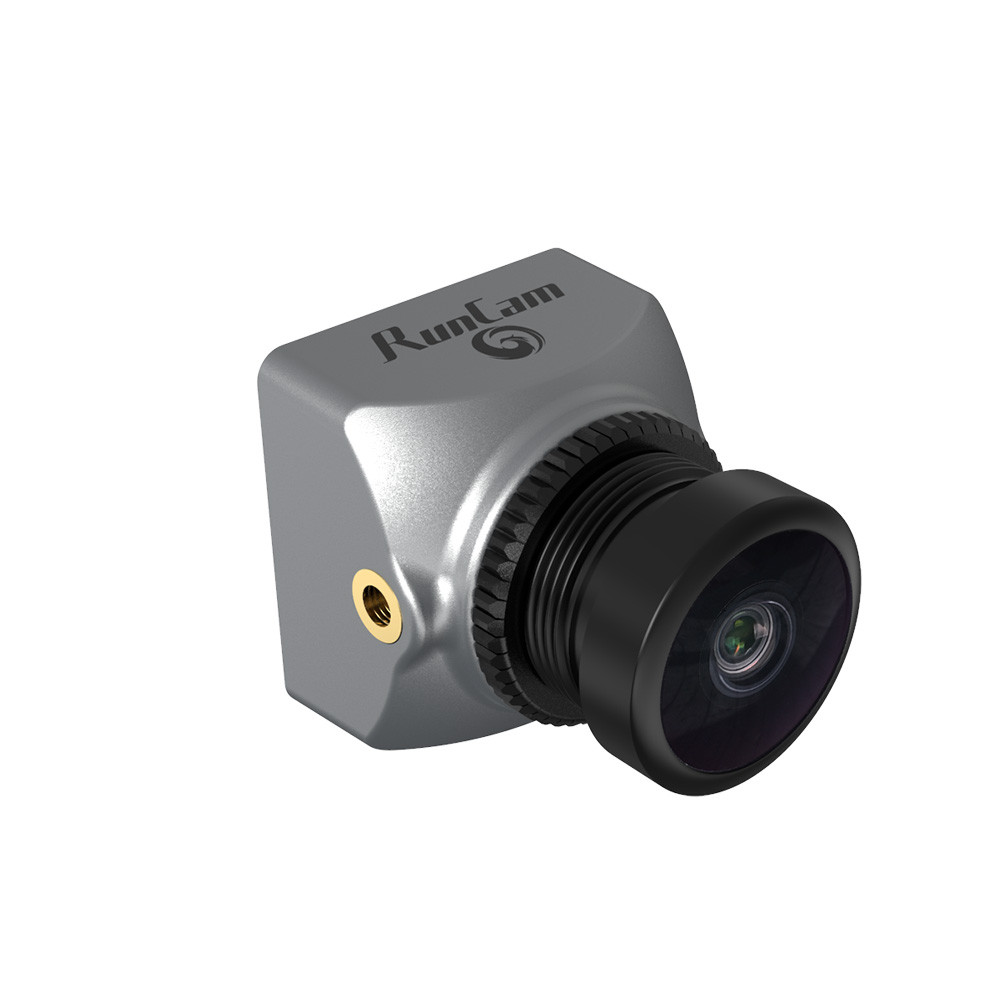

RUNCAM Phoenix HD Camera
Use 1/2 inch, up to 10650 mV/Lux-sec ultra-high sensitivity sensor,
excellent night vision effect.
excellent night vision effect.
At 1280 x 720
60fps resolution
the delay is as low as 32ms, which is suitable for freestyle flying.
Dimensions
RunCam Link Phoenix HD Kit Package
Air Unit Phoenix HD Kit Package
Parameters
| Model | RunCam LINK Phoenix HD Kit |
| Frequency | 5.725-5.850 GHz |
| Max. Distance | FCC/SRRC: <4 km & CE: <0.7 km |
| Power | 7.4-26.4 V@ 4-9W |
| Dimensions | 29×29×13 mm |
| Net Weight | 19.5 g |
| Model | RunCam Phoenix HD |
| Image Sensor | 1/2” |
| Resolution | 1280*720@60fps |
| LENS | FOV D:157° H:133° V:72° |
| Shutter | Rolling Shutter |
| Coaxial Cable | 120 mm |
| Dimensions | L19mm*W19mm*H23.5mm |
| Net Weight | 7.5g |
