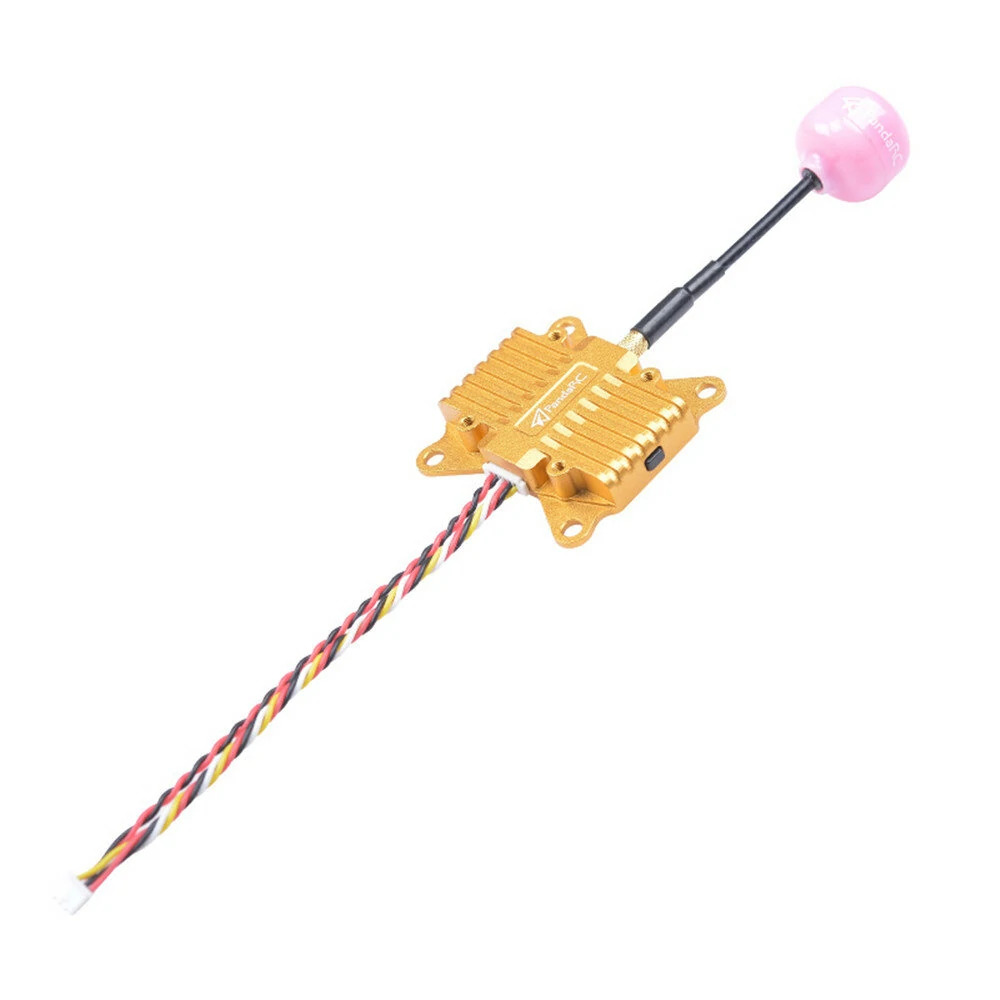

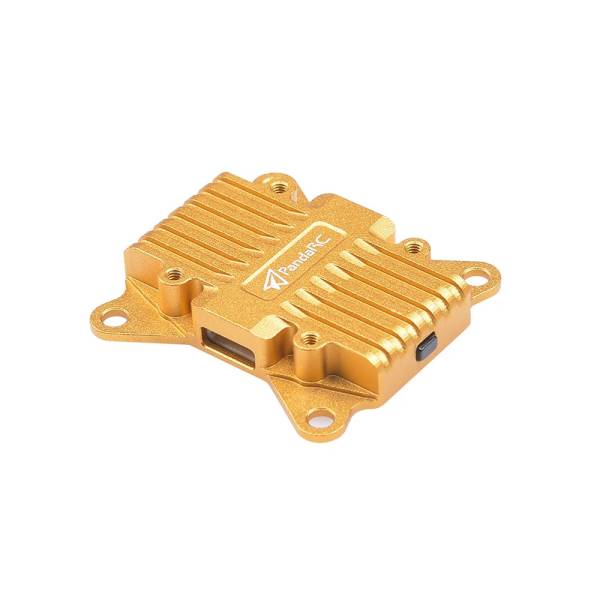

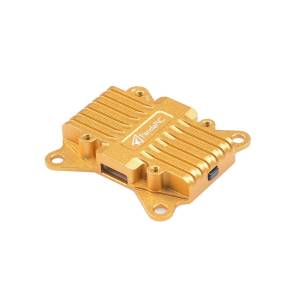

PandaRC VT5804 BAT 40CH 25mW/400mW/800mW/1500mW/2500mW FPV Transmitter
Check out all of our PandaRC Products
Features:
1. With its own power self-check function, you can quickly check whether the image transmission is working normally
2. Frequency lock function, no interference with companions when power on
3. It has 30.5*30.5 and 20*20 mounting holes at the same time to improve the compatibility of rack
4. 0-2.5W power-adjustable, allowing you to switch seamlessly in different environments
Â
Specification:
Output power: 0-25-400-800-1500-2500mW
Input voltage: 6-36V
Parameter adjustment method: key/OSD
Working current: Less than or equal to 450mA@12V, 800mW
              Less than or equal to 850mA@12V, 2500mW
Output frequency: 40CH (A-B-E-F-R)
Antenna interface: MMCX
Installation hole: 30.5*30.5mm-20*20mm
Video format: NTSC/PAL automatic detection
Weight: 11g (without antenna and power cord)
Size: 38*36.5*7.2mm

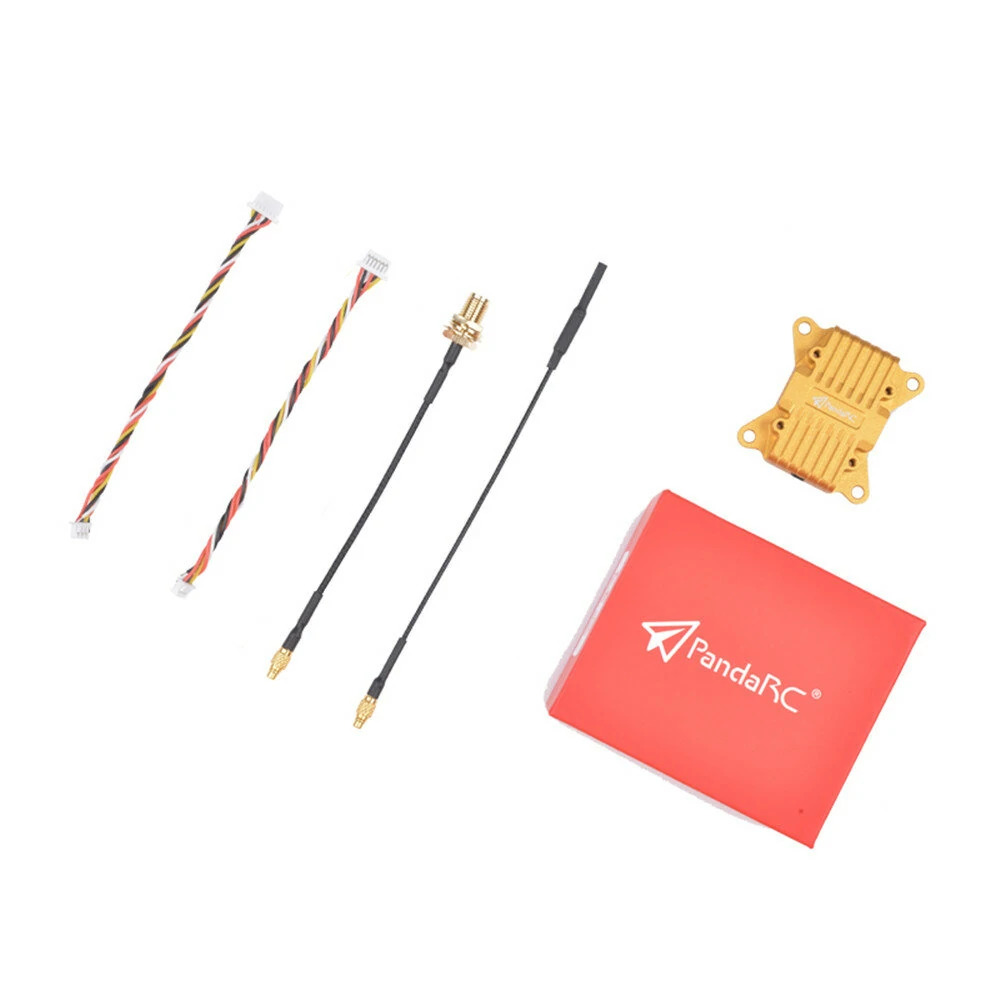

Package Includes:
1x VT5804-BAT VTX
