PandaRC MINI VT5804 L1 VTX 3 In 1 5.8GHz 0mW/25mW/600mW

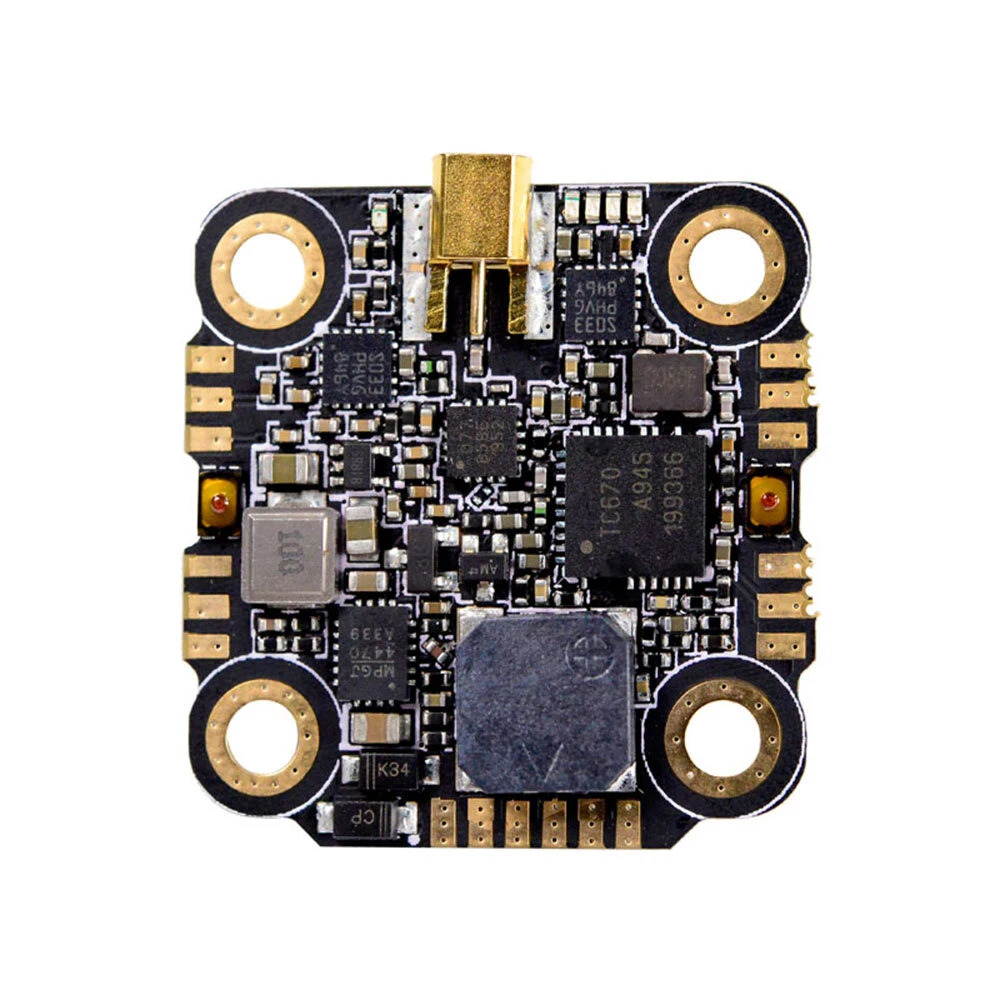

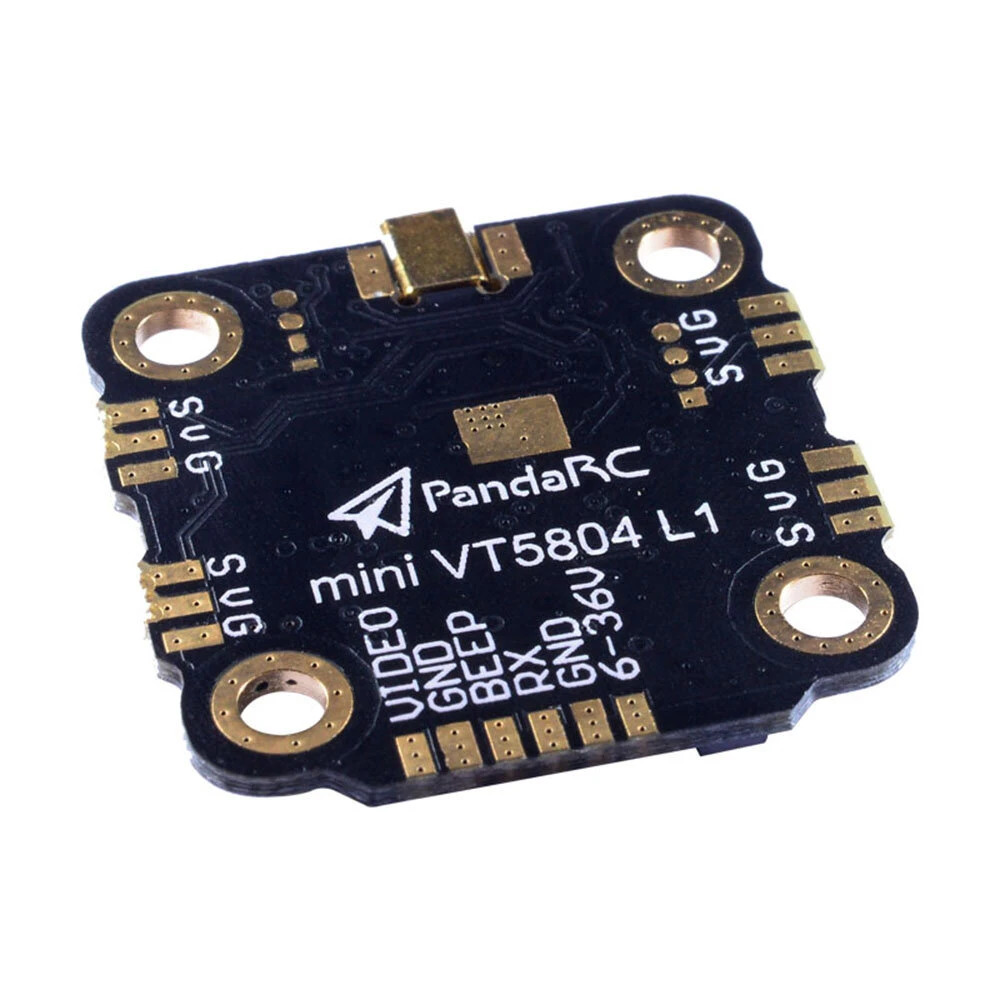

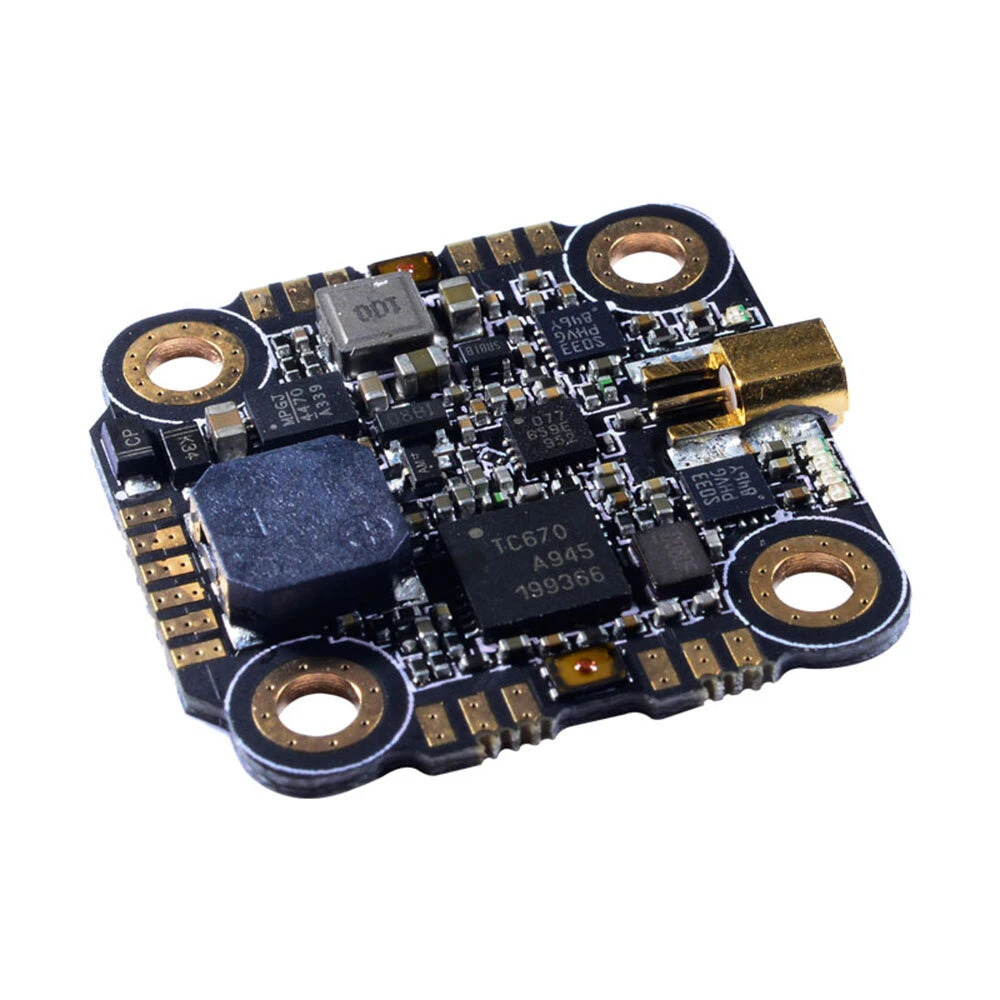

Dramatically simplify your next FPV drone build with the PandaRC MINI VT5804 L1, an ingenious 3-in-1 solution for modern quads. This single 20x20mm board masterfully integrates a powerful video transmitter, a programmable LED controller, and a loud active buzzer. This design reduces clutter, saves valuable weight and space in your stack, and makes your wiring process cleaner and easier than ever before.
More Than Just a VTX
The true power of the MINI VT5804 L1 lies in its integration. You get a feature-rich, 600mW video transmitter with IRC Tramp control for easy OSD adjustments. But built into the same board is a full WS2812 LED controller—complete with 4 LED strips in the box—and a loud 85dB active buzzer. This eliminates the need to buy, mount, and solder three separate components, saving you time, money, and complexity.
Powerful & Reliable Video
The core of the board is a reliable 5.8GHz video transmitter with a wide range of selectable output power, from a race-friendly 0mW Pit Mode all the way up to 600mW for excellent signal penetration and range. The durable MMCX connector ensures a secure antenna connection that won’t easily pop off in a crash.
Key Features:
- 3-in-1 Integrated Design: Combines a VTX, LED Controller, and active Buzzer on one 20x20mm board to save space, weight, and soldering.
- Powerful 600mW VTX: Selectable output power from 0mW (Pit Mode) up to 600mW for great range in any environment.
- IRC Tramp Protocol: Easily change VTX channels and power levels from your Betaflight OSD menu.
- Complete LED System Included: Comes with an onboard controller and 4 LED strips, providing a full, customizable lighting system right out of the box.
- Built-in 85dB Buzzer: An essential feature for finding a lost FPV drone after a crash, integrated directly onto the board.
- Wide 2S-8S Voltage Input: Exceptional flexibility to work with nearly any FPV drone battery setup.
Specifications
- Mounting: 20x20mm, M3 holes
- Input Voltage: 6V – 36V (2S – 8S LiPo)
- VTX Output Power: 0mW (PIT) / 25mW / 100mW / 200mW / 400mW / 600mW
- Antenna Connector: MMCX
- VTX Protocol: IRC Tramp
- Buzzer: 85dB Active Buzzer
- Weight: 8g (Including antenna)

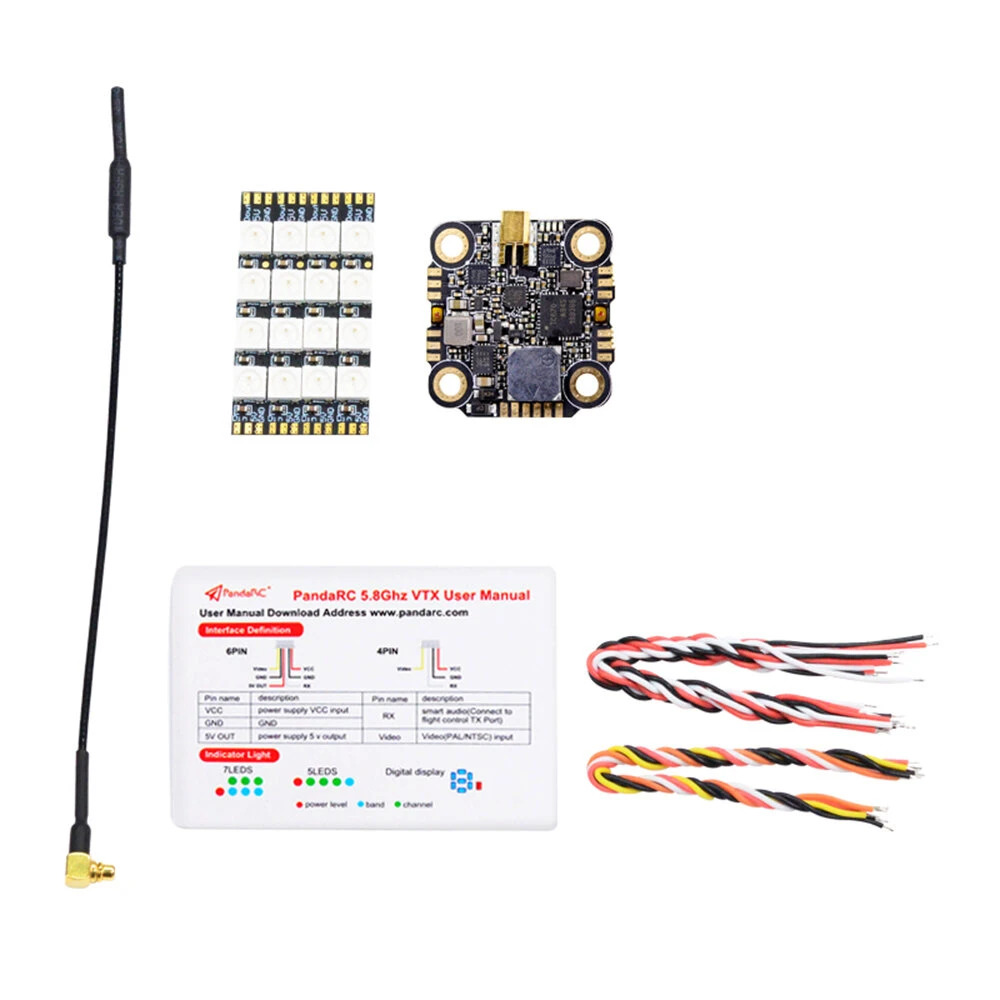

Includes
- 1x PandaRC MINI VT5804 L1 3-in-1 VTX Board
- 4x PandaRC Programmable FPV LED Strips
- 1x MMCX 5.8GHz Copper “Rattail” Antenna
- 4x 3-pin 10cm LED Strip Connection Wires
- 1x VTX to FC Connection Cable
