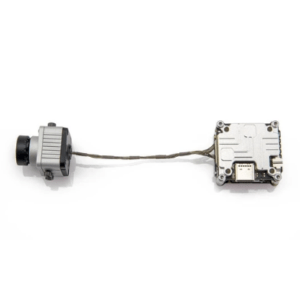

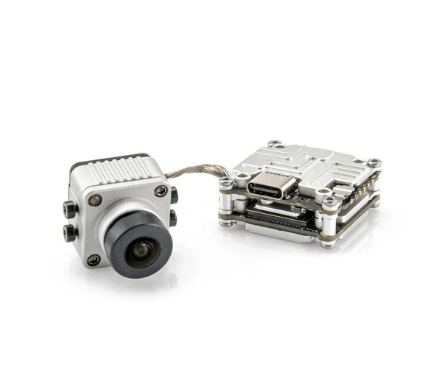

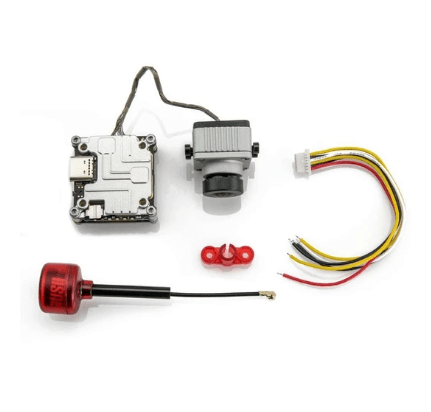

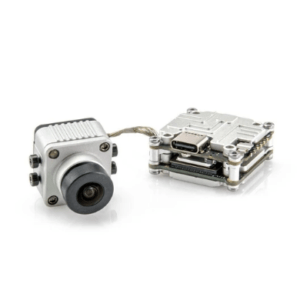

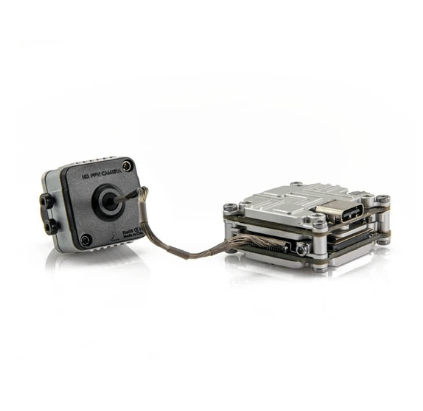

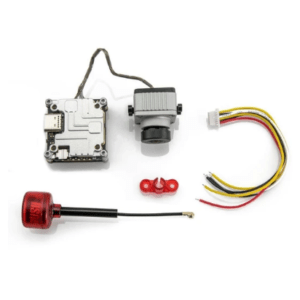

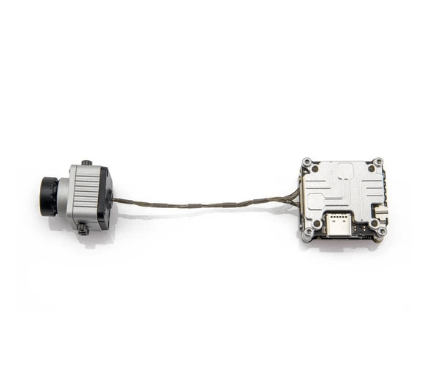

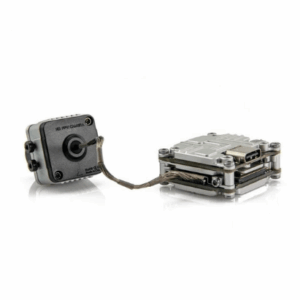

Caddix Vista HD FPV Camera
Specifications
- Dimensions

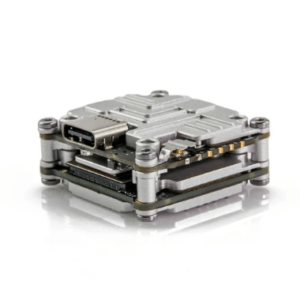

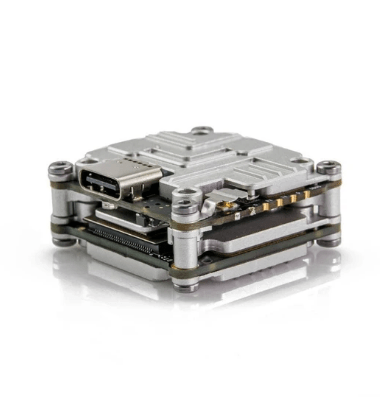

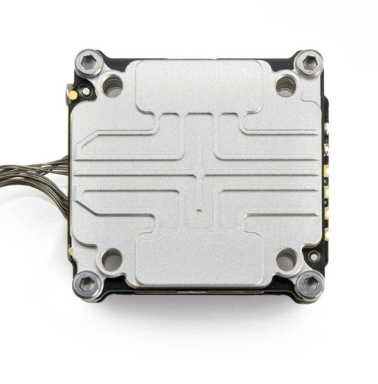

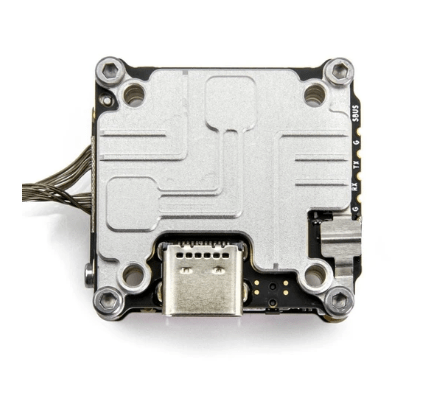

- Module: 30.45 x 29 x 13mm
-
- Camera: 27.4 x 21.1 x 20.1mm
- Weight: 29g (inc. camera); Module: 19g
- Antenna Connector: u.FL
- Operating Frequency: 5.725-5.85GHz
- Transmitter Power (EIRP)
- FCC/SRRC/MIC: <20dBm
-
- CE: <14dBm

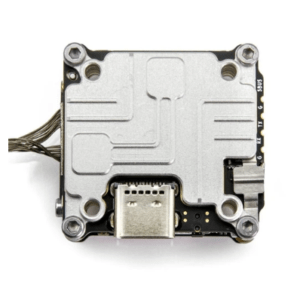

- I/O Interface: USB-C, IPEX, 3-in-1 Port
- Min. Latency: Low Latency Mode (720p 120fps): 21-28ms
- High-Quality Mode (720p 60fps): 30-40ms
-
- Max Transmission Distance: FCC/SRRC: 4km; CE: 0.7km
- Input Power: 7.4-26.4v

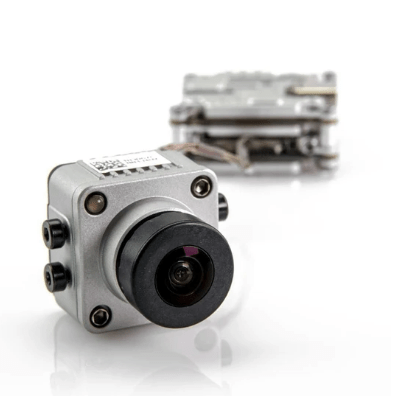

DJI Camera
- Sensor: 1/3.2″ CMOS
- Effective Pixel: 4M
- Lens: 2.1mm f/2.1
- Shutter: Rolling Shutter
- ISO: 100-25600
- FOV: 150(D);122(H);93(V)
