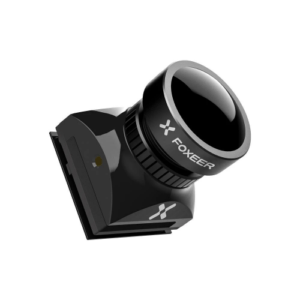

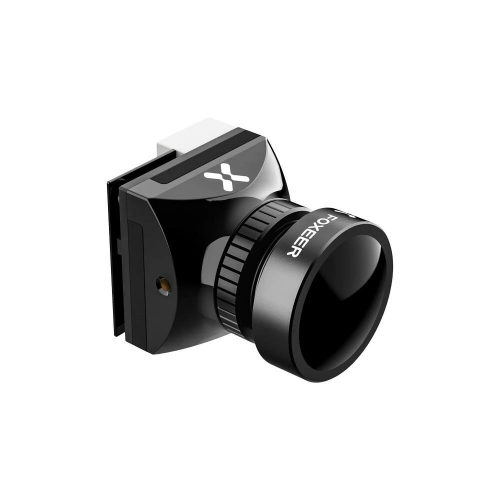

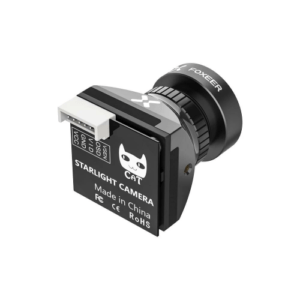

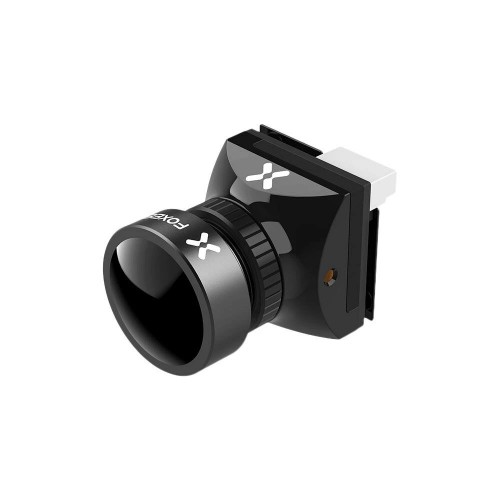

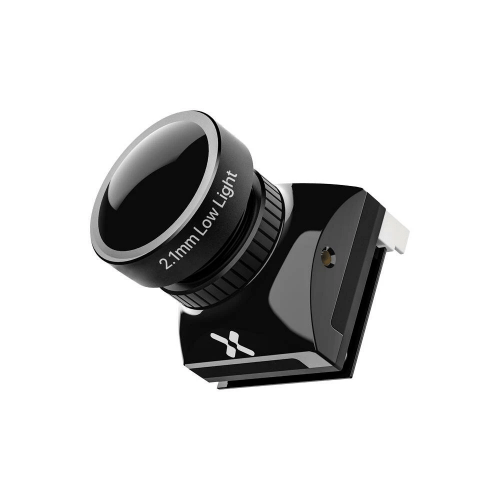

Foxeer Cat 2 Micro
Welcome the Foxeer Cat Starlight FPV Camera! Now in Micro Size! Ultra low latency and great low illumination video make the Foxeer Cat 2 Micro your go-to night camera. Get yours today!
Colors: Black, White
Sensor: 1/3″ CMOS
Sensor: 1/3″ CMOS
Scale: 4:3/16:9 Switchable
TV System: PAL/NTSC Switchable
Resolution: 1200TVL
FOV: 4:3: FOV-H 85°, FOV-D 105°; 16:9: FOV-H 115°, FOV-D 145°
Shutter Speed: PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec
Video Out: CVBS
B&W Min. Illumination: 0.0001ux Starlight
Color Min. Illumination: 0.0005lux
Latency: Ultra-Low Latency
White Balance: Auto
DNR: 3DNR
WDR: Yes
Day/NIght Shift: EXT/Auto/Color/B&W
Flight OSD: Voltage/Cam Title/Time
Power Requirement: DC 4.6~24V
Power Consumption: DC 4.6-24V,230mA±15%@DC5V,100mA±15%@DC12V
Language: English/Chinese
Working Temperature: -10℃ ~ +50℃ RH90% MAX
Working Humidity: 20~80%
Storage Temperature: -20℃ ~ +70℃
Storage Humidity: 20~95%
Working Temperature: -10℃ ~ +50℃ RH90% MAX
Working Humidity: 20~80%
Storage Temperature: -20℃ ~ +70℃
Storage Humidity: 20~95%
Dimension: 18.7×18.7mm (without bracket)
Weight: 10.5g
Features:
– Super starlight,less noise,ultra low latency
– 4:3/16:9 & NTSC/PAL switchable
– Support OSD & Menu remote control with Foxeer F405 AIO & F22 Dual FC
Package Includes:
1x Foxeer Cat 2 Micro Camera
1x Servo Cable to TBS Unify VTX
1x 2Pin OSD Cable
1x OSD Board
1x Manual
1x Screws Set
