Flywoo Caddx Nebula Pro 720p 120fps Vista Kit – Black 12cm
Check out all of our Flywoo products!

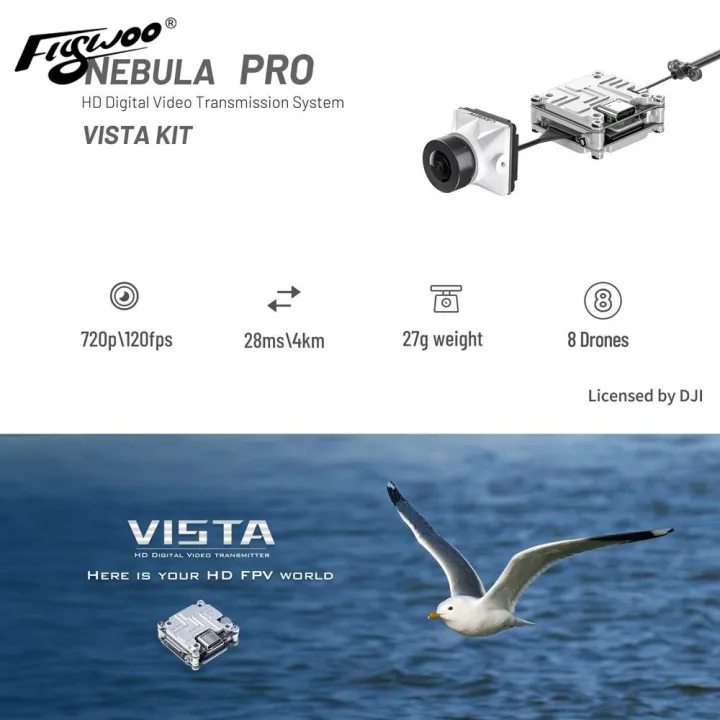

Introducing the Caddx Nebula Pro Vista Kit, a next-gen digital FPV system. This advanced video transmission module, sanctioned by DJI, supports 5.8GHz digital video signal and 720p 120fps image transmission. Designed exclusively for FPV drones, it’s compatible with DJI FPV Goggles, delivering HD visuals and a 4km transmission range. The kit facilitates up to eight drones to fly concurrently, each on an exclusive channel for an interference-free racing experience.
Simplify your setup by wirelessly connecting the Vista Kit to DJI devices without the need for additional receivers. Whether you’re racing or capturing stunning visuals, this combo ensures top-notch performance.
Features
- Lightweight digital image transmission combination
- Stable and clear HD video
- 720p 120fps, 32ms/4km
- 8 channels, 8 drones
- Embedded Remote Controller Receiver
Specifications
- Model: Vista Kit (Nebula Pro)
- Weight: Camera included: 27g/Antenna:2.5g
- Dimensions:
- Vista Kit: 30x29x13mm
- Camera: 19x19x20mm
- Coaxial Cable:80mm/120mm
- Operating Frequency: 5.725-5.850GHz
- Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
- Min. Latency (end-to-end):
- Low Latency 720p 120fps: 12-28ms
- High Quality Mode: 720p 60fps: 30-40ms
- Max. Transmission Distance: FCC/SRRC: 4km, CE: 0.7km
- I/O Interface: USB-C,IPEX,3-in-1 Port
- Supported Flight Control System: F3,F4,F7
- Operating Temperature Range: 32° to 104° F (0℃ ~40℃)
- Input Power: 7.4-26.4V
- Power output: 25mW/200mW/500mW/700mW

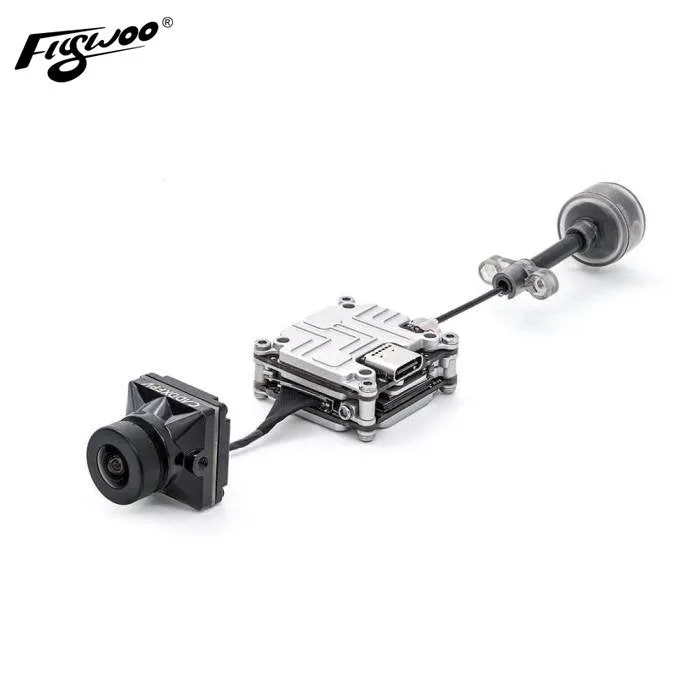

- Hardware included:Vista/Nebula nano/Coaxial cable/Antenna
- Goggles: work with DJI goggles

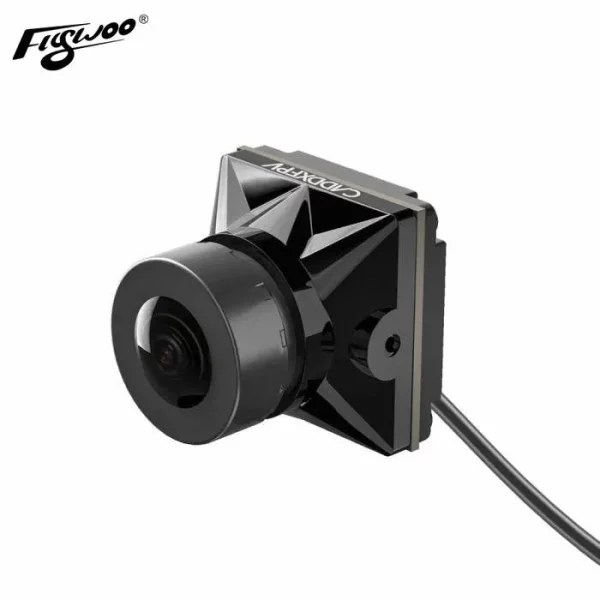

- Camera:Sensor: 1/3”CMOS
- Lens: 2.1mm,f/2.1
- Shutter: Rolling shutter
- FOV: 150°[D],122°[H],93°[V]
Includes
- 1 x Caddx Nebula Pro Vista Kit 720p/120fps Low Latency HD Digital FPV System 12cm
