Caddx Ratel FPV Camera

Check out all of our CaddxFPV Products, and all of our FPV Cameras!

Achieve a stunningly clear picture in any lighting condition with the Caddx Ratel FPV camera. Featuring a massive 1/1.8″ Starlight HDR sensor, the Ratel delivers exceptional low-light performance and incredible wide dynamic range. It’s the ultimate “do-it-all” analog FPV camera for freestyle pilots who fly from bright daylight to deep dusk.

Superior Low-Light & WDR Vision

The secret to the Ratel’s amazing image is its large 1/1.8-inch Starlight HDR sensor. This sensor gathers significantly more light than smaller, conventional sensors, providing a bright, usable image long after other cameras have given up. This is paired with Super WDR (Wide Dynamic Range) technology, which expertly balances the brightest and darkest parts of your view simultaneously. This prevents a blown-out, white sky while keeping crucial details visible in the shadows, giving you the confidence to fly anywhere.

Customize Your View & Style

Tailor the Ratel to your exact needs with multiple lens and color options. Please select your desired configuration from the dropdown menus.

• Lens Options:
  • 1.66mm Lens: Provides an ultra-wide, “superview” field of view, perfect for immersive freestyle flying where you want to see everything.
  • 2.1mm Lens: Offers a classic, wide field of view that is a favorite for all-around flying.
  • 2.1mm Lens + ND8 Filter: This special version comes with a factory-installed ND8 filter, perfect for capturing smooth, cinematic footage with natural motion blur on bright, sunny days without needing a separate filter.

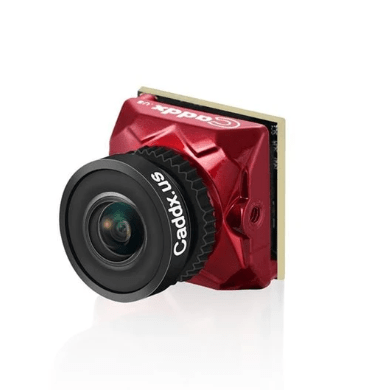

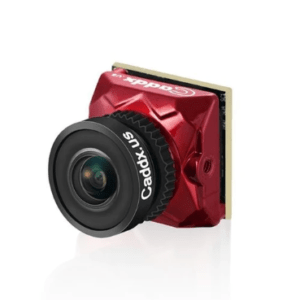

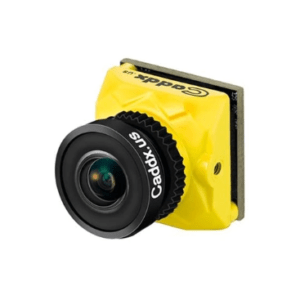

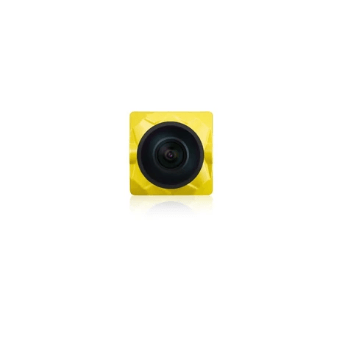

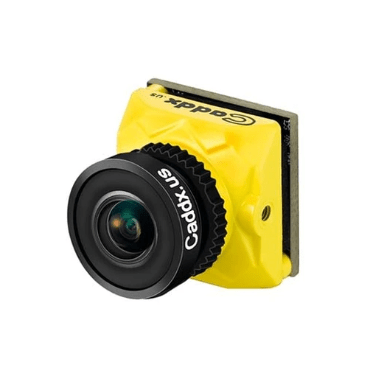

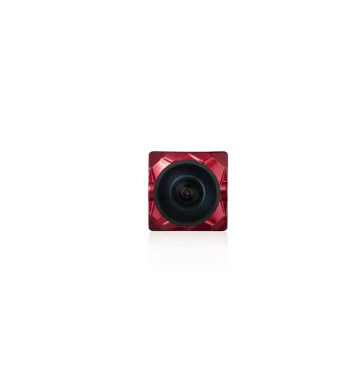

• Color Options: Available in vibrant Red or Yellow to match your FPV drone’s style.

Key Features:

• Large 1/1.8″ Starlight HDR Sensor: Delivers outstanding low-light performance and a high-quality image.
• Super WDR: Provides a clear, balanced picture by preventing bright areas from blowing out and dark areas from being crushed.
• High 1200TVL Resolution: A crisp and detailed analog image makes it easier to navigate and spot details.
• Wide 5-40V Input Voltage: Incredible flexibility to power the camera from almost any source on your drone (2S-8S compatible).
• Fully Switchable: Easily switch between 16:9/4:3 aspect ratios and NTSC/PAL video formats using the included OSD menu board.

Specifications

• Model: Caddx Ratel
• Image Sensor: 1/1.8″ Starlight HDR Sensor
• Horizontal Resolution: 1200TVL
• TV System: NTSC & PAL (Switchable)
• Image: 16:9 & 4:3 (Switchable)
• Min. Illumination: Starlight (0.001Lux)
• Lens Options: 1.66mm, 2.1mm, 2.1mm+ND8
• Power Input: DC 5-40V
• Dimensions: 19mm x 19mm x 19mm (Micro size)
• Weight: 8g

Package Includes：

• 1x Caddx Ratel FPV Camera (in your chosen color and lens)
• 1x 5D-OSD Menu Board
• 1x 4-pin FPV Silicone Cable
• 1x Internal Hexagonal Wrench
• 1x Warranty Card
