Caddx Firefly 1/3″ CMOS 1200TVL 2.1mm Lens 16:9 / 4:3 with VTX

Pick Your Ratio

The Firefly is for Micro Quads, and comes with a built-in VTX. It still has many options for an FPV camera of its size.

Specifications:

• Lens: 2.1mm
• Image Sensor: 1/3″ CMOS Sensor
• Horizontal Resolution: 1200 TVL
• TV System: NTSC
• Image: 16:9 or 4:3
• Synchronization: Internal
• Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000
• S/N Ratio: >52dB (AGC OFF)
• Video Output: CVBS
• Min. Illumination: [email protected]
• Auto Gain Control: YES
• BLC: YES
• WDR: Global WDR
• DNR: 2 DNR
• Dimensions: 14mm*14mm*16mm
• Wide Power Input: DC 3.3-9V
• Work Temperature: -20℃~+60℃
• Work Humidity: 20%~80%
• Weight: 4.1g (Camera + VTX)

Includes:

• 1x Firefly FPV Camera + VTX

Specifications of VTX:

• Feature: TBS Smart Audio
• Frequency Band: 5362~5945MHz
• Channel Customer: 48
• Modulation Type: FM
• Channel SEL.: Touch Switch
• Channel Indicate: CH1~CH8 Channel indication with 8LEDS and A~F frequency group Indicate with 6 LEDS
• Transmit Power: 13±1dBm
• Frequency Control: PLL
• All Harmonic: Max -50dBm
• Frequency Stability: ±100KHz (Typ.)
• Frequency Precision: ±200KHz (Typ.)
• Channel Carrier Error: 1dB
• Antenna Port: 50 Ω
• Power Consumption: 140±20MA@5V DCIN
• Supply Voltage: 2.9-5.5V
• Operating Temperature: -10℃~+60℃

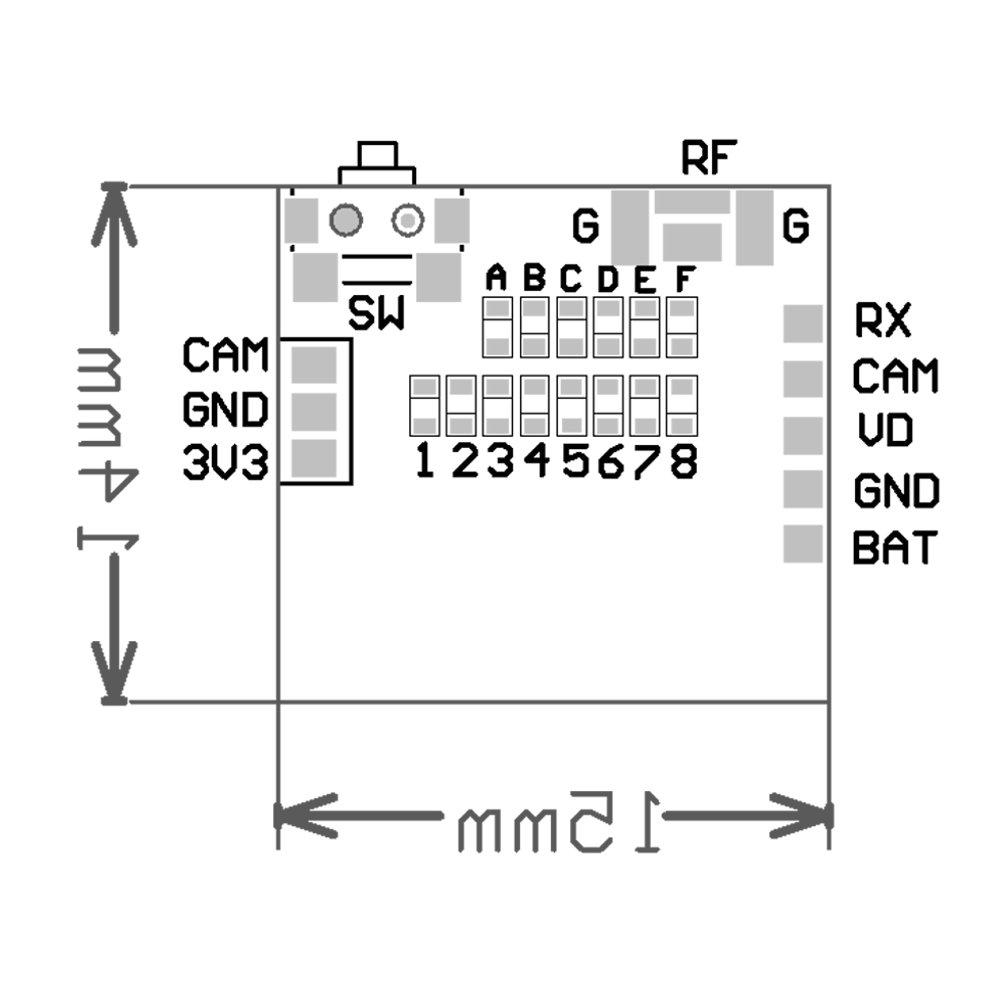

• Profile Dimension: 15mmx14mm
• Frequency Table:
