Experience a new level of convenience and power with the ZEEZ F7 Flight Controller. This feature-packed FC is designed for FPV drone builders who want premium performance and innovative features that simplify their build. With high-voltage 8S support, a built-in VTX power switch, and an included RGB LED system, this flight controller is the perfect brain for a top-tier FPV drone kit.
High-Voltage Ready with Powerful BEC
The ZEEZ F7 is built to handle serious power, supporting direct LiPo input up to 8S (36V max). This makes it an ideal choice for high-voltage freestyle machines or long-range FPV drone builds. It also features a robust 5V BEC that can supply up to 3A of continuous current, providing plenty of clean power for all your drone parts, including your receiver, GPS, and other peripherals.
Innovative VTX Switch & LED System
This flight controller is packed with unique features. A built-in VTX switch allows you to turn your video transmitter on and off directly from a switch on your radio, preventing your VTX from overheating while you’re waiting on the flight line. This package also includes a full set of four Zeez RGB LED strips and features onboard distribution pads for incredibly clean and easy wiring, all controllable through BetaFlight.
Packed with Builder-Friendly Features

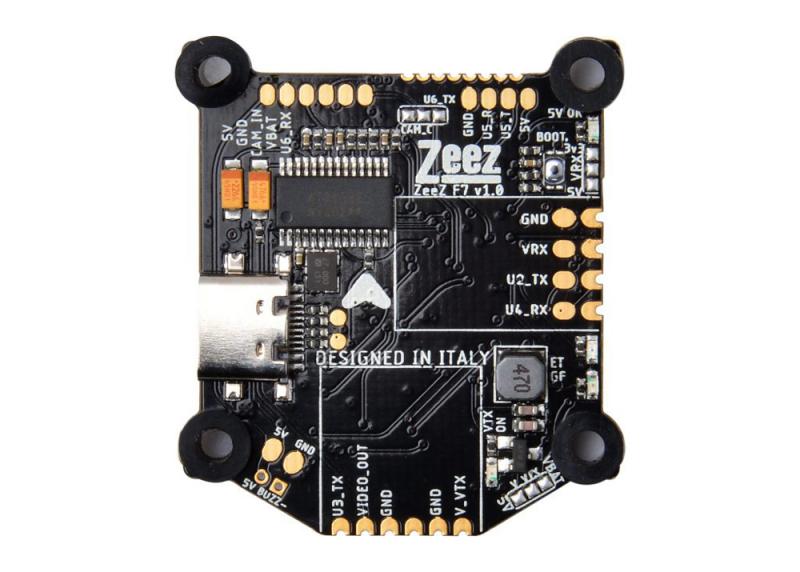

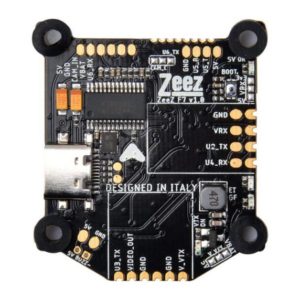

Built around a powerful STM32F722 MCU and the smooth MPU6000 gyro, the ZEEZ F7 ensures top-level flight performance. It offers 6 available hardware UARTs for all your devices, 128MB of onboard flash for Blackbox logging without an SD card, and a modern USB-C connector. The thoughtful notch design on the board allows for a better, cleaner fit in a wide variety of FPV drone frames.
Specifications
- MCU: STM32F722
- Gyro: MPU6000
- Input Voltage: Up to 8S (36V Max)
- BEC: 5V @ 3A Continuous
- Blackbox: 128MB Onboard Flash
- UARTs: 6 Available
- Special Features: VTX Power Switch, Onboard RGB LED Controller/Pads
- Mounting Holes: 30.5mm x 30.5mm

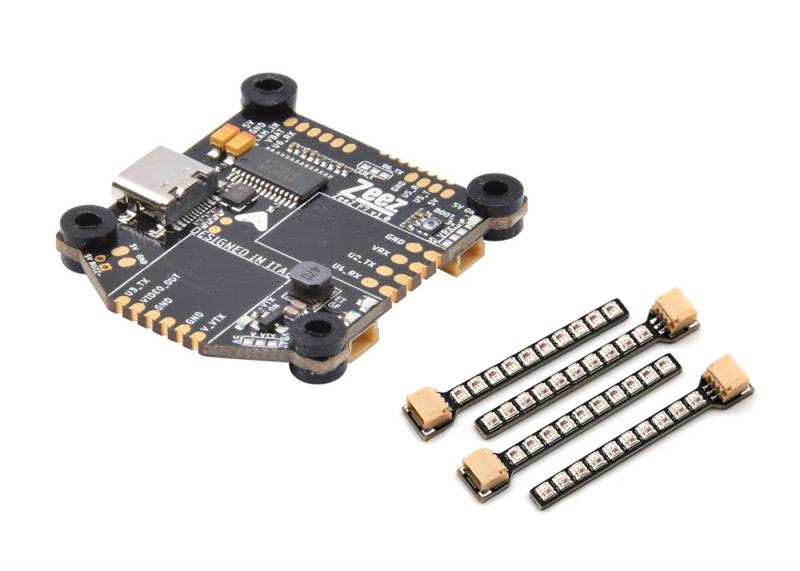

What’s in the Box?
- 1x ZEEZ F7 Flight Controller

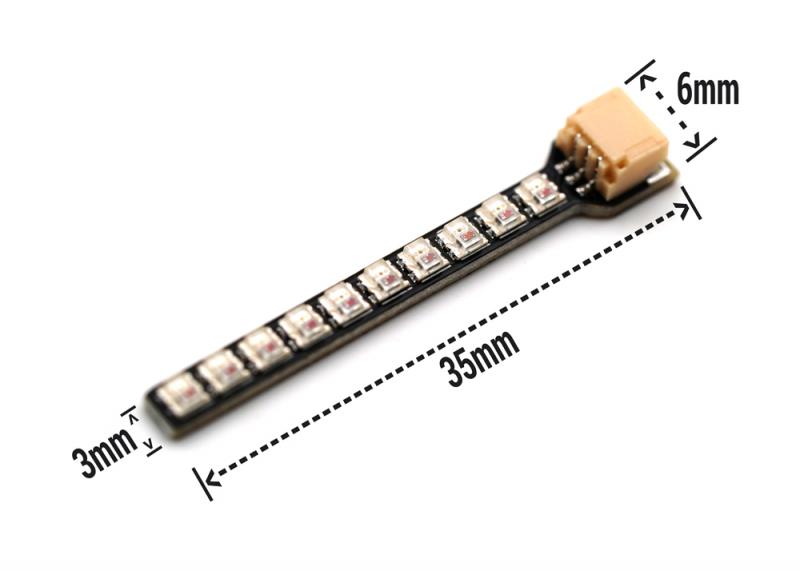

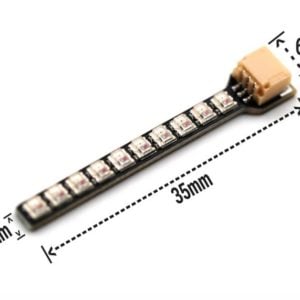

- 4x ZEEZ RGB LED Strips
