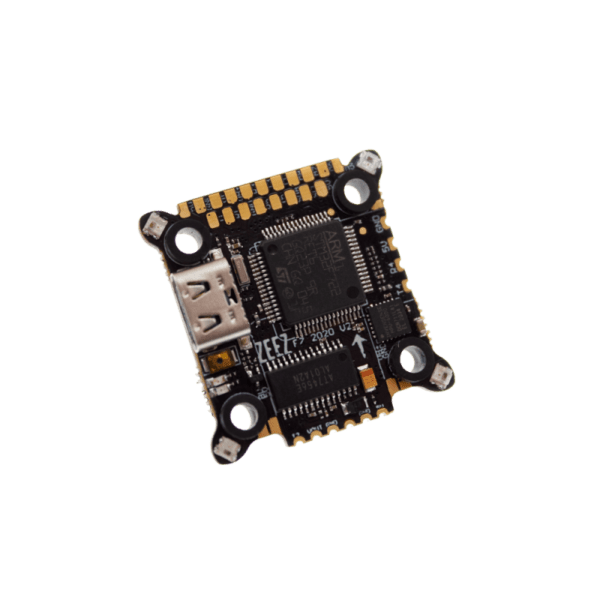

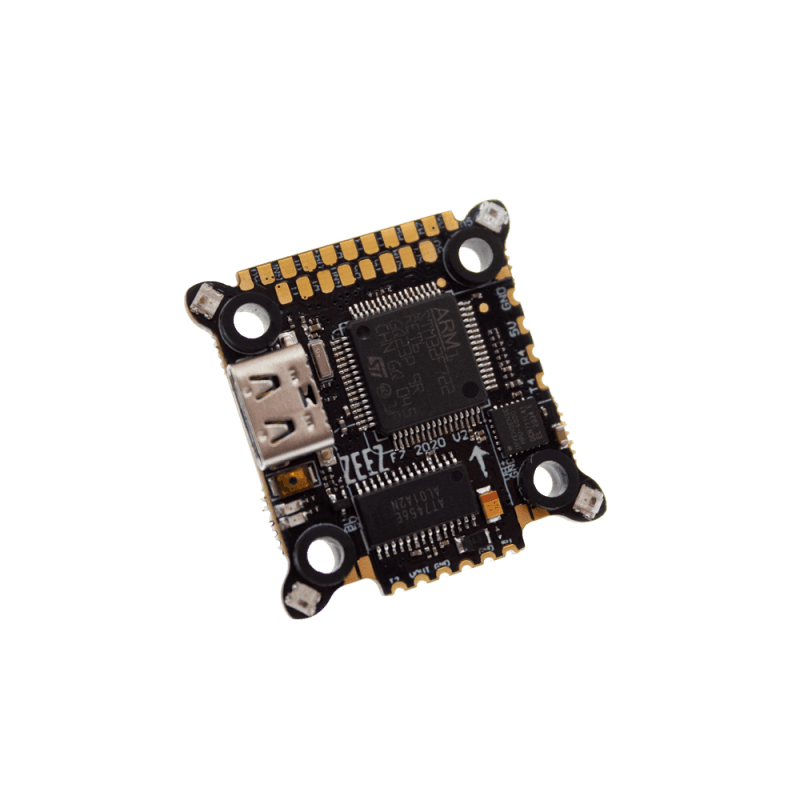

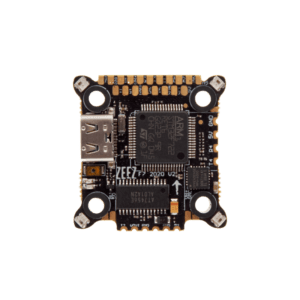

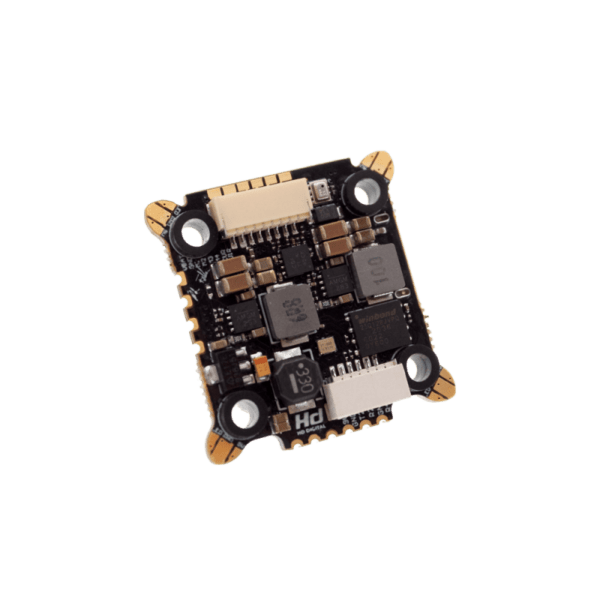

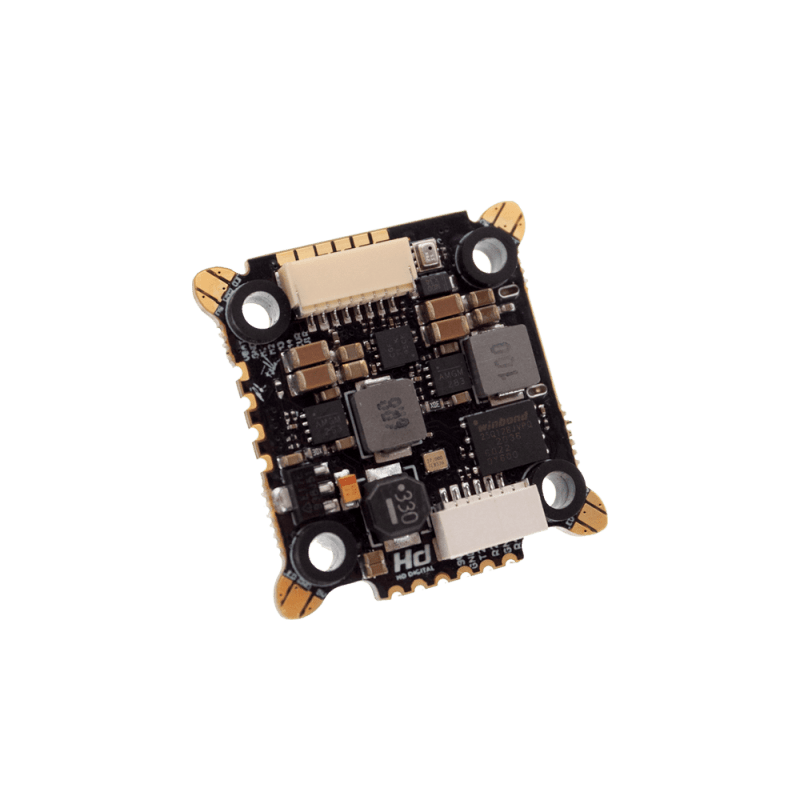

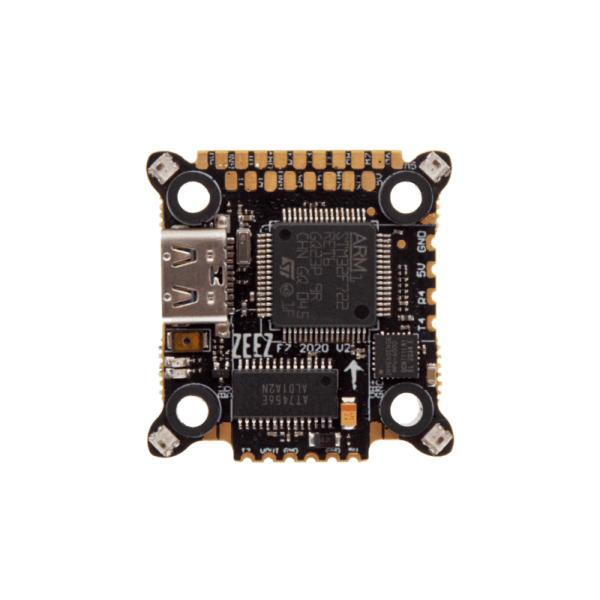

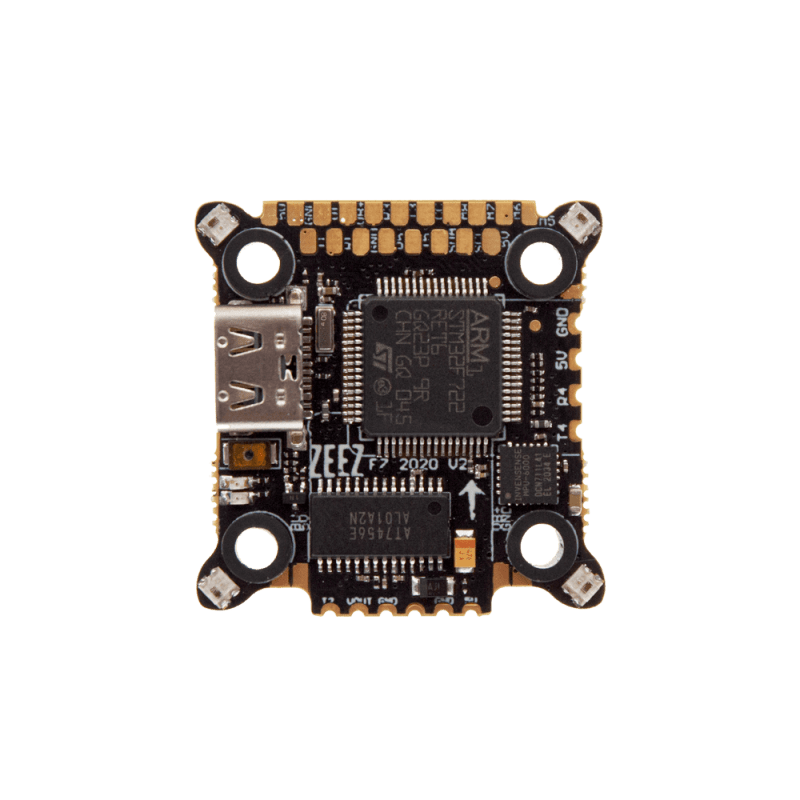

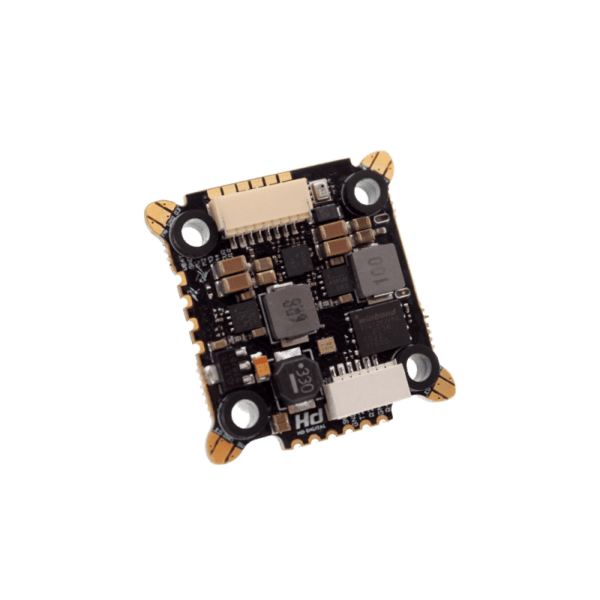

ZEEZ F7 2020 FLIGHT CONTROLLER V2

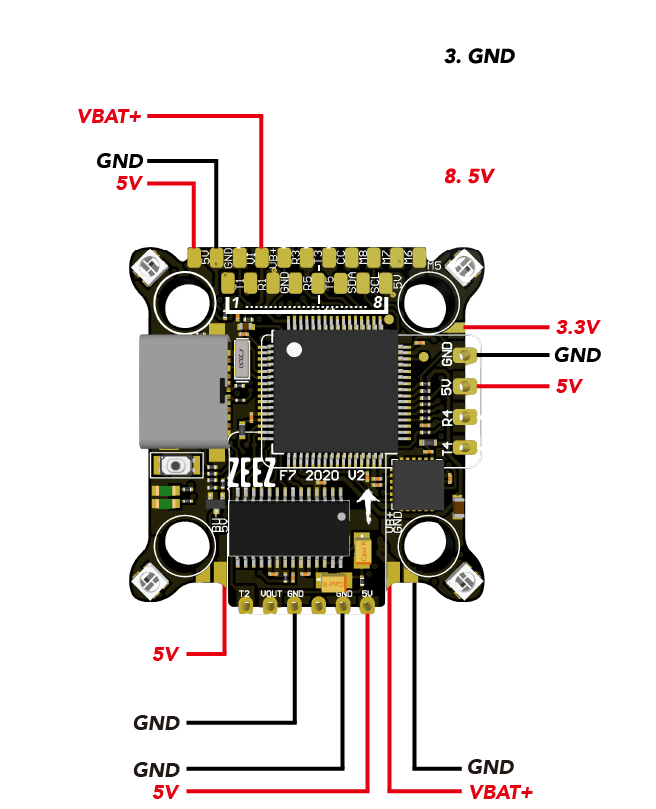

It uses a powerful F7 processor along with top-of-the-line hardware: MPU6000 Gyro, BMP280 Barometer. ZEEZ F7 V2 2020 comes in a standard 20×20 form factor. It comes with spaces and pads for TBS Crossfire and TBS Unify Nano32 for a very clean and low-profile assembly. It has 4 onboard RGB LEDs and easy-to-solder LED pads on each corner. There are 5 UARTS available as well as, an I2C port, 16MB Flash memory for Blackbox data recording, an OSD chip for analog video, and LC Filter to power the Analog camera and VTX.
We took all the feedback given to us from the previous version and have improved the overall stability and power supply cleaning. We were able to reduce the size of the FC, thanks to its 6 layer design. Along with easier to solder pads and improved the strength of all the solder pads, adding additional copper around the pads.
20 x 20
BEC 3A CONTINUOUS
DJI AND CADDX VISTA COMPATIBLE
8 MOTOR COMPATIBLE
WHO STILL USES MICRO-USB?
PADS FOR NANO RX & UNIFY PRO 32
