Walksnail AVATAR HD Nano Kit

Check out all of our Walksnail Products!

Bring crisp, high-definition video to your micro drones with the Walksnail AVATAR HD Nano Kit. Designed for pilots who demand the best image quality without the bulk, this system packs the full power of the Avatar HD transmission into a compact package featuring the ultra-lightweight Nano Camera (14mm). Whether you are building a 2-inch whoop or a lightweight 3-inch freestyle ripper, this kit delivers 1080p clarity with ultra-low latency.

1080p Nano Camera

Size does not compromise quality here. The included Avatar Nano Camera measures just 14x14mm and weighs only 3.5g, making it the perfect fit for modern micro frames. It features a 1/2.7″ sensor capable of recording 1080p at 60FPS or 720p at 120FPS for buttery smooth playback. With a switchable aspect ratio (16:9 / 4:3) and a wide 170° FOV, you can customize your view to match your flying style.

High Performance VTX

The heart of the system is the Avatar VTX, boasting an industry-leading average latency of just 22ms, giving you the connected feel needed for precision flying. It supports a wide input voltage of 6V-25.2V (2S-6S LiPo), allowing for direct power connection on most builds without external regulators.

Built-in 8GB DVR

Forget about heavy SD cards and finicky slots. The Avatar VTX comes with 8GB of Internal Storage built right in. It automatically records 1080p HD footage of your flights directly to the unit, which you can easily export via the included USB cable.

Key Features:

• Nano Form Factor: 14x14mm camera size for micro builds.

• Ultra-Low Latency: Average of 22ms for locked-in control.

• Internal DVR: 8GB built-in storage for HD recording.

• High Resolution: Supports 1080p/60fps and 720p/120fps.

• Wide Voltage: Supports 6V to 25.2V (2S-6S) input.

• Canvas Mode: Full Betaflight OSD support.

• Dual Antenna: Dual U.fl connectors for robust signal stability.

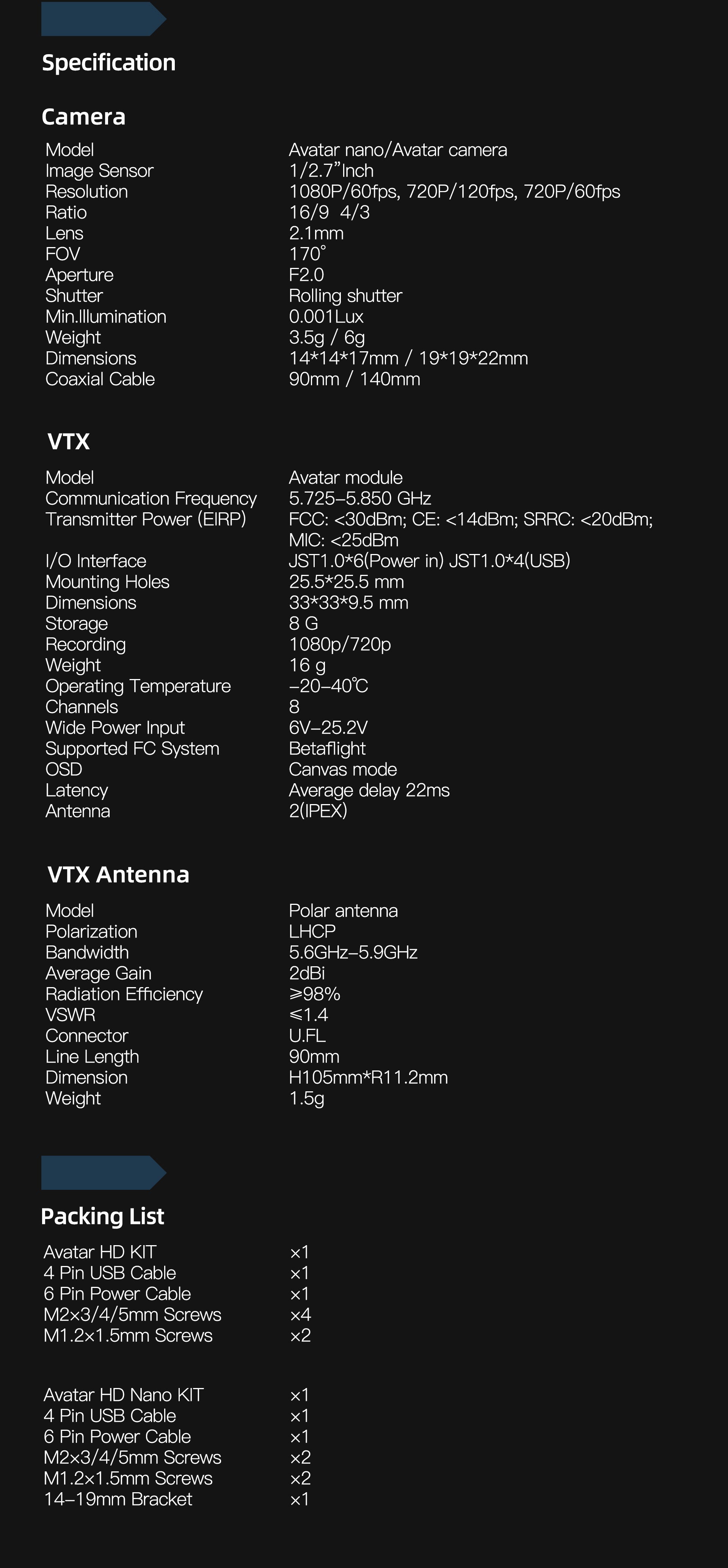

Specifications:

Avatar Nano Camera

• Image Sensor: 1/2.7”

• Resolution: 1080P/60fps, 720P/120fps, 720P/60fps

• Ratio: 16:9 / 4:3 Switchable

• Lens: 2.1mm (170° FOV)

• Dimensions: 14x14x17mm

• Weight: 3.5g

Avatar VTX

• Frequency: 5.725-5.850GHz

• Channels: 8

• Mounting Pattern: 25x25mm

• Latency: Average 22ms

• Internal Storage: 8GB

• Input Voltage: 6-25.2V

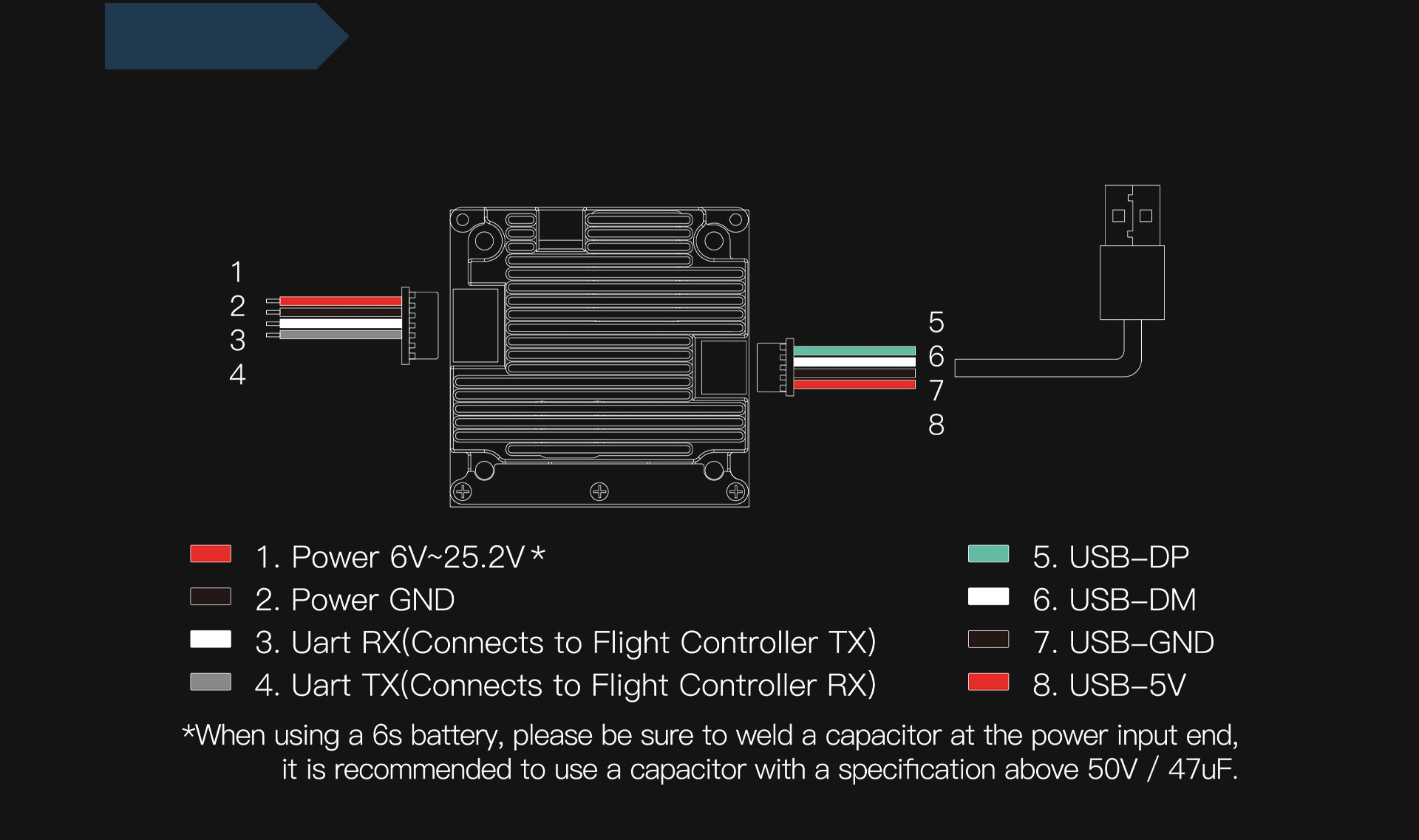

• Connector: JST1.0 x 6 (Power/UART), JST x 4 (USB)

• Weight: 16g

• Antenna Connector: Dual U.fl

What’s in the Box?

• 1x Walksnail Avatar HD Nano Camera

• 1x Walksnail Avatar VTX

• 2x LHCP 5.8GHz Antennas (U.fl)

• 1x USB Data Cable

• 1x 6-Pin Silicone Cable

• 1x Hardware Kit (M1.2 / M2 Screws)
