OpenIPC Wyvern Link Goggle VRX
Check out all of our Emax products!
Introducing the EMAX Wyvern Link Goggle VRX, the compact and portable receiver built to complete your OpenIPC digital FPV system. This module is designed to receive the high-definition video feed from the Wyvern Link VTX, delivering a smooth, low-latency image to your FPV goggles via HDMI. With an integrated DVR, wide 2S-6S LiPo support, and a lightweight design, it’s the all-in-one receiving solution for the open-source FPV enthusiast.
The Other Half of OpenIPC This is the official ground-side component for the EMAX Wyvern Link ecosystem. It receives the digital video signal and outputs it via a standard HDMI port, making it compatible with a wide range of FPV goggles that have an HDMI input (like many FatShark, Orqa, and Skyzone models). The built-in DVR allows you to record your digital flight footage directly to a MicroSD card.
IMPORTANT: This is an Alpha Release Product. The Wyvern Link Goggle VRX is an Alpha release, offering early access to cutting-edge FPV technology. This means it is intended for developers, enthusiasts, and early adopters who are comfortable with evolving firmware and want to be part of shaping the future of open-source FPV. Features and performance may change with future software updates.
Key Features:
- Official OpenIPC Receiver: The genuine companion receiver for the EMAX Wyvern Link VTX.
- HDMI Video Output: Connects to any FPV goggle or monitor with a Mini or Micro HDMI input.
- Integrated DVR: Records your digital flight footage to an onboard MicroSD card.
- Wide Power Input: Can be powered by a wide range of 2S-6S LiPo batteries for ultimate field flexibility.

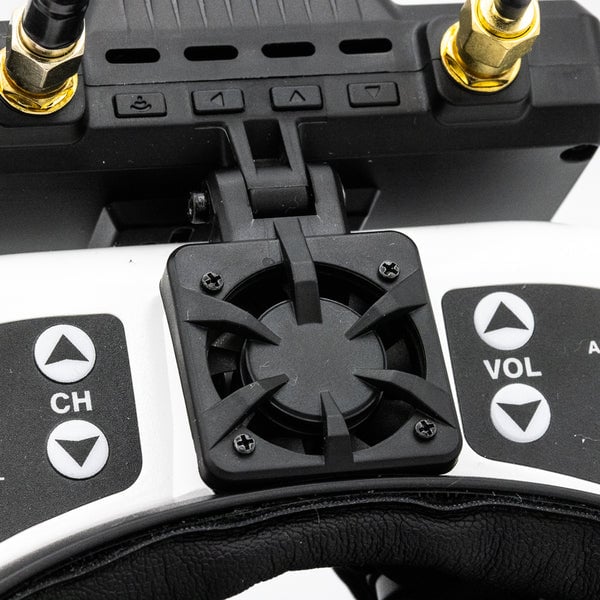

- Compact & Portable: A lightweight, goggle-mountable design that’s perfect for travel.
- Alpha Release: Get early access to the future of open-source digital FPV.
Specifications
- Compatibility: Works only with OpenIPC video transmitters.
- Firmware: OpenIPC
- Video Output: Micro HDMI
- Power Input: DC (2S-6S LiPo)
- DVR: MicroSD Card Slot
- Frequency Bandwidth: 20 MHz
Includes
- 1x EMAX Wyvern Link OpenIPC Goggle VRX
- 1x Micro HDMI to Mini HDMI Cable
- 1x Dual Type-C Data Cable
- 1x Screw Accessory Pack
- 2x Matching Antennas
- 1x DC Power Cable
