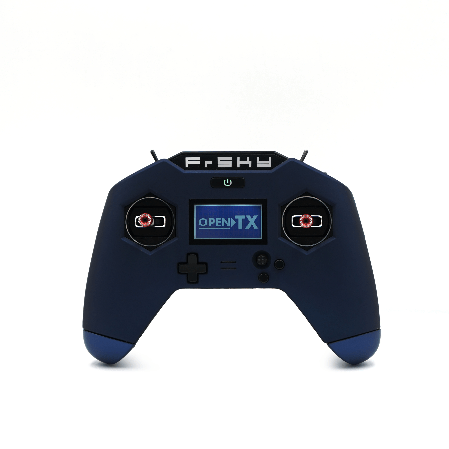

FrSky Taranis X-Lite Pro 24CH Radio with new RF Module installed ACCESS Protocol and PARA Wireless Training System
New for the X-Lite PRO version is a high-quality, all-metal CNC hall sensor gimbal. Checking the airwaves for RF noise is now possible with the new power meter and spectrum analysis function added to the OpenTX firmware. X-Lite Pro version feature the addition of a PARA wireless trainer function which makes them compatible with the FrSky Free Link App and AirLink S. The best thing about the X-lite Pro model is that pilots can now expect even lower latency and enhanced performance due to our new ACCESS transmission protocol. With the integrated 6-axis sensor unit, pilots can use the radio as a motion-sensing controller to control the inputs of a model during flight or use it to point a camera in the desired direction. Like all of our transmitters, all of the beloved features from previous Taranis are included such as full haptic feedback and voice alerts, as well as telemetry and 24 channels and an additional 2 momentary buttons are installed.
Specifications
- Number of channels: 24 channels
- Internal RF module: ISRM-P
- Weight: 328g / 390g (with battery)
- Operating voltage range: 6.0 ~ 8.4V
- Operating current: 190mA@7.4V
- Operating Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
- Backlit LCD resolution: 128*64
- Model memories: 60 models (expandable by micro TF card)
- Micro USB interface: supports 2S Li-battery balancing charge
- Color: navy blue
- Compatibility: ACCESS and ACCST D16 mode receivers
Features
- Ergonomic and compact design
- MC12 Lite all-metal CNC digital hall sensor gimbal
- Upgraded RF module with installed ACCESS protocol
- More sensitive and lower latency (down to 12ms)
- High-speed digital interface of internal and external modules (Baud rate: 450K)
- Longer range with 40% enhanced performance
- Accurate SWR indicator
- Supports power meter function
Input Signal Measurement Range (Frequency: 900MHz & 2.4GHz, Precision: within 1db)✧ Without attenuator: -50dbm ~ -10dbm✧ With added 40db attenuator: -10dbm ~ 30dbm (Optional Accessory)
- Supports spectrum analyzer function
- New PARA wireless training system
- High-speed training system with a lower latency
- Compatible with FrSky Free Link App and AirLink S via mobile devices
- Supports wired training function
- High-efficiency quick-charge system
- Supports 2S Li-Battery balancing charge
- Supports motion sensing control
- Integrated with 6-axis sensor unit
- Haptic vibration alerts and voice speech outputs
Taranis X-Lite Comparison
| Features | Taranis X-Lite | Taranis X-Lite S | Taranis X-Lite Pro |
| Ergonomic and compact design | √ | √ | √ |
| Installed OpenTX system | √ | √ | √ |
| High-speed module digital interface | √ | √ | √ |
| Haptic vibration alerts and voice speech outputs | √ | √ | √ |
| 128*64 outdoor legible backlit LCD | √ | √ | √ |
| Easily accessible battery compartment | √ | √ | √ |
| Hall sensor gimbal (M12 Lite) | √ | √ | |
| All-metal CNC machined hall sensor gimbal (MC12 Lite) | √ | ||
| ● Solid and digital higher accuracy | √ | ||
| ● Adjustable spring | √ | ||
| Wired training function (via 3.5mm audio port) | × | √ | √ |
| New PARA wireless training system | × | √ | √ |
| ● High-speed training system with a lower latency | × | √ | √ |
| ● Compatible with FrSky Free Link App and AirLink S via mobile devices | × | √ | √ |
| Additional 2 momentary buttons | × | √ | √ |
| Battery Charging System (via Micro USB port) | × | √ | √ |
| Supports motion sensing control | × | √ | √ |
| ● Integrated with 6-axis sensor unit | × | √ | √ |
| Enhanced RF performance | |||
| ● Upgraded RF module | × | ISRM-S | ISRM-P |
| ● Longer telemetry range | × | √ | √ |
| ● Accurate SWR indicator | × | × | √ |
| ● Power meter | × | × | √ |
