MATEK ELRS-R24-D ELRS 2.4GHZ RECEIVER
Check out all of our Matek Products!
Specifications:
- Telemetry Power: 22.5dbm
- Antennas: IPEX MHF1
- Operating Frequency: 2.4GHz
- Compliance: ExpressLRS Standards
Power Consumption:
- 40~45mA (prior to binding)
- 70~75mA (during binding)
- 90~95mA (in WiFi mode)
Features:
- Antenna Diversity with default on ANT2
- RF Frequency Range: 2400~2480MHz
- Telemetry Power Range: 22.5dbm~23dbm
- Input Voltage: 4~9V DC via 5V pad
- Antenna Connector Type: IPEX MHF 1

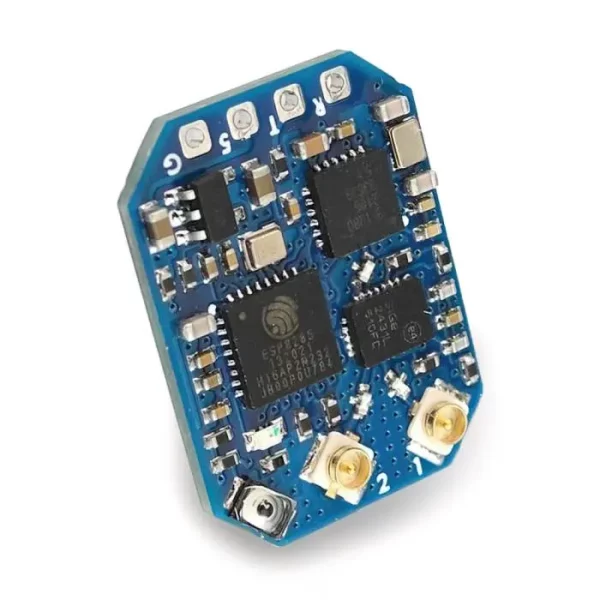

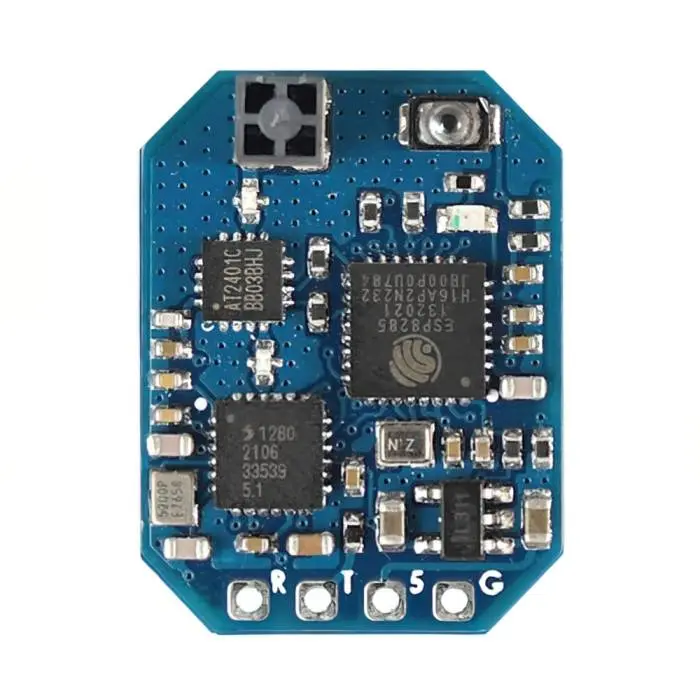

- Components: ESP8285, SX1280/1281IMLTRT
- RX Gain (SE2431L): 12.5dB
- Weight: 3g (including antennas)
- PCB Dimensions: 21mm x 15mm
- Receiver Protocol: CRSF
- PA/LNA Component: SE2431L
Firmware Information:
- For ELRS-R24-D, ensure “USE_DIVERSITY” is enabled when flashing via ExpressLRS configurator
- Compatible Firmware: ExpressLRS MATEK_2400_RX
- Update Methods: UART or WiFi
Downloads Available:
- ELRS_V2.0.0_NoPhrase_ELRS-R24-D.bin
- ELRS_V1.2.0_NoPhrase_ELRS-R24-D.bin
- ESP_NodeMCU-PyFlasher.exe
- 3D Step File
Package Contents:

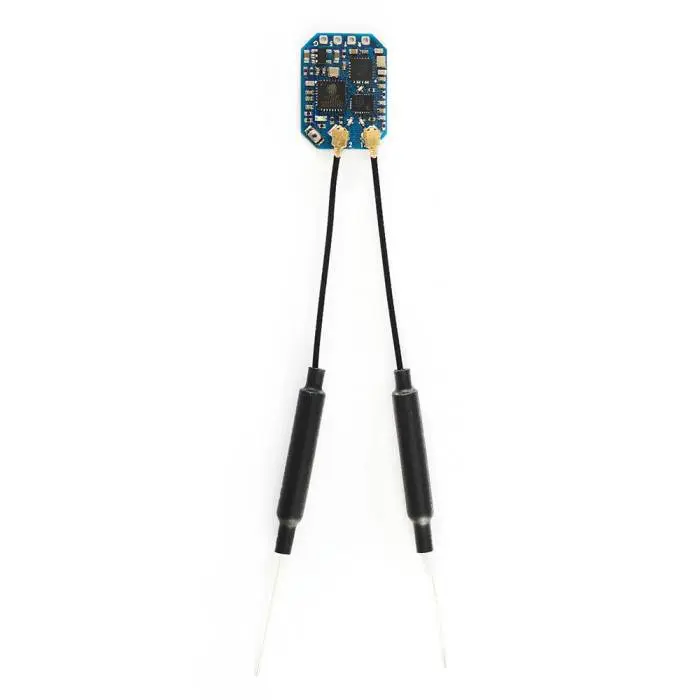

- 1x MATEKSYS ExpressLRS 2.4GHz Receiver – ELRS R24 D
- 2x IPEX MHF1 Antennas
