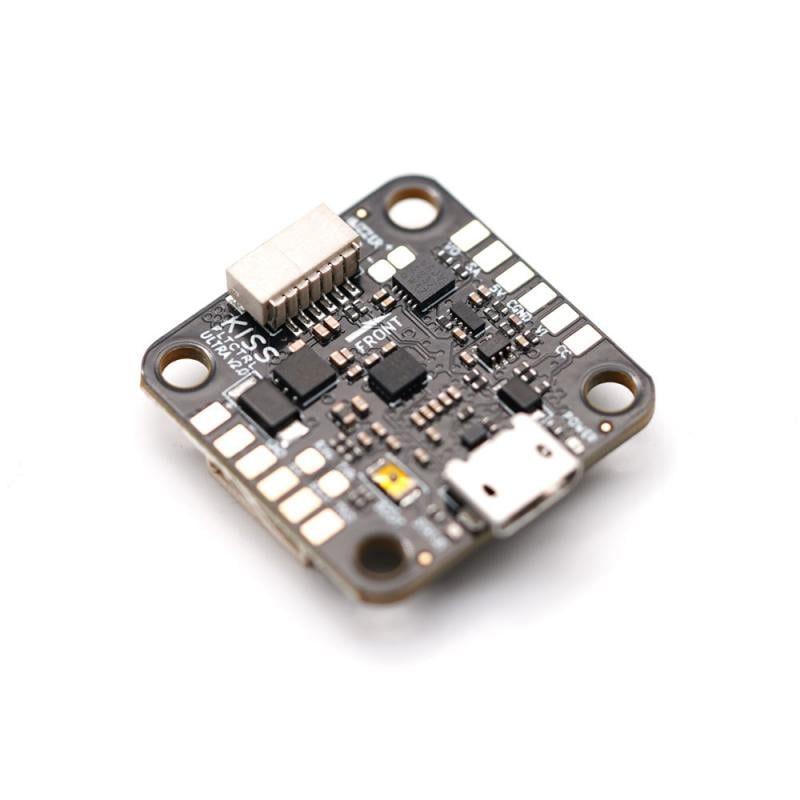

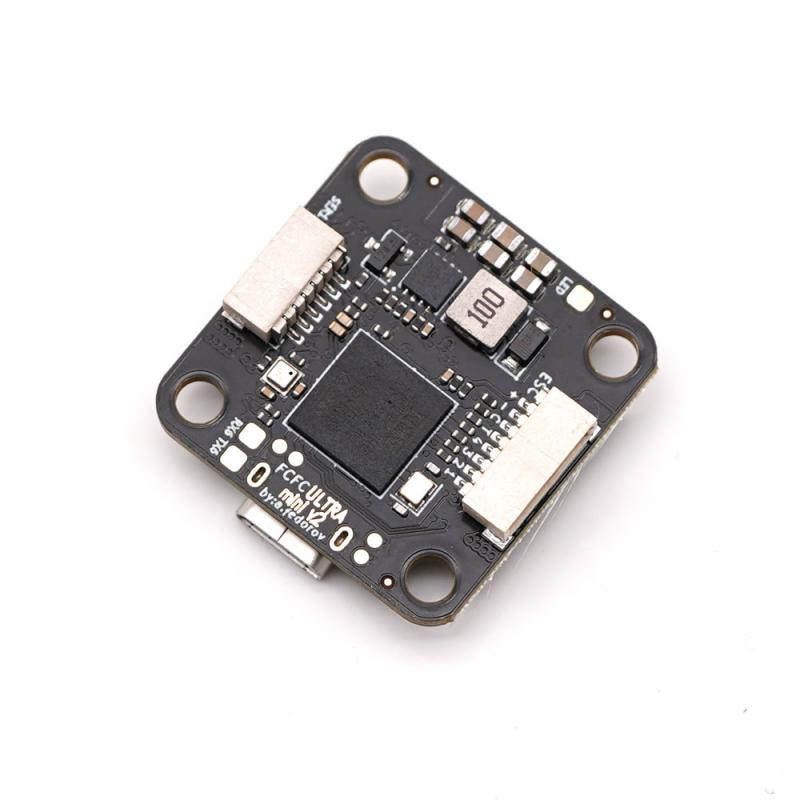

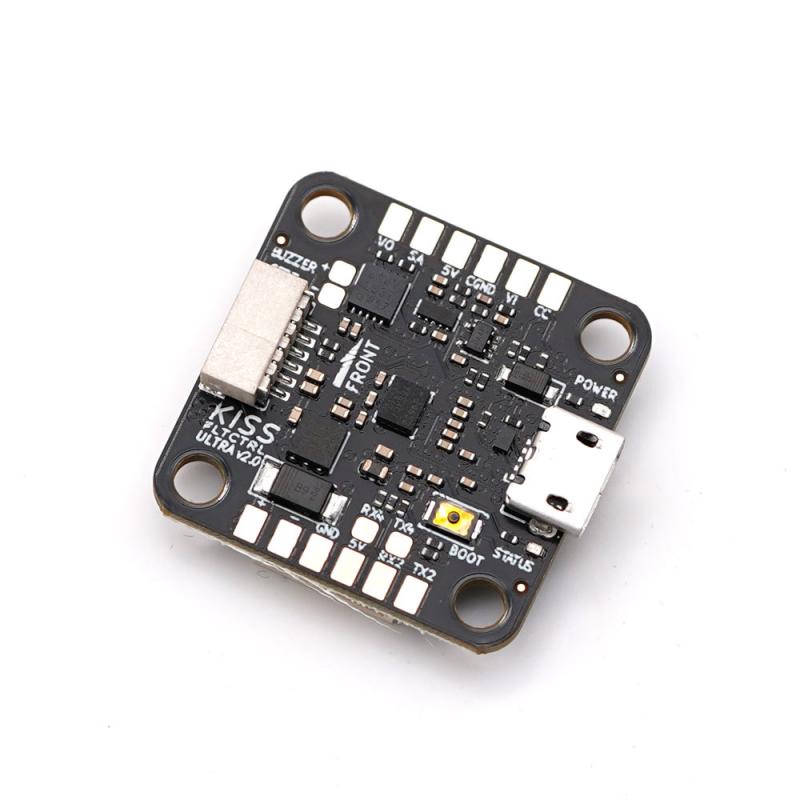

FCFC Mini v2 Flight Controller
Experience the next generation of the legendary “Keep It Super Simple” flight performance with the KISS FCFC Ultra Mini V2. This 20x20mm flight controller packs the same incredible power as its 30x30mm big brother, featuring a blazing-fast H7 processor and an unprecedented number of modern features. Developed by Fedor Commander, this FC combines the iconic KISS flight feel with the raw processing power needed for today’s most demanding FPV drones.
The Power of H7 At the heart of the FCFC Ultra Mini is a powerful STM32H743 processor running at , which is twice as fast as previous generation F7 boards. This immense processing power, combined with highly optimized firmware, results in an incredibly low CPU load of around 8% even when fully loaded. For the pilot, this means a faster, more responsive, and more precise flight experience than ever before.
Next-Generation KISS Firmware This isn’t your old-school KISS FC. The firmware has been rebuilt to support all the features modern pilots demand, without sacrificing the core flight feel.
- Full HD System Support: Natively supports all modern digital FPV systems, including DJI O3, Walksnail, and HDZero.
- Powerful Graphical OSD: A fully integrated graphical OSD allows you to configure your entire quad—from PIDs and rates to ESC settings—directly from your goggles.
- Unmatched Connectivity: With 7 exposed serial ports, BLHeli passthrough, and full telemetry support, you can connect all your peripherals without compromise.
Robust & Builder-Friendly Hardware The FCFC Ultra Mini is built to be reliable. It features overcurrent protection on all data lines, ESD protection on the USB port, and an integrated spike absorber to protect against damaging voltage spikes. The 8-pin ESC connector is backward compatible with standard KISS ESCs for a simple plug-and-play build.
Key Features:
- Ultra-Fast H7 Processor: A 480MHz STM32H743 CPU provides incredible processing power for a smooth and responsive flight.
- Modern KISS Firmware: Combines the legendary flight feel with support for all modern HD FPV systems, graphical OSD, and BLHeli passthrough.
- Dual Logging Options: Features both a 128MB high-speed QuadSPI flash chip and a 4-bit SDIO MicroSD card slot for blackbox logging.
- Dual Gyro Capable: Utilizes a high-end IIM-42652 gyro with support for a second external gyro.
- 8S Capable: Supports up to 8S LiPo input and includes a robust 2A 5V BEC.
Specifications (Highlights)
- MCU: STM32H743 @
- Gyro: IIM-42652
- Barometer: BMP388
- Blackbox: 128MB Onboard Flash & MicroSD Card Slot
- Input Voltage: 2-8S LiPo
- BEC:
- Serial Ports: 7
- Mounting:
In the box
- 1x Kiss FCFC Ultra Mini v2
- 1x 8-to-8 pin ESC cable
- 1x 8-to-6 pin legacy ESC cable
