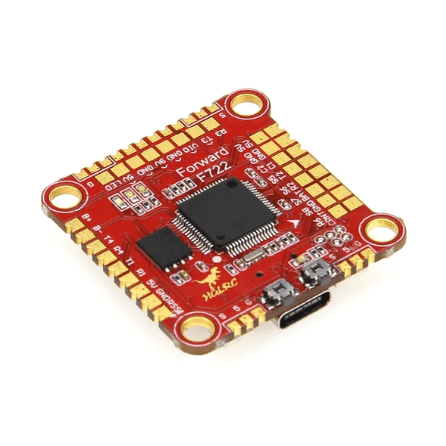

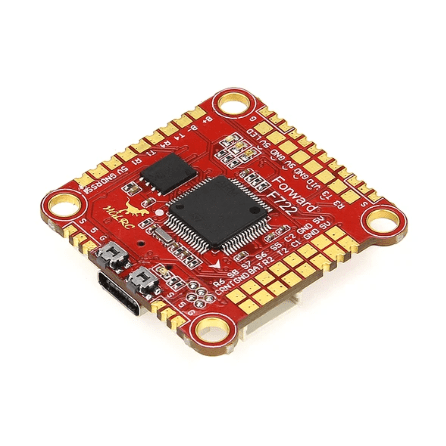

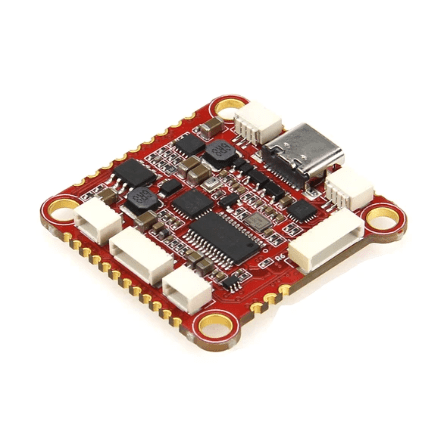

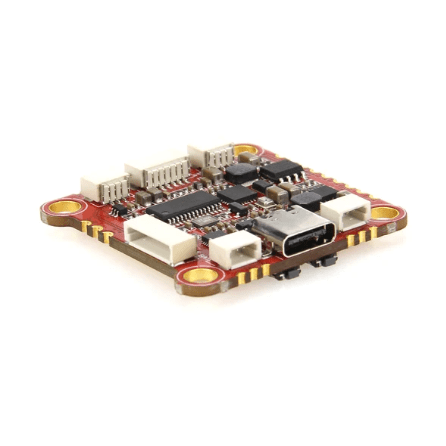

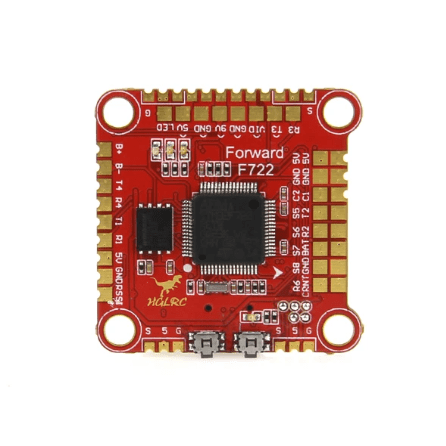

HGLRC Forward F722 3-6S F7 Flight Controller

Specifications

• Usage:for 100mm-450mm Frame Kit
• FC Firmware:BF HGLRCF722(HGLR)
• Item Name:Forward F722 Flight Controller
• Built-in LED controller
• MPU: MPU6000
• UARTS:5

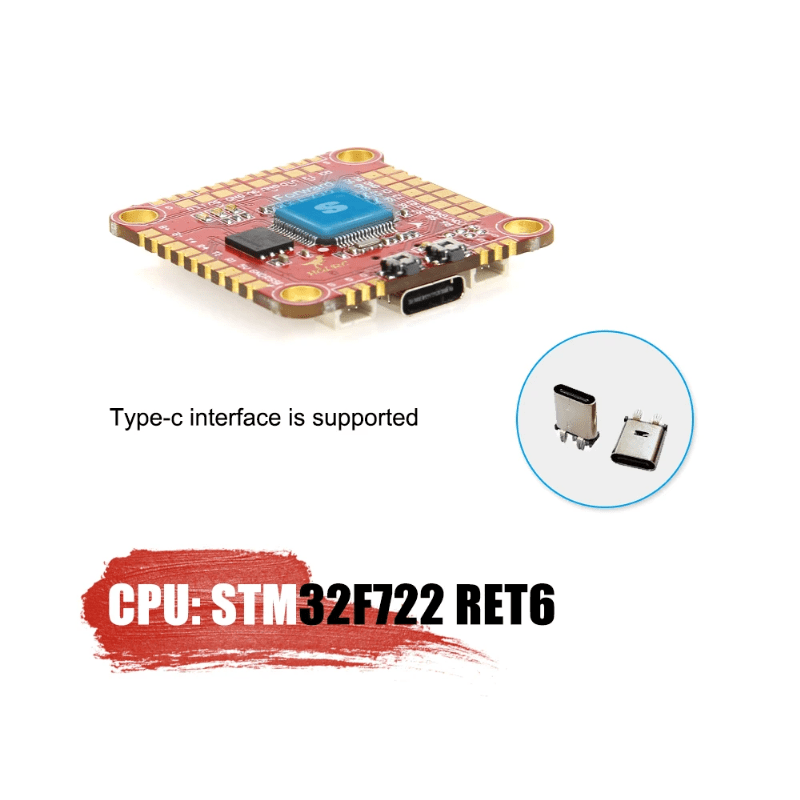

• CPU:STM32F722 RET6
• Input Voltage:3-6S Lipo
• Built-in Betaflight OSD to adjust PID
• BEC Output:5V/3A, 9V/2A
• LED Control:BF/Button
• BlackBox:16M
• Size:37.3×37.3mm
• Installing Hole:30.5X30.5mm

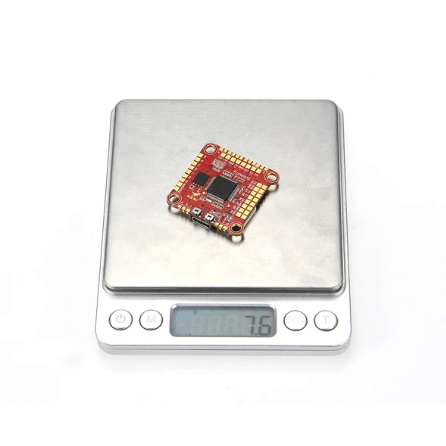

• Weight:7.6g

Product Features:

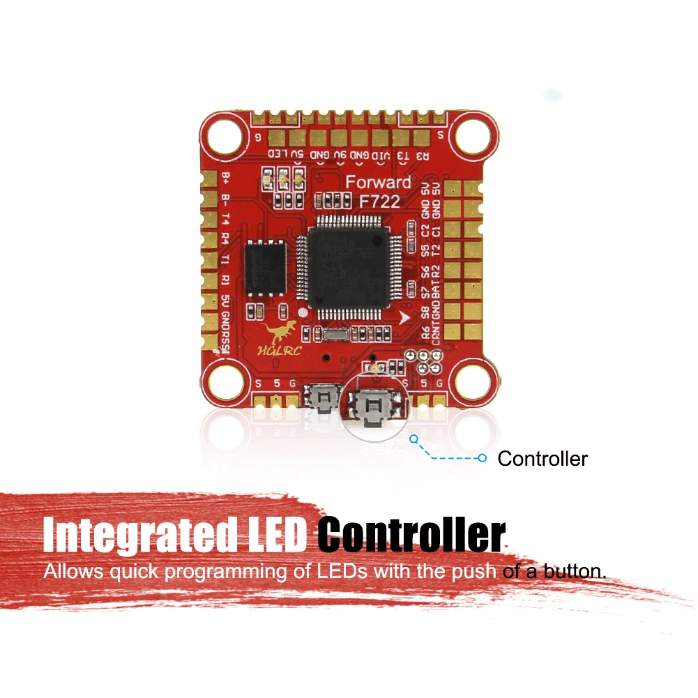

1.Integrated LED controller allows quick programming of LEDs with the push of a button.

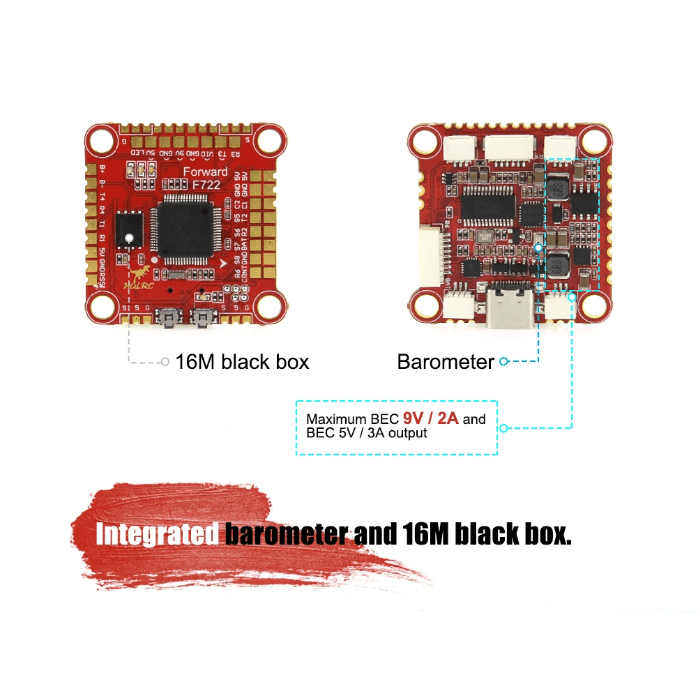

2.Integrated barometer and 16M black box.
3.Maximum BEC 9V/2A and BEC 5V/3A output

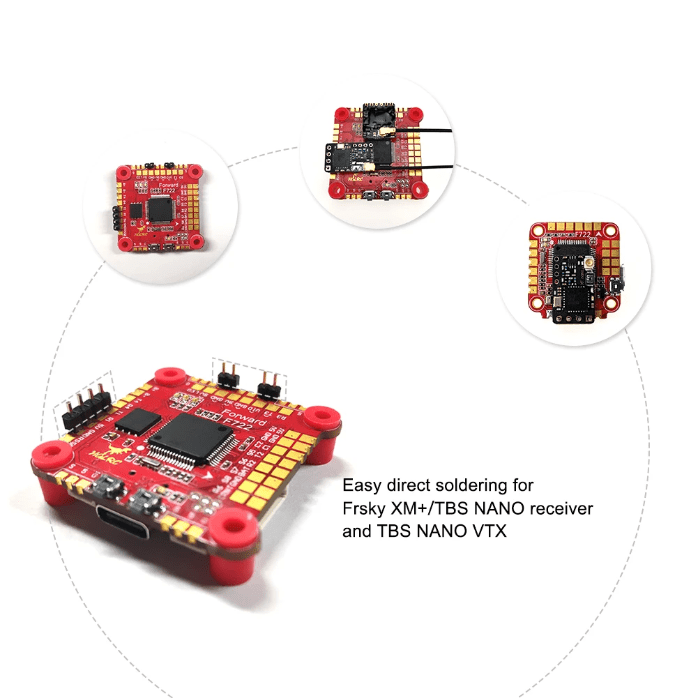

4.Easy direct soldering for TBS NANO VTX ,XM+ and TBS CROSSFIRE NANO Receiver

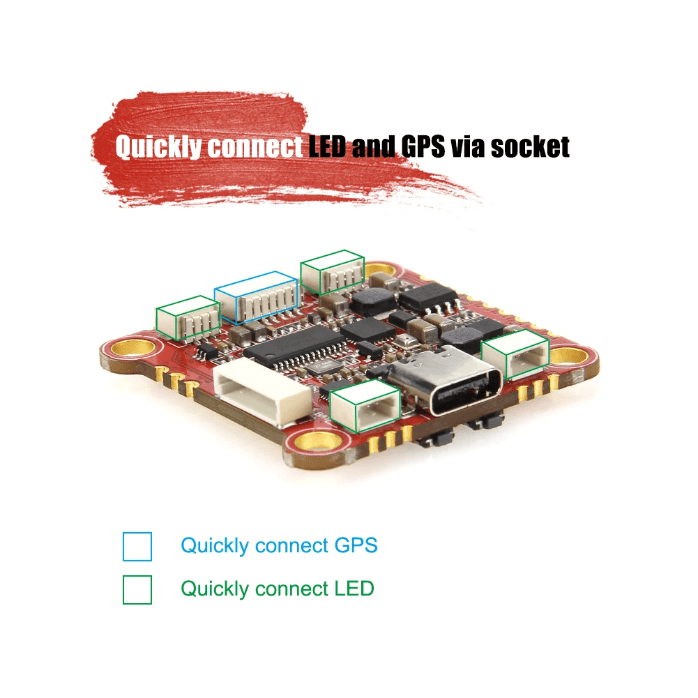

5.Quickly connect LED and GPS via socket

Package Includes:

1x Forward F722 Flight Control
1x SH1.0 8PIN 60MM Cable
1x SH1.0 6PIN 100MM Cable

See manual here: F722 flight controller
