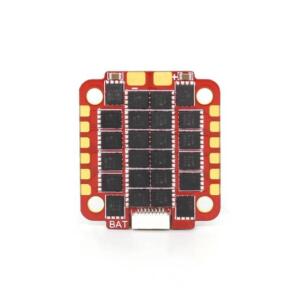

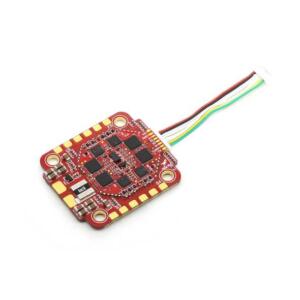

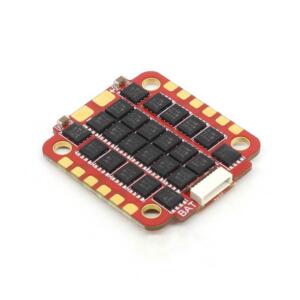

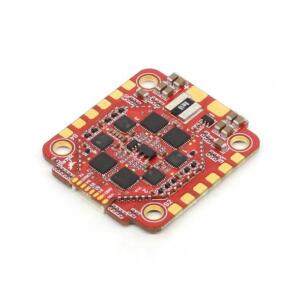

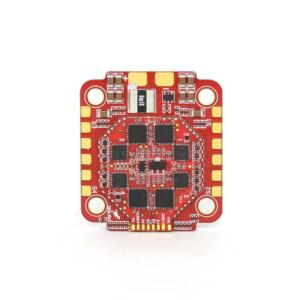

HGLRC Forward 55A 3-6S F3 BLHeil32 4in1 ESC
HGLRC Forward 55A 3-6S F3 BLHeil32 4in1 ESC for FPV Racing Drone
High-performance hardware

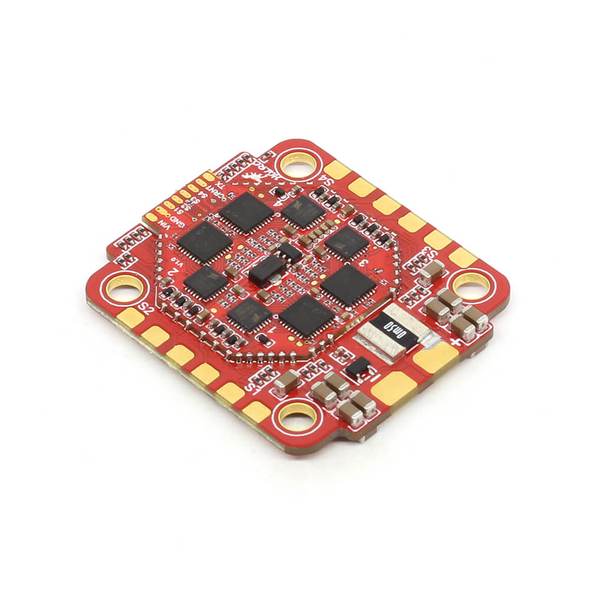

Brand new GD32F350 32-bit high-performance processor, running frequency up to 108MHZ, fast calculation speed, smoother control, better feeling and faster response speed
Immersion gold high-tech design with heat and current resistance
Supports the transmission of motor speed, current, temperature and other data.
Brand new structure
Control circuit + output circuit
The structure is designed using the original 65A 4in1 ESC principle;
Specification:
Brand Name:HGLRC
Item Name: FD55A 4in1 ESC

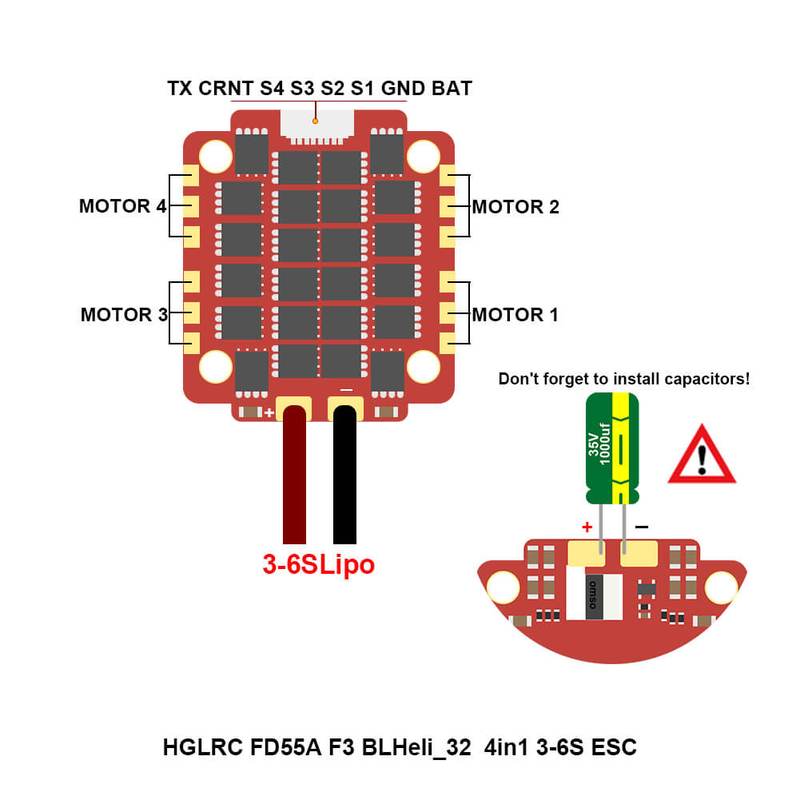

Input Voltage:Â 3-6S Lipo
CPU:GD32F350
BLHELI32Â Firmware
Steady Current:Â 55A
Peak Current:Â 65A
BEC: NO
Supported Protocols: DSHOT1200/600/300/150.ONESHOT125/42

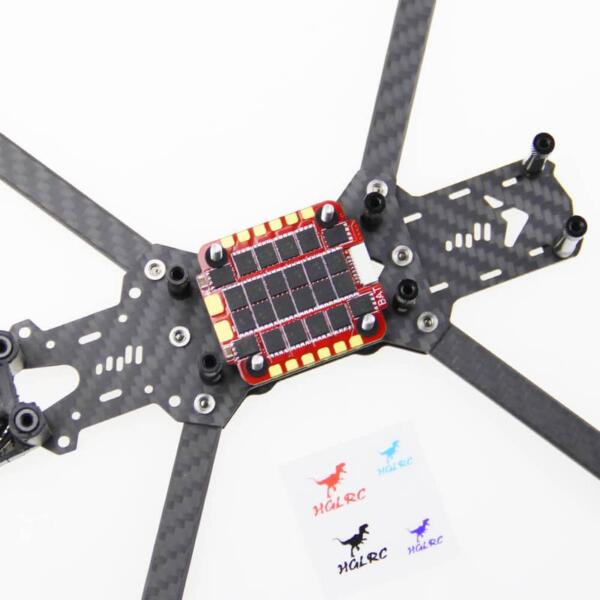

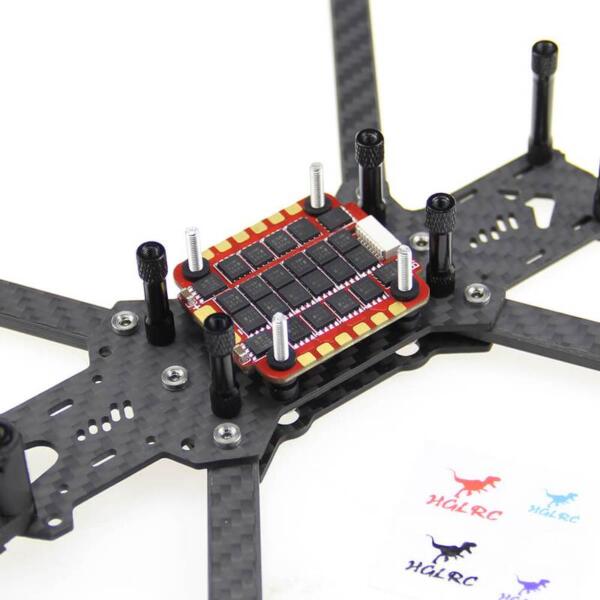

Installing Hole:30.5×30.5mm,M3
Size:45x40x5.5mm
Weight:15.6g
