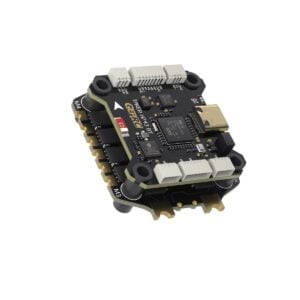

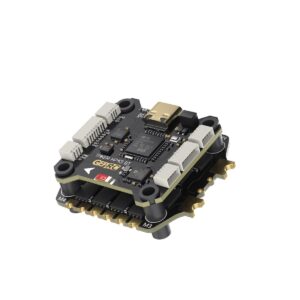

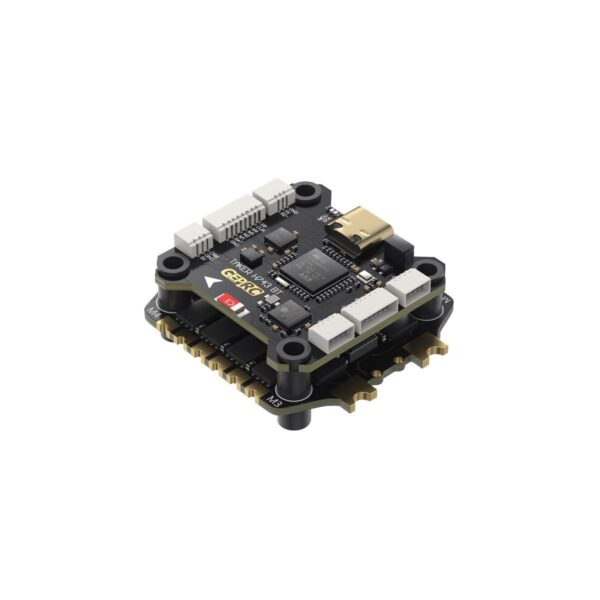

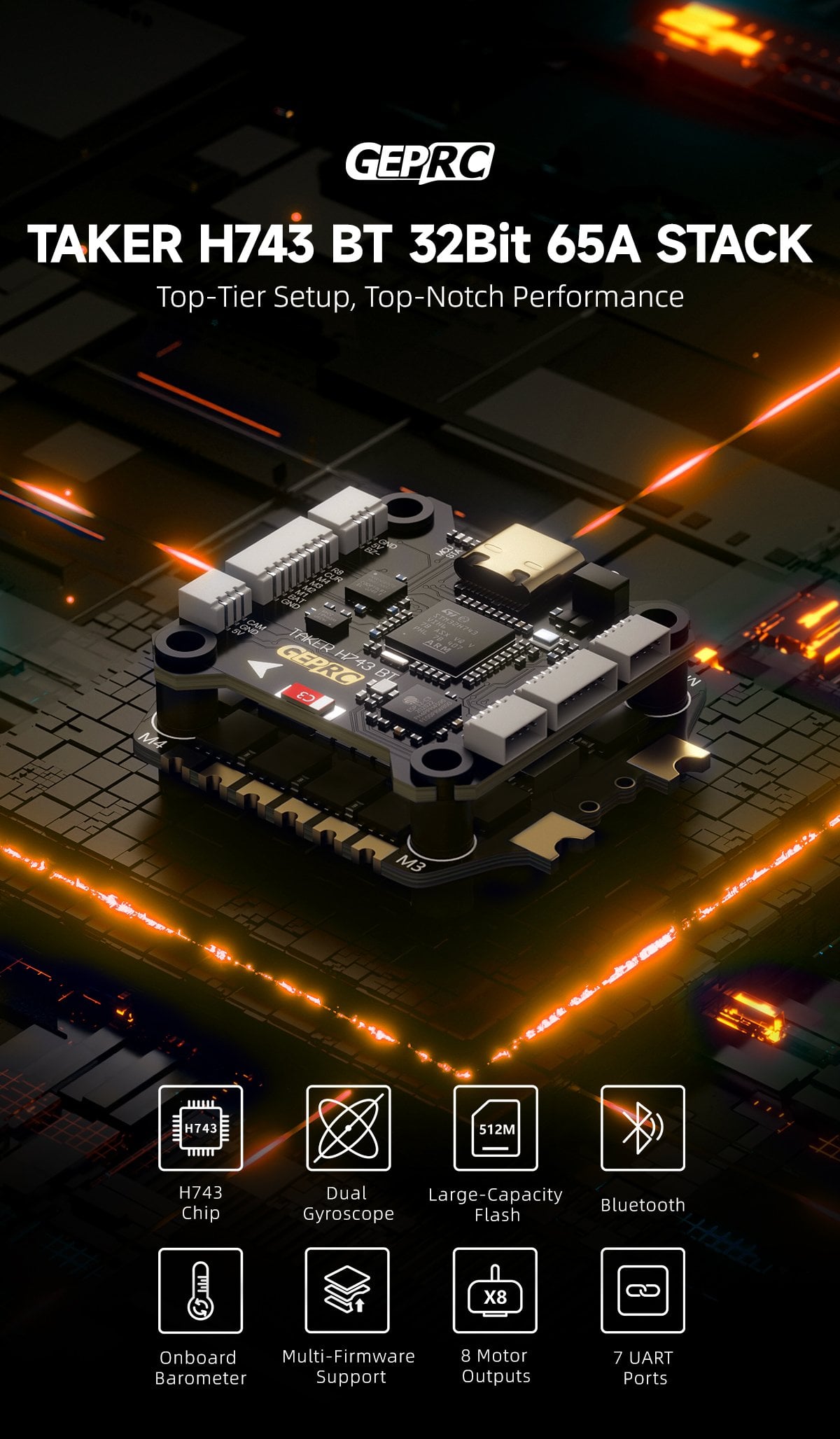

TAKER H743 BT 32Bit 65A Stack

Please Check Out Our Other GEPRC Products!

Unlock unparalleled flight precision and processing power with the GEPRC TAKER H743 32-bit 65A Stack. Developed for pilots who demand the absolute best, this premium stack pairs a blazing-fast STM32H743 flight controller with a silky-smooth 32-bit 65A 4-in-1 ESC. Whether you are building an agile 5-inch racer, an aggressive freestyle rig, or a complex X8 cinematic lifter, this stack delivers the computational headroom and clean power you need.

Next-Level H7 Processing & Dual Gyros

Stop worrying about loop times. The incredibly powerful STM32H743 MCU features a Cortex-M7 core running at up to 480MHz, easily handling the most complex Betaflight, INAV, or Ardupilot calculations without breaking a sweat. To ensure your flight is absolutely locked-in, the board utilizes a dual gyroscope system—combining the legendary, noise-resistant MPU6000 with the highly sensitive ICM42688-P.

Ultra-Smooth 32-Bit Power

Experience the difference of 32-bit ESC processing! The included TAKER H65 32Bit 4-in-1 ESC offers exceptionally smooth motor control, rapid throttle response, and precise braking. Pushing 65A of continuous current (70A burst), it provides plenty of overhead for high-KV motors. (Note: While the ESC itself is capable of 8S, the flight controller limits this complete stack’s input voltage to a maximum of 6S).

Massive Storage & Plug-and-Play HD

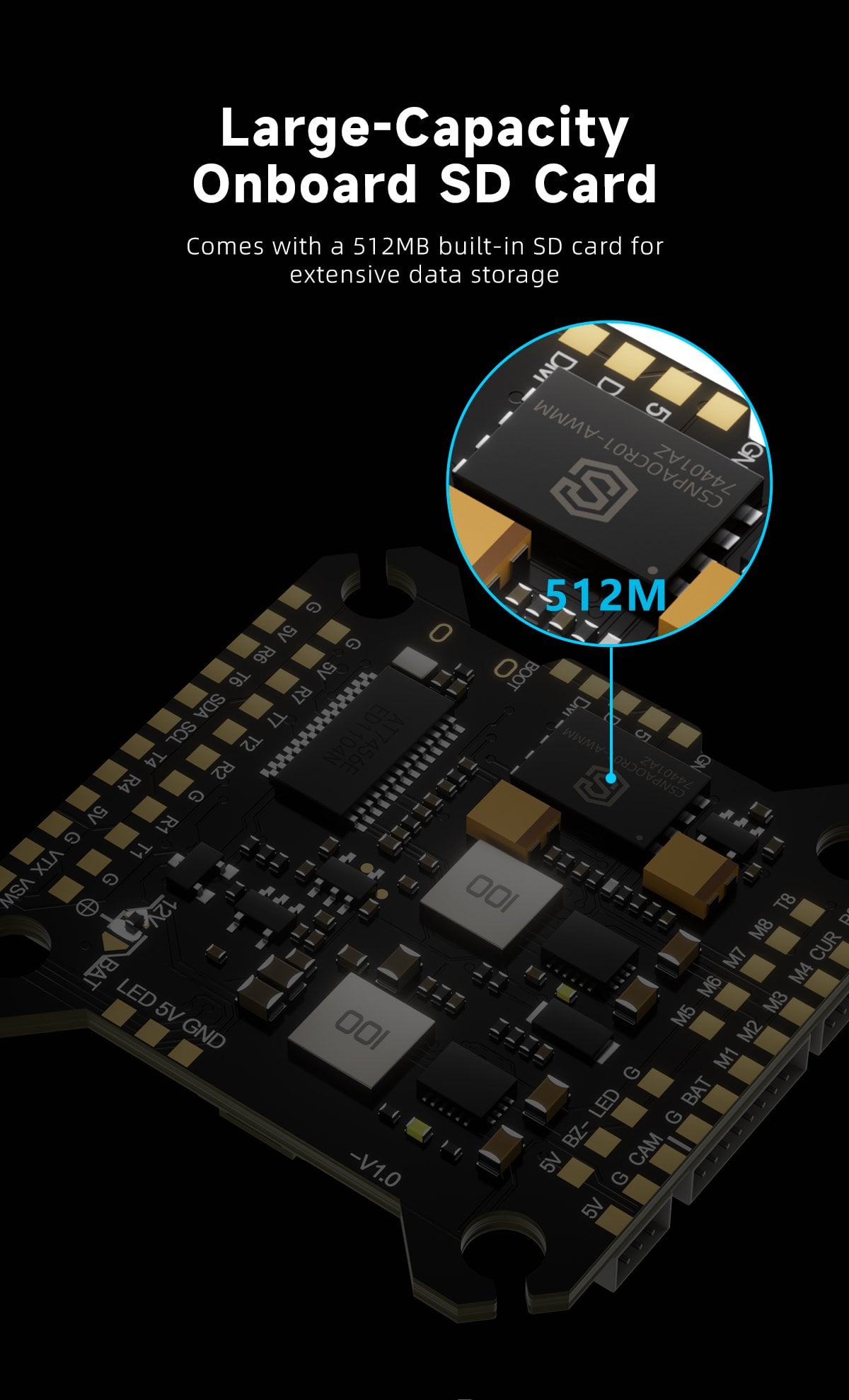

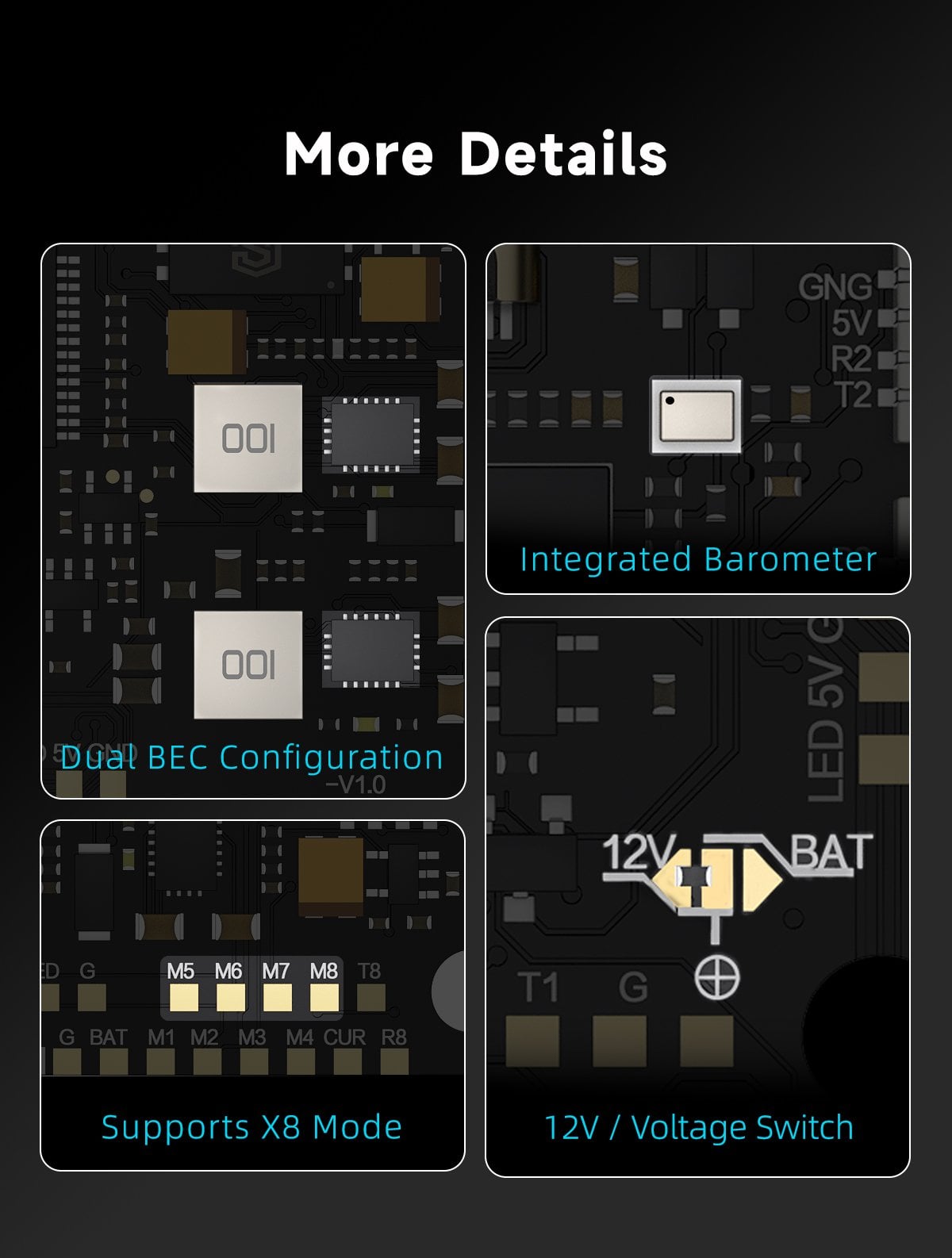

Tuning and troubleshooting have never been easier. This stack features a colossal 512MB onboard Blackbox, allowing for hours of high-resolution flight logging. For digital FPV pilots, the FC includes a direct plug-and-play connector for the DJI Air Unit, powered by reliable dual independent 5V@3A and [email protected] BECs to ensure your HD video system never browns out.

Key Features:

• Extreme Processing: STM32H743 main controller running at 480MHz for zero-latency flight logic.

• Dual Gyro System: MPU6000 + 42688-P dual gyros deliver cinematic stability and noise rejection.

• 32-Bit ESC: Next-generation 32-bit processing for unbelievably smooth motor performance.

• Colossal Storage: 512MB high-capacity black box for endless data logging.

• X8 Ready: Eight motor outputs and massive firmware flexibility (Betaflight, INAV, Ardupilot).

• DJI Plug-and-Play: Direct connection for DJI Air Units, backed by heavy-duty dual BECs.

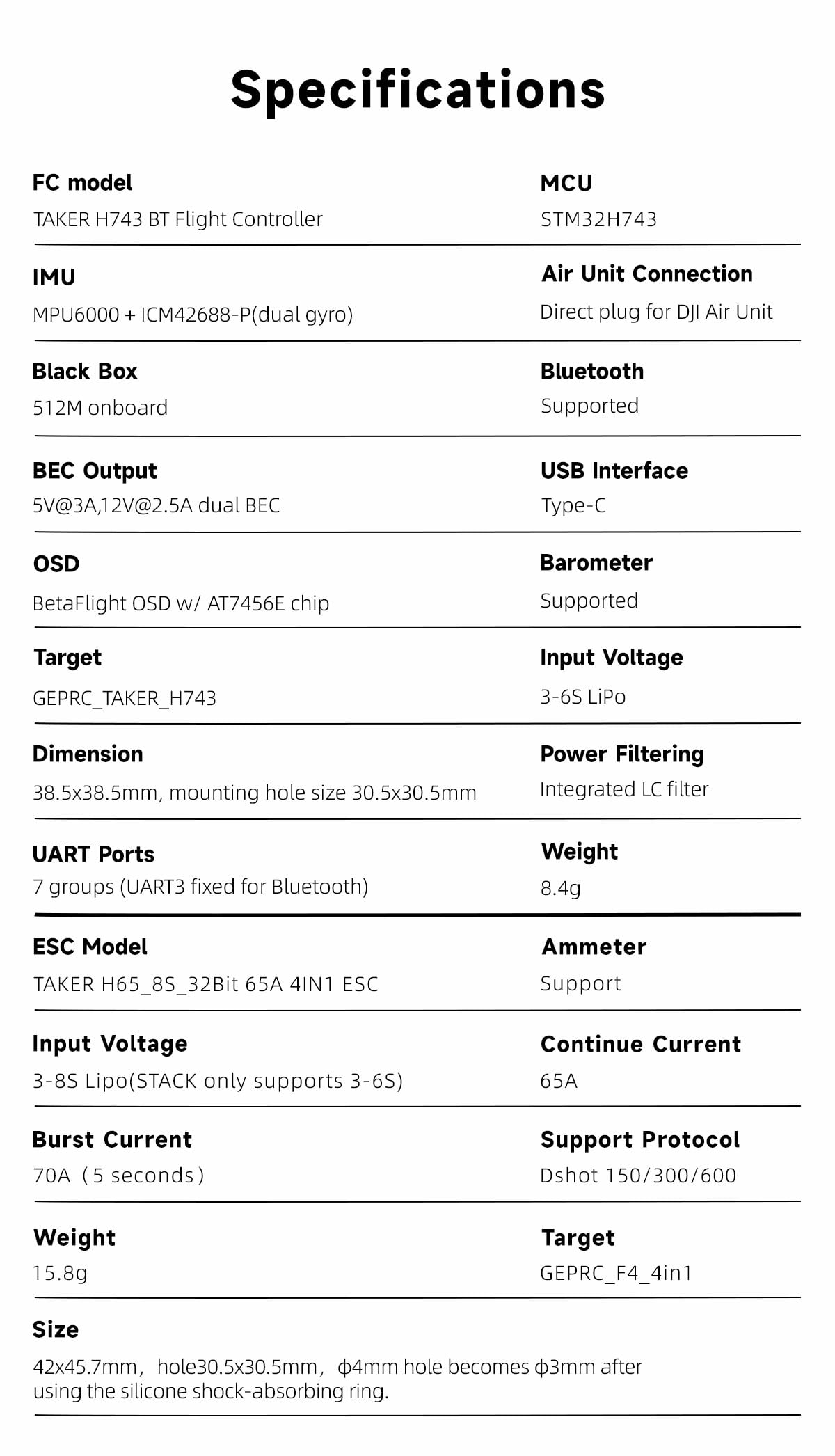

Specifications:

TAKER H743 Flight Controller

• MCU: STM32H743 (480MHz)

• IMU (Gyro): MPU6000 + ICM42688-P (Dual Gyro)

• Input Voltage: 3S – 6S LiPo

• Blackbox: 512MB Onboard

• Barometer: Integrated

• OSD: BetaFlight OSD w/ AT7456E chip

• BEC Output: 5V@3A / [email protected] (Dual Independent)

• UARTs: 7 Groups (UART3 fixed for BT)

• USB Interface: Type-C

• Dimensions: 38.5mm x 38.5mm (30.5×30.5mm Mounting)

• Weight: 8.4g

• Target: GEPRC_TAKER_H743

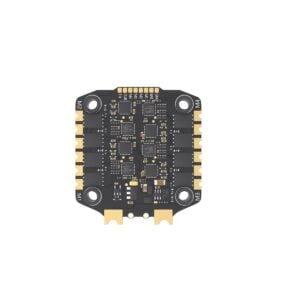

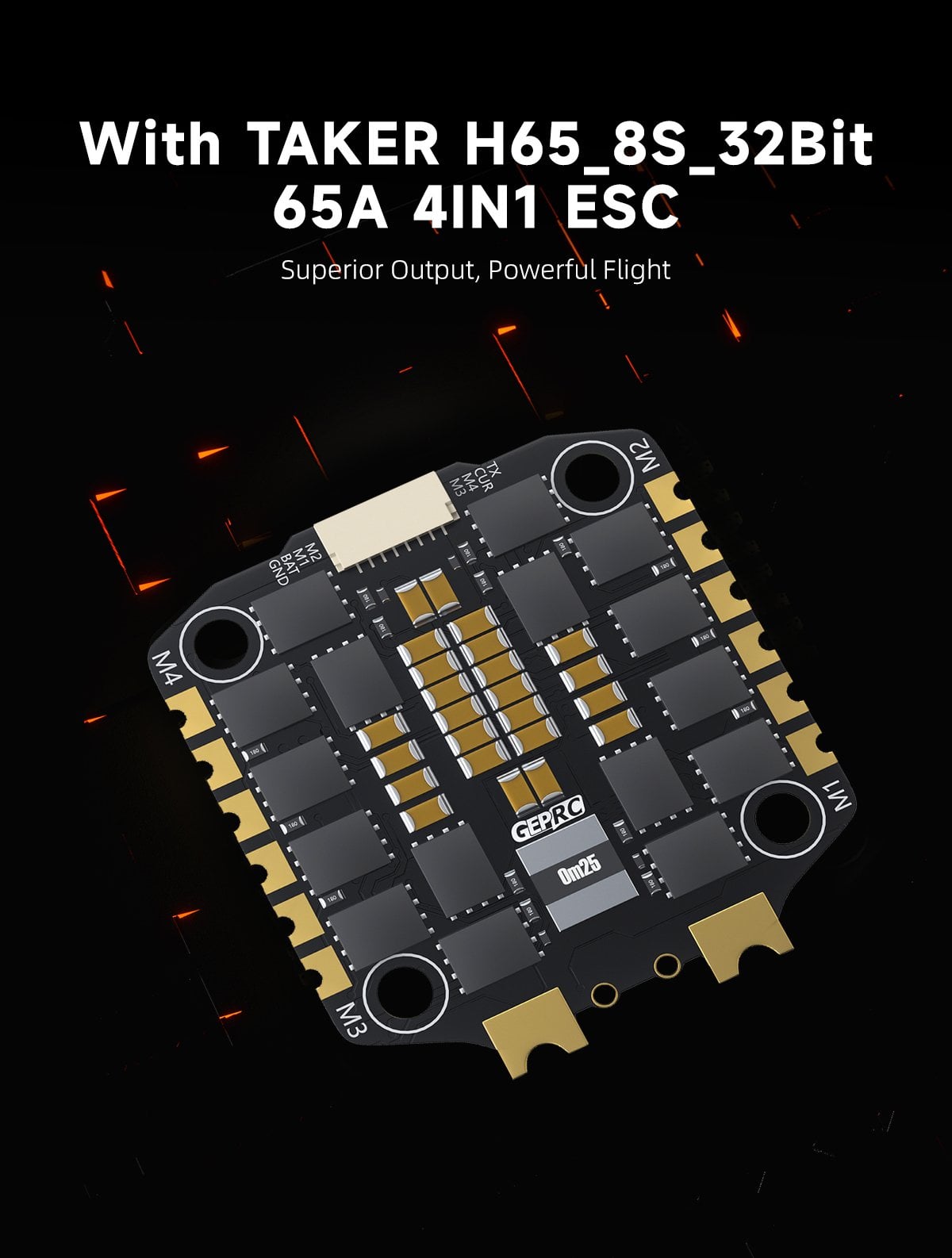

TAKER H65_8S_32Bit 65A 4-in-1 ESC

• Continuous Current: 65A

• Burst Current: 70A (5 seconds)

• Stack Input Voltage: 3S – 6S LiPo (Stack limitation)

• Protocol Support: Dshot 150 / 300 / 600

• Ammeter: Supported

• Dimensions: 42mm x 45.7mm (30.5×30.5mm Mounting)

• Weight: 15.8g

• Target: GEPRC_F4_4in1

What’s in the Box?

• 1x TAKER H743 Flight Controller

• 1x TAKER H65_8S_32Bit 65A 4-in-1 ESC

• 1x Filtering Capacitor (50V 1000uF)

• 1x XT60 Power Cable (12AWG 110mm)

• 1x DJI Connection Cable (SH1.0 6-pin 100mm)

• 1x FC Adapter Cable (SH1.0 8-pin 30mm)

• 1x Receiver Silicone Cable (SH1.0 4-pin 150mm)

• 1x Camera Connection Cable (SH1.0-SH1.25 3-pin 60mm)

• 1x VTX Connection Cable (SH1.0 4-pin to 6-pin 100mm)

• 1x Hardware Kit (M3 Screws, Nylon Nuts, Silicone Anti-Shake Pads)
