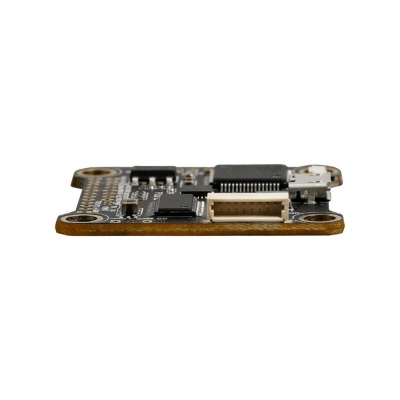

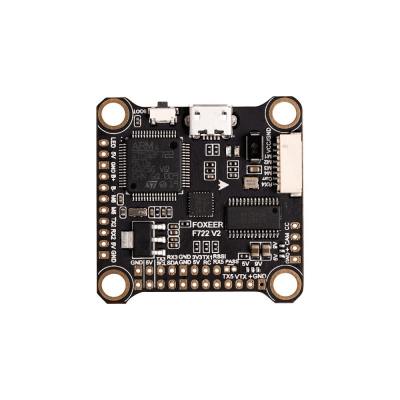

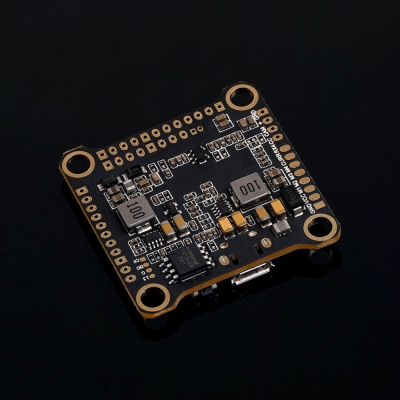

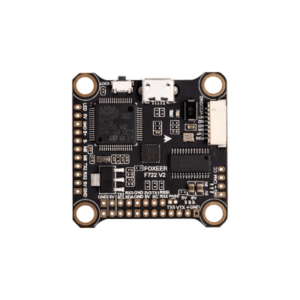

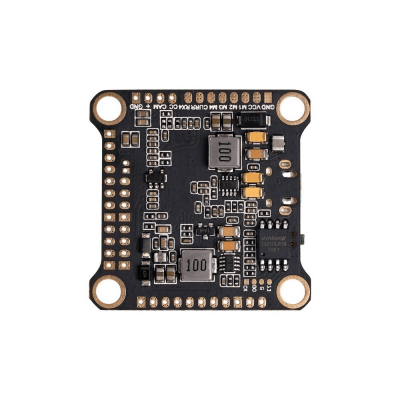

Foxeer F722 V2 Flight Controller

Power your modern FPV drone with the Foxeer F722 V2, a feature-rich flight controller designed for high performance. Centered around a powerful STM32F722 processor, this FC provides the speed and processing headroom needed for the most demanding tasks, from running complex Betaflight filters to enabling GPS rescue. It’s the perfect, reliable brain for any freestyle, long-range, or racing build.

Optimized for Digital and Analog FPV

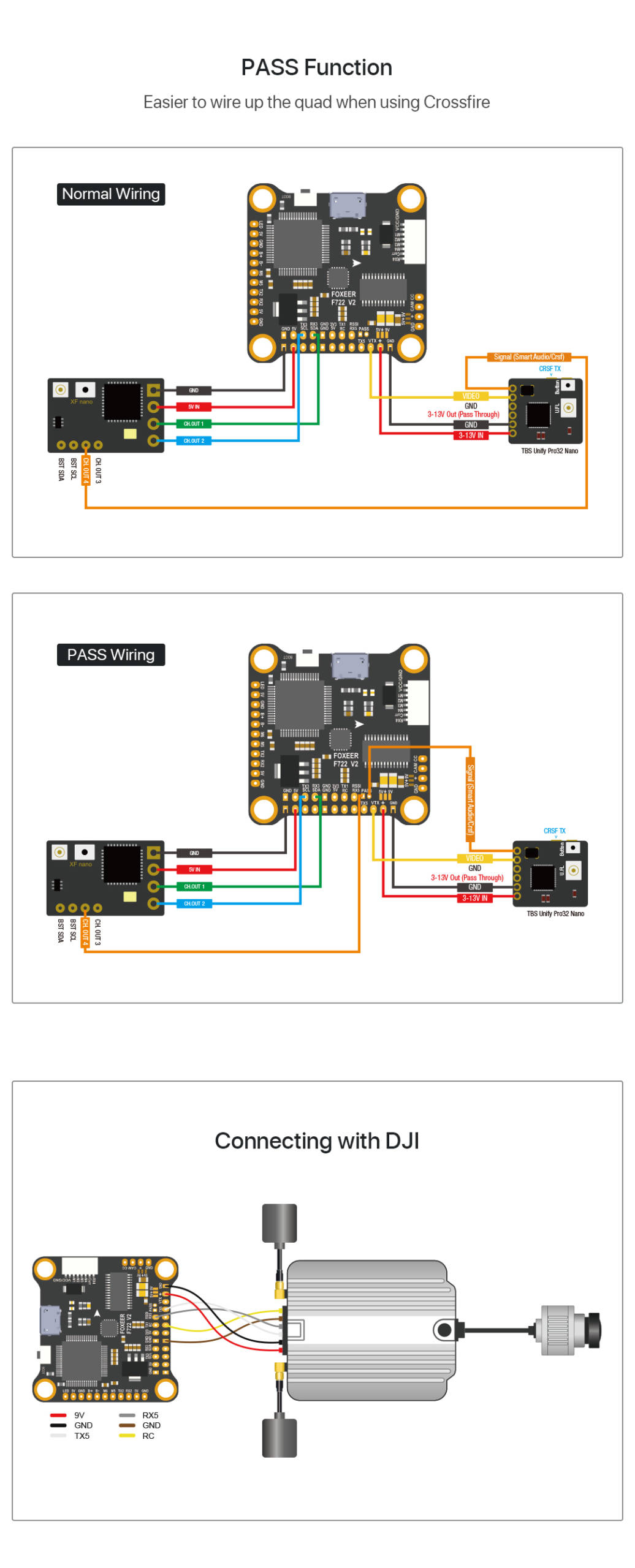

The F722 V2 is engineered for versatility. It features dual, robust BECs to power all your components cleanly and efficiently. A dedicated 9V/2A BEC provides the perfect voltage for any digital FPV system, including the DJI, HDZero, or Walksnail Air Units, eliminating the need for a separate regulator and simplifying your build. A second 5V/2A BEC is available to power your receiver, GPS, and other standard peripherals.

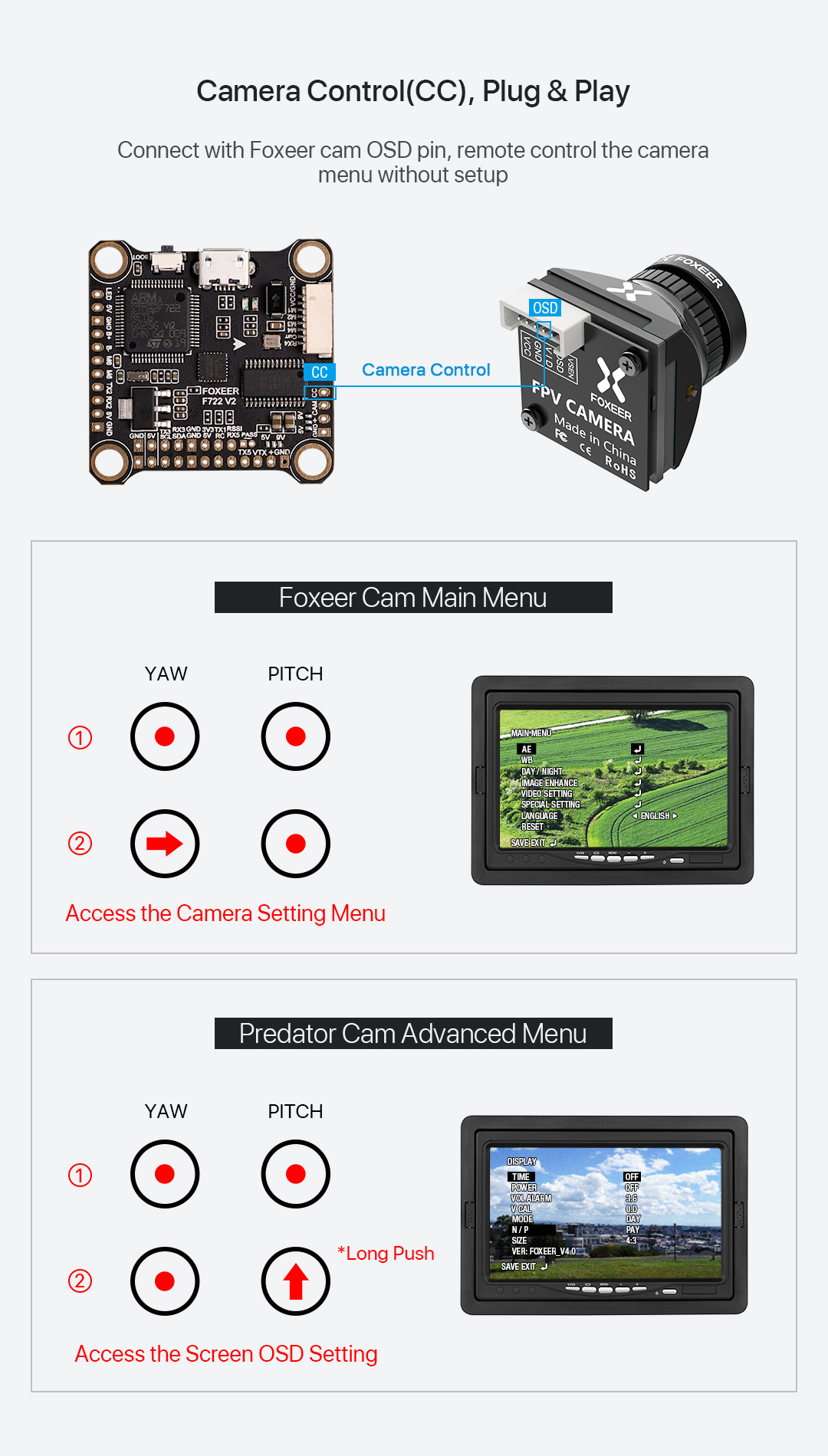

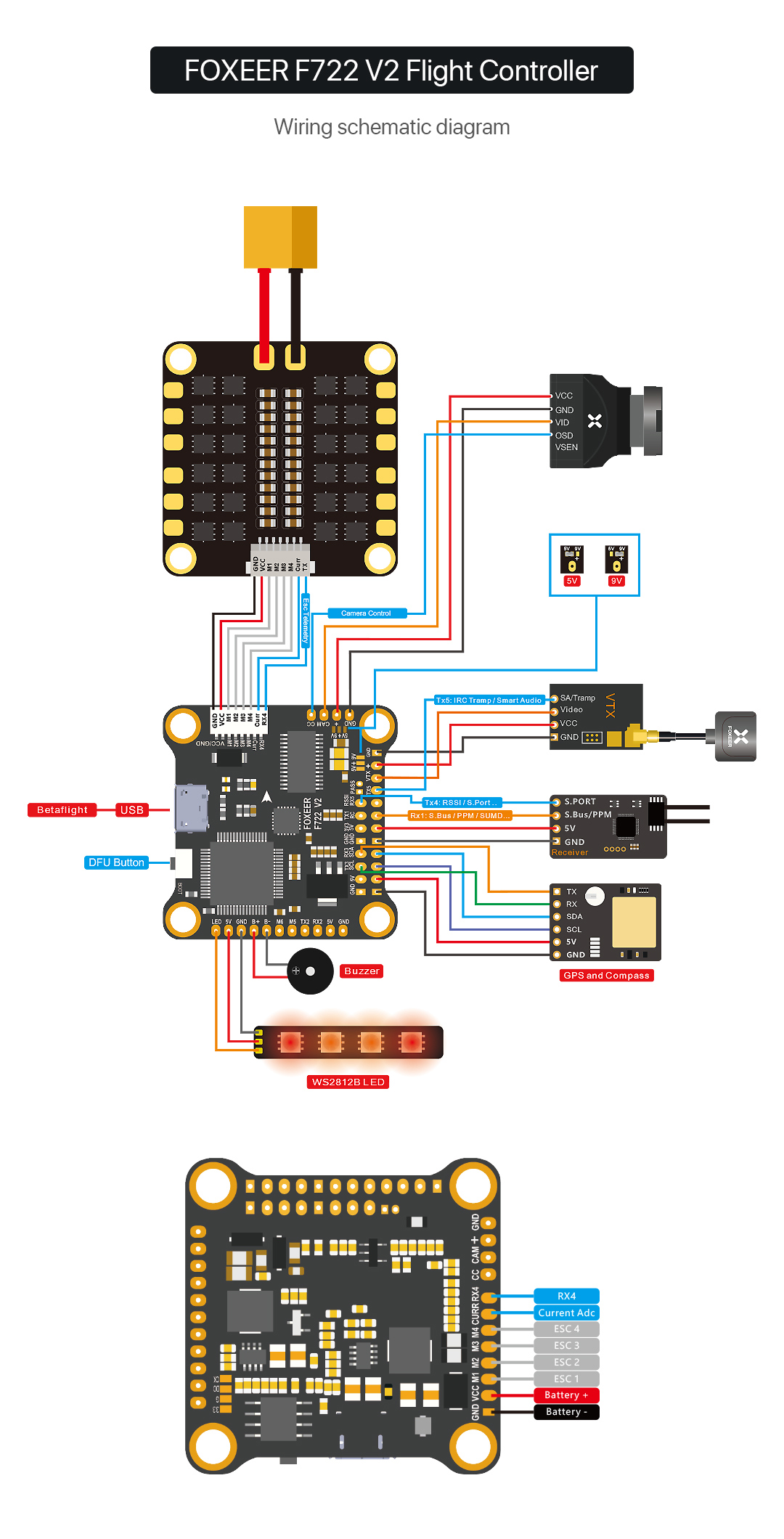

With 5 available UARTs, you’ll never have to compromise on which accessories you want to run. Connect your receiver, VTX, GPS, and camera control simultaneously with ports to spare. The board also includes a 16MB black box for tuning, dedicated LED outputs, and comes with rubber grommets for its 4mm mounting holes, helping to isolate the gyro from frame vibrations for a smoother flight.

Key Features:

• Powerful F722 Processor: The high-speed STM32F722 CPU delivers top-tier performance for smooth, responsive flight and advanced Betaflight features.
• Dual 5V/9V BECs: Offers incredible flexibility with a dedicated 9V output for clean power to digital FPV systems and a 5V output for other peripherals.
• 5 Available UARTS: Provides extensive connectivity for all your components without compromise.
• 16MB Onboard Blackbox: Ample memory for logging flight data, making it easy to fine-tune your PIDs and filters.
• Vibration-Damped Mounting: Includes rubber columns for the 4mm mounting holes to help ensure a clean gyro signal.
• Full Feature Support: Includes dedicated pads for buzzer, Smart Audio, and up to four sets of programmable 2812 LEDs.

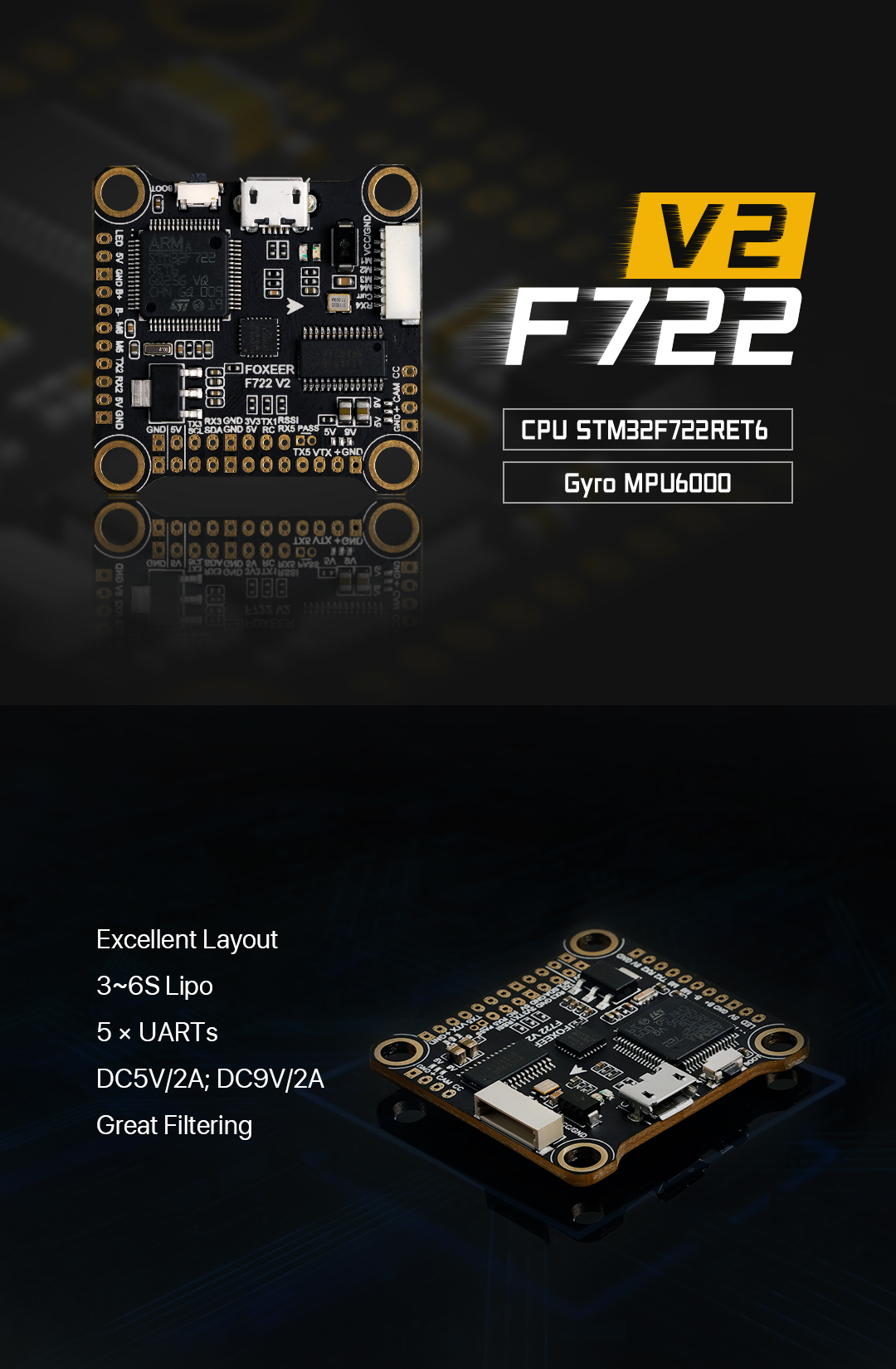

Specifications:

• Model: Foxeer F722 V2
• CPU: STM32F722RET6
• Power Supply: 3~6S LiPo (11V~30V)
• BEC Output: DC5V/2A; DC9V/2A
• OSD: Betaflight OSD
• Black Box: 16M Flash Memory
• UARTs: 5
• Firmware Target: FOXEERF722V2 (FOXE)
• Mounting Hole: 30.5×30.5mm, Φ4mm
• Weight: 7.6g

Package Includes:

• 1 x Foxeer F722 V2 Flight Controller
• 4 x Rubber Mounting Columns
