Specifications

GOKU HEX F745 BGA Flight Controller
l  SIZE: 22*23mm Weight: 2.3g
l  Hole: 16*16-3mm
l  MCU: STM32F745
l  UARTS: 1/2/3/4/5/6/7
l  I2C: SCL/SDA
l  GYRO: MPU6000
l  BARO: BMP280 BEC: 5V 2A
l  LED:4*WS2812 FLASH: 8M
l  Input Voltage: 2-4S
l  Firmware: FLYWOOF745NANO

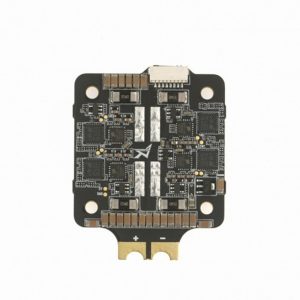

GOKU  HEX 6IN1 BS 13A ESC
l  BS20/35A BLheli_S 2-6S 4in1
l  Weight: 2.5g
l  Mounting Hole: 16x16mm (M3)
l  – Support Oneshot, Multishot,
DShot150/300/600

GOKU VTX625 450mw VTX
Raceband: 5362-5945 MHZ
Power: PIT/25/50/100/200/450mW switchable
Control Mode:IRC(RX)/Button
BAT: +5V Input
Video System: NTSC/PAL
Antenna: IPX
Size: 30mm×30mm×4mm
Weight: 1.3g
