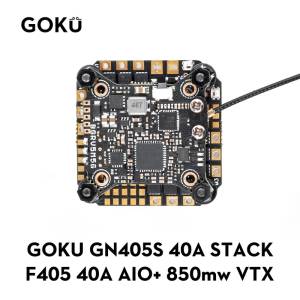

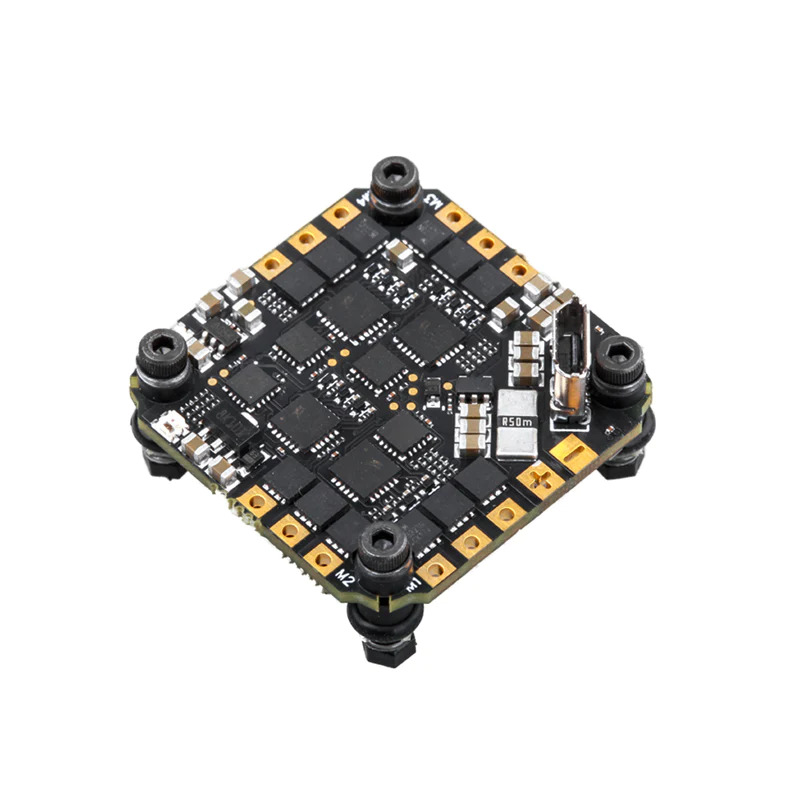

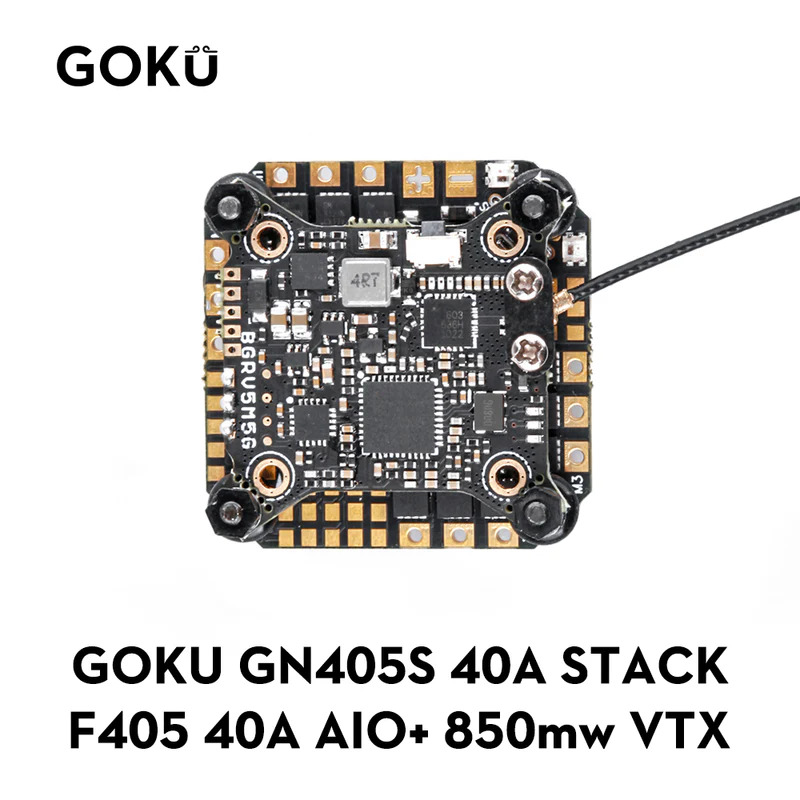

Flywoo Goku GN405 AIO STACK 40A + HM850 850MW
Check out all of our Flywoo products!
Specifications
FLYWOO’s new top GOKU series AIO is finally here! GOKU GN405 40A FC is an economical and durable all-in-one AIO, which can meet most of your FPV needs.
Use powerful F405 chip, integrate 5V BEC, barometer, black box, WS2812LED, support 6 complete hardware serial ports, I2C, and other functions are all open.
Features
- F405 BGA MCU
- Barometer
- 5V BEC
- Black Box
- 40A 8Bit ESC
- 6 UARTS
- current sensor
- LED
Specifications
\GN 405S 20A AIO Flight Controller
- MCU: STM32F405 BGAÂ 8bit processor
- IMU: MPU6000 (SPI)
- Barometer: BMP280
- Onboard LED: WS2812*4
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
- PPM and PWM receivers are not supported.
- Onbord 8Mbytes for Blackbox logging
- 5V Power Out: 2.0A max
- 3.3V Power Out: 0.5A max
- Dimensions: 33.5×33.5mm
Mounting Holes: Standard 25.5/26.5mm square to the center of holes
Weight: 8.5g - Support BLHELI_S
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 - Input Voltage: 2-6S Lipo
- Continuous Current: 40A
- Firmware: BLHELI_S
HM850 850mw VTX
- Input Voltage:Â +7-28V Input
- Channels: 40CH
- Power: PIT/25/50/100/200/850mw
- Microphone: Built-in high-quality AGC mic
- Antenna: IPX / UFL
- Size: 30.5mm×3.5mm×3mm
- Weight: 3g
- Control Mode:IRC(RX)/Button
- Raceband: 5362-5945 MHZ
