GOKU GM10 Mini V3 GPS

Check out all of our Flywoo products!

Get a faster satellite lock and more accurate positioning with the Flywoo GOKU GM10 Mini V3 GPS. Upgraded with the latest 10th Generation M10050 GNSS Chip, this module is a significant leap forward from the previous GM8 generation, offering superior sensitivity and multi-constellation support for your 3-inch to 7-inch FPV drones.

Next-Gen M10050 Performance

The core of the V3 Mini is the M10050 chip. Unlike older GPS units, this chipset can track multiple satellite systems simultaneously—including GPS, GLONASS, Galileo, BeiDou, and QZSS. With a tracking sensitivity of -162dBm and a fast update rate (Default 10Hz), you can trust your GPS Rescue and Return-to-Home functions to work when you need them most.

Plug-and-Play Design

Flywoo has refined the design for easier installation. The V3 Mini features a 1.0mm pitch 4-pin connector, eliminating the need to solder wires directly to the GPS module pads. Simply plug in the included cable and solder the other end to your Flight Controller.

Compact & Lightweight

Measuring 18mm x 18mm and weighing just 4.7g, the GM10 Mini V3 strikes the perfect balance between antenna size and weight. It is ideal for mid-sized freestyle quads and long-range explorers where you want a robust signal without adding unnecessary bulk.

⚠️ Firmware & Protocol Compatibility

Please note the firmware requirements for optimal performance:

• Betaflight 4.3.0 or higher: Supports the Ublox protocol.

• Betaflight 4.2.x or lower: Must use the NMEA protocol. (Note: There is no performance difference between protocols, but configuration varies.)

• INAV: Requires Configurator 6.0.0+ and Firmware 5.0.0+.

Key Features:

• M10 Chip: 10th Gen M10050 for faster search and higher accuracy.

• Multi-Constellation: Supports GPS, GLONASS, Galileo, BeiDou, SBAS.

• Plug-and-Play: Connector interface for easy swapping/installation.

• Fast Update: Default 10Hz output frequency for smooth coordinate tracking.

• Visual Feedback: Onboard PPS LED flashes when a 3D Fix is acquired.

Specifications:

• Model: GM10 MINI V3 GPS

• Chipset: M10050 (10th Gen)

• Dimensions: 18mm x 18mm x 4.8mm

• Weight: 4.7g

• Input Voltage: 5V

• Baud Rate: 115200bps (Default)

• Output Frequency: 10Hz (Default)

• Connector: 4-Pin Patch Seat (1.0mm spacing)

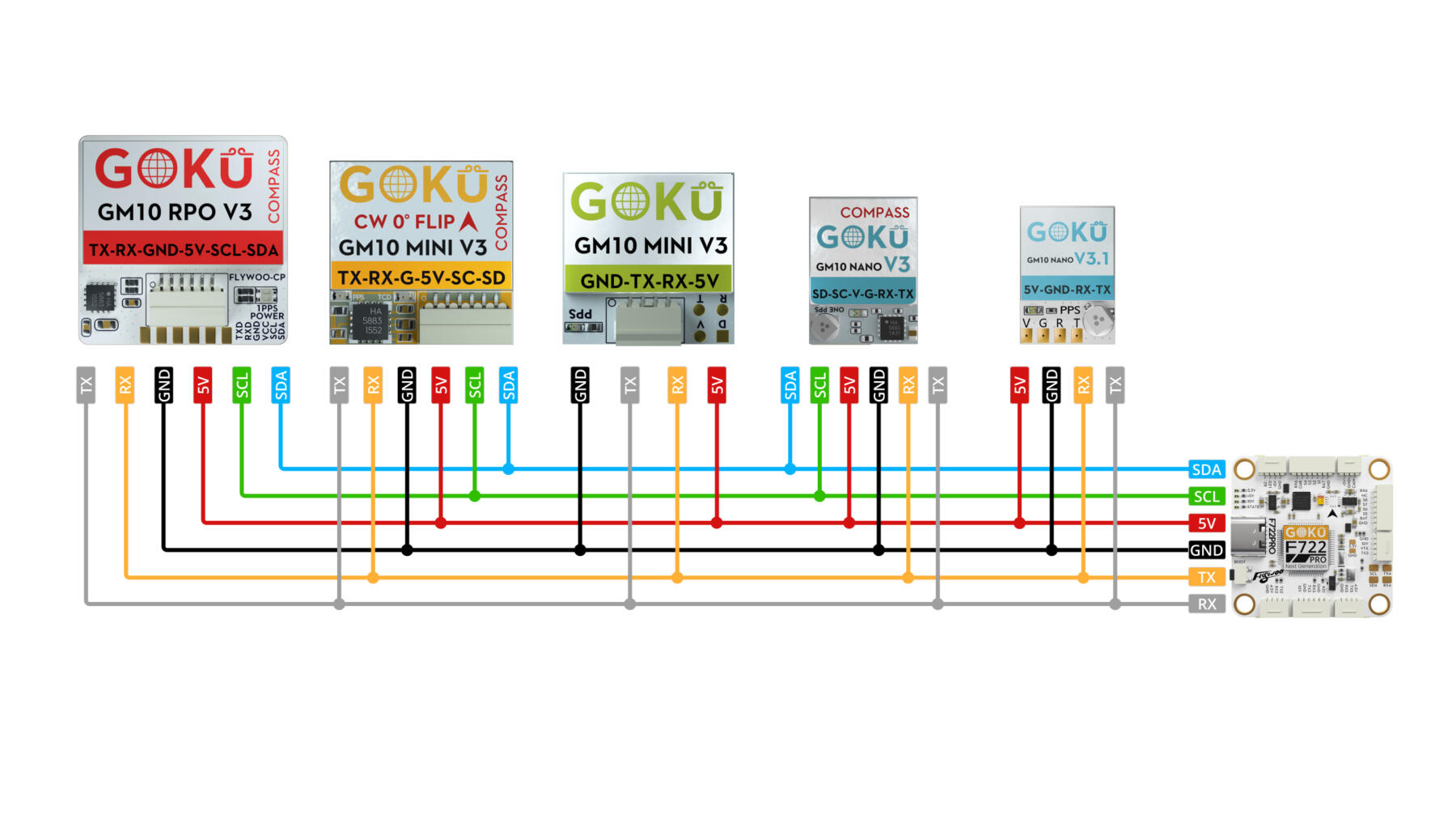

• Pinout: GND, TX, RX, 5V

What’s in the Box?

• 1x Flywoo GOKU GM10 MINI V3 GPS

• 1x 100mm Connection Cable

• 1x Copper Foil Shield
