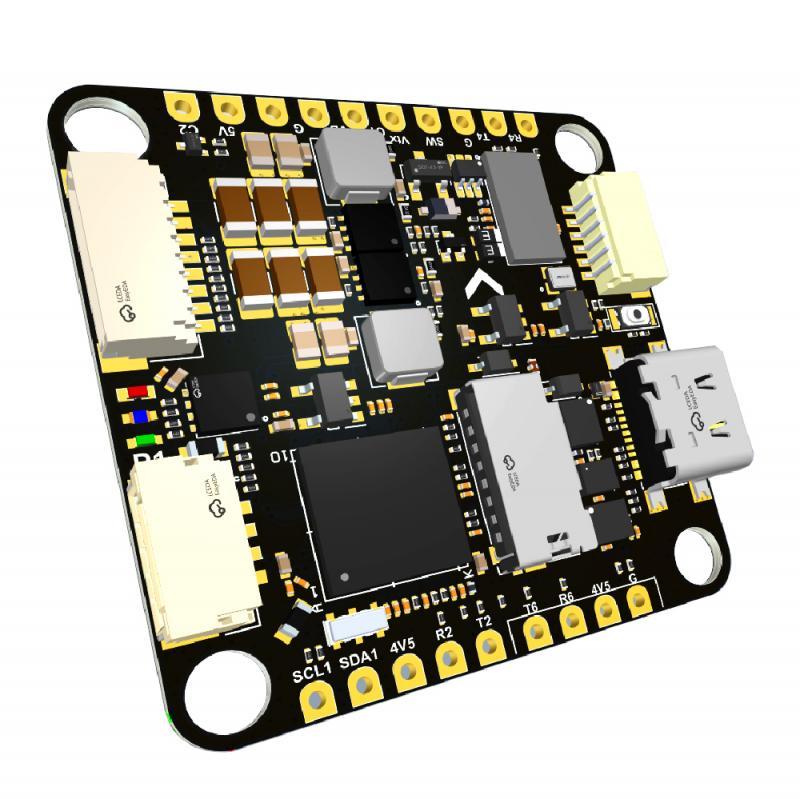

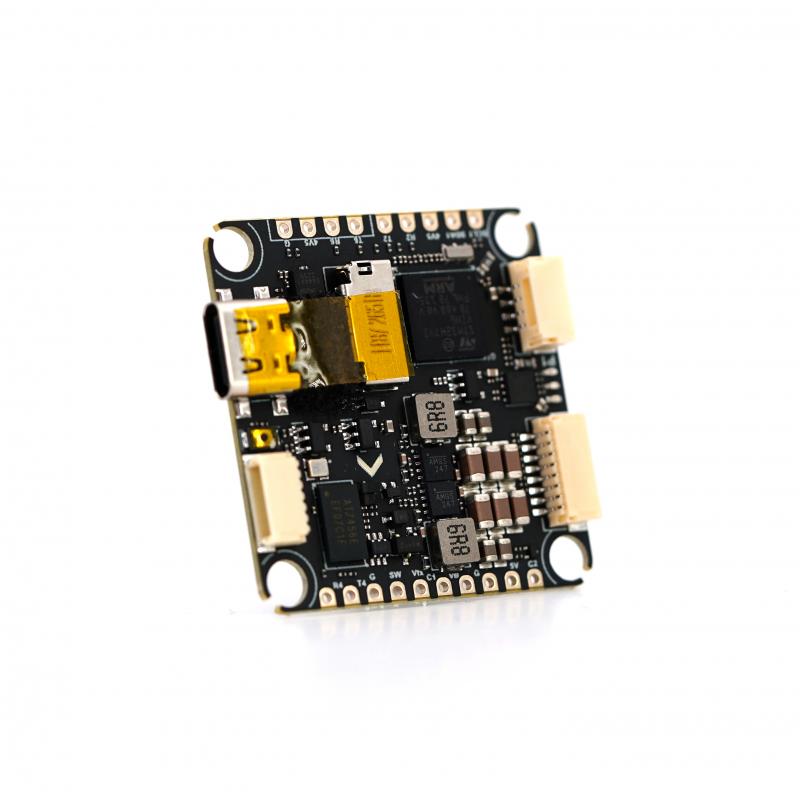

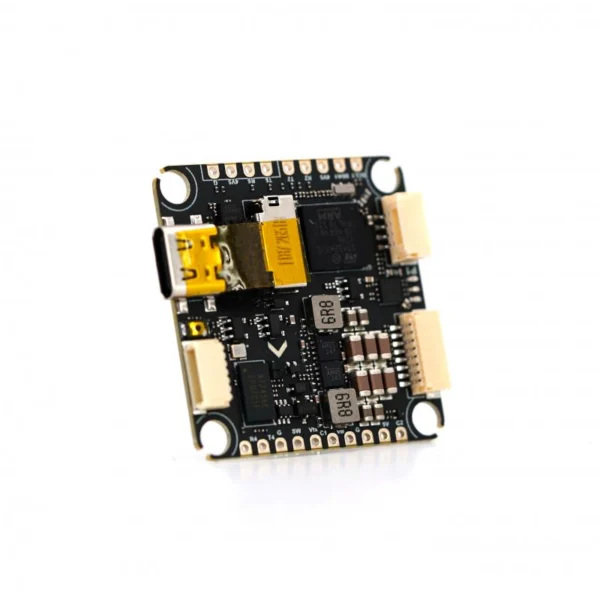

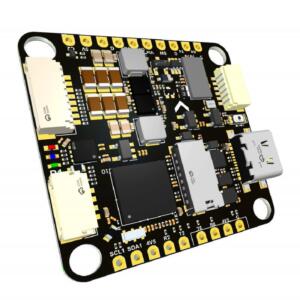

Lucid H7 FC
Please Check Out Our Other TBS Products!
The TBS Lucid H7 is a powerhouse flight controller built for seasoned enthusiasts who crave peak performance and ultimate adaptability in their FPV drones. Whether you’re building a high-performance freestyle quad, a complex cinematic octocopter, or a long-range fixed-wing, the Lucid H7 delivers. With its robust 480MHz H7 processor, dual-gyro system, and seamless support for Betaflight, ArduPilot, and INAV, this FC is the ultimate brain for any advanced build.
Flagship H7 Performance At the heart of the Lucid is a blazing-fast STM32H743 MCU running at , providing an incredible amount of processing power for the most demanding tasks. This is paired with a dual ICM42688 gyro system for exceptionally clean and accurate flight data, allowing you to run less filtering and achieve a more responsive, locked-in feel.
Unmatched Connectivity & Versatility This flight controller is a builder’s dream. It features an incredible 13 PWM outputs, making it capable of controlling octocopters and complex fixed-wing setups with ease. With 7 full UARTs, a CAN bus, and 2 I2C buses, you will never run out of ports for your peripherals. A standout feature is the dual camera input, allowing you to connect and switch between two FPV cameras in flight.
Multi-Firmware Support The Lucid H7 is a true chameleon, designed to run the best firmware for any mission. It has officially supported targets for:
- Betaflight: For the ultimate freestyle and racing experience.
- ArduPilot: For advanced autonomous missions and professional applications.
- INAV: For reliable, feature-rich fixed-wing and FPV drone navigation.
Key Features:
- Ultra-Fast H7 Processor: A 480MHz STM32H743 CPU provides incredible processing power for the lowest latency and most demanding features.
- Dual ICM42688 Gyros: A high-end, redundant gyro system delivers exceptionally clean and accurate flight data.
- 13 PWM Outputs: Unparalleled connectivity for octocopters, fixed-wings, and other complex multi-rotor configurations.
- Dual Camera Input: Connect and switch between two FPV cameras in-flight.
- Digital HD Ready: A dedicated 9V/2A BEC provides clean power for DJI and other digital FPV systems, with a plug-and-play O3 cable included.
- Full Firmware Support: Officially supported by Betaflight, ArduPilot, and INAV.
Specifications (Highlights)
- MCU: STM32H743 @
- Gyro: Dual ICM42688
- Barometer: DPS310
- Blackbox: MicroSD card slot
- Input Voltage: (2 to 8S LiPo)
- BEC: and
- UARTs: 7
- Motor/Servo Outputs: 13
- Mounting:

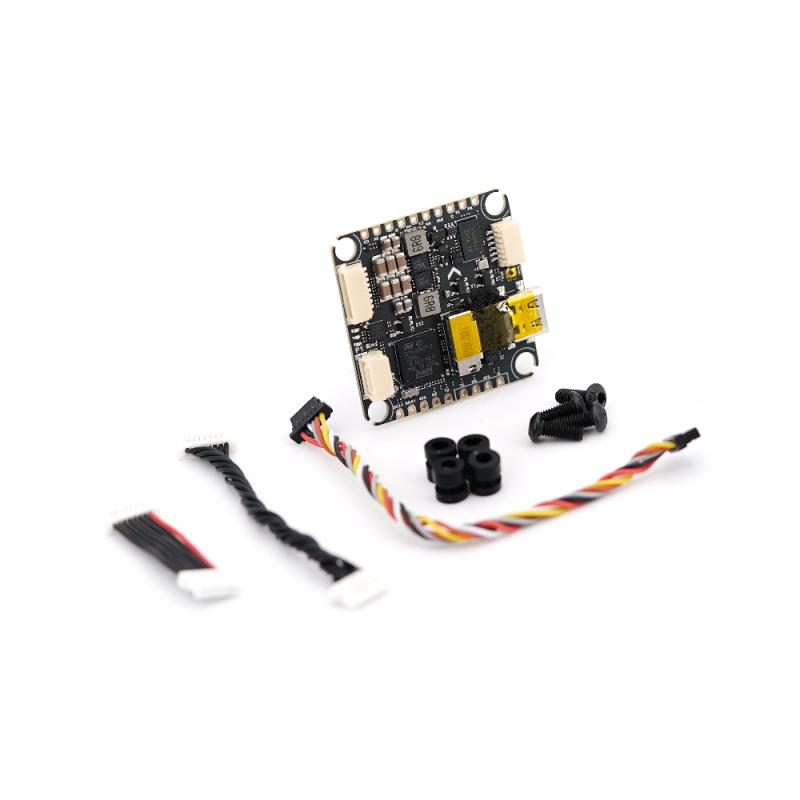

Includes
- 1x TBS Lucid H7 FC
- 1x FC-to-ESC cable (plug & play)
- 1x DJI O3 cable (plug & play)
- 4x M3 rubber dampers
- 4x M3x8 screws
