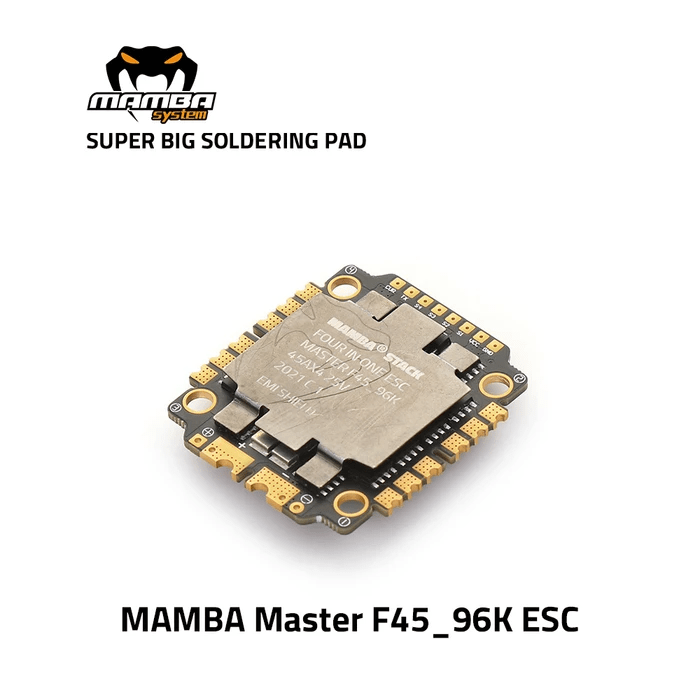

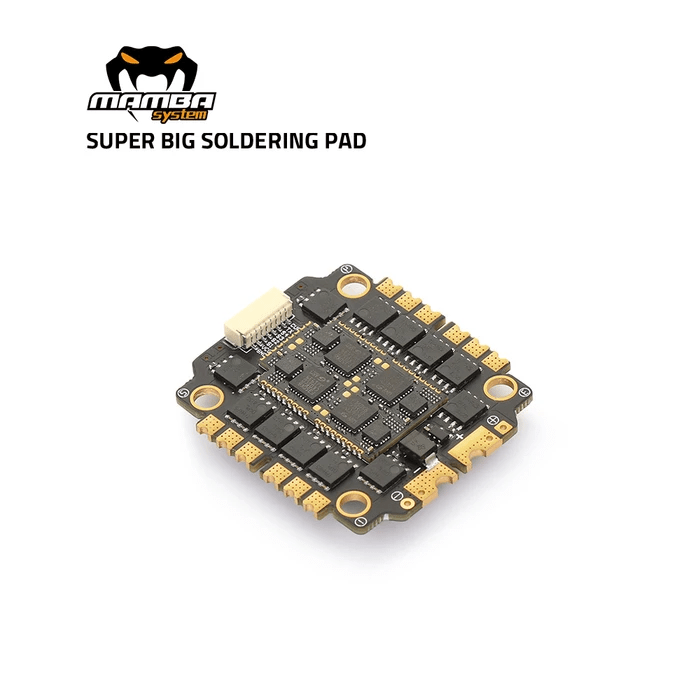

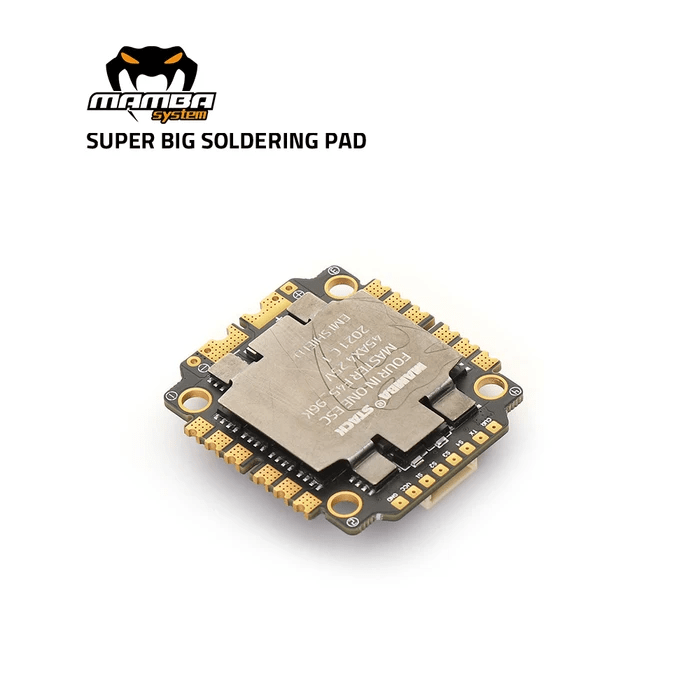

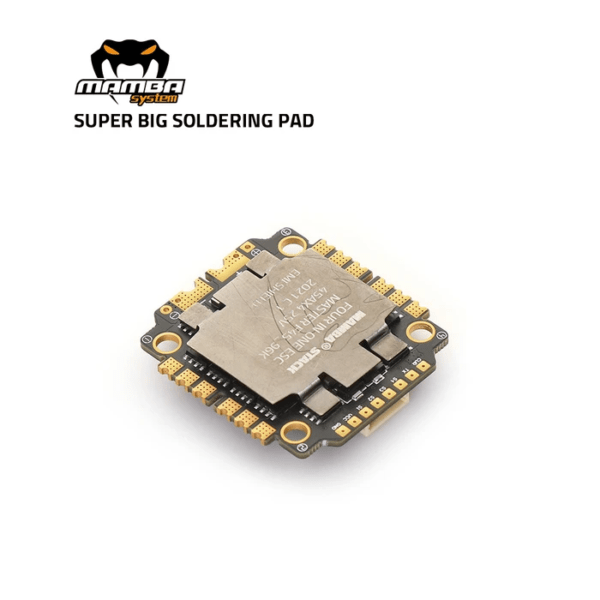

Diatone MAMBA MASTER F45_96K Dshot1200 4IN1 ESC 45A 6S

MASTER SERIES 96K ESC

• The most practical High-speed ESC
• F350 High-speed MCU 168MHz
• EMI Anti-interference isolation design
• 14oz Super-copper bigger current
• Japan Toshiba 40V/0.8mΩ rated mosfet

ESC Specification：

INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:45A×4
BURST CURRENT:55A (10S)
BEC: No
Target：BLHeli_32 Master F45_96K
SOFT: Dshot300/600/1200
PWM:48~96K
TVS Protection: Yes
MOUNTING: 30.5mm/M3

Supply:

8pin sh1.0 ×2
AMASS Original XT60
High-Frequency 470uF/35V
