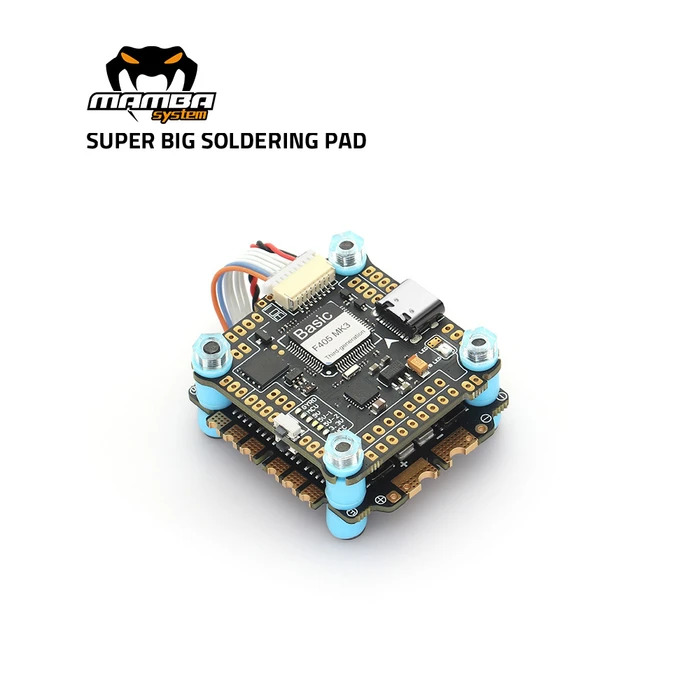

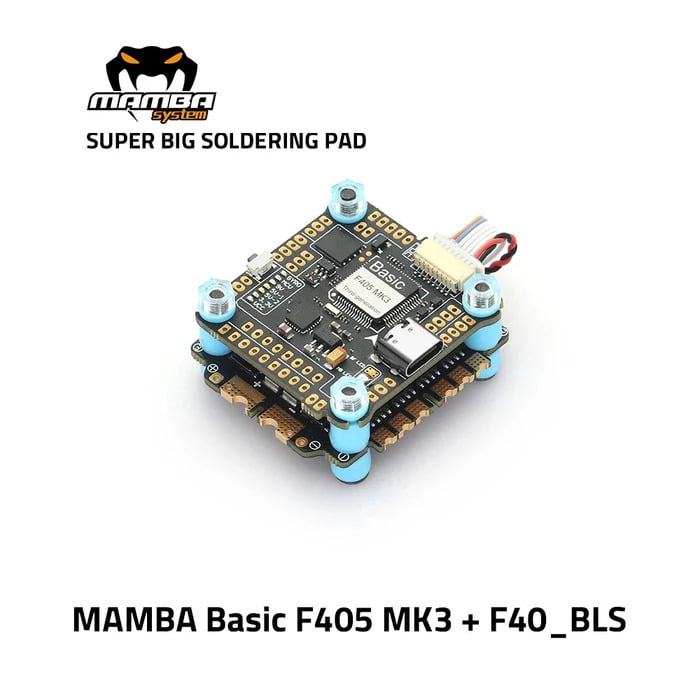

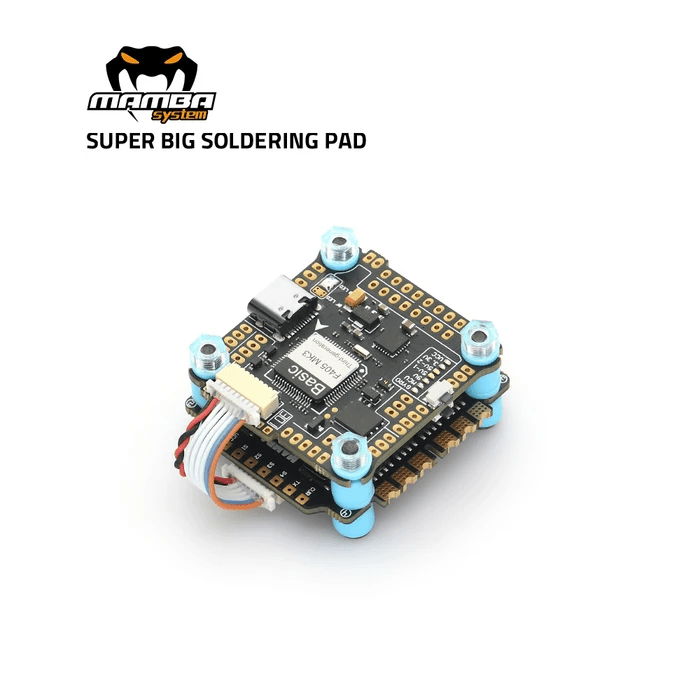

Diatone MAMBA Basic F405 MK3 40A 6S 8bit Flight Controller Stack
FC Specifications
- MAMBA Basic F405MK3
- MCU: 168MHz STM32F405RGT6
- GYRO: MPU6000
- Barometer: Yes
- OSD: Yes
- Blackbox: 16M Flash Memory
- Uarts: 6Set
- ESC Soft: Dshot300/600/1200
- ESC Telemetry: Yes
- Power Led: Yes
- LED Controller:BF LED/MB LED(4 Set 2812 LED)
- F.Port: Yes
- RSSI: Yes
- Buzz: Yes
- Input: 3~6S Lipo (12.6~25.2V)
- TVS Protection: Yes
- BEC:3.3V 0.5A& 5V 3A (System Power)&
- 5V 3A(LED)& 9V 3A
- MOUNTING: 30.5mm,M3
ESC Specifications
- MAMBA F40 BLS
- INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
- CONTINUE CURRENT:40A×4
- BURST CURRENT:50A (10S)
- BEC: No
- Target:BLHeli_S CH40
- SOFT: Dshot300/600
- TVS Protection: Yes
- MOUNTING: 30.5mm/M3
Supply :
- High-Frequency 470uF/35V ×1
- 8pin sh1.0 ×2
- 12AWG 100mm ×2
- AMASS Original XT60
