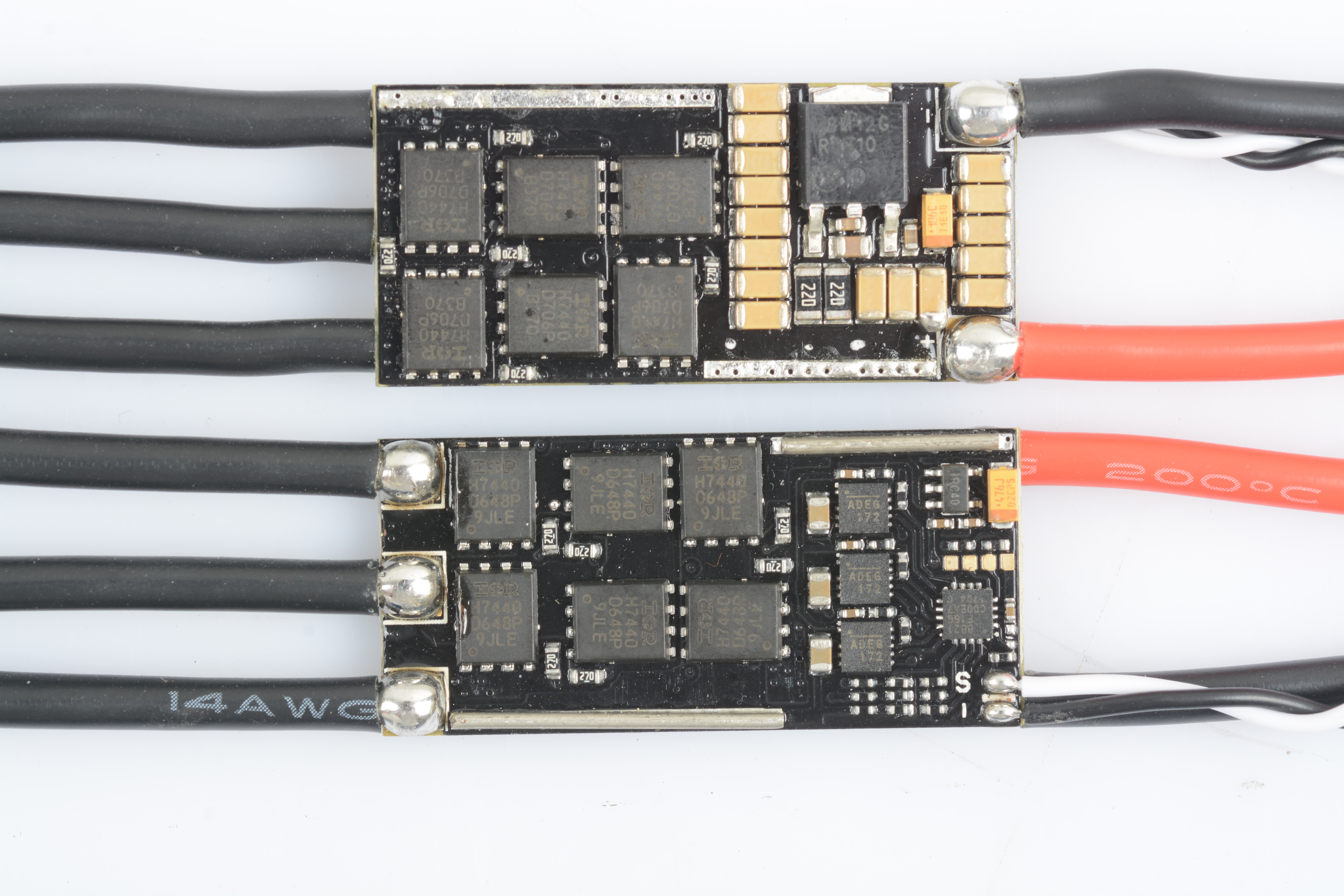

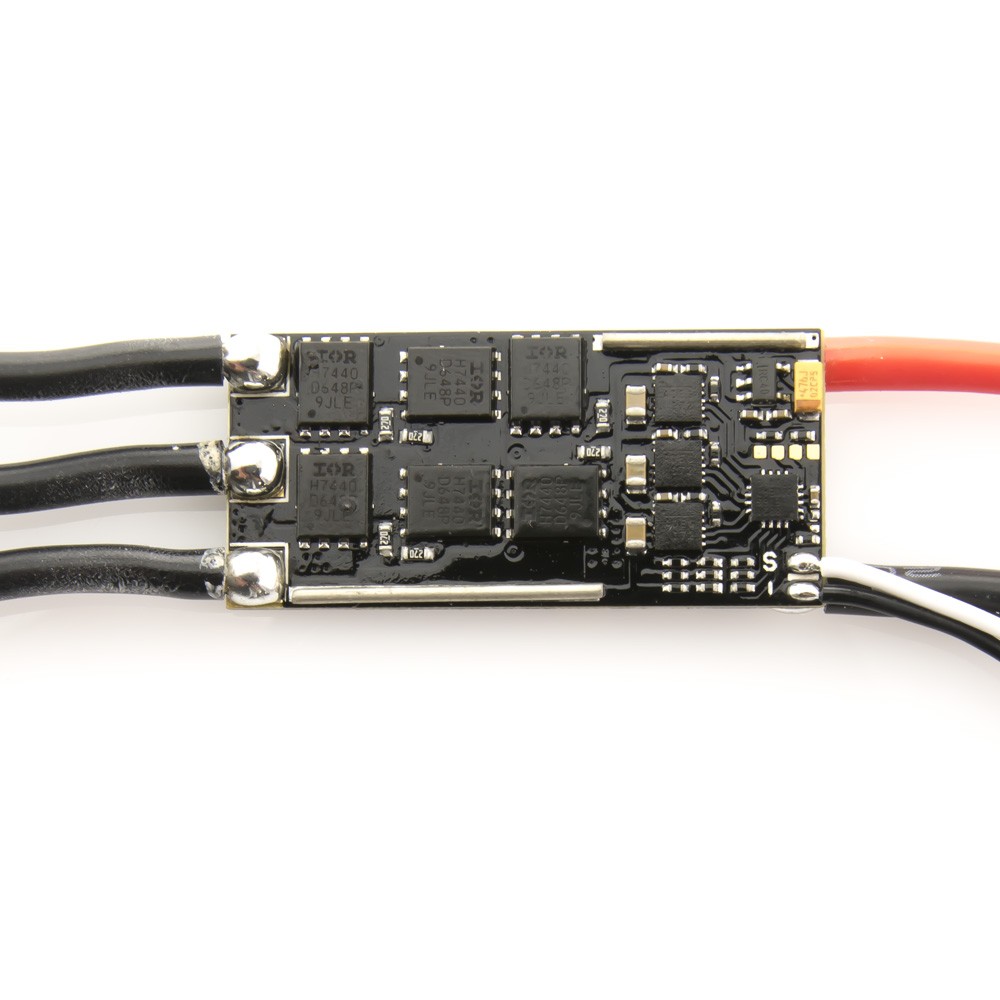

Aikon SEFM 45A BLHeli_S HV ESC (2-6s)
The Aikon SEFM 45A 6S is a new generation ESC that uses a variety of bleeding edge technologies in hardware and firmware. Working closely with BLHELI, these ESCs from Aikon are at the top of the sport as far as performance and reliability.
Features
- Totally new MCU that comes with a three channel PMW output specifically designed for motor control applications and runs at 48mhz.
- New BLHELI_S firmware which provides all the strengths of the original BLHELI, but adds some significant improvements such as better response and smoother start up, 1000 steps of throttle input resolution, and auto-detection of the input signal protocol.
- Higher quality MOSFETs with extremely low internal resistance
- Three exceptionally fast dedicated MOSFET drivers
- Extra capacitance to help remove EMF spikes and keep the rest of your equipment safe.
Specification
- Battery: 2-6s
- Constant Current: 45A
- Burst Current: 60A
- Size: 18*35mm
- Firmware: Blheli_S C_H_40
- MCU: 8BB21
- Bootloader: Yes
- Weight( with/wire): 14g
- Signal wire length: 150mm
- Battery wire length: 100mm
Includes
- 1x SEFM 45A BLHeli_S HV ESC (2-6s)
