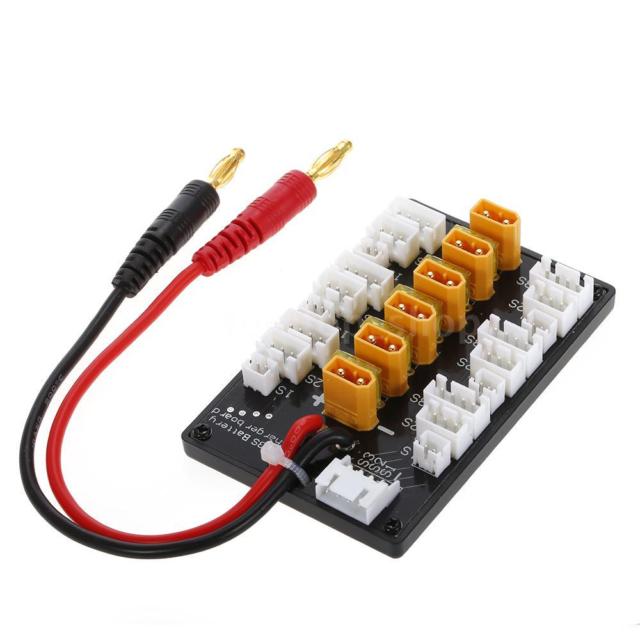

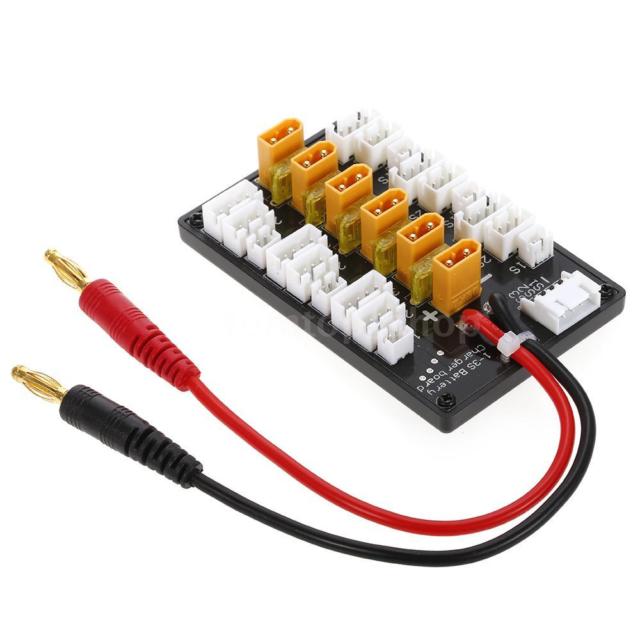

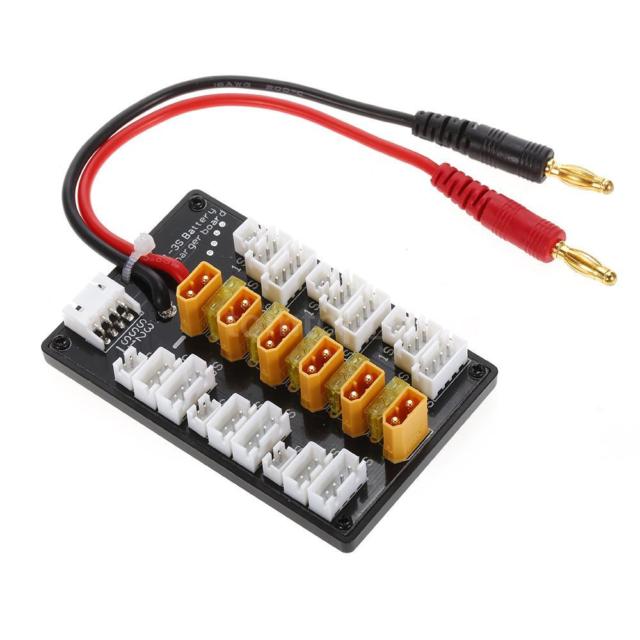

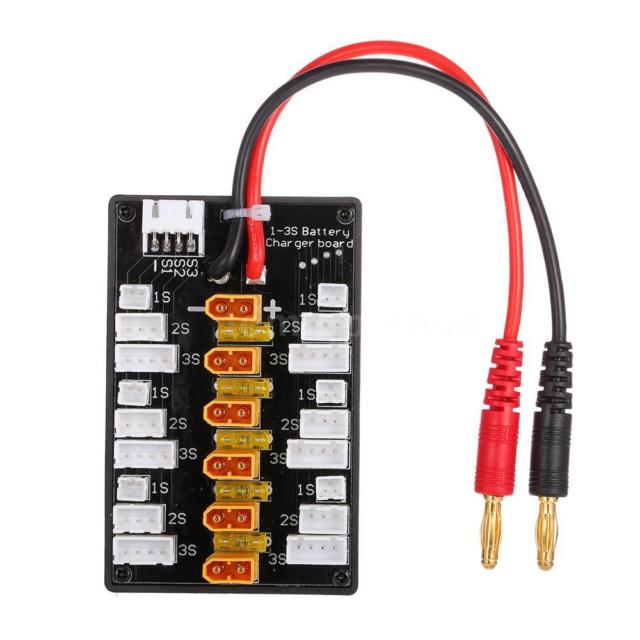

XT30 Plug Li-Po Battery Parallel Charging Board with Cable Adapters
Check out all of our Parallel Charging Boards!
Charge up to six batteries at once and spend more time flying with this XT30 Parallel Charging Board. This is an essential time-saving tool for any FPV pilot with a fleet of micro drones. It allows you to safely charge multiple 1S, 2S, or 3S LiPo batteries simultaneously, and even includes JST adapters for ultimate versatility.
Charge Faster, Fly More. Stop charging your small batteries one at a time! This parallel board allows you to connect up to six packs to your hobby-grade charger at once, dramatically reducing the time spent waiting for a full charge. It’s the perfect way to get all your batteries for your whoop or toothpick ready for a full session of flying.
Versatile for Your Whole Micro Fleet. This board features six native XT30 ports, perfect for your high-performance micro drone batteries. For even more flexibility, the kit includes six XT30 to JST adapter cables, allowing you to charge your smaller whoop or micro airplane batteries that use the red JST connector, all on the same board.
IMPORTANT: Parallel Charging Safety Parallel charging is a powerful tool, but it must be done correctly to be safe. We strongly recommend you watch a few videos on how to parallel charge safely before using this board. The fundamental rules are:
- NEVER mix batteries of different cell counts (e.g., do not connect a 2S and a 3S battery at the same time).
- All batteries connected to the board MUST be at a very similar voltage (within per cell of each other).
- Always supervise the charging process and use a fireproof bag or container.
Key Features:
- Charge 6 Packs at Once: Dramatically reduces the time needed to charge multiple micro LiPo batteries.
- XT30 & JST Compatible: Features six native XT30 ports and includes six XT30-to-JST adapter cables.
- 1S-3S Support: Designed specifically for the most common battery sizes used in micro FPV drones.

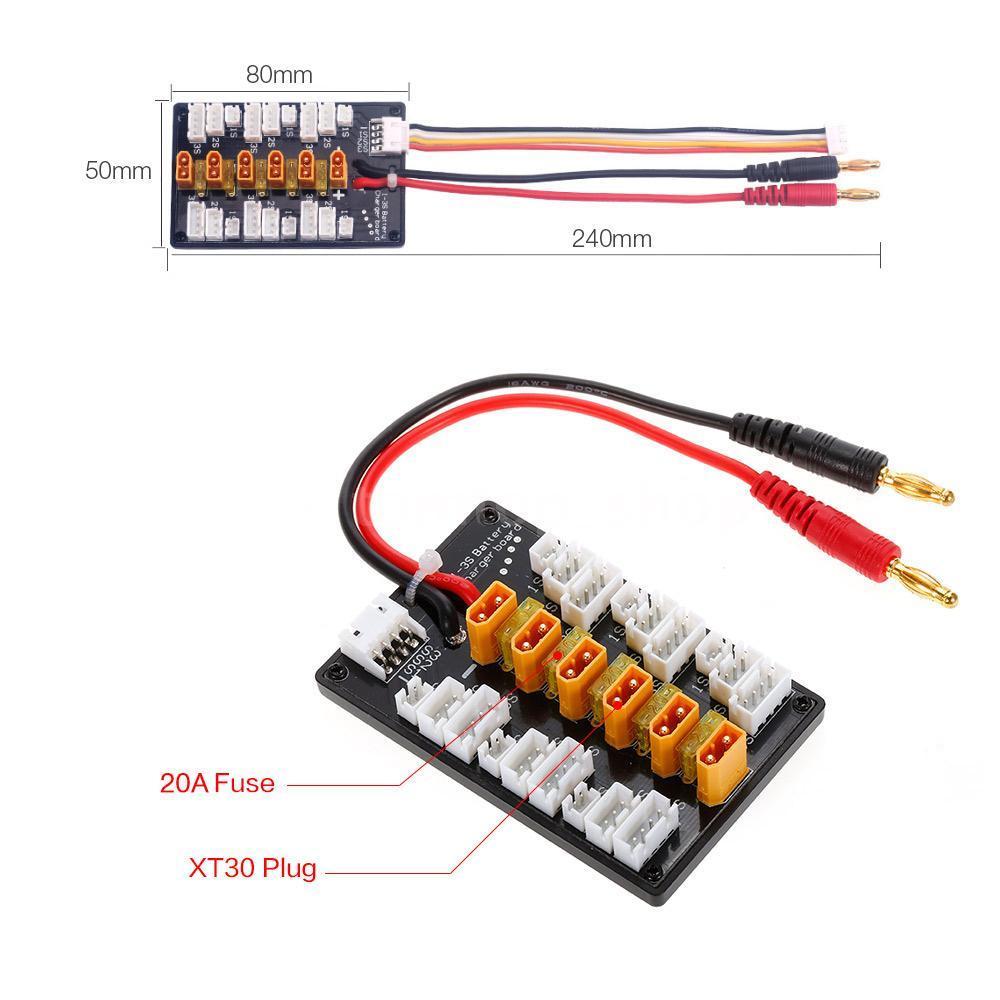

- Built-in Safety: Equipped with 20A fuses between battery groups to protect against large voltage differences.
- High-Quality Construction: Uses a thick copper PCB and 18AWG silicone balance leads for reliable performance.
Specifications:
- Plug: XT30 Plug
- Bonus Connector Cable: XT30 to JST Cable
- Balance Output Cable: 18AWG silicon cable
- Current: Supports a maximum charge current
- Compatibility: Up to 6 packs of XT30 or JST 1S, 2S, or 3S batteries

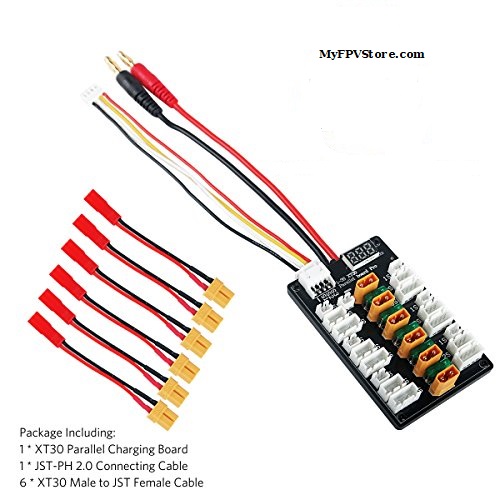

Includes:
- 1 x XT30 Parallel Charging Board with Banana Plug Connectors

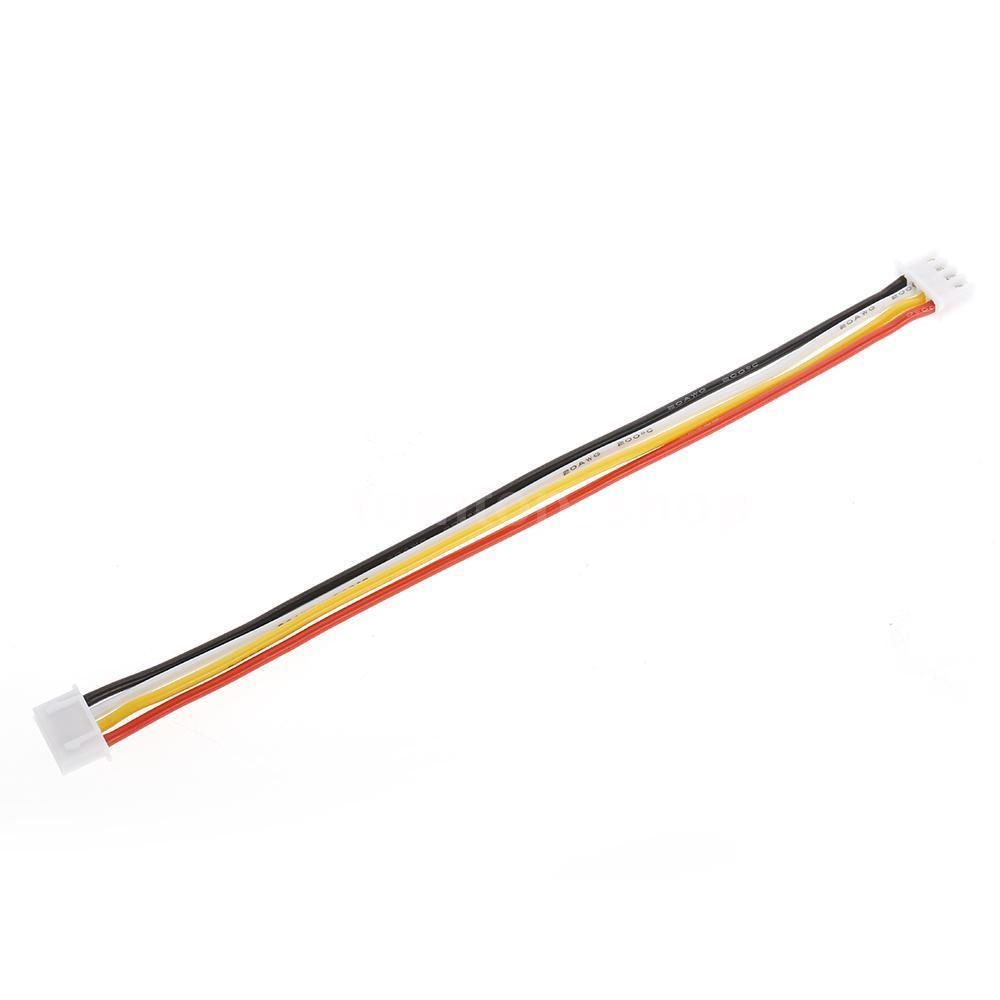

- 1 x Balance Lead Connector Cable
- 6 x XT30 to JST Adapter Cables
