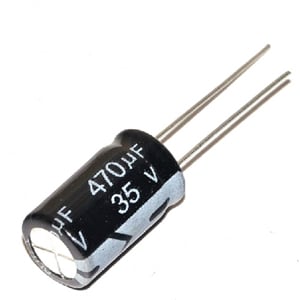

470UF 35V LOW ESR CAPACITOR by Chenxing
Check out all of our Capacitor options!
Stop video noise and voltage spikes from ruining your flight! The Chenxing 470uF 35V Low ESR Capacitor is one of the most essential electronic drone parts for any modern FPV drone build. It’s designed to clean up dirty power, protect your sensitive electronics, and provide reliable performance at an unbeatable value. Adding a capacitor is a critical step for achieving a clean video feed and ensuring the longevity of your components.
Eliminate Video Noise & Protect Your Gear
Powerful motors and ESCs generate electrical noise, which can cause distracting lines in your FPV feed and potentially damage your flight controller or VTX. By soldering this high-quality, low ESR capacitor to your ESC’s main battery pads, you effectively filter out this noise and absorb harmful back-EMF voltage spikes.
The result is a cleaner, more stable video signal and critical protection for your FPV drone’s electronics.
Reliable 6S Performance
With a robust 35V rating, this capacitor provides a safe operating margin for demanding FPV drone builds, especially those running up to 6S LiPo batteries. The 470uF capacitance offers excellent filtering for modern, power-hungry setups, while the Low ESR (30 mOhms) ensures it can react instantly to filter out high-frequency noise. It’s a small drone part that makes a huge difference in performance and reliability.
Specifications:
- Brand: Chenxing
- Capacitance: 470uF
- Voltage Rating: 35V DC
- ESR: 30 mOhms
- Tolerance: 20 %
- Life: 9000 Hours
- Dimensions: 8mm (Diameter) x 20mm (Height)
- Lead Spacing: 3.5 mm
- Operating Temperature: -40°C to +105°C
What’s in the Box?
- 1x Chenxing 470uF 35V Low ESR Capacitor
