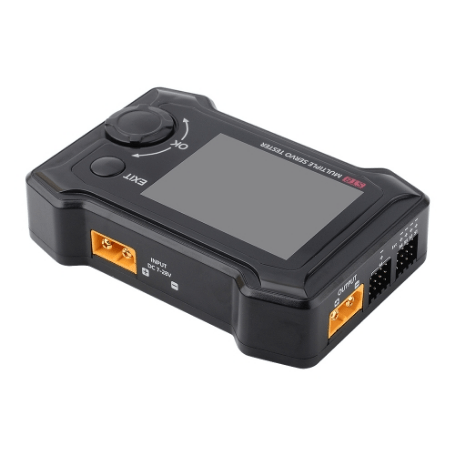

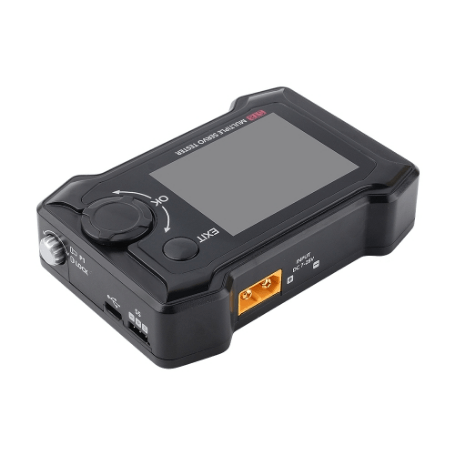

ToolKitRC – ST8 Advanced Servo tester
See all of our ToolkitRC Products!
Elevate your workbench with the ToolKitRC ST8, a powerful and versatile diagnostic tool for any RC and FPV drone enthusiast. Much more than a simple servo tester, the ST8 is a multi-function device that combines a servo tester, signal generator, and an adjustable power supply into one compact unit. With its clear color display and robust outputs, it’s an essential piece of equipment for building, testing, and troubleshooting your FPV drone kit or other RC models.
Advanced Servo Testing & Analysis
Precisely test and configure your servos with unparalleled control. The ST8 allows you to check servo travel, speed, and centering with extreme accuracy. It can output a wide range of signals (100us-2900us) at high frequencies (33-1000Hz), making it compatible with all types of servos, from micro analog servos to high-speed digital servos used in advanced builds.
Powerful, Adjustable Power Supply
One of the ST8’s standout features is its powerful, variable voltage main output. Capable of delivering up to 10A at 5.0V to 28.0V, it can function as a benchtop power supply for your drone parts. Use it to safely power up and test your FPV drone’s video system, receivers, or other components without needing to connect a LiPo battery.
Versatile Signal Generation
The ST8 is also an invaluable tool for setting up and diagnosing flight controllers. It can generate PWM, PPM (up to 8 channels), and SBUS (up to 16 channels) signals, allowing you to test a flight controller’s inputs before a radio receiver is even installed. This makes it easier to verify your Betaflight configuration and troubleshoot issues with your FPV drone.
Specifications
- Input Voltage: 7.0V – 28.0V (Supports 2S-6S+ LiPo)
- Main Output Port (Power): 5.0V-28.0V @ Max 10A
- Signal Port (Power): 5.0V-8.4V @ Max 4A
- Output Signal Types: PWM, PPM, SBUS
- Servo Signal Range: 100us – 2900us @ 33-1000Hz

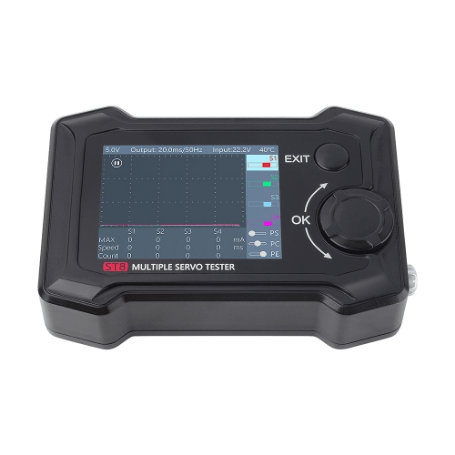

- Display: 2.4 inch TFT RGB (320×240 resolution)
- USB Port: Micro USB for firmware upgrades
- Weight: 140g

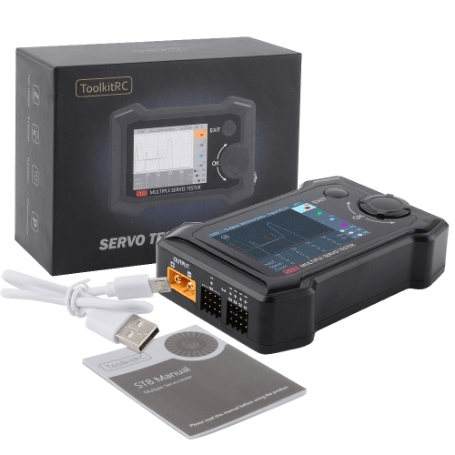

What’s in the Box?
- 1x ToolKitRC ST8 Advanced Servo Tester
- 1x USB Cable
- 1x User Manual
